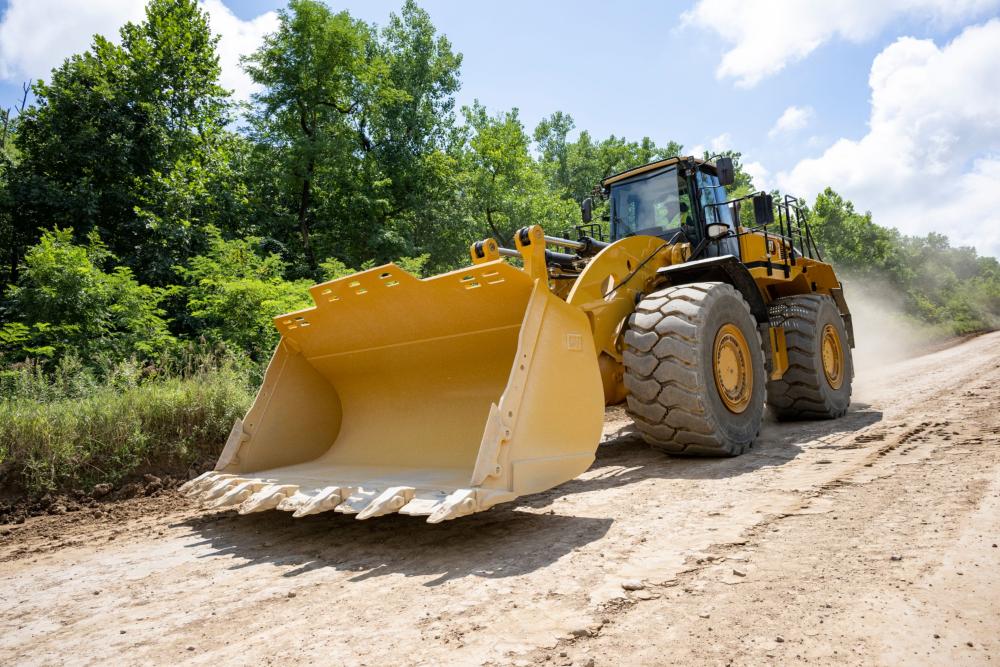

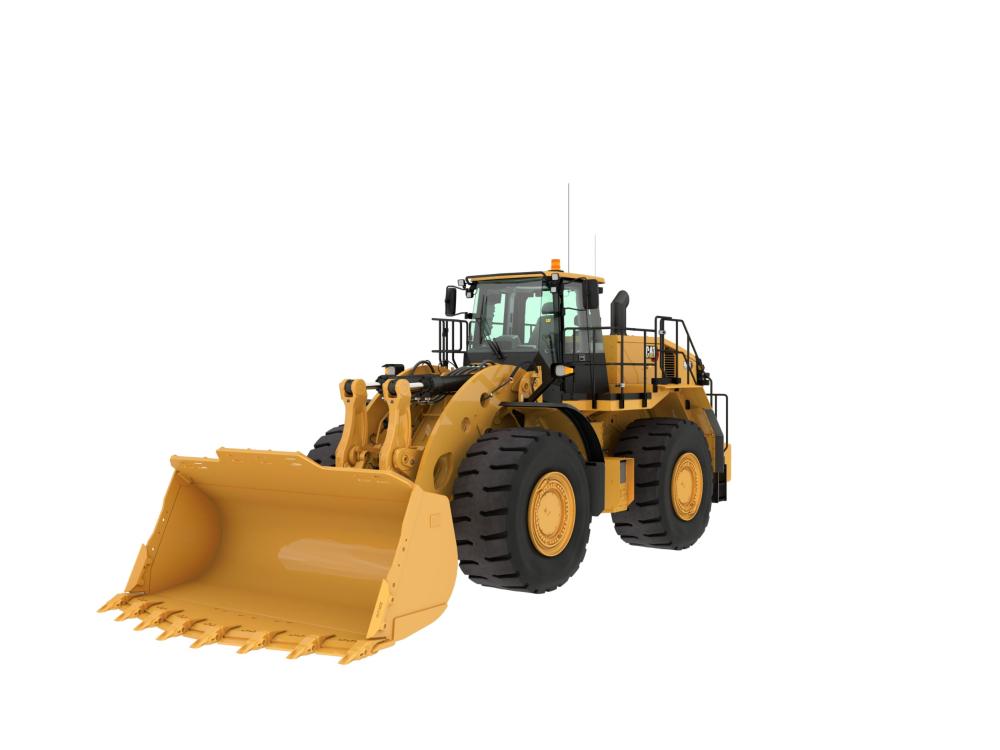

986 Wheel Loader
Caterpillar
Metric
Imperial
Engine Model
C15 Cat®
Peak Power Speed
1600
Peak Power Speed - Gross - SAE J1995
340 kW
456 hp
Availability
Cat® Large Wheel Loaders are designed with durability built in, ensuring maximum availability through multiple life cycles. With optimized performance and simplified serviceability, our machines allow you to move more material efficiently and safely at a lower cost per ton. The 986 builds upon this legacy of durability, performance, safety, operator comfort, serviceability and sustainability.
UP TO 10% BETTER FUEL EFFICIENCY
Equipped with a combination of proven components and technologies, meeting expectations for excellent productivity, fuel efficiency, reliability, and service lifeUP TO 10% LOWER MAINTENANCE COST
Make regular maintenance more convenient with grouped service pointsUP TO 20% REDUCED FUEL CONSUMPTION
Move more using less fuel with best in class efficiency while in moderate production truck loading modeUP TO 19% LESS CO2 EMISSIONS
The 986 emits up to 19% less CO2 than the previous 988K.

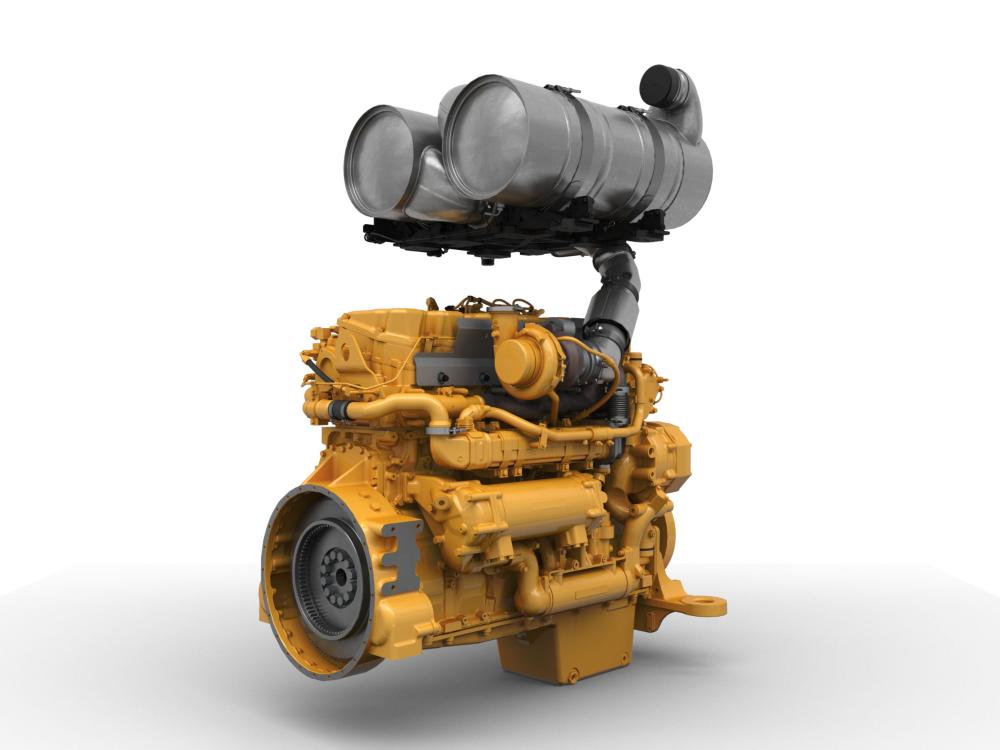

- The highly responsive Cat C15 engine is built and tested for maximum performance.
- Mechanically actuated Electronic Unit Injection (MEUI™) fuel system and ADEM™ A5 electronic control module manage fuel delivery for optimum performance and quick engine response.
- Available in aggregate handler configuration with 14-ton payload.
- System match efficiency up to 60-ton rigid-frame trucks.

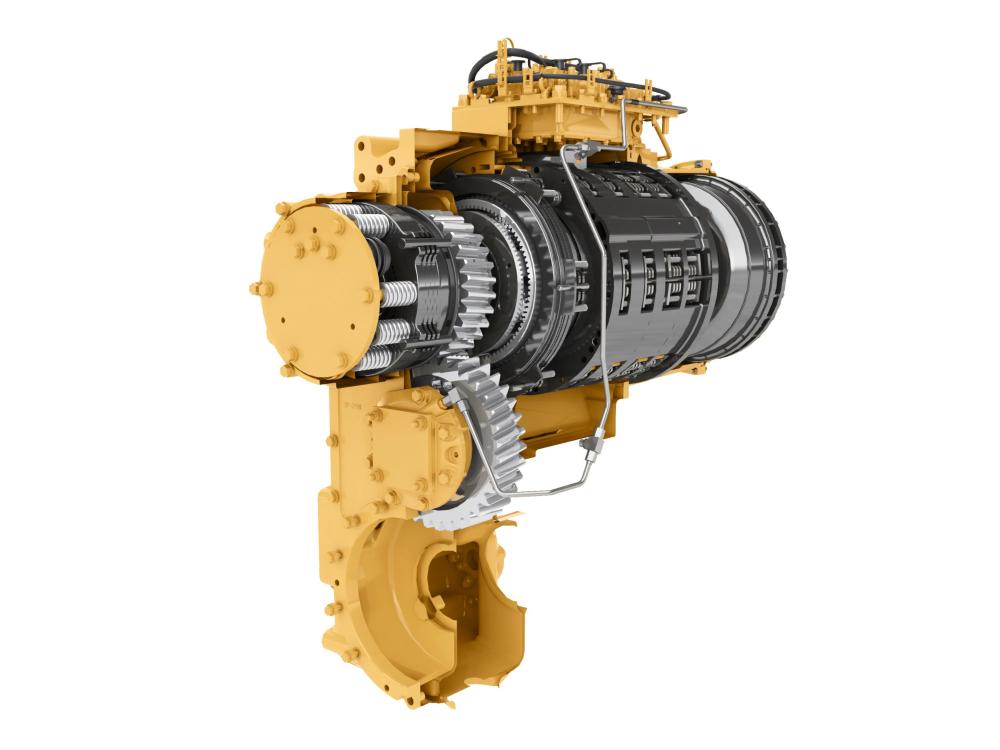

- Best-in-class transmission for long life and consistent, smooth shifting; specifically designed for mining applications.
- Moves material more efficiently with improved power and control.
- Durable construction withstands the toughest loading conditions and multiple life cycles.
- Transmission neutralizer pedal extends service brake life and allows full power during stationary loading.
- Load sense hydraulics maximize performance, lower heat and fuel consumption.
- Advanced filtration system for extended performance and reliability of the hydraulic system.
- Up to 10% more payload per pass, higher efficiency, and improved pass match.

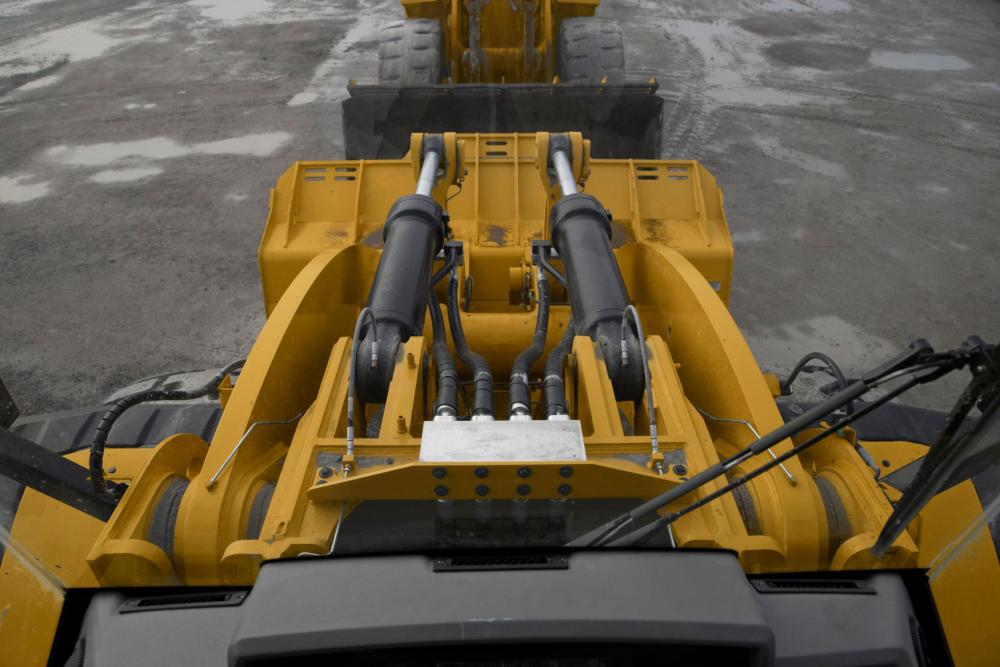

- Field-proven lift arms for enhanced strength, uptime, and excellent visibility.
- Load-sensing hydraulic steering with 35-degree articulation for precise positioning.
- Maximum responsiveness with Steering and Integrated Control (STIC™), combining directional, gear, and steering controls in a single joystick.
- Most advanced payload weight measuring system available.
- Performance Buckets for superior digging, higher bucket fill factors, and reduced dig times.
- Cat Advansys™ ground engaging tools (GET) protect components and reduce operating costs.
- Excellent visibility to the bucket edges and work area.
- Convenient, responsive, electro-hydraulic controls increase operator productivity.

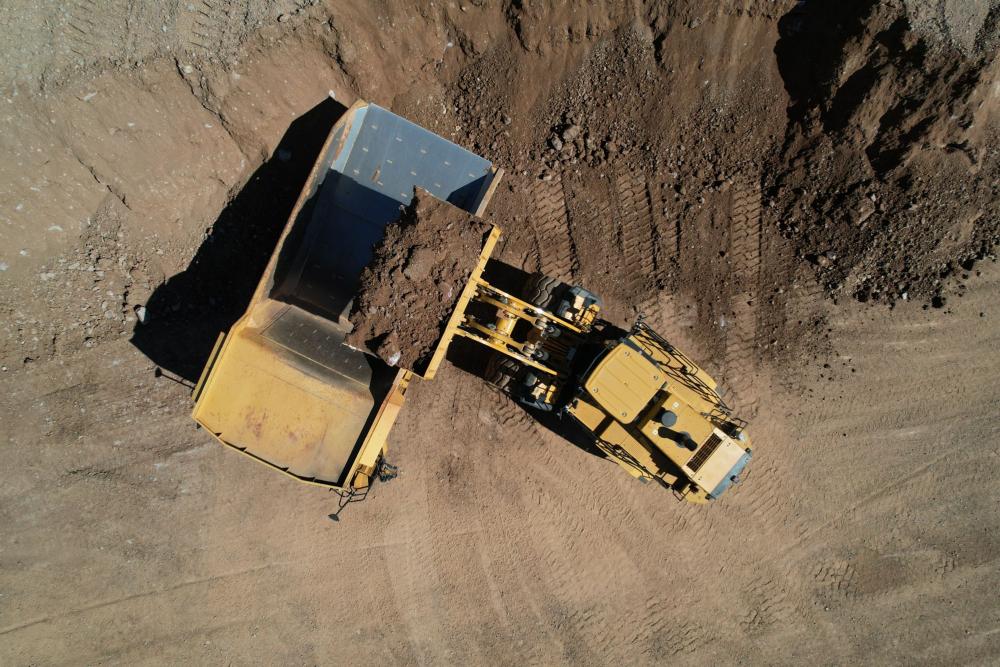

- Best-in-class efficiency while truck loading.
- Torque converter with lock-up clutch improves travel speed, cycle times.
- Engine Idle Shutdown saves fuel from unnecessary idling. Move up to 10% more material per gallon of fuel.
- Consistent performance and efficiency with lower system heat.
- Developed to monitor, manage, and enhance your jobsite operations.
- Payload provides accurate weighing* of the materials you are loading and hauling. Payload data is displayed in real-time to improve productivity and reduce overloading.

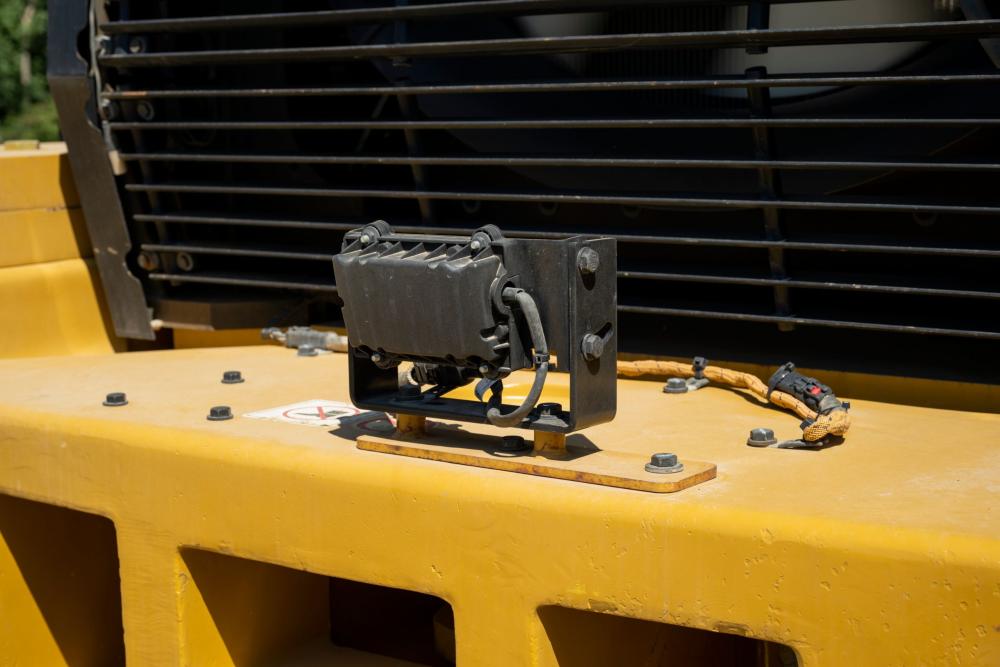

- Detect enhances awareness of the environment around working equipment and provides alerts to help keep people and assets safe on the jobsite.
- VisionLink® wirelessly connects you to your equipment, giving you access to essential information you need to know to run your business.
- Gain valuable insight into how your machine or fleet is performing.
- Optional Advanced Productivity subscription provides comprehensive actionable information to help you manage and improve the productivity and profitability of your operations.
*Not legal for trade

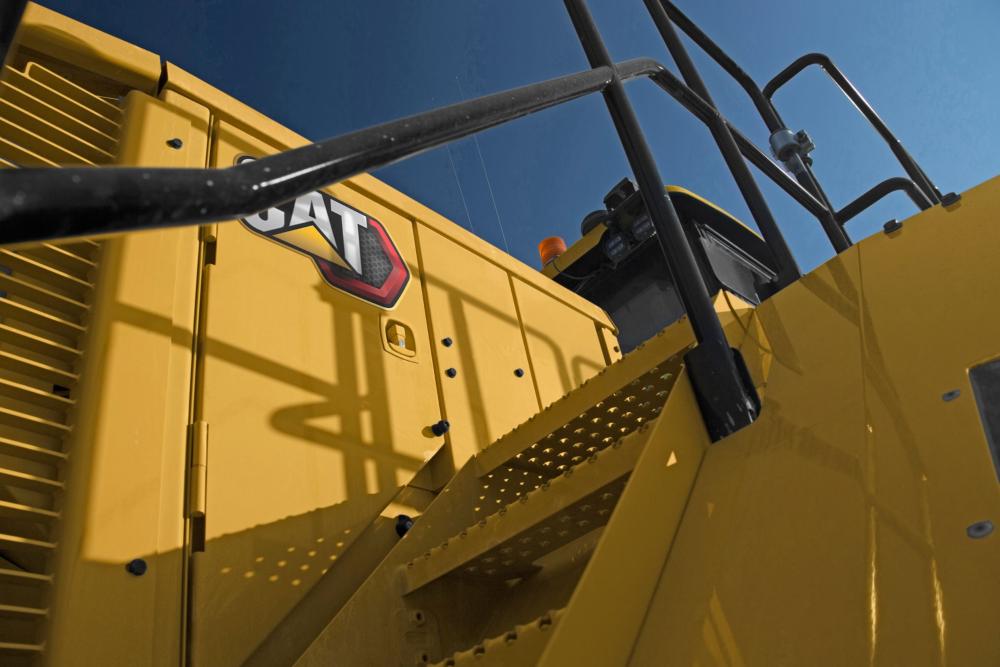

- Standard stairway lighting.
- Left- and right-hand stairs with 45-degree angle.
- Rear vision camera system.
- Large front and side windows.
- Pressurized cabin with filtered and reduced sound levels.
- Up to 10% lower maintenance costs.
- Advanced filtration system for extended performance.
- Extended service intervals for fluids and filters.
- Ground level or platform access to transmission control valves.
- Grouped service points.
- Centralized, ground level grease points and remote pressure taps.
- Ground electrical service center.
- Reduced waste with maintenance-free or extended-maintenance batteries.
- Swing-out engine compartment service doors.
- Tire pressure monitoring to enhance tire life.
- Longer life, rebuildability, and high resale value.

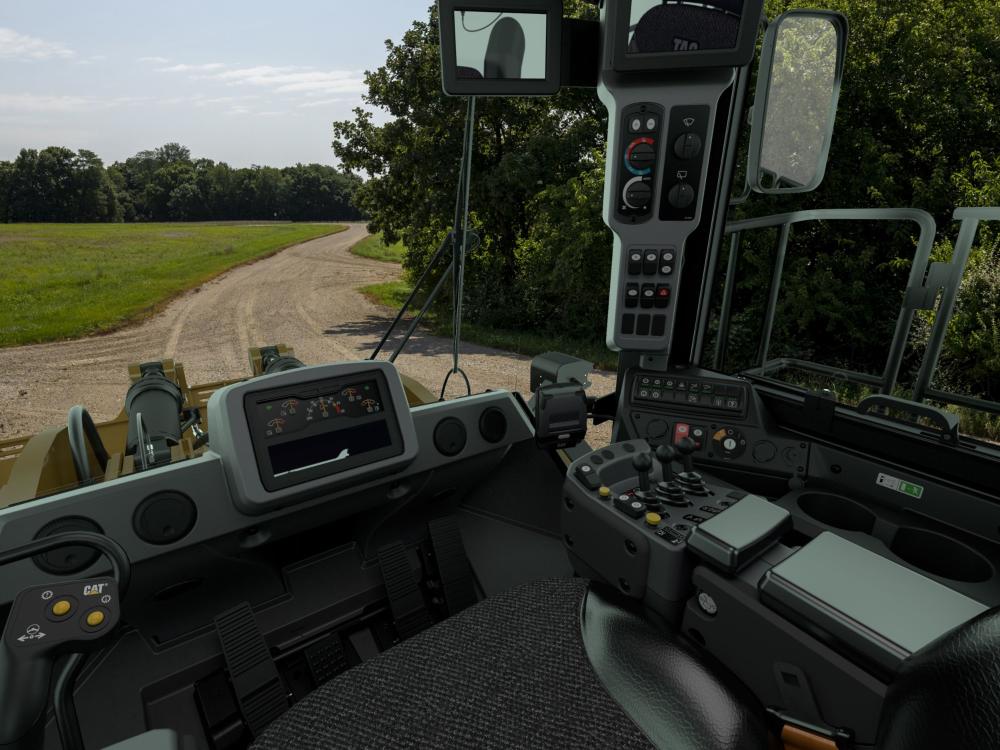

- Electro-hydraulic controls.
- Best-in-class operator comfort and ergonomics.
- Integrated steering and transmission controls.
- Convenient, automatic, inside-the-cab implement kickouts.
- Easy-to-use soft detent controls.
- Comfort Series III seats with extra thick, contoured cushions.
- Air suspension system.
- Easy-to-reach levers and controls with six-way adjustment.
- Seat-mounted implement pod with STIC steering.
- Ergonomic switch placement and displays with large backlit switches and LED indicators.
- Two-position rocker switch activates the electro-hydraulic parking brake.
- Automatic cab temperature controls.
- Precise machine control by load-sensing hydraulic steering system.
- Fold-up STIC steer/armrest.

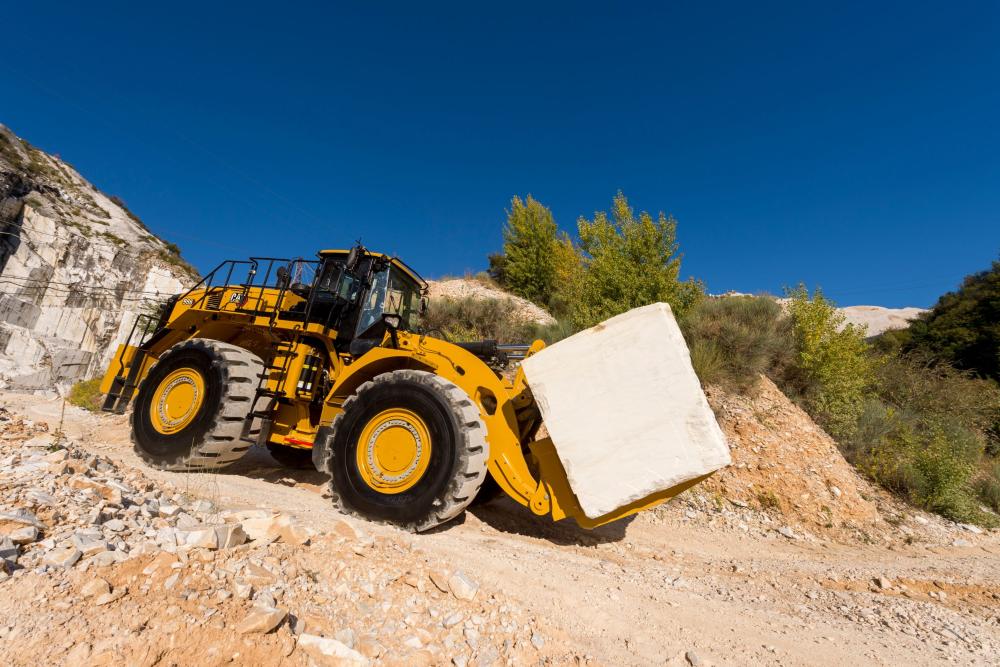

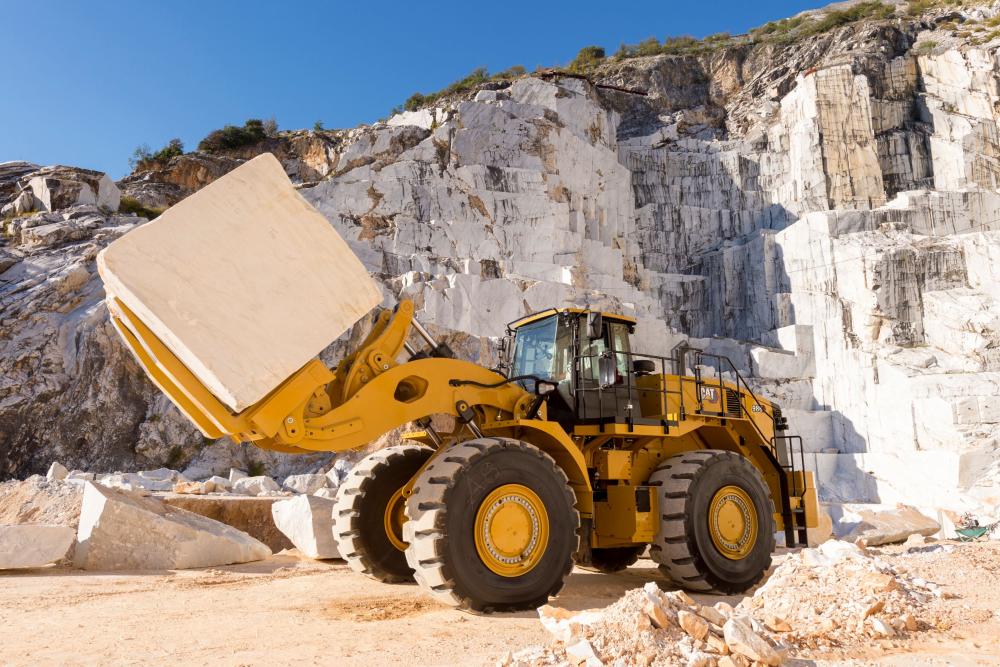

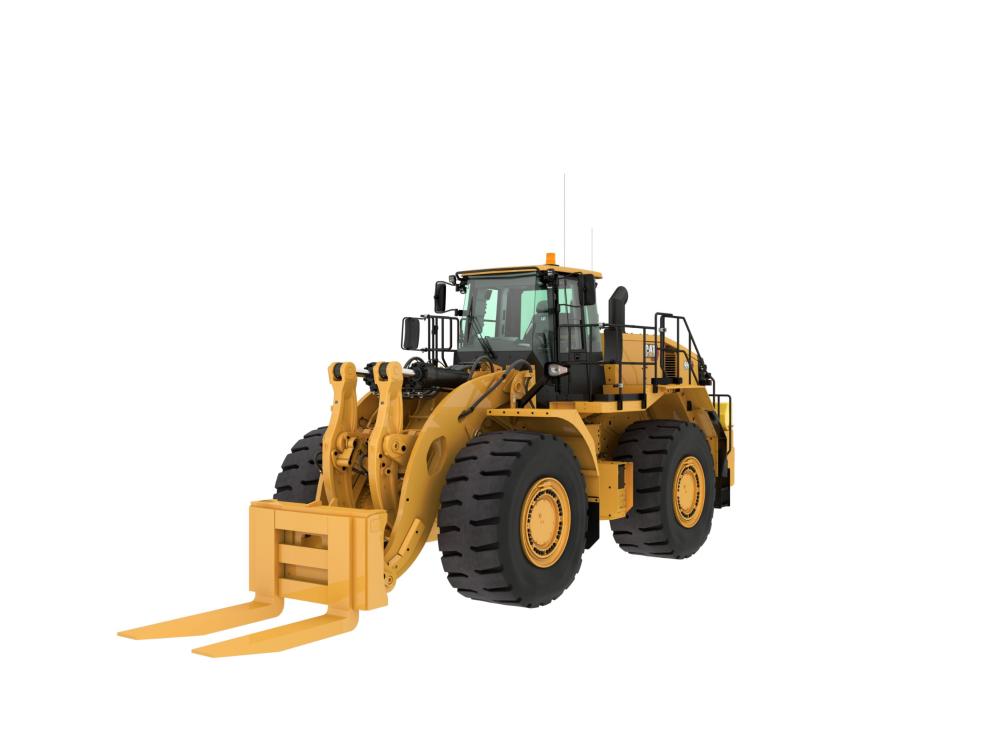

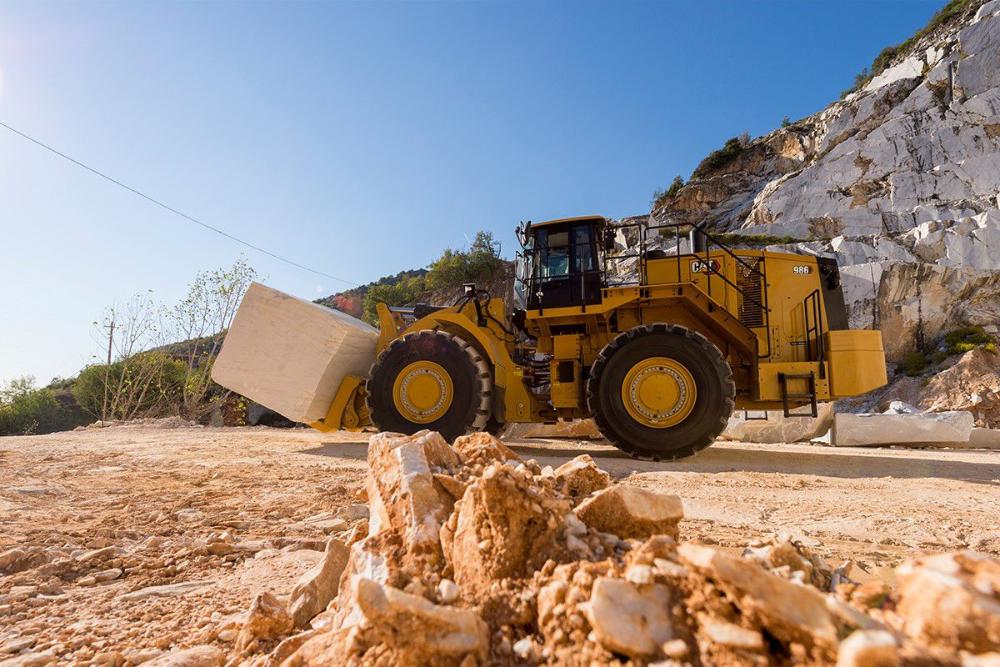

Block Handler
- Delivers stability and durability with an optimized counterweight for block handling applications.
- An additional hydraulic valve with the Quick Coupler allows the operator to switch work tools and immediately lock the work tool.
- Larger tilt and lift cylinders on the linkage help improve load control and ensure safe and long lasting operation.
- Ride control acts as a shock absorber, providing the operator with a smoother ride over rough terrain.
- Linkage layout designed to maximize lift capability in block handling application.
- High load stresses are absorbed by solid steel lift arms.
- Enhanced strength in key pin areas through the use of one-piece castings.
- Stress released lift arms increase durability and lengthen time to repair.
Engine
| Engine Model | C15 Cat® | |
| Peak Power Speed | 1600 | |
| Peak Power Speed - Gross - SAE J1995 | 340 kW | 456 hp |
| Engine Power - ISO 14396:2002 | 335 kW | 449 hp |
| Net Power - SAE J1349:2011 | 278 kW | 373 hp |
| Rated Speed | 2000 | |
| Rated Speed - 2,000 rpm - EEC 80/1269 | 278 kW | 373 hp |
| Rated Speed - 2,000 rpm - EEC 80/1269 (DIN) | 278 kW | 378 hp |
| Rated Speed - 2,000 rpm - ISO 9249 | 278 kW | 373 hp |
| Rated Speed - 2,000 rpm - ISO 9249 (DIN) | 278 kW | 378 hp |
| Bore | 137 mm | 5.4 in |
| Stroke | 171.5 mm | 6.75 in |
| Displacement | 15.2 l | 927 in² |
| Peak Torque - 1,200 rpm - SAE J1995 | 2411 N·m | 1778 lb/ft |
| Torque Rise | 16% | |
| Emissions | U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards and Brazil MAR-1 emission standards, equivalent to China Nonroad Stage III, U.S. EPA Tier 3 and EU Stage IIIA |
Transmission
| Transmission Type | Cat planetary power shift | |
| Forward - 1 | 7.3 km/h | 5 mile/h |
| Forward - 2 | 12.2 km/h | 8 mile/h |
| Direct Drive - Forward 2 | 12.7 km/h | 8 mile/h |
| Direct Drive - Forward 3 | 22 km/h | 14 mile/h |
| Direct Drive - Forward 4 | 39 km/h | 24 mile/h |
| Reverse - 1 | 7.6 km/h | 5 mile/h |
| Reverse - 2 | 13.6 km/h | 8 mile/h |
| Direct Drive - Reverse 2 | 14.1 km/h | 9 mile/h |
| Direct Drive - Reverse 3 | 25 km/h | 16 mile/h |
| Direct Drive - Reverse 4 | 40.8 km/h | 25.4 mile/h |
Operating Specifications
| Operating Weight - Standard | 44355 kg | 97785 lb |
| Operating Weight - High Lift | 47175 kg | 104005 lb |
| Rated Payload - Standard (Quarry Face) | 10 t | 11 ton (US) |
| Rated Payload - Loose Material (Standard) | 12.7 t | 14 ton (US) |
| Rated Payload - High Lift (Quarry Face) | 10 t | 11 ton (US) |
| Rated Payload - Loose Material (High Lift) | 11 t | 12.1 ton (US) |
| Bucket Capacity Range | 5-10,3 m³ (6,5-13,5 yd.³) | |
| Cat Truck Match - Standard | 770/735/740/745 | |
| Cat Truck Match - High Lift | 772/773 |
Hydraulic System - Lift/Tilt
| Lift/Tilt System - Circuit | Load Sense | |
| Lift/Tilt System - Pump | 2 × 110 cc variable displacement | |
| Maximum Flow at 2,165 rpm | 470 l/min | 123 gal/min |
| Relief Valve Setting - Lift/Tilt | 27900 kPa | 4050 psi |
| Lift Cylinder - Bore | 190 mm | 7.5 in |
| Lift Cylinder - Stroke | 1138 mm | 45 in |
| Tilt Cylinder - Bore | 170 mm | 6.7 in |
| Tilt Cylinder - Stroke | 722 mm | 28.4 in |
Hydraulic Cycle Times
| Rack Back | 4.5 s | 4.5 s |
| Raise | 9 s | 9 s |
| Dump | 3.5 s | 3.5 s |
| Lower | 5.2 s | 5.2 s |
| Lower Float Down | 4.3 s | 4.3 s |
| Total Hydraulic Cycle Time | 21.3 s | 21.3 s |
Hydraulic System - Steering
| Steering System - Circuit | Load Sense | |
| Steering System - Pump | Piston, variable displacement | |
| Maximum Flow at 1,400 rpm | 200 l/min | 52 gal/min |
| Steering Cut Off Pressure | 27600 kPa | 4000 psi |
| Total Steering Angle | 70° |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes. |
Axles
| Front | Fixed |
| Rear | Trunnion |
| Oscillation Angle | ±12.5° |
| Oscillation Angle - Chain Arrangement | ±8.5° |
Brakes
| Brakes | ISO 3450:2011 |
Operator's Cab
| ROPS/FOPS | ROPS/FOPS meet ISO 3471:2008 (ROPS) and ISO 3449:2005 Level II (FOPS) |
Service Refill Capacities
| Fuel Tank | 535 l | 141 gal (US) |
| Fuel Tank - Short Lift | 481 l | 127 gal (US) |
| Cooling Systems | 100 l | 26 gal (US) |
| Crankcase | 34 l | 9 gal (US) |
| Diesel Exhaust Fluid Tank | 23 l | 6 gal (US) |
| Transmission | 75 l | 20 gal (US) |
| Axle Oil - Differentials and Final Drives - Front | 186 l | 49 gal (US) |
| Axle Oil - Differentials and Final Drives - Rear | 170 l | 45 gal (US) |
| Hydraulic System Factory Fill | 330 l | 87 gal (US) |
| Hydraulic System - Tank Only | 130 l | 34 gal (US) |
Sound Performance - Standard
| Operator Sound Level (ISO 6396) | 72 dB(A) | 72 dB(A) |
| Machine Sound Level (ISO 6395) | 112 dB(A) | 112 dB(A) |
| Note |
|
Sound Performance - Suppression
| Operator Sound Level (ISO 6396) | 72 dB(A) | 72 dB(A) |
| Machine Sound Level (ISO 6395) | 110 dB(A) | 110 dB(A) |
| Note |
|
Dimensions (Approximate) - Standard Lift Linkage
| Ground to Top of ROPS | 4100 mm | 13.5 ft |
| Ground to Top of Exhaust Stacks | 4060 mm | 13.3 ft |
| Ground to Top of Hood | 3270 mm | 10.7 ft |
| Ground to Center of Front Axle | 978 mm | 3.2 ft |
| Ground to Fuel Tank Clearance | 691 mm | 2.3 ft |
| Ground to Lower Hitch Clearance | 459 mm | 1.5 ft |
| Reach - Maximum Lift | 2175 mm | 7.1 ft |
| Clearance at Maximum Lift | 3079 mm | 10.1 ft |
| B-Pin Height - Maximum Lift | 4912 mm | 16.1 ft |
| Maximum Overall Height - Bucket Raised | 6817 mm | 22.4 ft |
| Rear Axle - Centerline to Bumper | 3132 mm | 10.3 ft |
| Wheel Base | 3810 mm | 12.5 ft |
| Maximum Overall Length | 11143 mm | 36.6 ft |
| Front Axle Centerline to Bucket Tip | 4201 mm | 13.8 ft |
| Note |
|
Dimensions (Approximate) - High Lift Linkage
| Ground to Top of ROPS | 4100 mm | 13.5 ft |
| Ground to Top of Exhaust Stacks | 4060 mm | 13.3 ft |
| Ground to Top of Hood | 3270 mm | 10.7 ft |
| Ground to Center of Front Axle | 978 mm | 3.2 ft |
| Ground to Fuel Tank Clearance | 691 mm | 2.3 ft |
| Ground to Lower Hitch Clearance | 459 mm | 1.5 ft |
| Reach - Maximum Lift | 2248 mm | 7.4 ft |
| Clearance at Maximum Lift | 3538 mm | 11.6 ft |
| B-Pin Height - Maximum Lift | 5371 mm | 17.6 ft |
| Maximum Overall Height - Bucket Raised | 7276 mm | 23.9 ft |
| Rear Axle - Centerline to Bumper | 3132 mm | 10.3 ft |
| Wheel Base | 3810 mm | 12.5 ft |
| Maximum Overall Length | 11591 mm | 38 ft |
| Front Axle Centerline to Bucket Tip | 4649 mm | 15.3 ft |
| Note |
|
Dimensions (Approximate) - Quick Coupler and 6.1 m³ (8.0 yd³) Bucket
| Ground to Top of ROPS | 4100 mm | 13.5 ft |
| Ground to Top of Exhaust Stacks | 4060 mm | 13.3 ft |
| Ground to Top of Hood | 3270 mm | 10.7 ft |
| Ground to Center of Rear Axle | 978 mm | 3.2 ft |
| Ground to Fuel Tank Clearance | 691 mm | 2.3 ft |
| Ground to Lower Hitch Clearance | 459 mm | 1.5 ft |
| Reach at Maximum Lift | 2437 mm | 8 ft |
| Clearance at Maximum Lift | 3259 mm | 10.7 ft |
| B-Pin Height at Maximum Lift | 4566 mm | 15 ft |
| Maximum Overall Height, Bucket Raised | 6359 mm | 20.9 ft |
| Rear Axle Center Line to Bumper | 3132 mm | 10.3 ft |
| Wheel Base | 3810 mm | 12.5 ft |
| Maximum Overall Length | 10671 mm | 35 ft |
| Front Axle Centerline to Bucket Tip | 3729 mm | 12.2 ft |
Dimensions (Approximate) - Quick Coupler and Fork
| Ground to Top of ROPS | 4100 mm | 13.5 ft |
| Ground to Top of Exhaust Stacks | 4060 mm | 13.3 ft |
| Ground to Top of Hood | 3270 mm | 10.7 ft |
| Ground to Center of Rear Axle | 978 mm | 3.2 ft |
| Ground to Fuel Tank Clearance | 691 mm | 2.3 ft |
| Ground to Lower Hitch Clearance | 459 mm | 1.5 ft |
| B-Pin Height at Maximum Lift | 4566 mm | 15 ft |
| Rear Axle Center Line to Bumper | 3132 mm | 10.3 ft |
| Wheel Base | 3810 mm | 12.5 ft |
| Maximum Overall Length | 10776 mm | 35.4 ft |
| Front Axle Centerline to Bucket Tip | 3834 mm | 12.6 ft |
You might also be interested in:
-
988
Net Power - SAE J1349:2011
401 kW
538 hp
Engine Power - ISO 14396:2002
432 kW
580 hp
Gross Power - SAE J1995:2014
439 kW
588 hp
Caterpillar
15198439
-
988 GC
Engine Model
Cat® C15
Rated Speed
2000
Peak Power Speed
1600
Caterpillar
15198486
-
988 XE
Net Power - SAE J1349:2011
401 kW
538 hp
Operating Weight
52781 kg
116362 lb
Engine Model
Cat® C18 ™
Cat
15198464
-
990
Engine Model
C27 Cat®
Rated Speed
1,800/min
Engine Power - ISO 14396:2002
561 kW
752 hp
Caterpillar
15198508
-
992
Net Power
607 kW
814 hp
Operating Weight
105882 kg
233430 lb
Bucket Capacities
11.5-24.5 m³ (15-32 yd³)
Caterpillar
15198532
-
995
Engine Model
Cat® 3516E
Operating Weight - Standard
246651 kg
543772 lb
Bucket Capacity Range
17.2-43.6 m3 (22.3-57 yd3)
Caterpillar
15198546
Compatible products:
Other categories of Palas cargadoras de ruedas:
360º Interior
360º Exterior

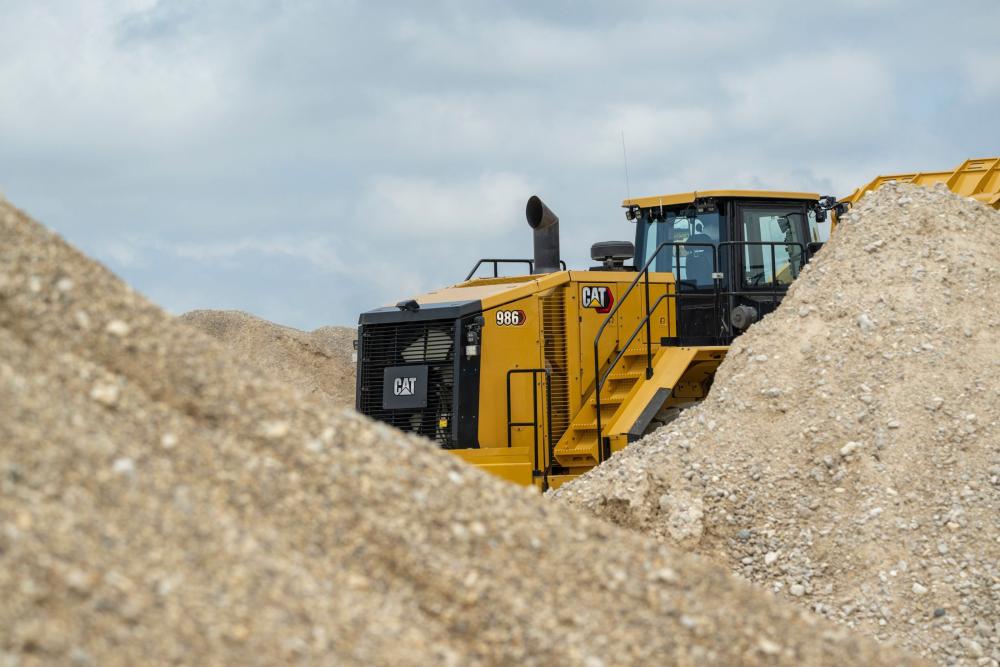

986 Wheel Loader
Call us
I am interested
I am interested
Thank you for contacting us.
We have received your request and will contact you as soon as possible.
Please check your email to ensure that the form has been sent correctly.
