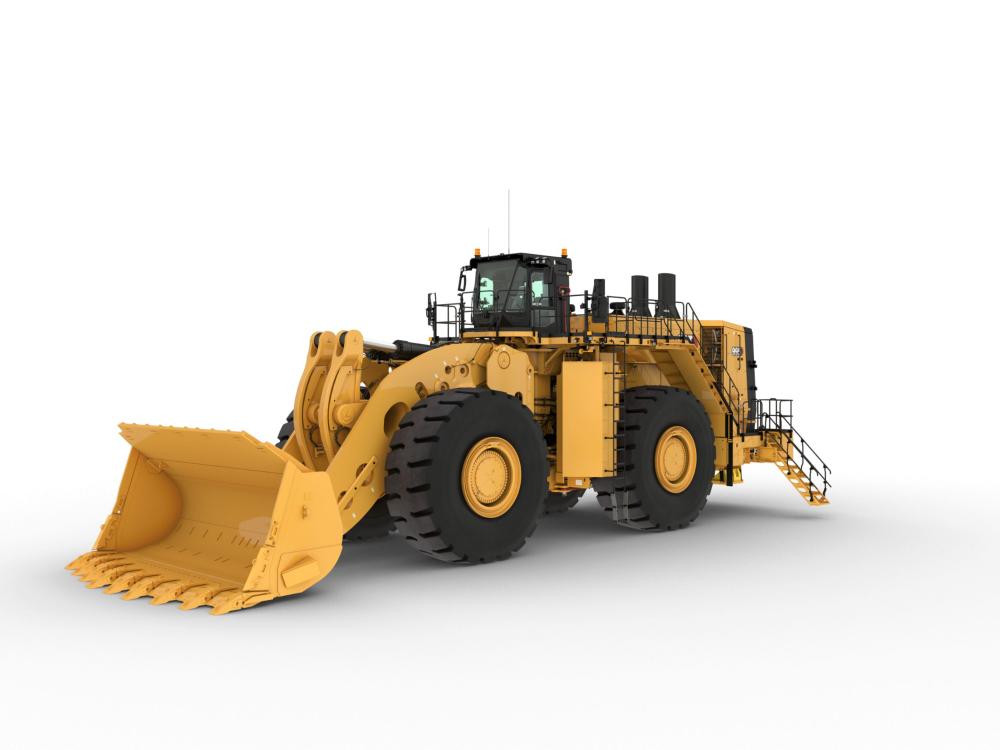

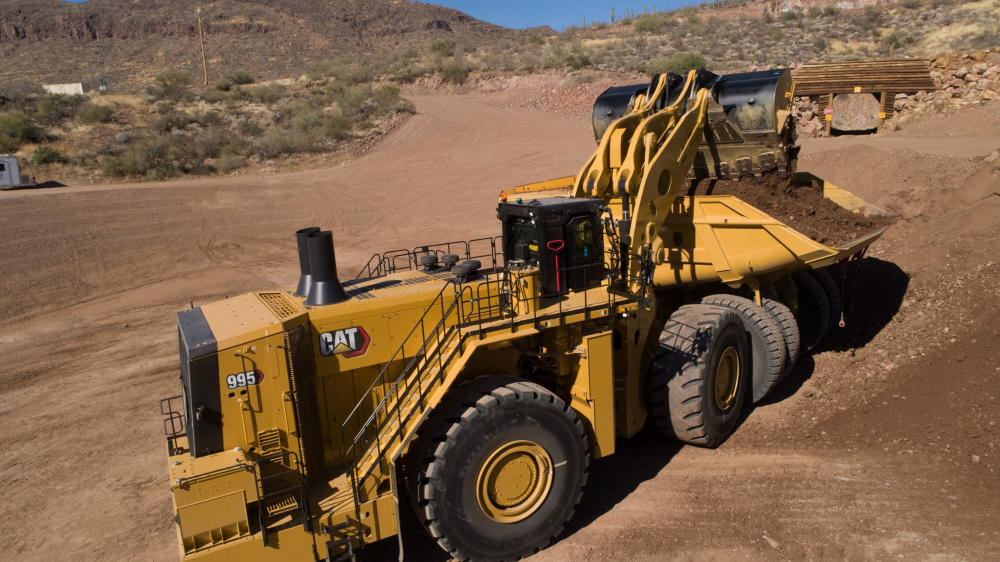

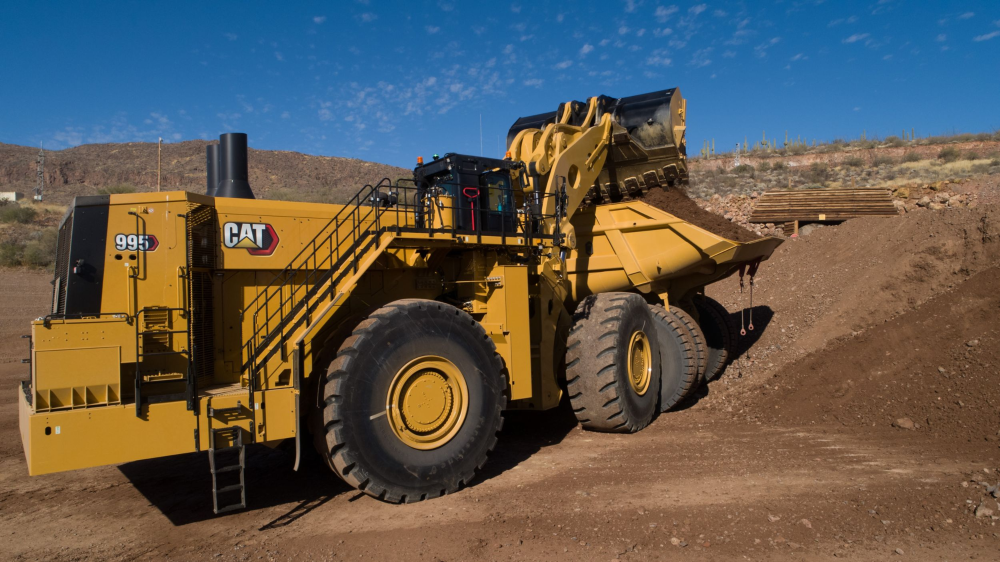

995 Wheel Loader
Caterpillar
Metric
Imperial
Engine Model
Cat® 3516E
Operating Weight - Standard
246651 kg
543772 lb
Bucket Capacity Range
17.2-43.6 m3 (22.3-57 yd3)
Availability
Built to the same size as the 994K but offering a higher rated payload, the new Cat® 995 Wheel Loader gives you greater productivity and performance while using less fuel. It offers a one-pass reduction when loading Cat 785, 789 and 793 Mining Trucks \u2014 increasing production and efficiency up to 33% when loading the 785, up to 25% when loading the 789, and up to 20% with the 793. The 995 demonstrates 21% higher efficiency and 24% more production than the 994K in equal operating mode thanks to a higher rated payload and 6% increase in hydraulic force. In Enhanced Eco Mode, the 995 demonstrates up to a 30% increase in efficiency and an 11% reduction in hourly fuel consumption versus the 994K in throttle lock mode, which translates to 23% less CO2 per unit of material moved. It also offers a more comfortable operator environment and is infused with new technology features that allow additional gains in efficiency.
Up to 24% More Productive
With higher rated payload, 6% increase in hydraulic force and equal hydraulic cycle time vs. 994KUp to 21% More Efficient
17% less CO2 per unit of material moved versus 994K in equal operating mode (throttle lock)Confident & Empowered Operators
Thanks to options like Tire Slip Prevention, Lift Stall Prevention, Tire Set, Operator Coaching and moreSAFETY
OPERATOR COMFORT
CONFIDENT & EMPOWERED OPERATORS
PRODUCTIVITY
EFFICIENCY-BOOSTING FEATURES
SERVICEABILITY
BUCKETS AND GET
DURABILITY
TECHNOLOGY
SUSTAINABILITY
- Designed for visibility, with a taller windshield that provides a 25% increase in glass surface area for a better view to the bucket, standard rear-view camera, optional Detect 270-degree cameras, standard LED lighting and six-mirror system.
- Improved access and egress, with integrated powered access system that can be raised and lowered from cab or ground, 45-degree-angle wide stairs, emergency egress ladder, and full handrails on each side.
- Wide walkways with non-skid surfaces, windshield cleaning platform, and integrated lockout/tagout points designed into the service areas.
- Increased leg room and increased width by the operator’s knees compared to 994K.
- Reduced vibration, low sound levels and automatic temperature controls.
- Electro-hydraulic speed-sensing steering with force feedback for shift-long comfort.
- Pressurized cab featuring Next Gen Seat with 9-inch travel, active cooling and heating, adjustable lumbar support, seat cushion tilt adjustment, and air-adjustable bolsters on the seat and backrest.

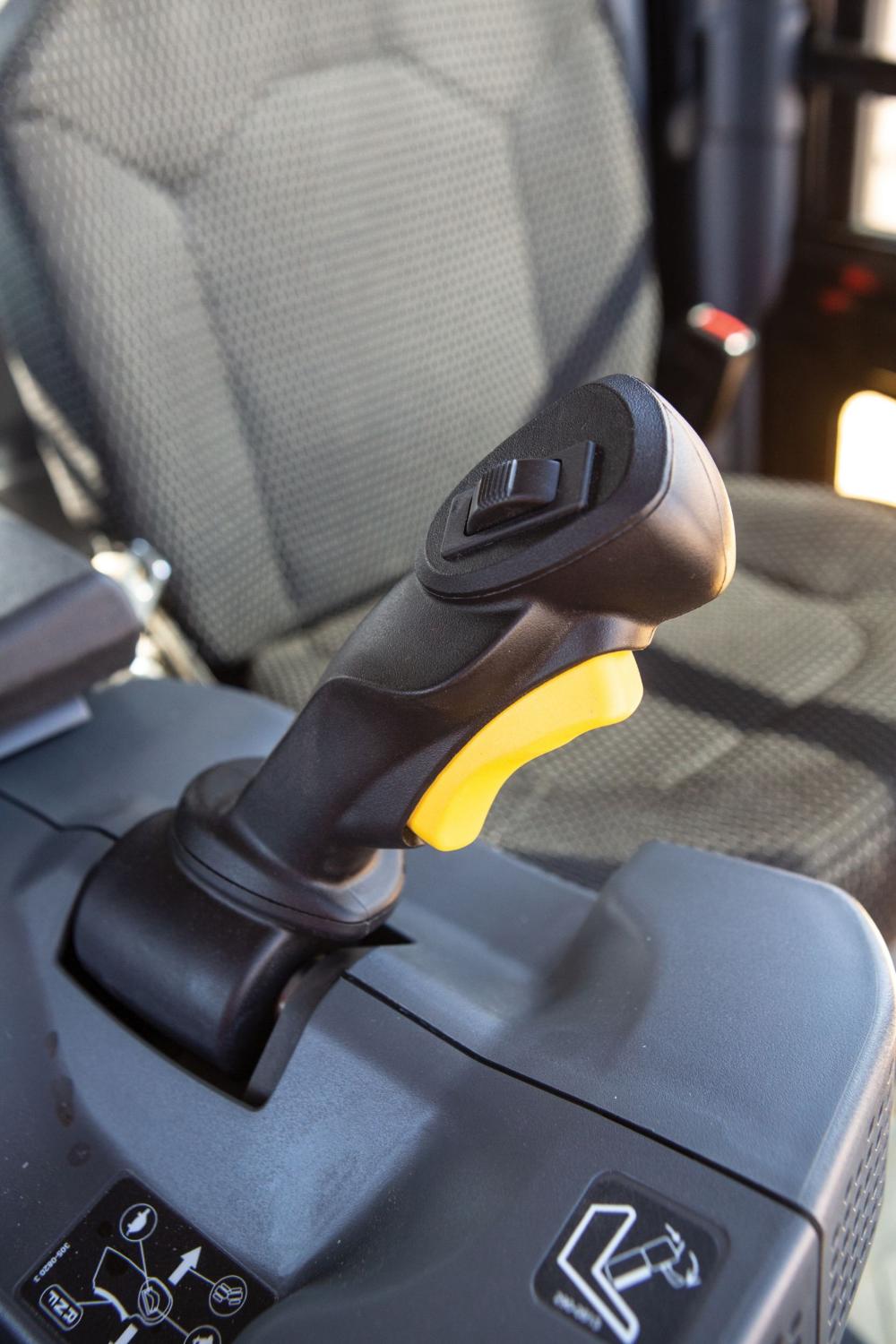

- Low-effort integrated controls that make cycles smoother and faster while reducing fatigue.
- Large, easy-to-read, color LED displays that provide access to the Electronic Operation & Maintenance Manual.
- Operator coaching, which helps empower operators to exceed targets by measuring and providing feedback to reinforce proper operating techniques.
- New Autodig Components that boost efficiency and reduce tire wear by automating critical parts of the digging cycle.
- Payload Overload Prevention, which inhibits severe payloads from being raised to full truck height.
- Increased rated payload and 6% increase in hydraulic force compared to 994K.
- Impeller Clutch Torque Converter (ICTC) and Rimpull Control System (RCS), which reduce the potential for wheel slippage without reducing hydraulic efficiency.
- Superior loading with Cat Performance Series Buckets, which are engineered to dig into piles quickly and load efficiently — with fill factors up to 115%.
- 3516E engine, which delivers optimum performance through the use of a 16-cylinder, four-stroke design, plus turbochargers and aftercoolers that deliver on-demand performance.
- Excellent stability thanks to optimized weight distribution, helping operators be more confident and productive.
- Tire Slip Prevention, which reduces rimpull when there is less downforce on the tire and increases rimpull when there is more downforce on the tire — providing maximum rimpull when you can use it.
- Tire Set, which automatically applies a lift command at the optimal time to increase traction on the tire, allowing for an increase in usable rimpull.
- Lift Stall Prevention, which automatically applies the impeller clutch when necessary to prevent hydraulic stall when lifting up through the face — keeping the lift motion continuous, without excessive use of the impeller clutch.
- Positive Flow Control Hydraulic System, which boosts efficiency with concurrent pump and valve control and increases bucket feel and control to deliver consistent performance.
- On-demand throttle feature that allows operators to maintain normal operation with the left pedal and implements while the 995 manages the engine speed.
- Reduced time spent on regular maintenance procedures thanks to features such as ground-level or platform access to filters; grouped service points; swing-out doors on both sides of the engine compartment; improved access for engine and pump drive service as well as to cooling package; and automatic lubrication system that greases the linkage, hitch, steering and axle trunnion bearings.

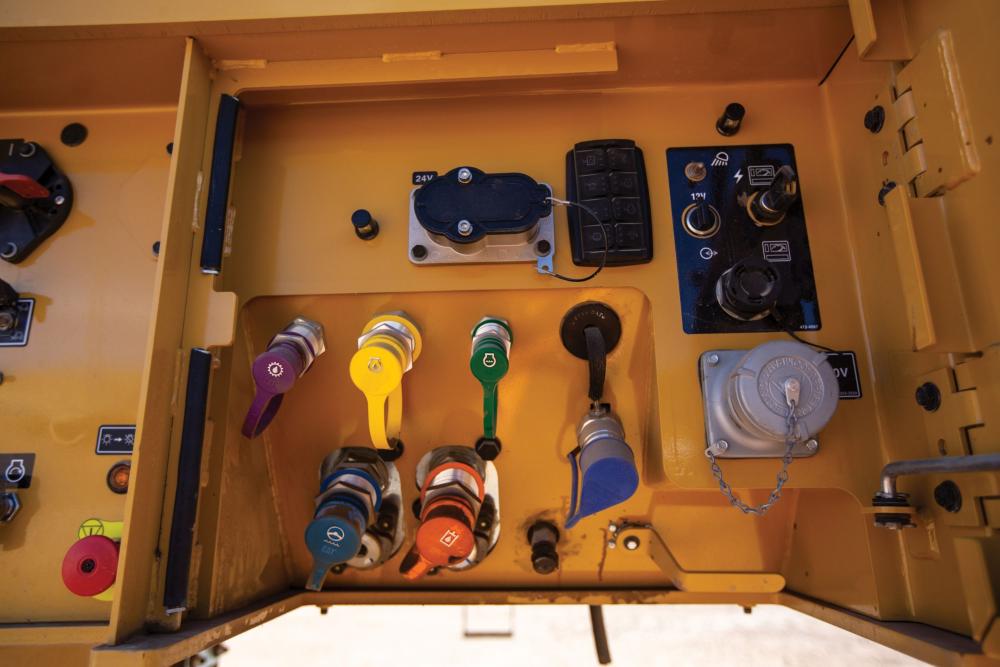

- Service station that provides easy access to functions such as coolant and oil as well as level indicators; Cat battery charging connector; and indicator lights for full fuel tanks.
- Redesigned pump bay, which offers improved access to transmission components, discharge ports located on the side of pumps, and lines routed directly to screen.
- Reduced number of steering hoses and tubes; removal of brackets and neutralizers, eliminating the need for neutralizer adjustment; and addition of pilot accumulator, EH valve and pilot filter.
- Improvements in filters and diagnostics across the machine, with groundline service that includes a steering pilot filter, transmission filters and steering pump discharge screen; pump bay that includes a brake pump filter, implement pilot filter and implement discharge screens; and diagnostic ports that are accessible from the front walk deck and pump bay.
- Approved for higher payloads in low to moderate digging resistance applications; increased payload intended for rehandled material in the ROM pad area or stockpile material, such as coal.
- Variety of bucket options, including rock buckets for loading limestone or other unprocessed rock; heavy-duty rock buckets for applications like face loading tightly compacted pit materials or handling materials of moderate abrasion and high impact; coal buckets for light density non-abrasive materials; and iron ore buckets for extremely aggressive applications.
- Performance Series Buckets feature extended floor, dual radius and angled side bars for fast loading; larger bottom box section for increased strength, high fill factors and good material retention; and taller side plate with a level top surface improves operator visibility to the bucket from the cab.
- Cat Ground Engaging Tools (GET) that feature CapSure™ Retention Technology, which simplifies component replacement with hammerless retention for fast, easy and safe installation.
- Highly durable structures, with full box-section rear frame that resists torsional shock and twisting forces to maximize life of mounted components.
- Frames that utilize castings in key areas to maximize frame durability and optimize efficiency.
- Rear axle mounting to frame that is optimized to better disperse loads for increased structural integrity.
- Loads efficiently transmitted by the field-proven solid steel lift arms, with enhanced strength in key pin areas through the use of one-piece castings.
- Frame, powertrain, engine and components that all built to be rebuilt — using new, remanufactured or rebuilt parts and components — to deliver multiple lives of like-new performance at a fraction-of-new price.
- Cat MineStar™ Terrain for loading, which provides real-time feedback on payloads and design plan progress to increases productivity and accuracy, reduce rework, enhance ore control and improve shift-to-shift operator performance.
- MineStar Object Detection, which combines radar and camera systems to warn operators about light vehicles or stationary hazards within the immediate vicinity of their machines.
- MineStar Health, which delivers critical event-based machine condition and operating data and includes comprehensive equipment health and asset monitoring capabilities, with a wide range of diagnostic, analytic and reporting tools.
- Upgraded touchscreen information display that provides intuitive operation and easy navigation and keeps operators informed about machine systems to decrease service time.
- Cat ProductLink™, which provides remote access to information on machine systems and diagnostic codes; allows you to track utilization, fuel usage and payload summaries; and gives access to machine location, service meter hours and reporting status.
- Designed to be more efficient and use less fuel, which reduces engine emissions and carbon footprint; Tier 4 Final engine reduces NOx and particulate matter.
- Engine Idle Shutdown, which saves fuel by making it possible to avoid unnecessary idling.
- Better control of fluids through use of Cat anti-drain filter housings and component ecology drains.
- Retrofits and upgrades for older machines — to incorporate efficiency improvements and emission reductions, and to keep them in production longer to conserve energy and minimize the need for raw materials
- Cat Rebuild and Cat Reman programs, which preserve raw materials, conserve energy and reduce emissions.
Engine
| Engine Model | Cat® 3516E | |
| Emissions | U.S. EPA Tier 4 Final/EU Stage V or U.S. EPA Tier 1 equivalent | |
| Engine Power - ISO 14396:2002 | 1377 kW | 1847 hp |
| Gross Power - SAE J1995:2014 | 1394 kW | 1870 hp |
| Net Power - SAE J1349 - Standard Ambient | 1297 kW | 1739 hp |
| Net Power - SAE J1349 - High Ambient | 1265 kW | 1696 hp |
| Bore | 170 mm | 6.7 in |
| Stroke | 215 mm | 8.5 in |
| Displacement | 78.1 l | 4766 in³ |
| Peak Torque - 1,200 rpm - SAE J1995 | 11591 N·m | 8549 lb/ft |
| Torque Rise | 39% | |
| Note (1) | The power ratings apply when tested under the reference conditions for the specified standard. | |
| Note (2) | The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner and muffler. | |
| Note (3) | The gross power advertised is with the fan at maximum speed. |
Operating Specifications
| Operating Weight - Standard | 246651 kg | 543772 lb |
| Bucket Capacity Range | 17.2-43.6 m3 (22.3-57 yd3) | |
| Operating Weight - High Lift | 248421 kg | 547675 lb |
| Rated Payload - Standard Lift (Low to Moderate Digging Resistance) | 54.4 t | 60 ton (US) |
| Rated Payload - Standard Lift (Moderate to High Digging Resistance) | 45.3 t | 50 ton (US) |
| Rated Payload - High Lift (Low to Moderate Digging Resistance) | 49.9 t | 55 ton (US) |
| Rated Payload - High Lift (Moderate to High Digging Resistance) | 45.3 t | 50 ton (US) |
| Note | *Please contact your local dealer to determine if your application is suitable for this increased rated payload. | |
| Cat Truck Match - Standard | 785/789 | |
| Cat Truck Match - High Lift | 789/793/794 |
Transmission
| Transmission Type | Cat Planetary Power Shift | |
| Forward - 1 | 7.4 km/h | 4.6 mile/h |
| Forward - 2 | 12.9 km/h | 8 mile/h |
| Forward - 3 | 21.9 km/h | 13.6 mile/h |
| Reverse - 1 | 8.1 km/h | 5 mile/h |
| Reverse - 2 | 14.1 km/h | 8.8 mile/h |
| Reverse - 3 | 24 km/h | 14.9 mile/h |
| Direct Drive - Forward 1 | Lock-up disables | |
| Direct Drive - Forward 2 | 14 km/h | 8.7 mile/h |
| Direct Drive - Forward 3 | 24.5 km/h | 15.2 mile/h |
| Direct Drive - Reverse 1 | Lock-up disables | |
| Direct Drive - Reverse 2 | 15.5 km/h | 9.6 mile/h |
| Direct Drive - Reverse 3 | 27 km/h | 16.8 mile/h |
| Note | Travel speeds based on 58/85-57 tires. |
Hydraulic System - Lift/Tilt
| Lift/Tilt System - Circuit | Positive Flow Control | |
| Lift/Tilt System - Pump | Variable Displacement Piston | |
| Maximum Flow at 1,700 rpm Engine Speed | 2047 l/min | 541 gal/min |
| Relief Valve Setting - Lift/Tilt | 34500 kPa | 5004 psi |
| Cylinders, Double Acting - Lift, Bore and Stroke | 370 × 1713 mm (14.6 × 67.4 in) | |
| Cylinders, Double Acting - Tilt, Bore and Stroke | 310 × 1086 mm (12.2 × 42.8 in) | |
| Pilot System | Open Loop and Pressure Reducing |
Hydraulic Cycle Times
| Rack Back | 4.9 s | 4.9 s |
| Raise | 12.6 s | 12.6 s |
| Dump | 3.1 s | 3.1 s |
| Lower Float Down | 4.2 s | 4.2 s |
Complete System Fill
| Fuel Tank - Standard | 3240 l | 856 gal (US) |
| Fuel Tank - With 24 hr Attachment | 5350 l | 1414 gal (US) |
| Cooling System | 520 l | 138 gal (US) |
| Engine Crankcase | 288 l | 76 gal (US) |
| Transmission | 416 l | 110 gal (US) |
| Differential - Final Drives - Front | 833 l | 220 gal (US) |
| Differential - Final Drives - Rear | 757 l | 200 gal (US) |
| Hydraulic Tank - Implement and Hydraulic Fan | 1022 l | 270 gal (US) |
| Hydraulic Tank - Steering and Braking | 379 l | 100 gal (US) |
| Oil Renewal System (ORS)* | 75.7 l | 20 gal (US) |
| Note | *Not available on Tier 4 Final/Stage V machines. Not available in all regions. |
Axles
| Front | Fixed |
| Rear | Trunnion |
| Oscillation Angle | 9° |
Cooling System
| Ambient Capability Hydraulically Driven Demand Fan - Standard | 43 °C | 109.4 °F |
| Ambient Capability Hydraulically Driven Demand Fan - High (Tier 1 equivalent) | 55 °C | 131 °F |
| Ambient Capability Hydraulically Driven Demand Fan - High (Tier 4 Final) | 53 °C | 127.4 °F |
Sound Performance - Standard
| Operator Sound Level (ISO 6396:2008) - Tier 1/EU Stage I Equivalent | 74 dB(A) | 74 dB(A) |
| Machine Sound Level (ISO 6395:2008) | 119 dB(A) | 119 dB(A) |
| Note | The declared sound levels listed above include the addition of both measurement uncertainty and uncertainty due to production variation. Typical measurement uncertainty for this type of machine is 2 dBA in accordance with "ISO 4871". The measurement was conducted at 70 percent of the maximum engine cooling fan speed. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
Sound Performance - Suppression
| Operator Sound Level (ISO 6396:2008) - Tier 1/EU Stage I Equivalent | 73 dB(A) | 73 dB(A) |
| Machine Sound Level (ISO 6395:2008) | 117 dB(A) | 117 dB(A) |
| Note | The declared sound levels listed above include the addition of both measurement uncertainty and uncertainty due to production variation. Typical measurement uncertainty for this type of machine is 2 dBA in accordance with "ISO 4871". The measurement was conducted at 70 percent of the maximum engine cooling fan speed. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
Hydraulic System - Steering
| Steering System - Circuit | Pilot, Load Sensing | |
| Steering System - Pump | Piston, Variable Displacement | |
| Total Steering Angle | 80 degrees | |
| Steering Cycle Times - Low Idle | 7.6 s | 7.6 s |
| Steering Cycle Times - High Idle | 4.3 s | 4.3 s |
Dimensions - Standard Lift - Approximate
| B-Pin Height - Maximum Lift | 8800 mm | 28.8 ft |
| Clearance at Maximum Lift | 6039 mm | 19.8 ft |
| Dump Angle at Maximum Lift | –50.0 degrees | |
| Front Axle Centerline to Bucket Tip | 6688 mm | 21.9 ft |
| Ground to Bumper Clearance | 1355 mm | 4.4 ft |
| Ground to Center of Axles | 1830 mm | 6 ft |
| Ground to Lower Hitch Clearance | 898 mm | 2.9 ft |
| Ground to Top of Exhaust Stacks | 7067 mm | 23.2 ft |
| Ground to Top of Hood | 5682 mm | 18.6 ft |
| Ground to Top of ROPS | 7119 mm | 23.4 ft |
| Maximum Overall Height - Bucket Raised | 11966 mm | 39.3 ft |
| Maximum Overall Length | 19693 mm | 64.6 ft |
| Note | Assumes loaded 58/85-57 tires, tires at a static loaded radius of 1830 mm (6 ft), 596-5330 26 m3 (34 yd3) bucket, 431-0064 HD tips. | |
| Rack Angle at Maximum Lift | 59.5 degrees | |
| Rack Back Angle - Carry | 47.7 degrees | |
| Rack Back Angle - Ground Level | 39.7 degrees | |
| Reach - Maximum Lift | 2946 mm | 9.6 ft |
| Rear Axle - Centerline to Bumper | 6205 mm | 20.4 ft |
| Tread Width | 4300 mm | 14.1 ft |
| Wheel Base | 6800 mm | 22.3 ft |
| Width - Over Tires - With Bulge | 5758 mm | 18.8 ft |
Dimensions - High Lift - Approximate
| B-Pin Height - Maximum Lift | 9657 mm | 31.6 ft |
| Clearance at Maximum Lift | 6896 mm | 22.6 ft |
| Dump Angle at Maximum Lift | –50.0 degrees | |
| Front Axle Centerline to Bucket Tip | 7383 mm | 24.2 ft |
| Ground to Bumper Clearance | 1355 mm | 4.4 ft |
| Ground to Center of Axles | 1830 mm | 6 ft |
| Ground to Lower Hitch Clearance | 898 mm | 2.9 ft |
| Ground to Top of Exhaust Stacks | 7067 mm | 23.2 ft |
| Ground to Top of Hood | 5682 mm | 18.6 ft |
| Ground to Top of ROPS | 7119 mm | 23.4 ft |
| Maximum Overall Height - Bucket Raised | 12823 mm | 42.1 ft |
| Maximum Overall Length | 20388 mm | 66.9 ft |
| Note | Assumes loaded 58/85-57 tires, tires at a static loaded radius of 1830 mm (6 ft), 596-5330 26 m3 (34 yd3) bucket, 431-0064 HD tips. | |
| Rack Angle at Maximum Lift | 59.4 degrees | |
| Rack Back Angle - Carry | 53.5 degrees | |
| Rack Back Angle - Ground Level | 45 degrees | |
| Reach - Maximum Lift | 2884 mm | 9.4 ft |
| Rear Axle - Centerline to Bumper | 6205 mm | 20.4 ft |
| Tread Width | 4300 mm | 14.1 ft |
| Wheel Base | 6800 mm | 22.3 ft |
| Width - Over Tires - With Bulge | 5760 mm | 18.8 ft |
Brakes
| Brakes | ISO 3450:2011 |
You might also be interested in:
-
986
Engine Model
C15 Cat®
Peak Power Speed
1600
Peak Power Speed - Gross - SAE J1995
340 kW
456 hp
Caterpillar
15198418
-
988
Net Power - SAE J1349:2011
401 kW
538 hp
Engine Power - ISO 14396:2002
432 kW
580 hp
Gross Power - SAE J1995:2014
439 kW
588 hp
Caterpillar
15198439
-
988 GC
Engine Model
Cat® C15
Rated Speed
2000
Peak Power Speed
1600
Caterpillar
15198486
-
988 XE
Net Power - SAE J1349:2011
401 kW
538 hp
Operating Weight
52781 kg
116362 lb
Engine Model
Cat® C18 ™
Cat
15198464
-
990
Engine Model
C27 Cat®
Rated Speed
1,800/min
Engine Power - ISO 14396:2002
561 kW
752 hp
Caterpillar
15198508
-
992
Net Power
607 kW
814 hp
Operating Weight
105882 kg
233430 lb
Bucket Capacities
11.5-24.5 m³ (15-32 yd³)
Caterpillar
15198532
Other categories of Palas cargadoras de ruedas:
360º Interior
360º Exterior
Virtual Tour

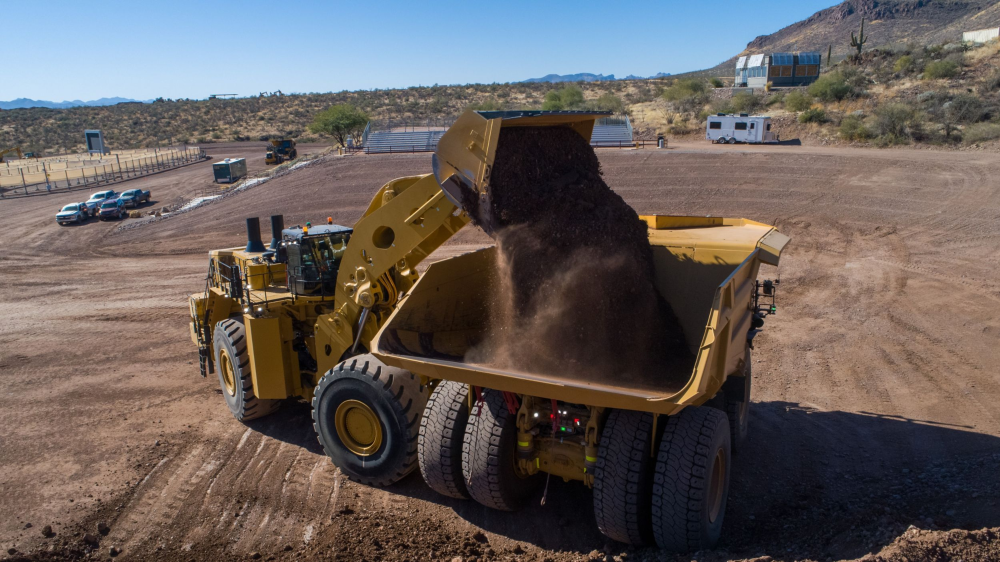

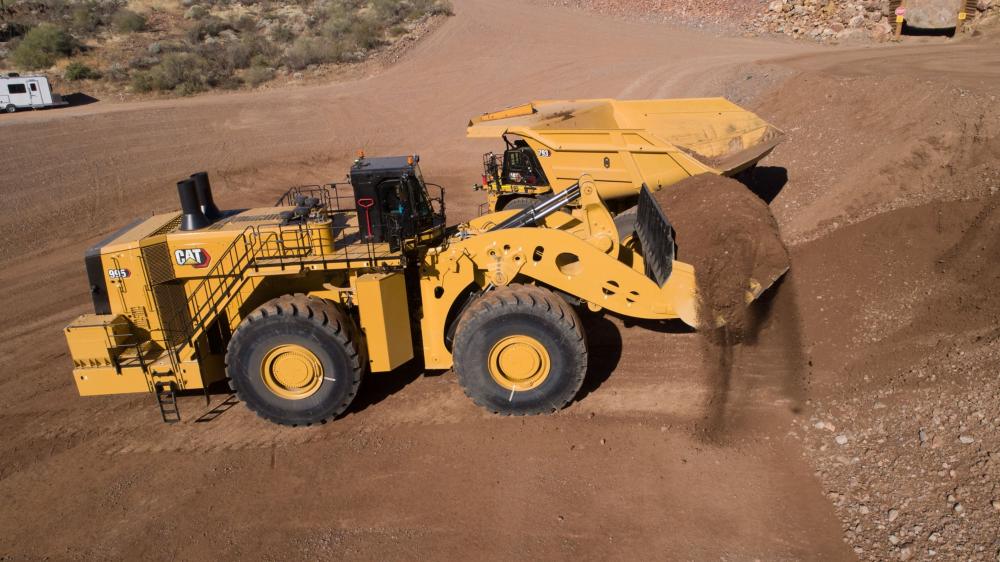

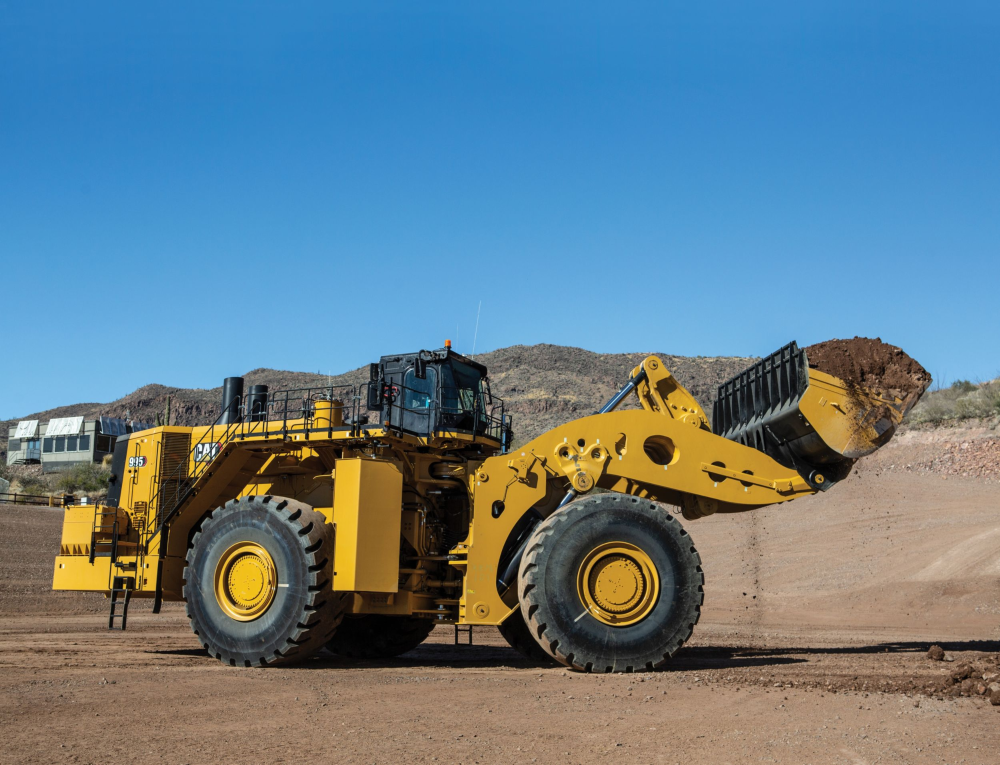

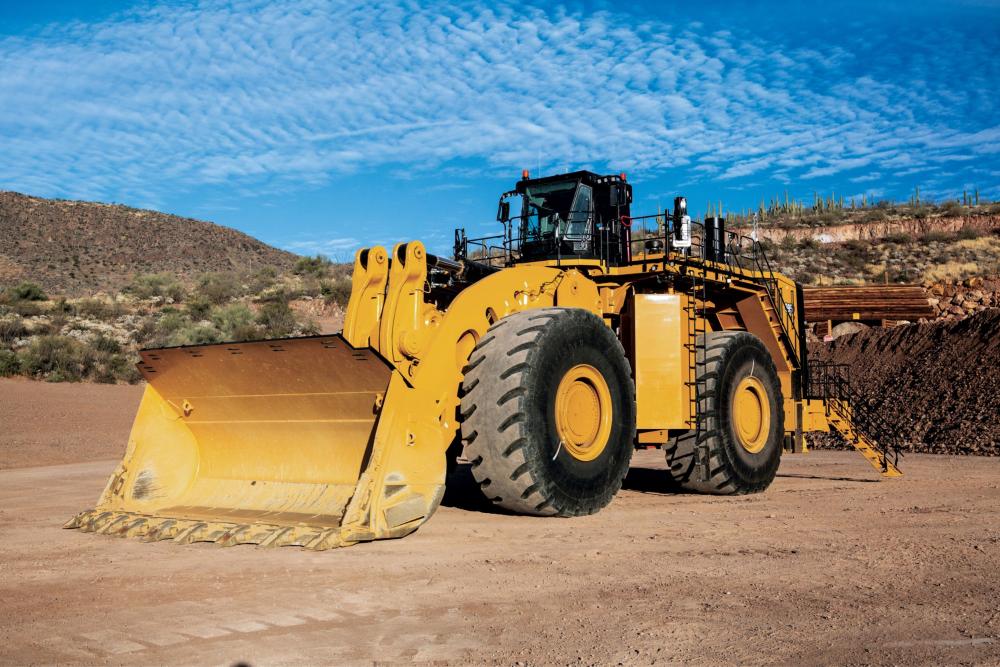

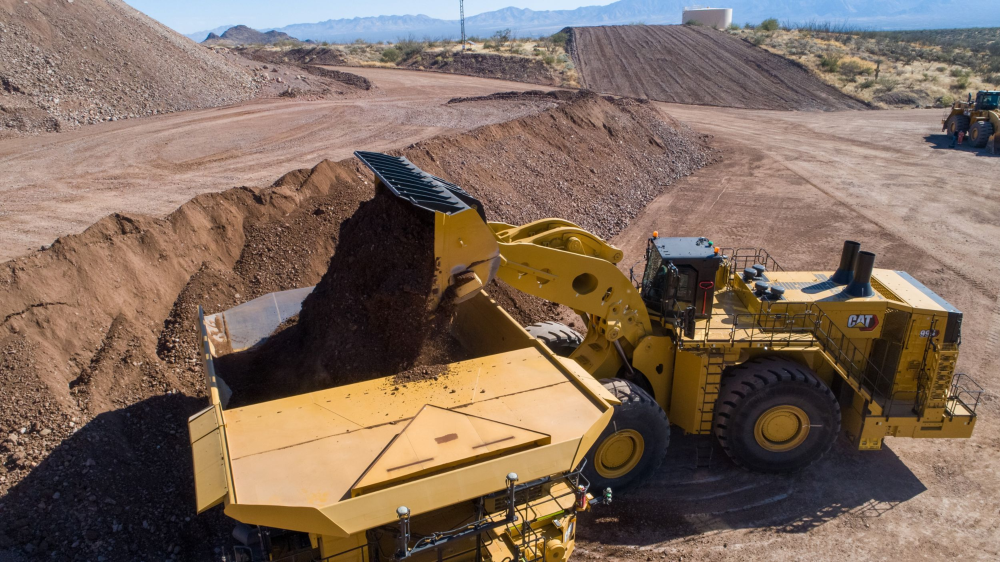

995 Wheel Loader
Call us
I am interested
I am interested
Thank you for contacting us.
We have received your request and will contact you as soon as possible.
Please check your email to ensure that the form has been sent correctly.
