TRS23 Tiltrotator

Units of measurement :

Metric

Imperial

Machine Class

23-30 ton Excavators

Weight

879 kg

Interface Options: Top-Bottom

CW-40 / CW-40

Availability

Purchase Rental Used

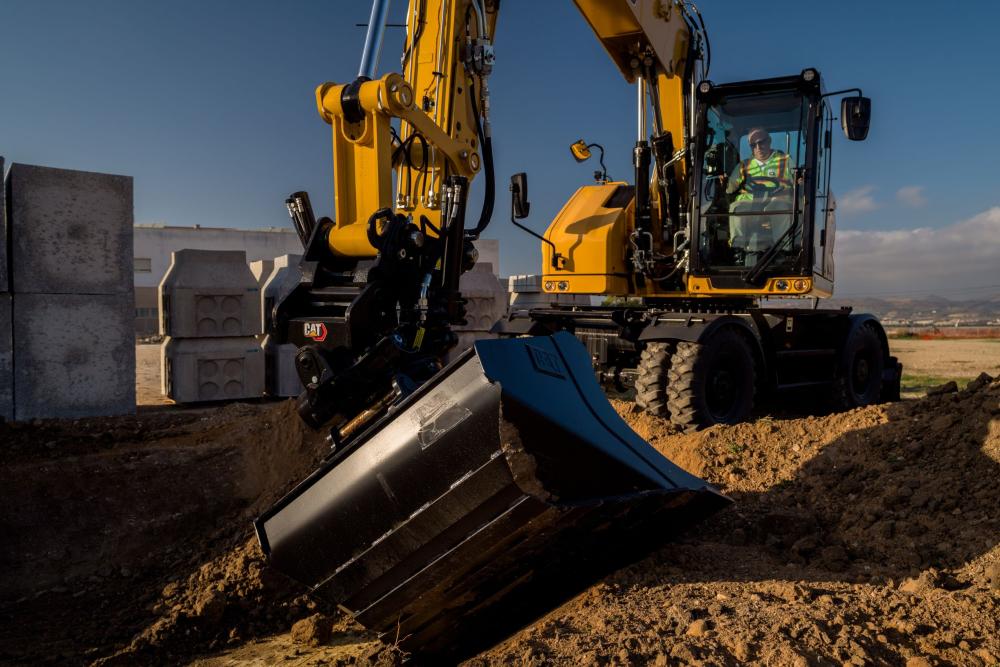

Cat® Tiltrotators help you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.

Seamless Integration

Up to 13% More Productivity

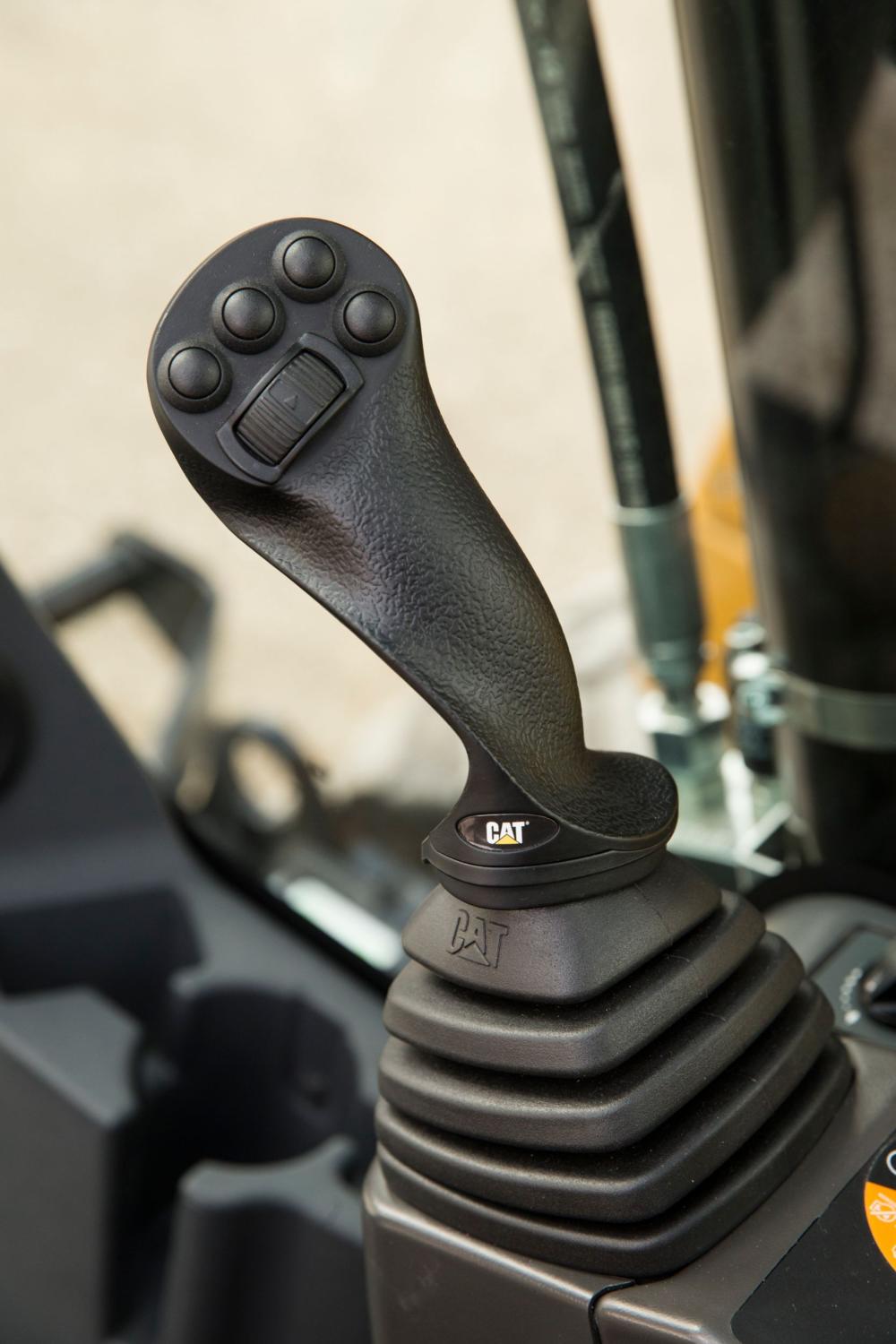

Easy Operation

Enhanced Versatility

Stay Safe

Configuration Options

Tiltrotators connect to the machine’s HP2 circuit leaving the HP1 circuit for an additional attachment, ensuring smooth hydraulic flow to both
Display function integrates into the machine’s monitor
Positioning system connects to Cat GRADE with 3D

Tiltrotators Key Features (EU).pdf Tiltrotators Technical Specifications (EU).pdf

Others

Machine Class	23-30 ton Excavators
Weight	879 kg	1938 lb
Interface Options: Top-Bottom	CW-40 / CW-40
Overall Height	1427 mm	56.18 in
Length	947 mm	37.28 in
Overall Width	1110 mm	43.7 in
Rotation Speed	7 seconds, per 1 full rotation
Tilt Angle Range +/-	40° Left/Right
Maximum Bucket Capacity	1.6 m³	2.09 yd³
Maximum Bucket Width	2000 mm	79 in
