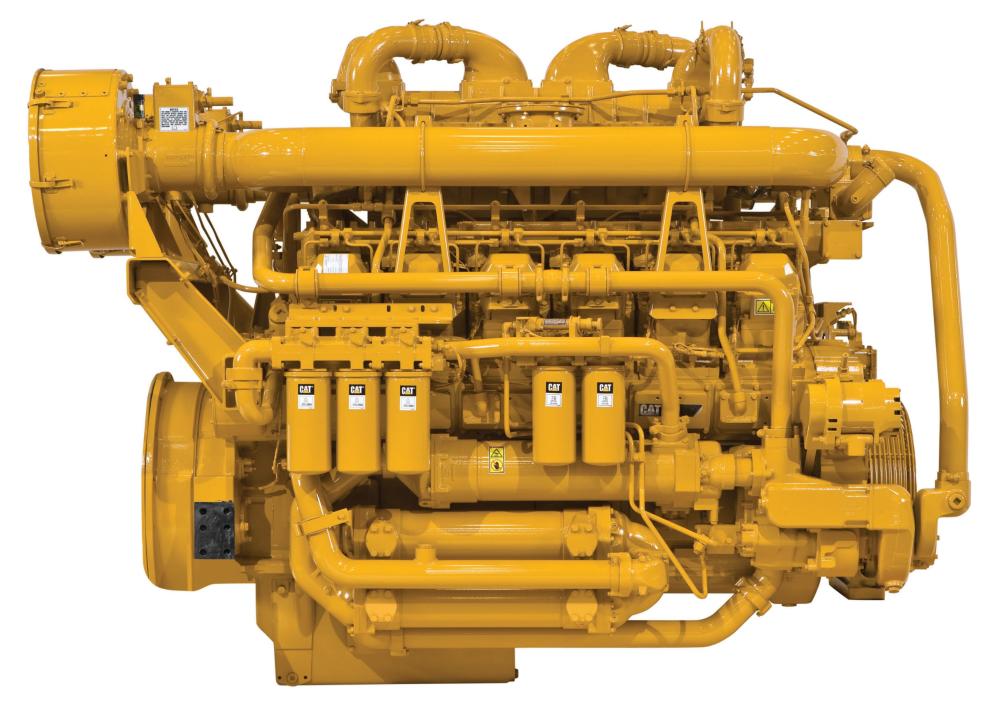

Cat® 3508B Industrial Diesel Engine

Units of measurement :

Metric

Imperial

Maximum Power

820 kW

Maximum Torque

4353 Nm @ 1450 rpm

Emissions

Non-Certified

Availability

Purchase Rental Used

The Cat® 3508B Industrial Diesel Engine is offered in ratings ranging from 746-820 bkW (1000-1100 bhp) @ 1800 rpm. These ratings are non-certified and are available for global non-regulated areas. Industries and applications powered by 3508B engines include Bore/Drill Rigs, Chippers/Grinders, Construction, Cranes, Dredgers, Forestry, General Industrial, Material Handling, Mining, Mobile Earthmoving Equipment, Pumps, Shovels/Draglines, Surface Hauling Equipment and Trenchers.

Reliable, Quiet and Durable Power

Fuel Efficiency

Emissions

World-class Product Support Offered Through Global Cat Dealer Network

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

You might also be interested in:

Cat® 3508B Industrial Diesel Engine

Maximum Power	820 kW	1100 hp
Maximum Torque	4353 Nm @ 1450 rpm	3211 lb-ft @ 1450 rpm
Rated Speed	1800 rpm
Minimum Power	746 kW	1000 hp

Length	2462 mm	97 in
Width	1704 mm	67 in
Height	1720 mm	68 in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments	4309 kg	9500 lb

Engine Configuration	V-8, 4-Stroke-Cycle Diesel
Bore	170 mm	6.7 in
Stroke	190 mm	7.5 in
Displacement	34.5 l	2105 in³
Aspiration	Turbocharged Aftercooled
Rotation from Flywheel End	Counterclockwise
Aftertreatment	-
