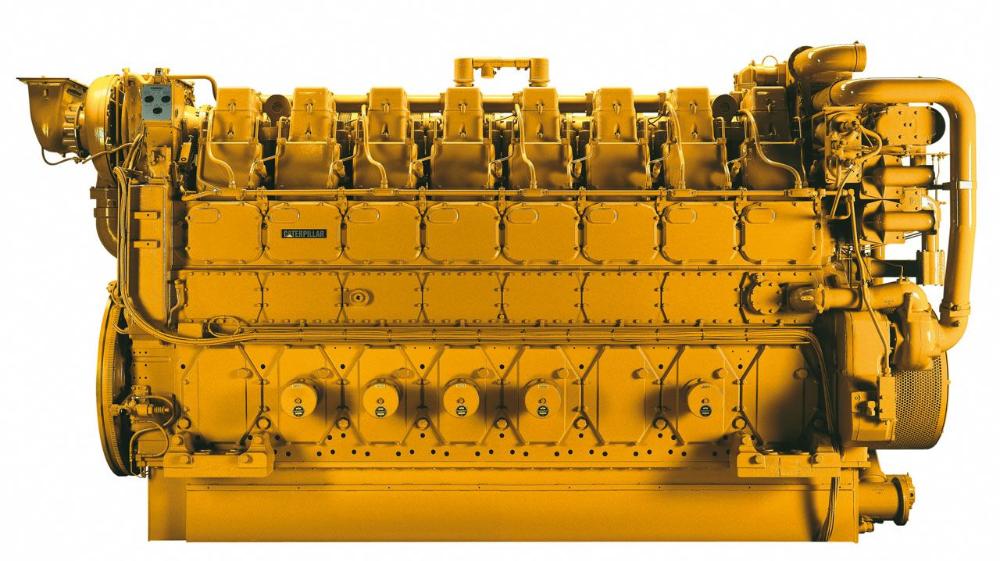

Cat 3606 Industrial Diesel Engine

15174201

Cat 3606 Industrial Diesel Engine

Caterpillar

https://www.finanzauto.es/productos/motores-industriales-y-para-ferrocarril-caterpillar-motor-diesel-industrial-catsupsup-3606

Units of measurement :

Metric

Imperial

Maximum Power

1850 kW

2481 hp

Maximum Torque

18200 Nm @ 820 rpm

13424 lb-ft @ 820 rpm

Emissions

Non-Certified

Availability

Purchase Rental Used

The Cat 3606 Industrial Diesel Engine is offered in ratings ranging from 1490-1850 bkW (1998-2481 bhp) @ 750-1000 rpm. These ratings are non-certified and available for global non-regulated areas. Industries powered by 3606 engines include Construction, Forestry, General Industrial, Material Handling and Mining.

Features

Specifications

Fuel Efficiency

Reliable, Quiet and Durable Power

World-class Product Support Offered Through Global Cat Dealer Network

Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

Scheduled maintenance, including SOS^SM sample
Customer Support Agreements (CSA)
Caterpillar Extended Service Coverage (ESC)
Superior dealer service network
Extended dealer service network through the Cat Industrial Service Distributor (ISD) program

Scheduled maintenance, including SOS^SM sample
Customer Support Agreements (CSA)
Caterpillar Extended Service Coverage (ESC)
Superior dealer service network
Extended dealer service network through the Cat Industrial Service Distributor (ISD) program

Power Rating

Maximum Power	1850 kW	2481 hp
Maximum Torque	18200 Nm @ 820 rpm	13424 lb-ft @ 820 rpm
Rated Speed	750-1000 rpm
Minimum Power	1490 kW	1998 hp

Emission Standards

Emissions

Non-Certified

Engine Dimensions - Approximate

Length	3988 mm	157 in
Width	1748 mm	69 in
Height	2626 mm	103 in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments	15680 kg	34500 lb

General

Engine Configuration	Inline 6, 4-Stroke-Cycle Diesel
Bore	280 mm	11 in
Stroke	300 mm	11.8 in
Displacement	110.8 l	6764 in³
Compression Ratio	13:01
Aspiration	Turbocharged Aftercooled
Rotation from Flywheel End	Counterclockwise
Aftertreatment	-
