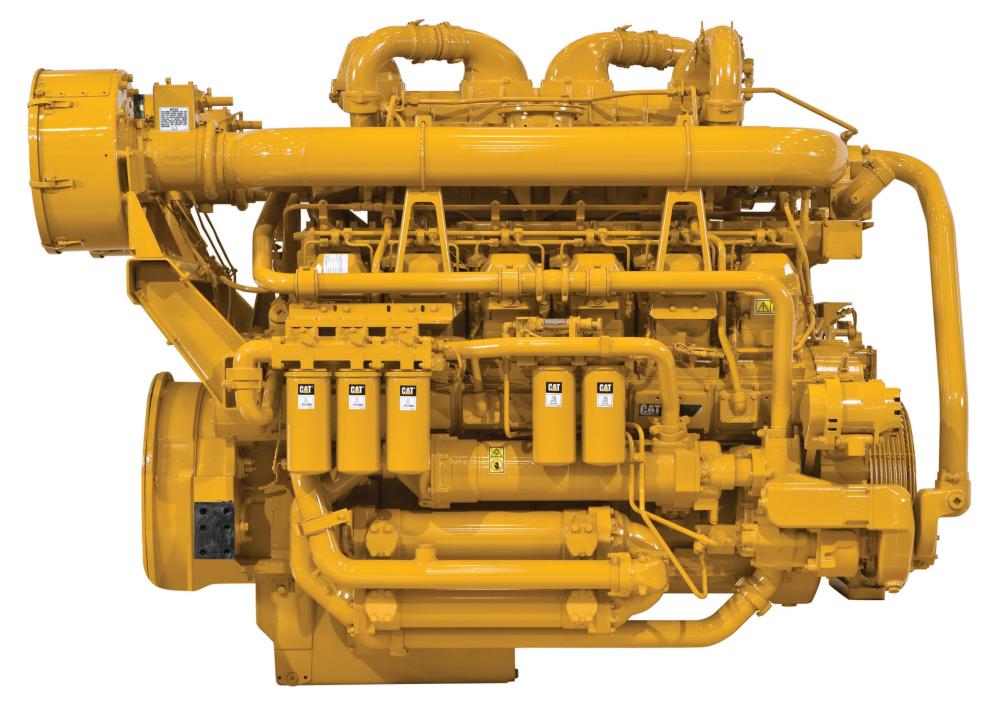

Cat 3512 Industrial Diesel Engine

Units of measurement :

Metric

Imperial

Maximum Power

1119 kW

Maximum Torque

6210 Nm @ 1400 rpm

Emissions

Non-Certified

Availability

Purchase Rental Used

The Cat 3512 Industrial Diesel Engine is offered in ratings ranging from 761-1119 bkW (1020-1500 bhp) @ 1200-1800 rpm. These ratings are non-certified and available for global non-regulated areas. Industries and applications powered by 3512 engines include Bore/Drill Rigs, Chippers/Grinders, Construction, Cranes, Dredgers, Forestry, General Industrial, Material Handling, Mining, Mobile Earthmoving Equipment, Pumps, Shovels/Draglines, Surface Hauling Equipment and Trenchers.

Reliable, Quiet and Durable Power

Fuel Efficiency

Quality

World-class Product Support Offered Through Global Cat Dealer Network

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

You might also be interested in:

Cat 3512 Industrial Diesel Engine

Maximum Power	1119 kW	1500 hp
Maximum Torque	6210 Nm @ 1400 rpm	4580 lb-ft @ 1400 rpm
Rated Speed	1200-1800 rpm
Minimum Power	761 kW	1020 hp

Length	2676 mm	105 in
Width	1704 mm	67 in
Height	1720 mm	68 in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments	6078 kg	13400 lb

Engine Configuration	V-12, 4-Stroke-Cycle Diesel
Bore	170 mm	6.7 in
Stroke	190 mm	7.5 in
Displacement	51.8 l	3161 in³
Compression Ratio	13.0:1
Aspiration	Turbocharged Aftercooled
Rotation from Flywheel End	Counterclockwise
Aftertreatment	-
