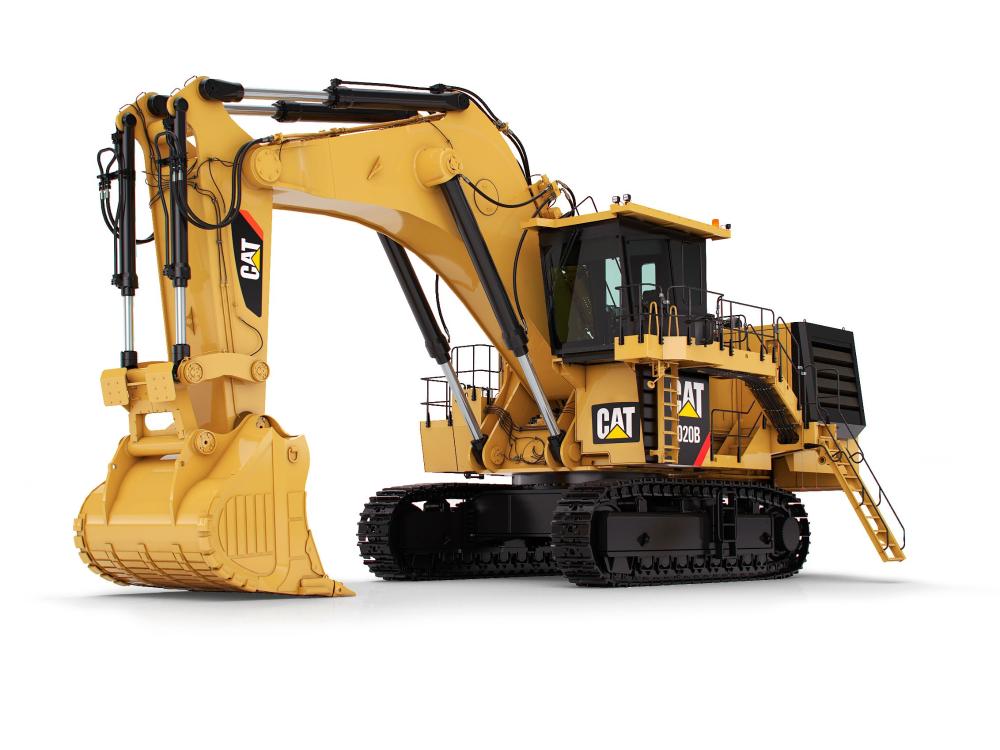

6020 Hydraulic Mining Shovel
Caterpillar
Metric
Imperial
Engine Output - SAE J1995
776 kW
1040 hp
Bucket Payload
21.6 t
23.8 ton (US)
Operating Weight
230.2 t
253.8 ton (US)
Availability
When we invited our customers to help us design the first of our \u201cNext Generation\u201d Cat® hydraulic shovels, they gave us three top priorities
High Reliability & Durability
New C32B engine with non-DEF aftertreatment, improved cooling and increased durabilityExcellent Fuel Efficiency
Efficiency and cost advantage over the leading shovel in its classHigh Productivity
Thanks to faster cycle times and high reliability compared to competitive shovelsSAFETY
OPERATOR CAB
RELIABILITY & DURABILITY
PRODUCTIVITY & PERFORMANCE
BUCKETS & GET
CONNECTIVITY & TECHNOLOGY
SERVICEABILITY
SUSTAINABILITY
- Operator Protective Guard (Top Guard) certified cab with safety glass windshield.
- Excellent visibility thanks to cab position that provides clear view to the digging and loading areas, in-floor window that provides a view to the tracks, LED lighting, and optional camera monitoring system.
- Multiple emergency shut-off switches, including a pull switch accessible from the ground.
- Safer access and egress with wide anti-slip walkways, retractable 45-degree stairway and three means of egress for fast emergency exit.
- Safer service with lockable battery isolation and starter lockout switch, plus safe access to power module components from machine platform and counterweight.
- Quiet and fully pressurized cab with ergonomic operator seat and controls, superior insulation, extensive in-cab air distribution via powerful HVAC unit and multiple, optimally positioned vents.
- Easily accessible ergonomic joysticks with Electronic-Hydraulic Servo Control, which delivers dynamic and precise response and ensures no hydraulic lines are present in the cab.
- Greater controllability with ergonomic joystick controls and five circuit hydraulics that allow for two-cylinder motions, two travel motions, and swing to be controlled simultaneously.
- Enhanced training capability, with patented 3-seat design, elevated observer’s work station and easily dual in-cab emergency stop buttons.
- 10-inch high-definition color touchscreen display that includes troubleshooting aids and machine documentation.
- Better wear of undercarriage components thanks to floating push tube, which delivers even idler slide wear and extended component life; low wear drive system via induction hardened and high quantity of sprocket teeth; and optional rough terrain undercarriage protection kit.
- Cat exclusive Positive Pin Retention 2 (PPR2) Track design, which resists pin walking and link cracking for reliable sealing and maximum track life.
- Structures designed and fabricated to withstand the toughest digging conditions, with high-strength steel; full penetration, profiled and ground welds at critical junctures; and booms and sticks that are stress-relieved after welding.
- Efficient Independent Oil Cooling system, which protects and extends the life of hydraulic components.
- New heavy-duty rolled track shoe offers extended life thanks to an updated manufacturing process and higher-strength material. We've also moved from two size offerings to three (750 mm, 950 mm and 1200 mm), allowing these track shoes to provide lower ground pressure for a wider range of applications.
- Greater efficiency through Hydraulic Optimization, which dynamically assigns individual pumps or groups of pumps to deliver the exact flow and pressure that each hydraulic function requires.
- New C32B engine offers even greater durability and reliability than its predecessor, with a higher flow oil pump, new cylinder head, and more. Increased piston compression height enables higher power in select applications.
- Engine optimized for low fuel consumption at 1,800 rpm and lower speeds, plus significant gains in fuel consumption through collaboration of engine and machine integration.
- Maximum uptime, without work interruption for regeneration, engine derate, or cold weather treatment of secondary fluid.
- Buckets and ground engaging tools (GET) designed to maximize durability and productivity and ideally matched to your shovel and application.
- Integrated to work as part of a machine system — helping you achieve high productivity and the lowest cost per ton.
- Variety of sizes and wear packages for the ideal match to your shovel and application.
- Four tip shapes of hammerless GET designed specifically for the 6020, with no special tools required for removal and installation.
- Wear packages that protect your investment, including special liner material and lip shrouds, wing shrouds and heel shrouds.
- Greater connectivity with improved Product Link™ Elite system, which increases the availability of data provided by the 6020 and allows it to collect and transmit information into locally hosted or cloud-hosted applications such as Cat MineStar™ Solutions Health Office, Health Equipment Insights, or Equipment Care Advisor.
- Earliest possible detection of faults, with Board Control System that uses sensors throughout the machine to monitor operating data, record faults, and notify the operator audibly and visually.
- Factory-ready for Cat MineStar™ Solutions, with a range of capabilities that meet the needs of your fleet.
- Modular design that facilitates quick field assembly — as few as 14 days in typical condition.
- Exchangeable power module that can be quickly swapped out for a spare, then transported for repair in a safe, convenient and clean environment.
- Exceptional component accessibility and weather protection via first-in-class and spacious walk-through power module.
- Superior swing system component accessibility via boom-mounted hydraulic valve block, and ground-level accessible service fluid fill points and jump start receptacle.
- Simplified undercarriage serviceability, with automatic track tensioning system, which requires no manual adjustment; externally serviceable break; and PPR2 Tracks that are easily serviced with a master joint.
- Highly regulated C32B engine certified to meet U.S. EPA Tier 4 Final/EU Stage V emissions standards without the need for DEF — saving time and cost during maintenance.
- Sound-suppressed power module to keep spectator sound levels low.
- Preservation of raw materials, energy conservation and reduced emissions through the Cat Reman and Cat Rebuild programs, which return end-of-life components to like-new condition.
General
| Engine Output - SAE J1995 | 776 kW | 1040 hp |
| Bucket Payload | 21.6 t | 23.8 ton (US) |
| Operating Weight | 230.2 t | 253.8 ton (US) |
| Note | Specifications shown above apply to a Backhoe configuration. A frontless configuration is also available. | |
| Standard Bucket Capacity | 12 m³ | 15.7 yd³ |
Centralized Service Area
| Equipped With (1) | Quick couplings for: – Diesel fuel – Engine coolant – Pump transmission gear oil – Engine oil (oil pan) – Hydraulic oil |
| Equipped With (3) | Indicator light for hydraulic tank full |
| Features | Centralized service area accessible from ground level. |
| Equipped With (2) | Cat jump-start socket |
Hydraulic System with Electronic Pump Management
| Electronic Pump Management Contains (1) | Electronic load limit control | |
| Maximum Pressure - Swing - Acceleration | 310 bar | 4495 psi |
| Maximum Swing Oil Flow | 783 l/min | 216 gal/min |
| Maximum Pressure - Swing - Deceleration | 350 bar | 5080 psi |
| Maximum Pressure - Travel | 310 bar | 4495 psi |
| Electronic Pump Management Contains (3) | Automatic return of main pumps to zero flow | |
| Maximum Pressure - Attachment | 310 bar | 4495 psi |
| Hydraulic Tank Capacity | 2800 l | 740 gal (US) |
| Main Pumps | 6 × variable swash plate pumps | |
| Filters (3) | Full-flow filters (10 μm) for cooling return circuit | |
| Electronic Pump Management Contains (2) | Dedicated circuit pump allocation | |
| Filters (2) | Full-flow filters (10 μm) for complete return circuit | |
| Maximum Total Oil Flow | 2350 l/min | 621 gal/min |
| Filters (1) | Full-flow high-pressure filters (100 μm) for main pumps, installed directly behind each pump | |
| Filters (5) | Transmission oil filter (40 μm) | |
| Total Volume of Hydraulic Oil | 3500 l | 925 gal (US) |
| Electronic Pump Management Contains (5) | Reduced oil flow of main pumps at high hydraulic oil temperature and at high engine temperature | |
| Electronic Pump Management Contains (4) | Automatic rpm reduction of engine speed during working breaks | |
| Features (1) | Pressure cut-off function for all main pumps | |
| Filters (4) | Pressure filters (6 μm) for servo circuit | |
| Features (2) | Cooling of pump transmission gear oil |
Diesel Engine - Equivalent to Tier 2
| Displacement | 32 l | 1959 in³ |
| Maximum Altitude without Deration | 3622 m (11,884 ft) – above sea level (a.s.l.) | |
| Components (3) | Heavy-duty air filters | |
| Fuel Tank Capacity | 3600 l | 951 gal (US) |
| Aspiration | Turbocharged and air-to-air aftercooled | |
| Bore | 145 mm | 5.71 in |
| Stroke | 162 mm | 6.38 in |
| Components (6) | Large fuel tank allows for 24 hour machine operation | |
| Make and Model | Cat C32 ACERT | |
| No. of Cylinders | 12 | |
| Rated Speed | 1800 min-1 (1,800 rpm) | |
| Components (4) | Two-stage fuel filter | |
| Components (2) | Micro processed engine management | |
| Alternator | 275A | |
| Components (5) | Additional high-capacity water separator including electric priming pump | |
| Components (1) | Hydraulically driven radiator fan with variable electronically controlled fan speed |
Attachment
| Buckets Equipped With | – Special liner material covering main wear areas inside and outside – Lip shrouds – Wing shrouds – Heel shrouds |
| Type (5) | Float valve for boom down function |
| Type (3) | Boom and stick stress-relieved after welding |
| Type (1) | Boom and stick torsion-resistant with welded box design |
| Type (4) | Catwalks with rails at boom |
| Type (2) | High-tensile steel with solid steel castings at pivot areas |
Swing System
| Swing Drive | 2 compact planetary transmissions with axial piston motors | |
| Parking Brake | Wet multiple-disc brake, spring-loaded/hydraulically released | |
| Swing Ring | Triple-race roller bearing with sealed internal gearing | |
| Features (1) | Open swing circuit with auto slow down when joysticks in neutral | |
| Features (2) | All slew ring raceways and grease tub for internal gearing supplied by automatic, central lubrication system | |
| Maximum Swing Speed | 4.9 r/min | 4.9 r/min |
Operator's Cab
| Operator's Eye Level (approximate) | 5.5 m | 18.04 ft |
| Internal Dimensions of Cab - Height | 2070 mm | 6.79 ft |
| Internal Dimensions of Cab - Width | 1625 mm | 5.33 ft |
| Components (6) | Auxiliary fold-away seat with safety belt for 3rd person | |
| Internal Dimensions of Cab - Length | 2230 mm | 7.32 ft |
| New BCS Features (5) | USB, Lan (TCP/IP) and CAN BUS interfaces for data export | |
| Components (10) | Machine access via retractable access stairway, stairway angle approximately 45°, hydraulically operated | |
| Components (1) | Large cab floor window with removable grating for easy cleaning | |
| Components (2) | Pneumatically cushioned and multi-adjustable operator seat with lumbar support, safety belt, head- and armrests | |
| New Board Control System (BCS) Features: | Electronic monitoring, data logging and diagnostic system for vital signs & service data of engines, hydraulic & lube system | |
| New BCS Features (1) | Robust instrument panel including large (254 mm/10 in) color touch screen | |
| Components (9) | Roller blinds | |
| Components (7) | Operator Protective Guard (rock guard; approved according to ISO 10262:1998 [Top Guard]) compliant | |
| Components (8) | Windshield with parallel intermittent wiper/washer | |
| New BCS Features (4) | Fault memory capabilities | |
| Components (11) | Additional emergency ladder in close proximity to emergency escape window | |
| Components (4) | Joystick integrated in adjustable seat armrest | |
| New BCS Features (2) | On-screen troubleshooting assistance | |
| Components (5) | Full sized trainer seat with safety belt and work table | |
| New BCS Features (3) | Graphical data logging | |
| Components (3) | Safety switch in operator's seat for automatic motion shutdown |
Engine - Equivalent to U.S. EPA Tier 2
| Net Power - SAE J1349 | 770 kW | 1032 hp |
| Gross Power - SAE J1995 | 776 kW | 1040 hp |
| Engine Model | Cat C32 ACERT |
Operating Specifications
| Operating Weight | 230 t | 254 ton (US) |
| Bucket Payload | 22 t | 24 Sh Ton |
Automatic Lubrication System
| Type (2) | Grease supplied to swing roller bearing, all pivot points of attachment, and swing gearbox bearing | |
| Capacity - Grease Barrel | 205 l | 54 gal (US) |
| Type (3) | System condition and failures displayed by Board Control System | |
| Type (1) | Single-circuit progressive system with hydraulically driven heavy-duty pump and electronic time control |
Hydraulic Oil Cooling
| Features (1) | Cooling system fully independent of all main circuits, i.e. controlled cooling capacity available whenever engine is running | |
| Features (3) | Superior cooling efficiency to ensure optimum oil temperature | |
| Oil Flow of Cooling Pumps | 800 l/min | 211 gal/min |
| Diameter - Fan | 1500 mm | 4.92 ft |
| Features (2) | Variable electronically controlled flow of oil through cooler and fan speed |
Operating Weights - Backhoe
| Ground Pressure | 22 N/cm² | 31.9 psi |
| Operating Weight | 230200 kg | 507500 lb |
| Standard Track Pads | 800 mm | 2.62 ft |
Diesel Engine - Lesser Regulated
| Net Power - SAE J1349 | 770 kW | 1032 hp |
| Emissions | Meets China Nonroad Stage III emissions standards, equivalent to Tier 2 | |
| Gross Power - SAE J1995 | 776 kW | 1040 hp |
| Net Power - ISO 9249 | 774 kW | 1037 hp |
Electrical System
| Components (1) | Emergency stop buttons inside cab, accessible from all seating locations, and engine module |
| Battery Isolation Relays | manual lockable disconnect switch and automatic disconnect relay |
| Batteries (12V each) - In Series/Parallel Installation | 630 Ah – 24V |
| Components (3) | 9 LED high-brightness working flood lights: – 7 for working area – 2 for rear end |
| System Voltage | 24V |
| Components (6) | 1 beacon lamp on cab roof |
| Components (5) | 7 LED service lights |
| Batteries (12V each) | 6 × 210 Ah |
| Components (2) | Additional ground-level emergency stop |
| Components (4) | 2 LED high-brightness access flood lights |
Diesel Engine - Tier 4 Final
| Make and Model | Cat C32 ACERT | |
| Components (2) | Dual Diesel Oxidation Catalysts (DOCs) | |
| Fuel Tank Capacity | 3600 l | 951 gal (US) |
| Bore | 145 mm | 5.71 in |
| Displacement | 32 l | 1959 in³ |
| Stroke | 162 mm | 6.38 in |
| No. of Cylinders | 12 | |
| Rated Speed | 1,800 min-1 (1,800 rpm) | |
| Components (7) | Two-stage fuel filter | |
| Components (3) | MEUI™-C fuel system | |
| Components (4) | Hydraulically driven radiator fan with variable electronically controlled fan speed | |
| Maximum Altitude without Deration | 2925 m (9,600 ft) – above sea level (a.s.l.) | |
| Components (1) | Cat NOx reduction system | |
| Alternator | 275A | |
| Components (5) | Micro processed engine management | |
| Aspiration | Turbocharged and air-to-air aftercooled | |
| Components (6) | Heavy-duty air filters | |
| Components (8) | Additional high-capacity water separator including electric priming pump | |
| Components (9) | Large fuel tank allows for 24 hour machine operation |
Undercarriage
| Travel Drives - Each Side | 1 planetary transmission with 2 two-stage axial piston motors | |
| Gradeability - Travel Drives | Approximately 54% | |
| Components (3) | All running surfaces of sprockets, idlers, rollers and track chain links hardened | |
| Support Rollers - Each Side | 3 | |
| Maximum Tractive Force | 1183 kN | 265860 lbf |
| Track Pads - Each Side | 45 | |
| Components (1) | Forged double-grouser track pads | |
| Components (2) | Chain links connected by hardened pins and bushings | |
| Travel Speed - 2nd Stage - Maximum | 2.4 km/h | 1.49 mile/h |
| Components (6) | Audible travel alarm | |
| Components (4) | Fully hydraulic self-adjusting track tensioning system with accumulator | |
| Bottom Rollers - Each Side | 8 | |
| Travel Speed - 1st Stage - Maximum | 1.1 km/h | 0.68 mile/h |
| Parking Brakes | Wet multiple disc brake, spring loaded/hydraulically released | |
| Components (5) | Automatic hydraulic retarder valve to prevent overspeed on downhill travel |
Engine - U.S. EPA Tier 4 Final
| Engine Model | Cat® C32 ACERT™ | |
| Net Power - SAE J1349 | 761 kW | 1019 hp |
| Gross Power - SAE J1995 | 771 kW | 1033 hp |
Working Ranges
| Maximum Digging Reach | 15.9 m | 52.17 ft |
| Maximum Digging Depth | 8.1 m | 26.57 ft |
| Maximum Digging Height | 13.9 m | 45.6 ft |
Bucket
| Standard Bucket Capacity - Backhoe (Heaped 1:1) | 12 m³ | 15.7 yd³ |
Digging Forces
| Maximum Tearout Force | 650 kN | 146125 lb |
| Maximum Breakout Force | 730 kN | 164050 lb |
Diesel Engine - Highly Regulated
| Gross Power - SAE J1995 | 771 kW | 1033 hp |
| Net Power - SAE J1349 | 761 kW | 1019 hp |
| Net Power - ISO 9249 | 764 kW | 1024 hp |
| Emissions | Meets Tier 4 Final and Stage V emissions standards |
You might also be interested in:
-
6015
Engine Output - SAE J1995
615 kW
824 hp
Bucket Payload
14.6 t
16.1 ton (US)
Operating Weight
140 t
154.3 ton (US)
Cat
15196763
-
6030
Engine Output - SAE J1995
1230 kW
1649 hp
Bucket Payload
30 t
33 ton (US)
Operating Weight
294 t
324 ton (US)
Caterpillar
15701348
-
6040
Engine Output - SAE J1995
1550 kW
2079 hp
Bucket Payload
39.6 t
43.7 ton (US)
Operating Weight
404.6 t
446 ton (US)
Cat
15701534
-
6060
Engine Output - SAE J1995
2248 kW
3015 hp
Bucket Payload
61 t
67 ton (US)
Operating Weight
599 t
660 ton (US)
Cat
15701749
Other categories of Excavadoras:
360º Exterior
6020 Hydraulic Mining Shovel
Call us
I am interested
I am interested
Thank you for contacting us.
We have received your request and will contact you as soon as possible.
Please check your email to ensure that the form has been sent correctly.
