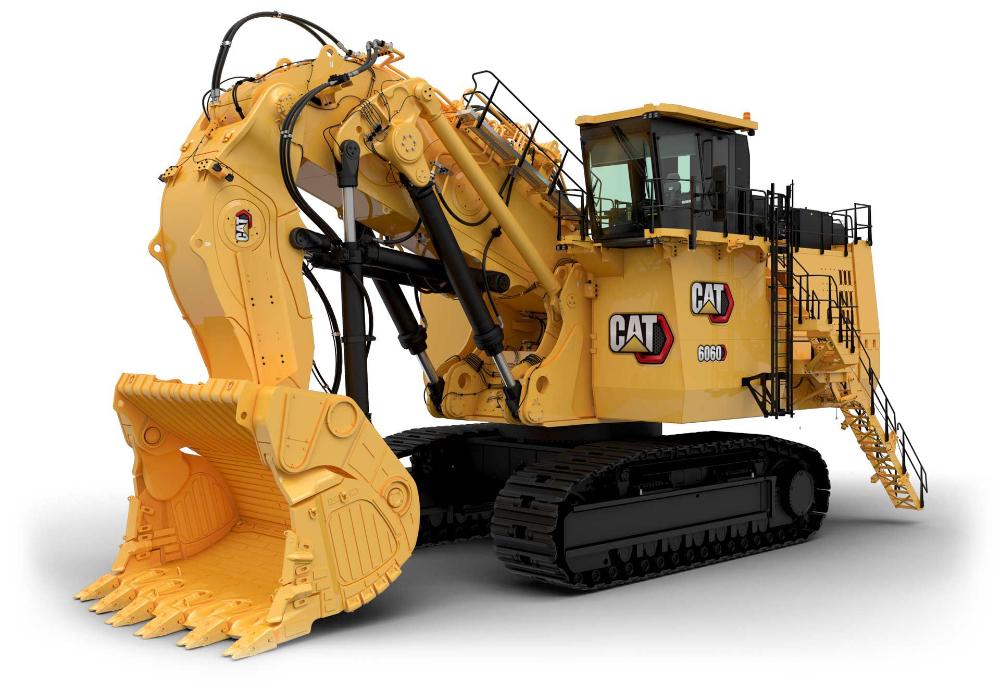

6060 Hydraulic Mining Shovel
Cat
Metric
Imperial
Engine Output - SAE J1995
2248 kW
3015 hp
Bucket Payload
61 t
67 ton (US)
Operating Weight
599 t
660 ton (US)
Availability

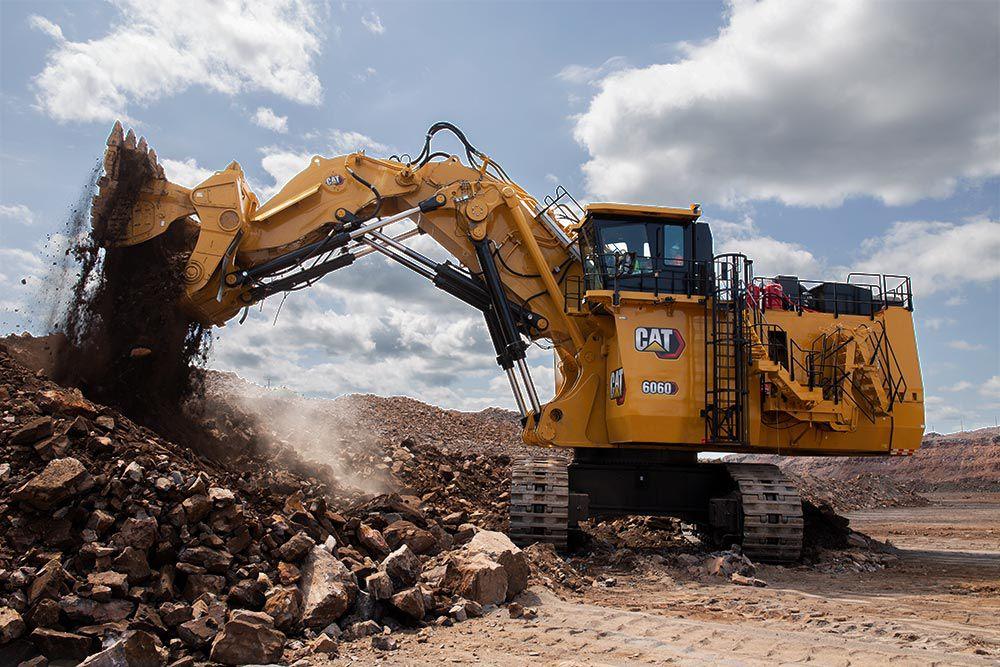

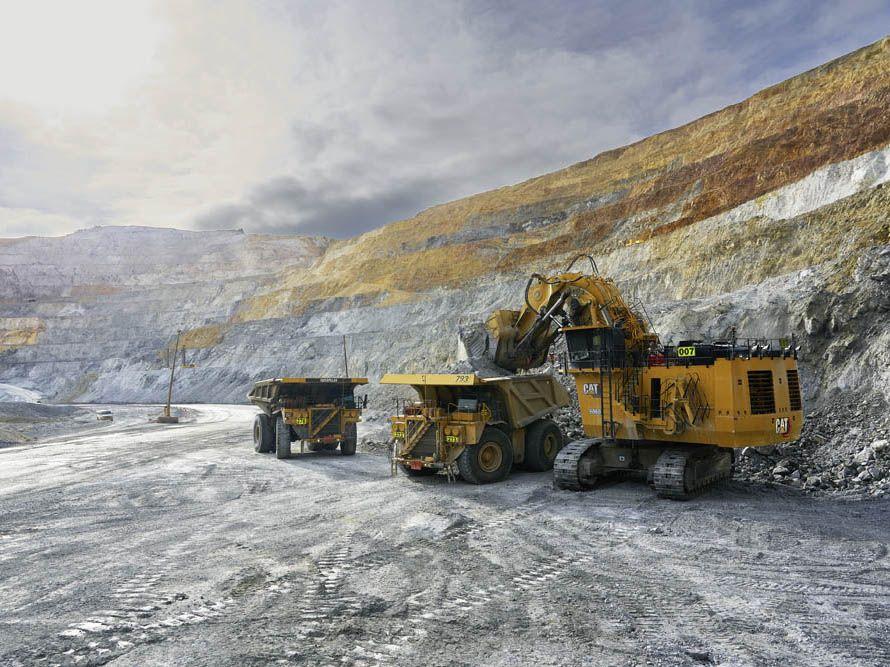

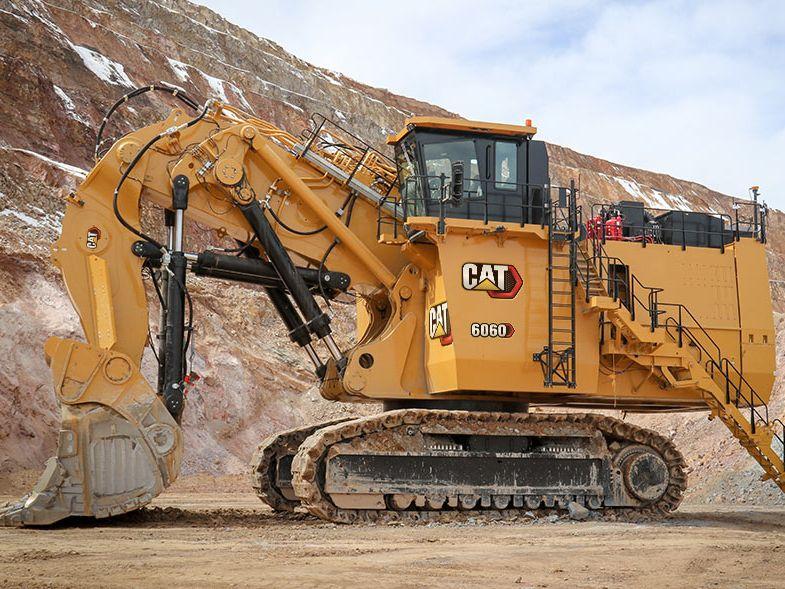

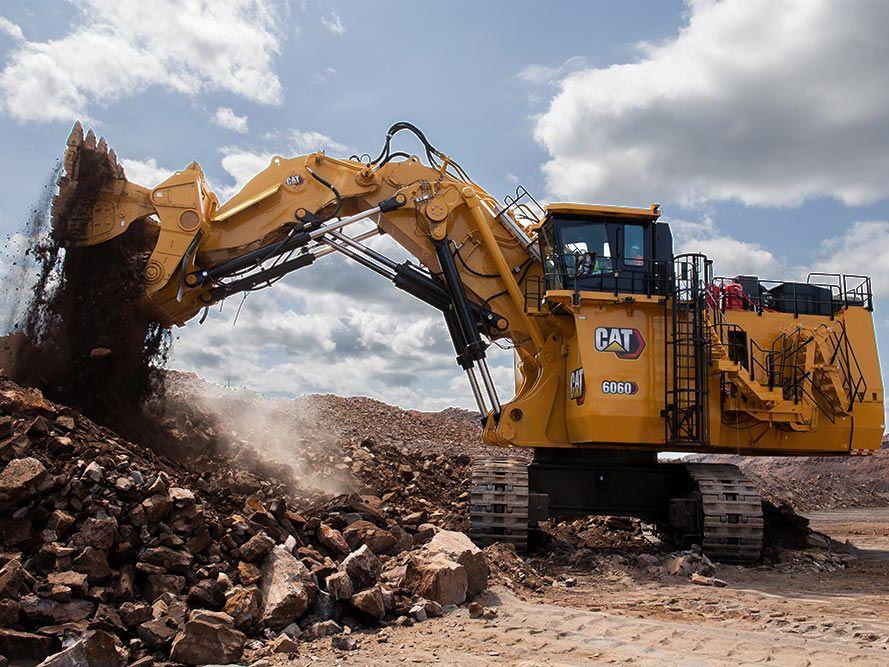

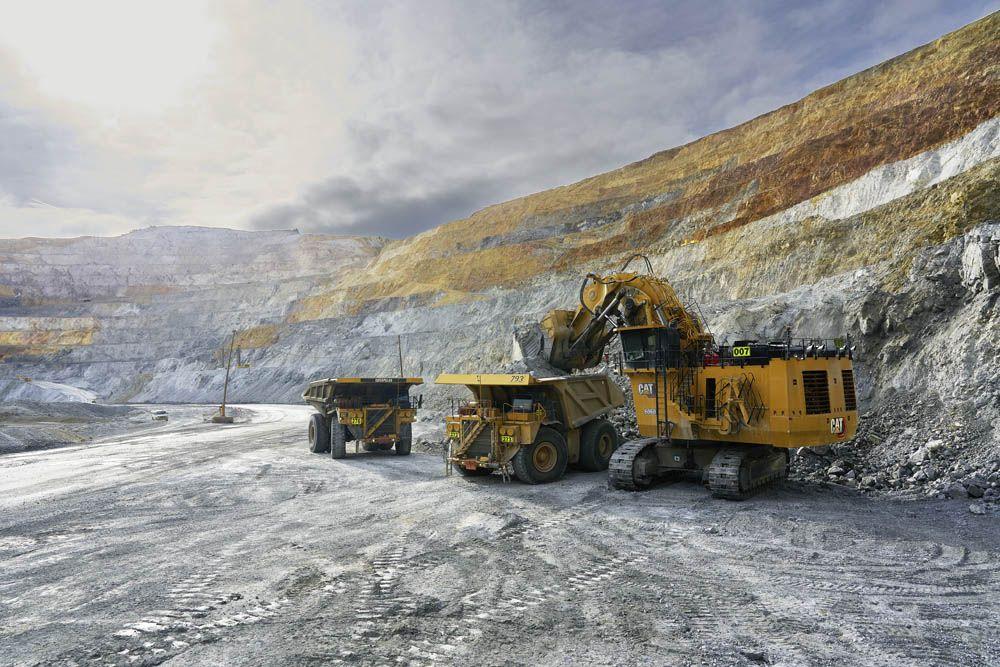

The Cat® 6060 Hydraulic Mining Shovel is the industry\u2019s most popular hydraulic shovel in its size class. And for good reason. With its rated payload of 61 tonnes (67 tons), the Cat 6060 was the first shovel in the mining industry tailor-made for mines using 240-ton (218-tonne) haul trucks, providing an efficient truck-shovel system solution to meet production capacity in these environments. Today's 6060 remains the ideal shovel for these applications, with improvements and enhancements in durability and reliability to deliver the uptime you demand. And its powerful engine and efficient hydraulic system allow higher working speeds for fast cycle times. The result is higher productivity and lower overall owning and operating costs.

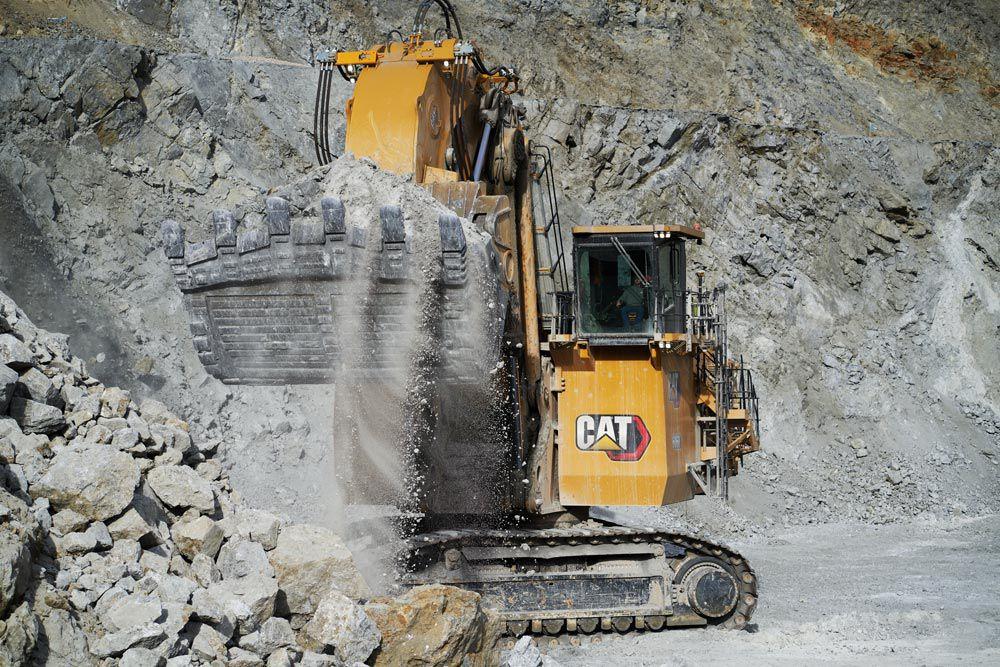

More than 40% Greater Visibility

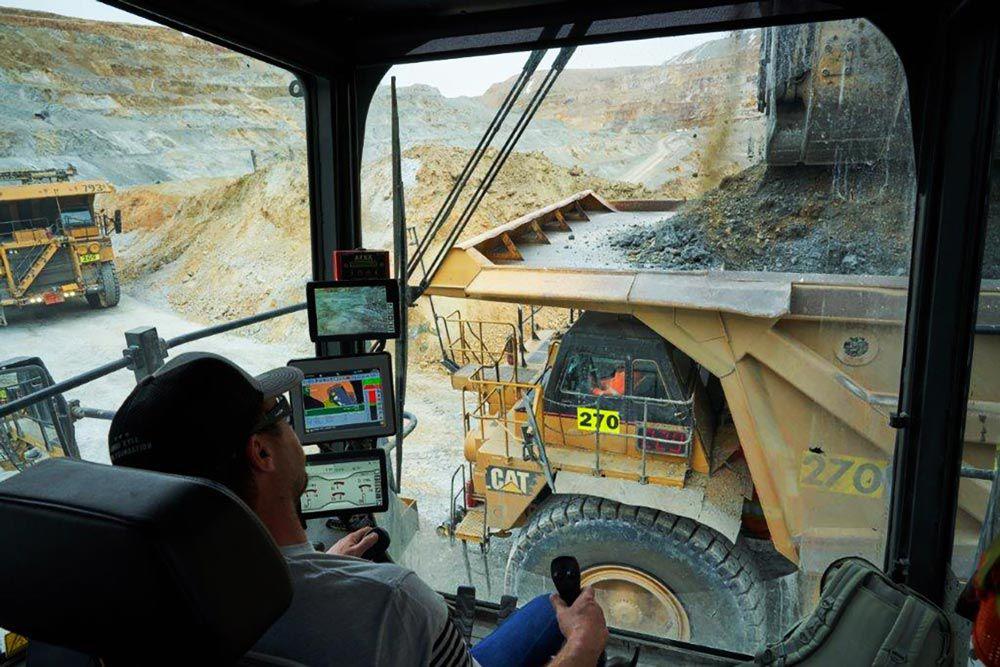

With clear views to the digging and loading areas as well as the tracksUp to 15% Fuel Reduction
In both face shovel and backhoe configurationsImproved Uptime & Durability
With 5% weight increase to critical structuresSAFETY
OPERATOR CAB
RELIABILITY & DURABILITY
PRODUCTIVITY & PERFORMANCE
BUCKETS & GET
CONNECTIVITY & TECHNOLOGY
SERVICEABILITY
SUSTAINABILITY

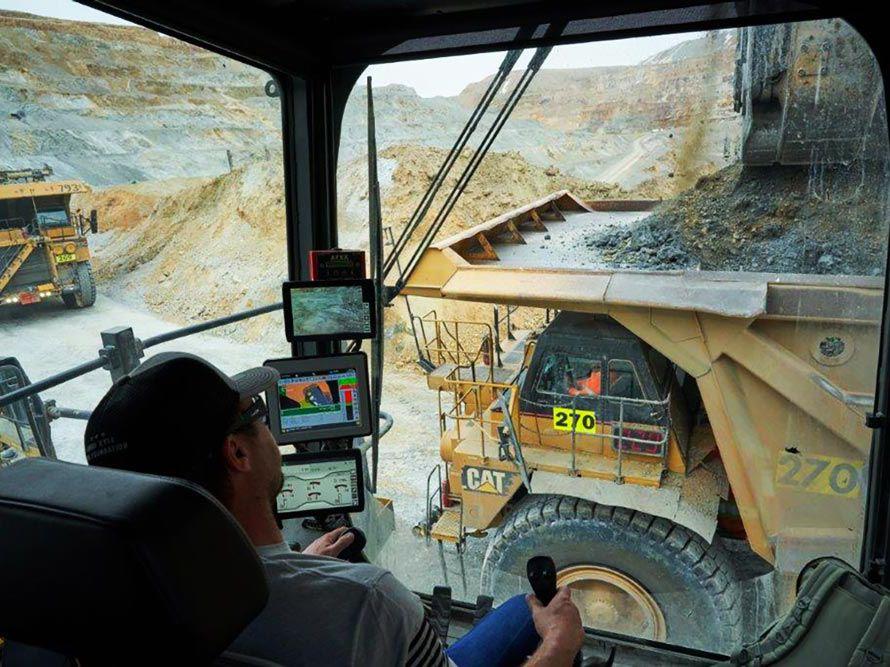

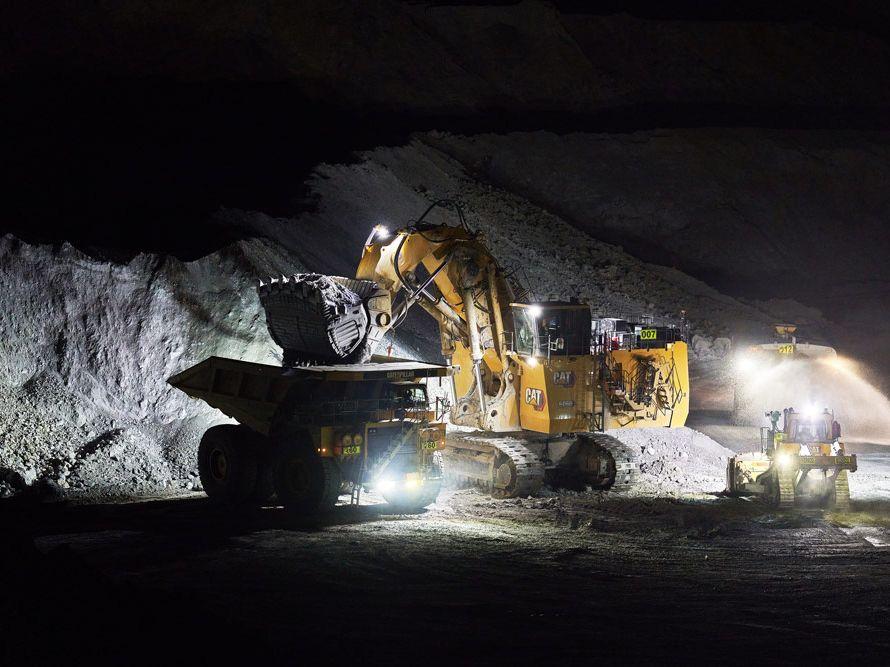

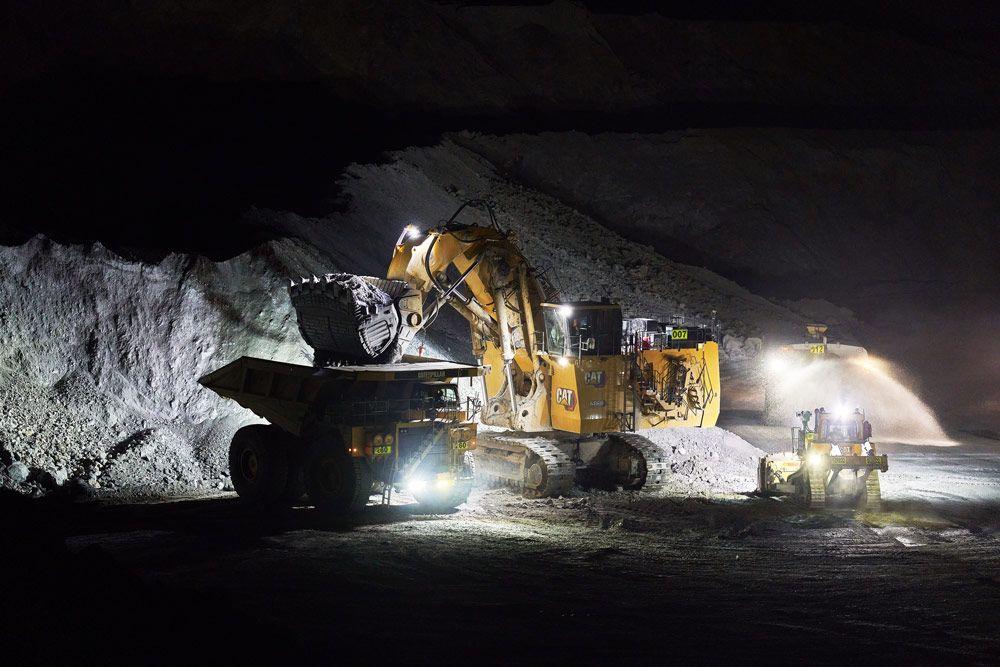

- Excellent visibility thanks to cab position that provides clear view to the digging and loading areas, floor window that provides a view to the tracks, LED lighting, and optional camera monitoring system.
- Emergency egress ladder with a self-closing door located in direct proximity to the cab.
- Safer access with 45-degree powered access stairway that features emergency lowering via a nitrogen accumulator, which ensures it remains operational even when engines shut off.
- Safer electrical and/or mechanical maintenance thanks to lockable starter and battery isolation switch cabinet.
- Safer service with improved sealing between engines and hydraulic pumps, improved routing and separation of hydraulic lines and electric cables.
- Improved operator comfort with Cat Next Gen heated and cooled seat and integrated joysticks.
- First-in-class and patented 3-seat design, including elevated full-size trainer’s seat and laptop work desk.
- New and improved air conditioning system.
- Reduced noise and temperature control thanks to superior insulation.
- Productivity-boosting Operator Assist – Enhanced Motion Control, which reduces fatigue and helps inexperienced operators more confidently load material.
- Improved structures, including increased weight, strengthened superstructure and increased thickness in several locations.
- 33% longer service life for new and enlarged slew ring.
- New undercarriage with long-life components, frame and electronics.
- New crawler frame and Cat undercarriage with HD rollers, HD idlers, HD track, and track tensioning.
- New and improved engine design that improves reliability and extends gallons consumed before first overhaul by 10%, which also contributes to longer engine life.

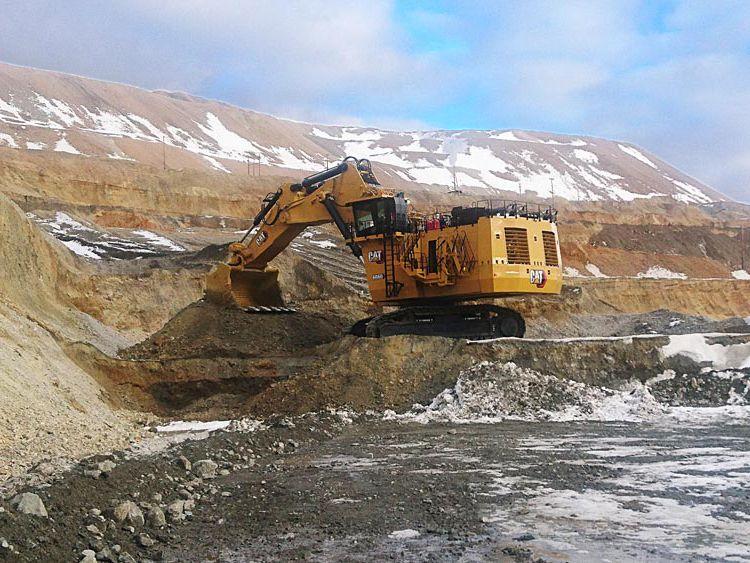

- Up to 15% greater efficiency through Hydraulic Optimization, which dynamically assigns individual pumps or groups of pumps to deliver the exact flow and pressure that each hydraulic function requires.
- Faster cycle times and improved energy efficiency delivered by closed-loop swing system, which also generates less heat.
- Greater operator control thanks to five circuit hydraulics that allow for two cylinder motions, two travel motions, and swing to be controlled simultaneously.

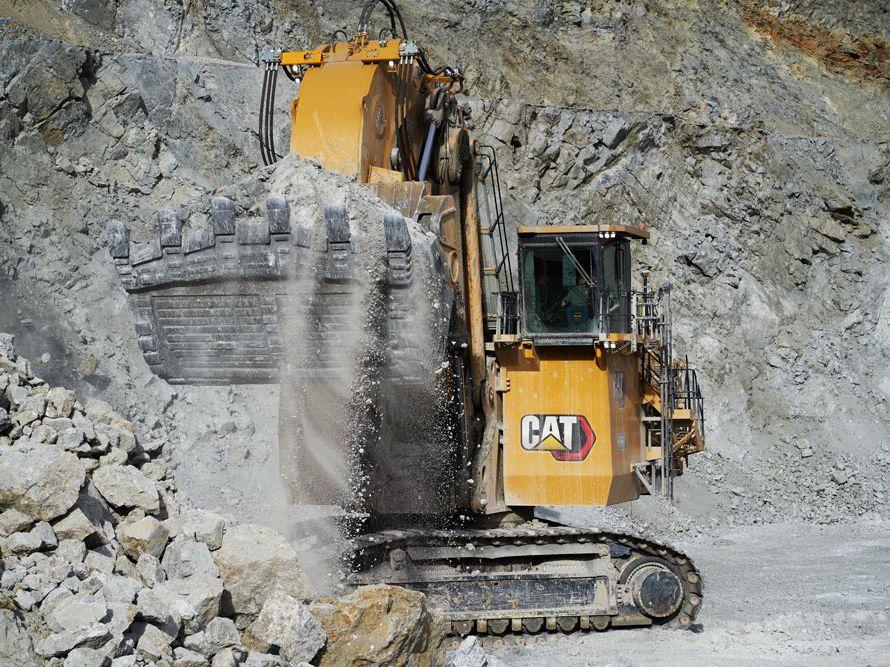

- Easier and faster face shovel operation with unique TriPower face shovel design, which generates superior mechanical leverage and control.
- Increased productivity and greater uptime with the twin engine concept, which enables up to 65% of full production with a single engine.

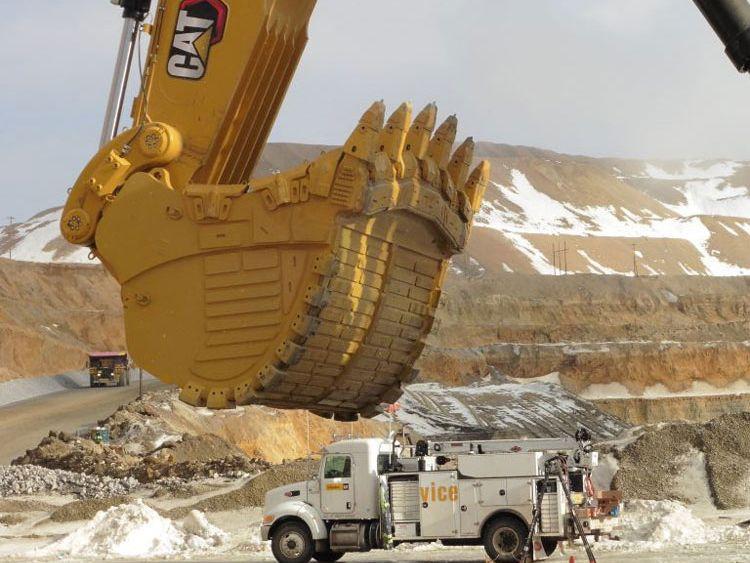

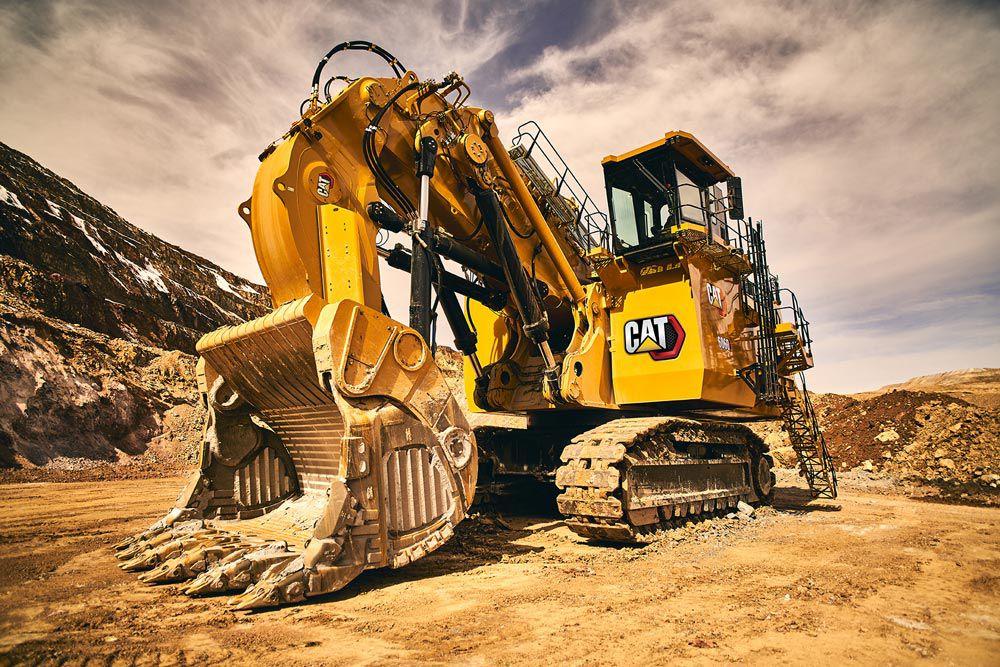

- Buckets and ground engaging tools (GET) designed to maximize durability and productivity and ideally matched to your shovel and application.
- Integrated to work as part of a machine system — helping you achieve high productivity and the lowest cost per ton.
- Variety of sizes and material densities for the ideal match to your shovel and application.
- Deliver optimal payload when combined with Cat GET and wear components.
- Wear packages that protect your investment, including special liner material and lip shroud, wing shrouds and heel shrouds.
- Greater connectivity with improved Product Link™ Elite system, which increases the availability of data provided by the 6060.
- Additional performance and reliability advantages through integration of proven and validated Cat electronics.
- Intuitive, informative onboard electronics that help operators be more productive.
- Enhanced diagnostic capabilities and troubleshooting functions with factory-installed Monitoring and Diagnostic System.
- Connectivity features and the integration of Cat MineStar™ Health offerings enable a proactive approach to maintenance.

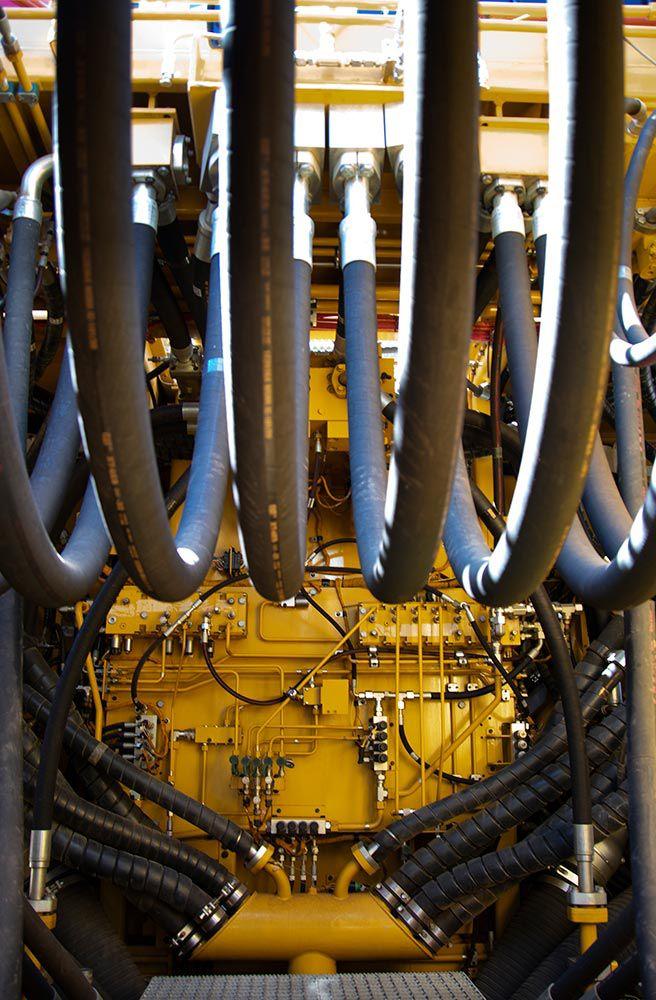

- More room in the service compartment, plus easy access to slew gearboxes, rotary distributor, oil cooler and more.
- Clear arrangement of components on the superstructure for easy access and serviceability.
- Hose assemblies that can be built locally using all Cat material.
- Access to Cat Electronic Technician, which helps dealer service personnel more easily diagnose and prevent issues.
- Reduced maintenance downtime thanks to exchange intervals for engine oil and engine filters that have been increased from 500 to 1,000 hours
- Reduced fuel burn thanks to 10% improvement in hydraulic efficiency.
- Reduced emissions with engines that satisfy Tier 4 standards and eliminate the need for Diesel Exhaust Fluid (DEF) — saving time and cost during maintenance.
- Less heat and improved efficiency with the closed-loop swing circuit.
- Reduced owning and operating costs thanks to increased commonality of systems and components, plus a reduction in unique part numbers.
- Preservation of raw materials, energy conservation and reduced emissions through the Cat Reman program, which returns end-of-life components to like-new condition.
General
| Engine Output - SAE J1995 | 2248 kW | 3015 hp |
| Bucket Payload | 61 t | 67 ton (US) |
| Operating Weight | 599 t | 660 ton (US) |
| Note | Specifications shown above apply to Face Shovel configuration. Backhoe and Frontless configurations are also available. |
Engine
| Engine Model | 2 x Cat 3512E |
Diesel Engines
| Rated Speed | 1,800 min-1 (1,800 rpm) | |
| Number of Cylinders - Each Engine | 12 | |
| Bore | 170 mm | 6.69 in |
| Stroke | 215 mm | 8.46 in |
| Displacement | 58.6 l | 3574 in³ |
| Aspiration | Turbocharged and charge air-cooled | |
| Components (1) | Non-DEF Aftertreatment system with Diesel Oxidation Catalysts (DOCs) | |
| Components (2) | High-capacity water separator | |
| Components (3) | Two-stage fuel filter with series filtration | |
| Components (4) | Heavy-duty air filters | |
| Components (5) | Microprocessed engine management | |
| Components (6) | Hydraulically driven radiator fan with electronically controlled fan speed | |
| Components (7) | Exhaust manifold and turbo heat shields |
Diesel Engine - Lesser Regulated
| Gross Power - SAE J1995 | 2256 kW | 3025 hp |
| Net Power - ISO 9249 | 2229 kW | 2990 hp |
| Net Power - SAE J1349 | 2103 kW | 2821 hp |
| Emissions | Optimized for fuel consumption. |
Diesel Engine - Highly Regulated
| Gross Power - SAE J1995 | 2248 kW | 3015 hp |
| Net Power - SAE J1349 | 2095 kW | 2810 hp |
| Net Power - ISO 9249 | 2221 kW | 2979 hp |
| Emissions | Meets U.S. EPA Tier 4 Final emission requirements. These engines participate in the U.S. EPA averaging, banking, and trading provisions. |
Electrical System
| System Voltage | 24 V |
| Batteries in Series/Parallel Installation | 6 x 210 Ah; 12 V each; 630 Ah 24 V in total |
| Components (1) | 6 maintenance-free batteries |
| Components (2) | Lockable battery isolator switch |
| Components (3) | Lockable starter isolator switch |
| Components (4) | 13 LED high-brightness working flood lights |
| Components (5) | 17 LED service lights |
| Components (6) | 2 electric horns (1 cab module; 1 oil cooler module) |
Operating Weights
| 6060 FS - Standard Track Pads | 1400 mm | 4.58 ft |
| 6060 FS - Operating Weight | 598800 kg | 1320110 lb |
| 6060 FS - Ground Pressure | 26.6 N/cm2 (38.5 psi) | |
| Backhoe - Standard Track Pads | 1400 mm | 4.58 ft |
| Backhoe - Operating Weight | 600500 kg | 1323860 lb |
| Backhoe - Ground Pressure | 26.7 N/cm2 (38.7 psi) | |
| Note | Operating weights include: base machine, front attachment, standard track pads, standard rock bucket, 100% fuel and lubricants. |
Service Refill Capacities
| Fuel Tank | 11870 l | 3136 gal (US) |
| Hydraulic Tank | 7100 l | 1876 gal (US) |
| Hydraulic System - Including Tank | 9400 l | 2483 gal (US) |
| Engine Oil | 328 l | 86.6 gal (US) |
| Cooling System | 800 l | 211.4 gal (US) |
| Swing Drive | 160 l | 42.4 gal (US) |
| Grease Tank | 710 l | 188 gal (US) |
Hydraulic System with Pump Managing System
| Main Pumps - Diesel Version | 8 variable swash plate pumps | |
| Main Pumps - Maximum Oil Flow - Diesel Version | 8 x 650 L/min (8 x 172 gal/min) | |
| Maximum Pressure - Attachment | 320 bar | 4640 psi |
| Maximum Pressure - Travel | 360 bar | 5220 psi |
| Swing Pumps - Diesel Version | 4 reversible swash plate pumps | |
| Swing Pumps - Maximum Oil Flow - Diesel Version | 4 x 352 L/min (4 x 93 gal/min) | |
| Maximum Pressure - Swing Pumps | 350 bar | 5075 psi |
Hydraulic Oil Cooling
| Oil Flow of Cooling Pumps | 4 x 488 L/min (4 x 129 gal/min) | |
| Components | 4 cooling fans | |
| Diameter - Fan | 1170 mm | 46 in |
| Features (1) | Cooling system fully independent of all main circuits, i.e. controlled cooling capacity is available whenever engine is running | |
| Features (2) | Fan speed and flow of oil to the coolers are thermostatically controlled | |
| Features (3) | Extremely high cooling efficiency to ensure optimum oil temperature | |
| Features (4) | Gear-type cooling pumps supplying high-volume, low-pressure oil to fans and aluminum coolers |
Swing System
| Swing Drive | 4 compact planetary transmissions with axial piston motors | |
| Parking Brakes | Wet multiple disc brake, spring loaded/hydraulically released | |
| Maximum Swing Speed | 3.8 r/min | 3.8 r/min |
| Swing Ring | Triple-race roller bearing with sealed internal gearing | |
| Features (1) | Dirt wipers at swing ring to prevent build-up of debris between swing ring and carbody | |
| Features (2) | Closed-loop swing circuit with torque control | |
| Features (3) | Hydraulic braking of the swing motion by counteracting control | |
| Features (4) | All raceways and the internal gearing of swing ring, supplied by automatic central lubrication system |
Undercarriage
| Travel Speed - 1st Stage - Maximum | 1.1 km/h | 0.68 mile/h |
| Travel Speed - 2nd Stage - Maximum | 1.6 km/h | 0.99 mile/h |
| Maximum Tractive Force | 2942 kN | 661160 lb |
| Gradeability - Travel Drives - Maximum | 39 % | 39 % |
| Track Pads - Each Side | 42 | |
| Bottom Rollers - Each Side | 7 | |
| Support Rollers - Each Side | 2 plus a skid plate in between | |
| Travel Drives - Each Side | 1 planetary transmission with 2 two-stage axial piston motors | |
| Components (1) | HD tracks with cast double-grouser track pad | |
| Components (2) | HD fixed axle rollers and idlers | |
| Components (3) | Hardened running surfaces of sprockets, idlers, rollers, pad links, and teeth contact areas | |
| Components (4) | Acoustic travel alarm (forward and reverse) | |
| Components (5) | Fully hydraulic, self-adjusting track tensioning system with piston accumulator | |
| Components (6) | Automatic hydraulic retarder valve to prevent over-speed on downhill travel |
Operator's Cab
| Operator's Eye Level - Approximately | 7.6 m | 24.91 ft |
| Internal Dimensions of Cab - Length | 2230 mm | 7.33 ft |
| Internal Dimensions of Cab - Width | 1625 mm | 5.33 ft |
| Internal Dimensions of Cab - Height | 2070 mm | 6.75 ft |
| Components (1) | Single hydraulically driven HVAC System, with dual system option | |
| Components (2) | In-floor window with removable grate | |
| Components (3) | Pneumatically cushioned and multi-adjustable comfort seat with heating, cooling, and lumbar support | |
| Components (4) | Independently adjustable seat consoles with integrated joysticks | |
| Components (5) | Operator Protective Guard (Top Guard) (ISO 10262:1998) | |
| Components (6) | Elevated full-size trainer seat with safety belt and laptop desk | |
| Components (7) | Additional fold-away auxiliary seat with safety belt | |
| Components (8) | Operator Presence switch | |
| Components (9) | Monitoring system with 254 mm (10 in) touch screen | |
| Components (10) | Powered 45 degree access stairway | |
| Components (11) | Emergency egress ladder | |
| Components (12) | FM/AM radio with USB and AUX input | |
| Components (13) | Roller blinds on 3 front windows | |
| Components (14) | 3 cup holders | |
| Components (15) | Cat Electronic Technician service port |
Automatic Lubrication System
| Capacity - Grease Container | 710 l | 188 gal (US) |
| Type (1) | Dual-circuit system with hydraulically driven heavy-duty pumps and electronic time relay control to adjust the pause/lube times | |
| Type (2) | System failures displayed by monitoring system | |
| Type (3) | Grease filters (200 µm) between service station and container as well as directly behind grease pump | |
| Type (4) | Main lube system connections include: pivot points of attachment, bucket and cylinders, raceways of swing roller bearing, and 2 greasing pinions for the internal gearing of swing ring |
Attachments
| Shovel attachment with unique TriPower kinematics ensuring the following main features: (1) | Automatic roll-back limiter to prevent material spillage; Kinematic assistance to hydraulic forces |
| Shovel attachment with unique TriPower kinematics ensuring the following main features: (2) | Horizontal Automatic constant-angle bucket guidance; Vertical Automatic constant-angle bucket guidance |
| Shovel attachment with unique TriPower kinematics ensuring the following main features: (3) | Constant boom momentum throughout the entire lift arc; Crowd force assistance |
| All buckets (FS and BH) are equipped with a wear package consisting of: (1) | Special liner material covering main wear areas inside and outside of bucket and lip shrouds between teeth |
| All buckets (FS and BH) are equipped with a wear package consisting of: (2) | Wing shrouds on side walls and heel shrouds at bottom edges |
| Type (1) | Catwalks with rails at booms (FS and BH) |
| Type (2) | Guards for shovel cylinders (FS) |
| Type (3) | Pressure-free lowering of boom (FS and BH) and stick (FS) by means of a float valve |
| Type (4) | Service access holes from both sides of boom (FS and BH) and stick (FS) |
| Type (5) | Welding procedures allow for internal counter-welding (double prep weld) wherever possible |
| Type (6) | Booms and sticks are stress-relieved after welding |
| Type (7) | Booms and sticks are torsion-resistant, welded box design of high-tensile steel with massive steel castings at pivot areas |
| Type (8) | Special wear packages for highly abrasive materials available upon request |
Digging Forces
| Maximum Crowd Force | 2200 kN | 494410 lb |
| Maximum Breakout Force | 1730 kN | 388780 lb |
Working Ranges
| Maximum Digging Height | 15.6 m | 51.17 ft |
| Maximum Digging Reach | 16.5 m | 54.17 ft |
| Maximum Digging Depth | 2.8 m | 9.17 ft |
Standard Bucket Capacity
| Face Shovel (heaped 2:1) | 34 m³ | 44.5 yd³ |
| Backhoe (heaped 1:1) | 34 m³ | 44.5 yd³ |

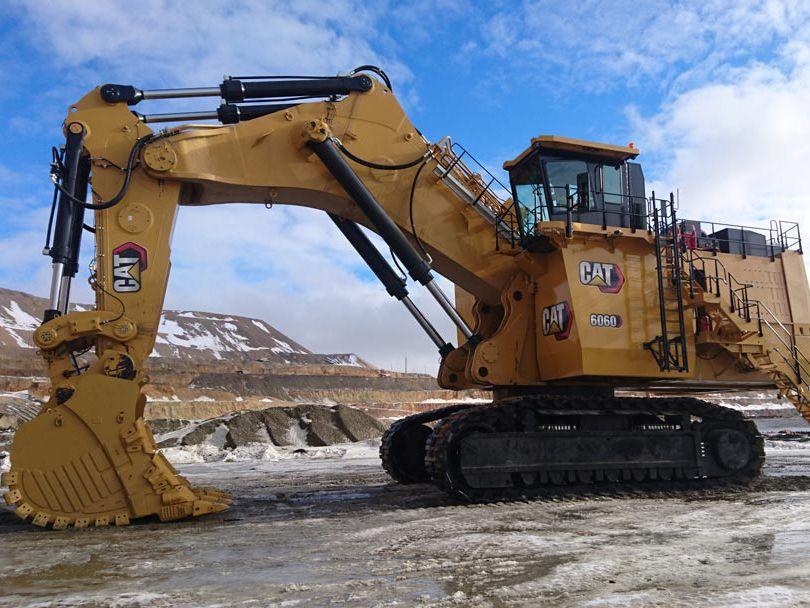

Backhoe Attachment (BH) - Digging Forces
| Stick Digging Force - ISO | 1316 kN | 295740 lb |
| Bucket Digging Force - ISO | 1223 kN | 274840 lb |
Backhoe Attachment (BH) - Working Range
| Maximum Digging Height | 16.1 m | 52.83 ft |
| Maximum Digging Reach | 19 m | 62.33 ft |
| Maximum Digging Depth | 8.9 m | 29.17 ft |
Retractable Service Station
| Installation | Retractable service station installed underneath the engine module and easily accessible from ground. |
| Equipped With (1) | Quick couplings for: Diesel fuel, Engine coolant - left/right engine, Pump transmission gear oil - left/right engine, Engine oil - left/right engine, Hydraulic oil tank, and grease container |
| Equipped With (2) | Cat jump-start socket |
| Equipped With (3) | Indicator lights |
You might also be interested in:
-
6015
Engine Output - SAE J1995
615 kW
824 hp
Bucket Payload
14.6 t
16.1 ton (US)
Operating Weight
140 t
154.3 ton (US)
Cat
15196763
-
6020
Engine Output - SAE J1995
776 kW
1040 hp
Bucket Payload
21.6 t
23.8 ton (US)
Operating Weight
230.2 t
253.8 ton (US)
Caterpillar
15701239
-
6030
Engine Output - SAE J1995
1230 kW
1649 hp
Bucket Payload
30 t
33 ton (US)
Operating Weight
294 t
324 ton (US)
Caterpillar
15701348
-
6040
Engine Output - SAE J1995
1550 kW
2079 hp
Bucket Payload
39.6 t
43.7 ton (US)
Operating Weight
404.6 t
446 ton (US)
Cat
15701534
Other categories of Excavadoras:
360º Interior
360º Exterior
Virtual Tour
6060 Hydraulic Mining Shovel
Call us
I am interested
I am interested
Thank you for contacting us.
We have received your request and will contact you as soon as possible.
Please check your email to ensure that the form has been sent correctly.
