SW460, 80 mm (3 in) Wheel Saw

Units of measurement :

Metric

Imperial

Maximum Cutting Depth

600 mm

Wheel Width

80 mm

Weight

1440 kg

Availability

Purchase Rental Used

Cat® Wheel Saws are designed for high performance trench cutting on a variety of hard or compact surfaces such as asphalt, reinforced concrete, and rocky or frozen ground.

Direct Drive System

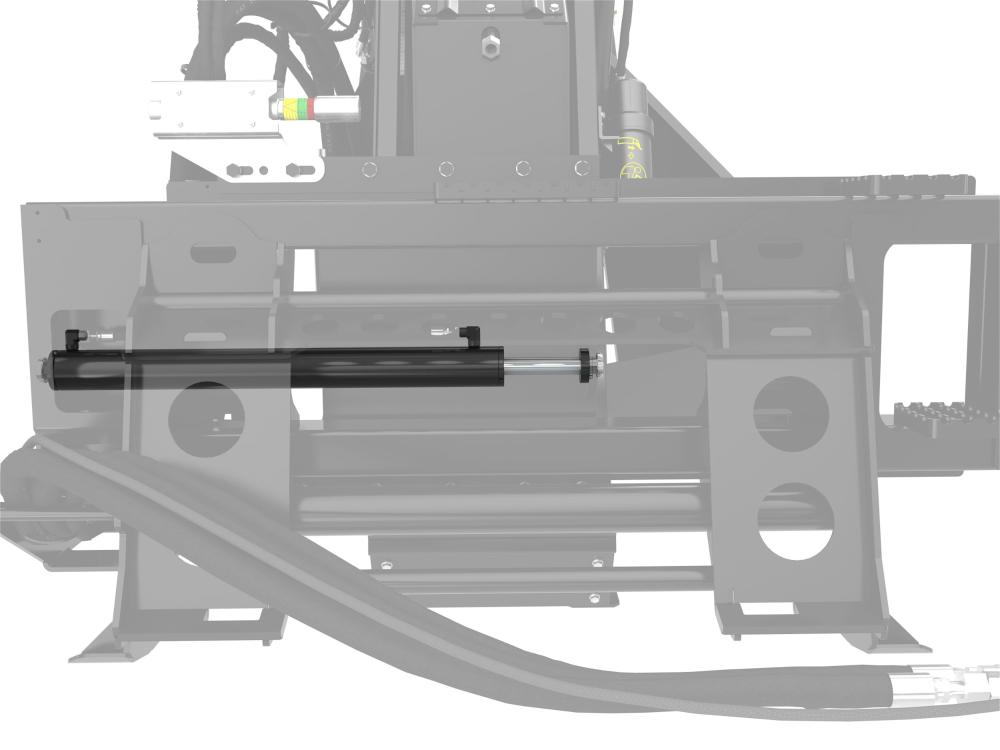

Hydraulic Side-Shift

Hydraulic Depth Control

Deflector Plates

Max Pro Pressure Gauge

Bits

Self Standing

OMM Container

Included Tools

Smart Creep

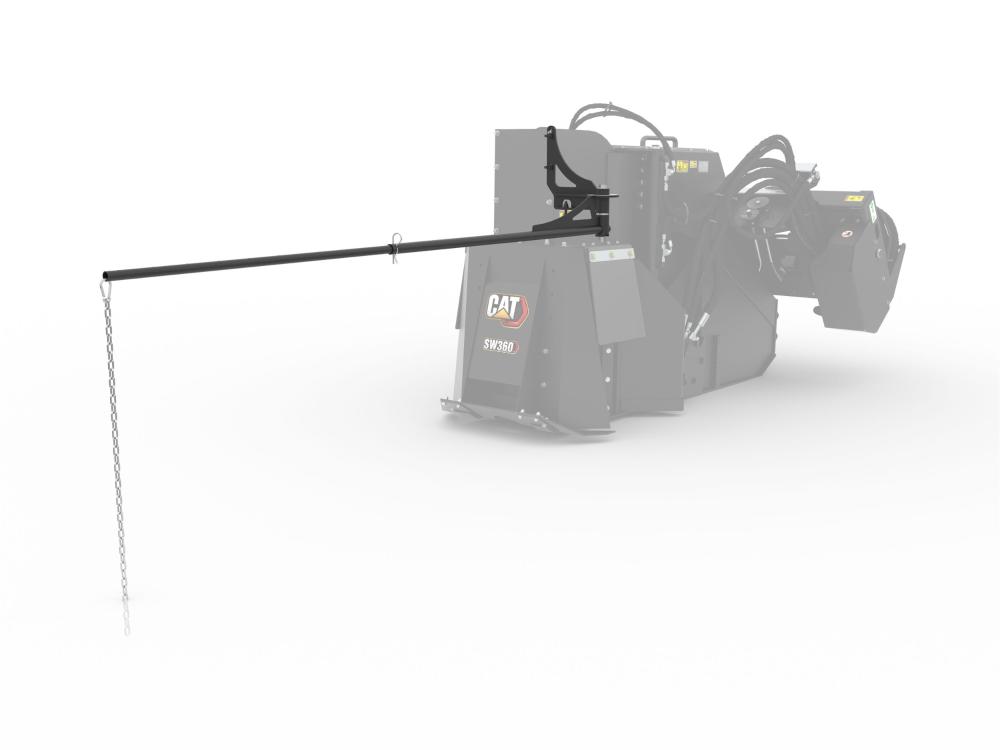

Optional Guide Bar

Water Kit Ready

Direct drive system features a hydraulic piston pump motor to ensure maximum cutting rate and wheel torque for optimal production performance and efficiency.

Cat® Wheel Saw Brochure.pdf

Others

Maximum Cutting Depth	600 mm	23.6 in
Wheel Width	80 mm	3.1 in
Weight	1440 kg	3174.7 lb
Overall Width	1655 mm	65.2 in
Overall Height	1765 mm	69.5 in
Length	2417 mm	95.2 in
Required Hydraulics	XHP / XE
Optimal Hydraulic Flow	136-150 L/min (36-40 gpm)
Optimal Hydraulic Pressure	250-280 bar (3630-4000 psi)
Motor Displacement	1686 cm³/rev	102.9 in³/rev
Wheel Torque at Maximum Pressure	7509 N·m	5538.4 lb/ft
Wheel Speed at Maximum Flow	89 RPM
Bit Speed at Maximum Flow	430 m/min	1410.8 ft/min
Conical Bits - Per Wheel	70
Standard Bit Type	Concrete
Optional Bit Type	All Purpose
Side Shift Travel	550 mm	21.7 in
Trench Cleaning Device	No
Drive Method	Direct Drive
Interface Type	Skid Steer Coupler
