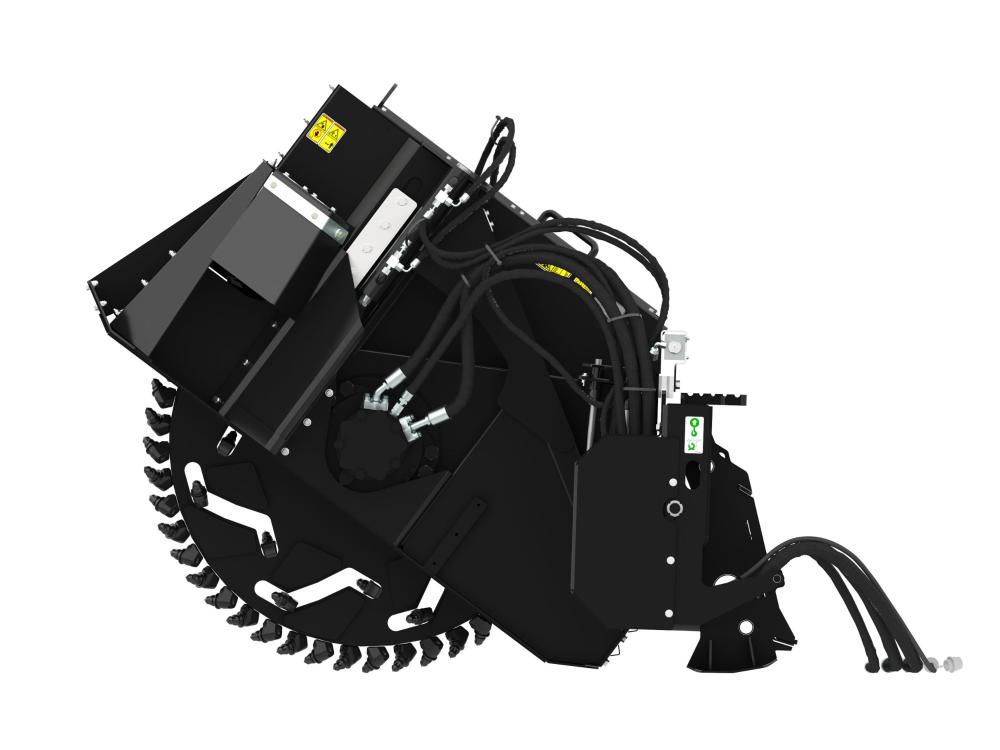

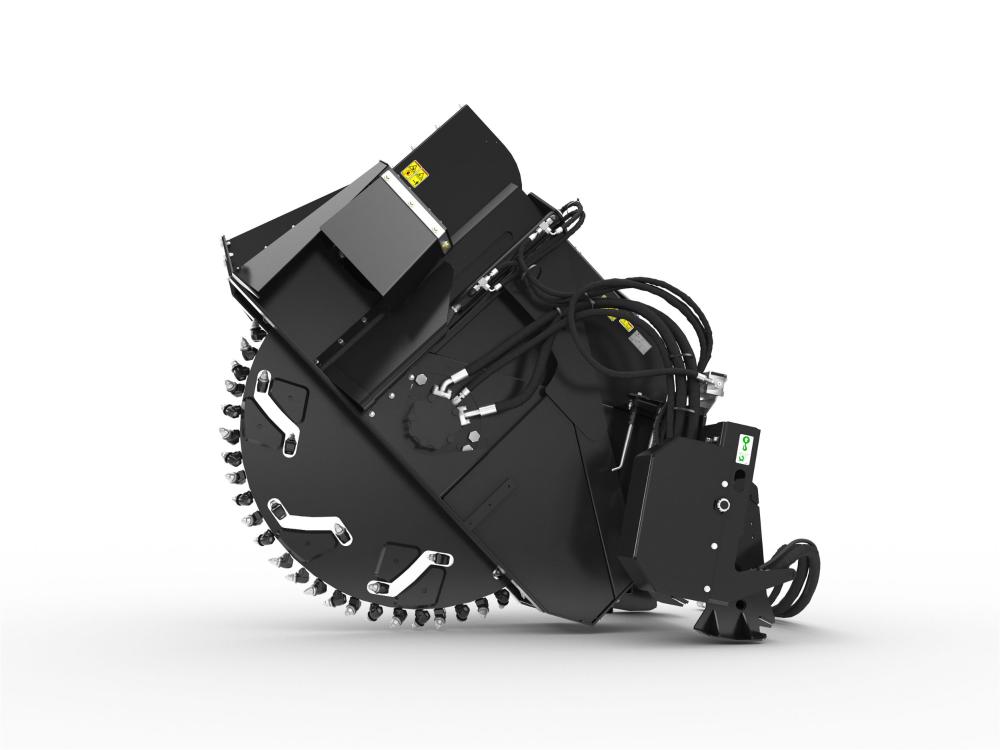

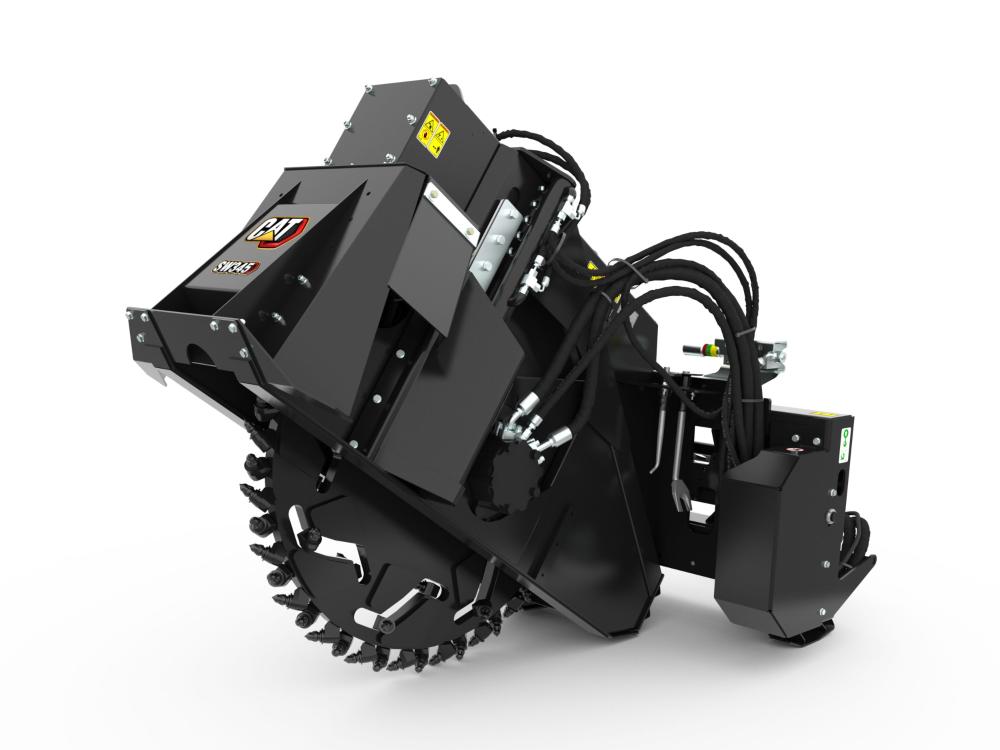

SW345, 80 mm (3 in) Wheel Saw

Cat

Units of measurement :

Metric

Imperial

Maximum Cutting Depth

450 mm

17.7 in

Wheel Width

80 mm

3.1 in

Weight

1126 kg

2482.4 lb

Availability

Purchase Rental Used

Cat® Wheel Saws are designed for high performance trench cutting on a variety of hard or compact surfaces such as asphalt, reinforced concrete, and rocky or frozen ground.

Features

Specifications

Documents

Direct Drive System

Hydraulic Side-Shift

Hydraulic Depth Control

Deflector Plates

Max Pro Pressure Gauge

Bits

Self Standing

OMM Container

Included Tools

Smart Creep

Optional Guide Bar

Water Kit Ready

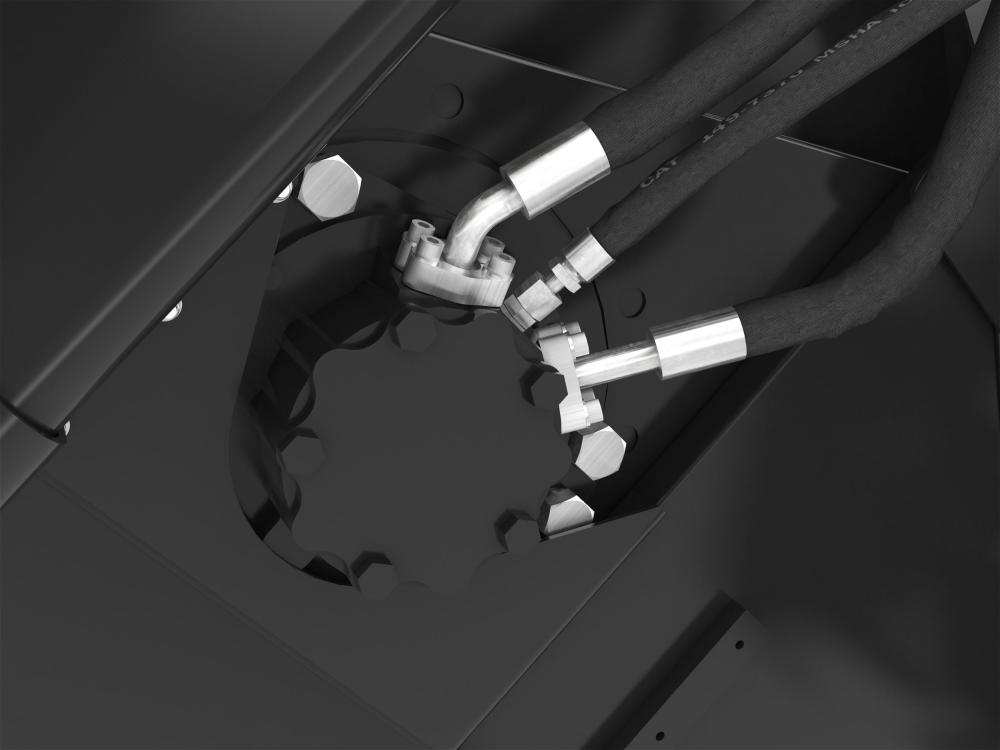

Direct drive system features a hydraulic piston pump motor to ensure maximum cutting rate and wheel torque for optimal production performance and efficiency.

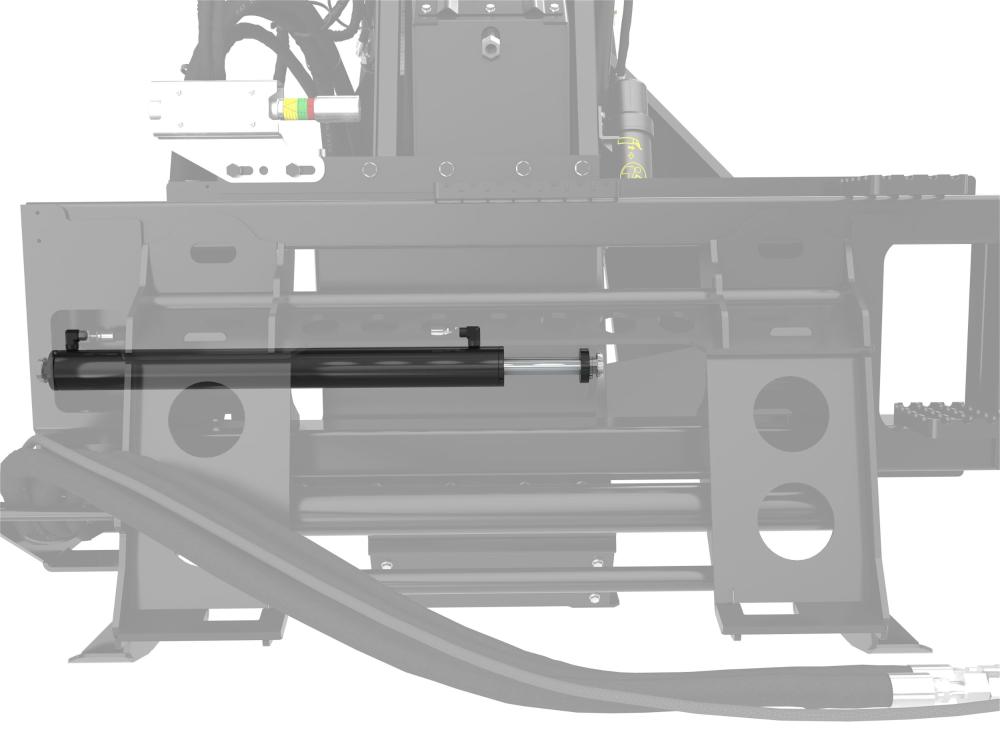

Hydraulic side-shift is standard on all models and is controlled from the operator’s compartment. Hydraulic side-shift allows wheel positioning from center to the far right of center. This allows for cutting close to curbs, walls and other obstructions, and minimizes need to reposition the machine.

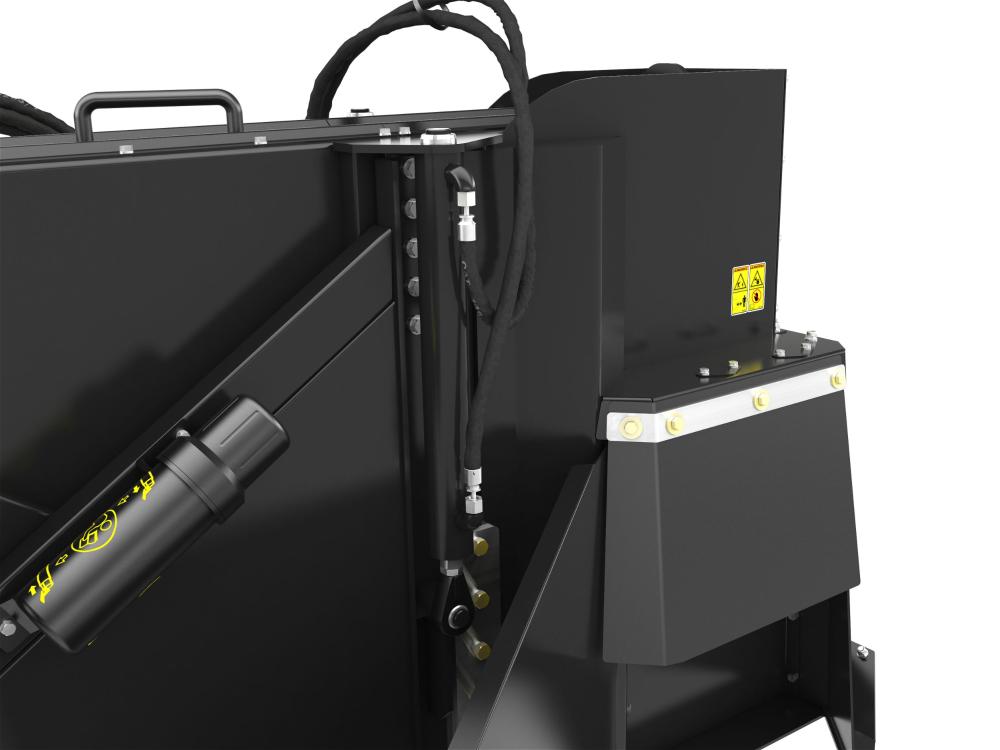

Hydraulic depth control is standard on all models and is controlled from the operator’s compartment. Hydraulic depth control allows the operator to adjust cut depth on the fly from in cab to quickly adjust to the current job as needed.

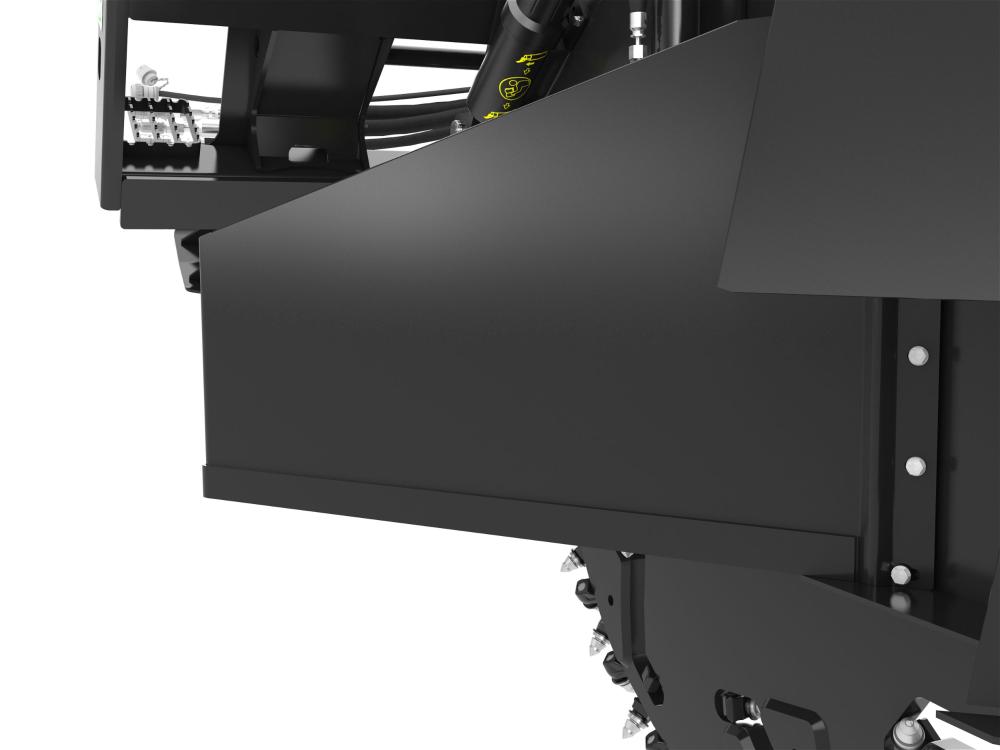

Deflector plates remove spoil from the machine’s path for smooth operation. Spoil can be discharged left, right, or on both sides of the wheel saw with installation of included blanking plates.

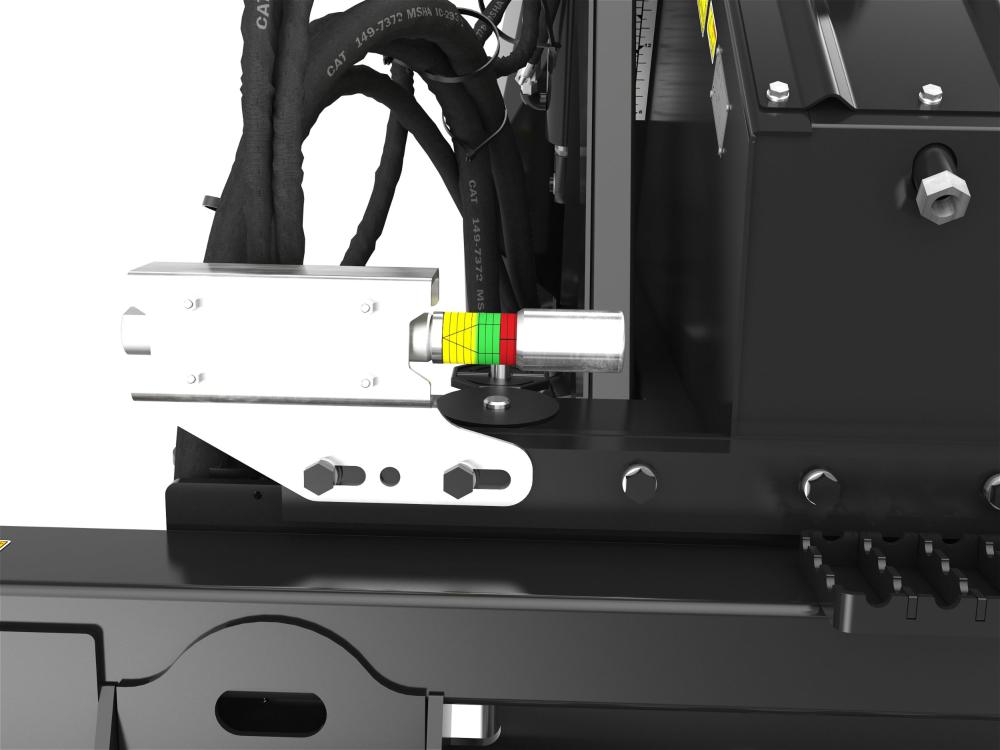

Max Pro Pressure Gauge provides operator feedback to adjust speed for maximum productivity in changing material loads. Gauge displays planer performance in real-time conditions and is visible from the cab. Standard on all models.

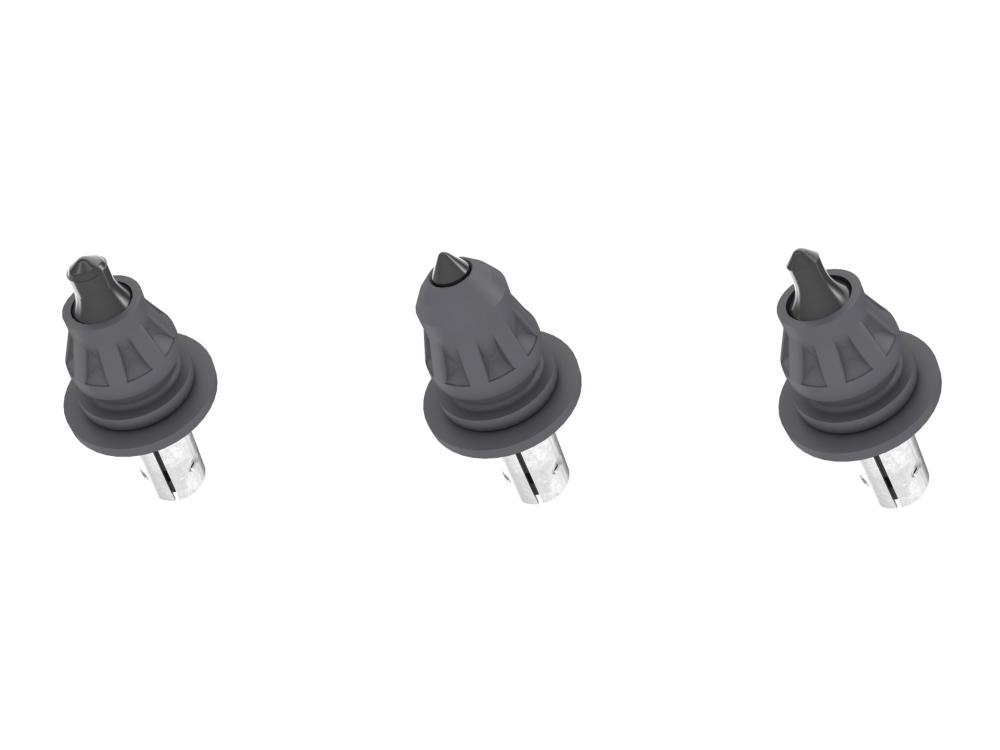

Concrete bits are standard on all models. Optional all purpose conical bits are available for all Cat Wheel Saws for tarmac and asphalt applications. Extreme life bits are available for extreme duty Cat Wheel Saw applications.

Self standing frame design improves connection and parking.

Stores the OMM (Operation and Maintenance Manual) in a protective case on the attachment, where it can be conveniently accessed.

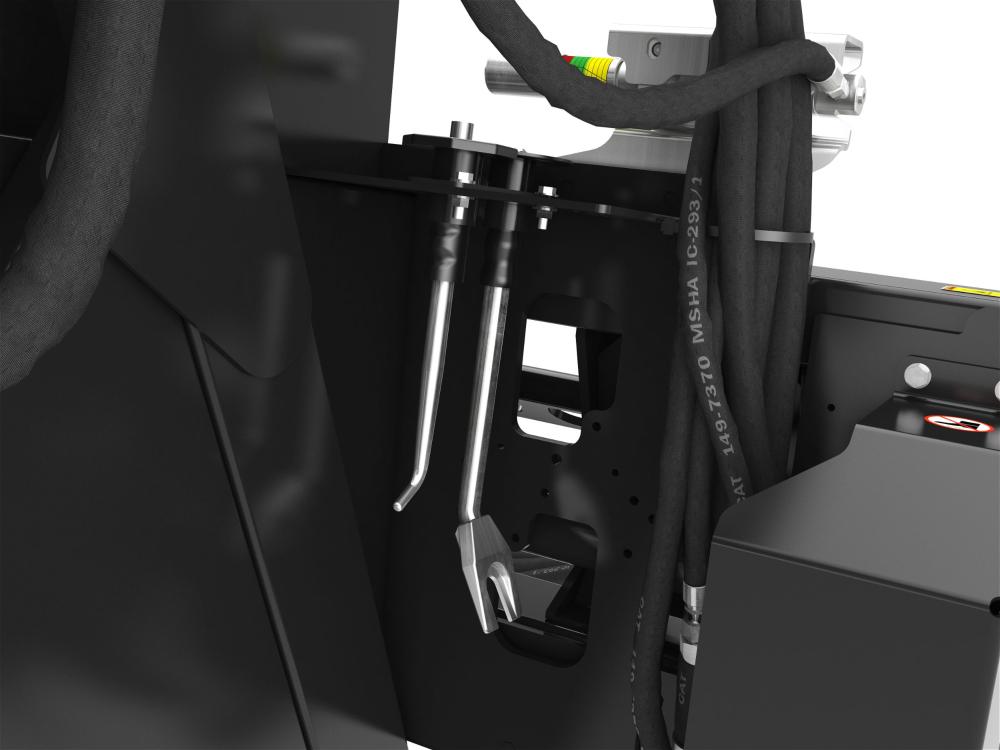

Attachment mounted tools included to provide quick and easy change out of bits when needed.

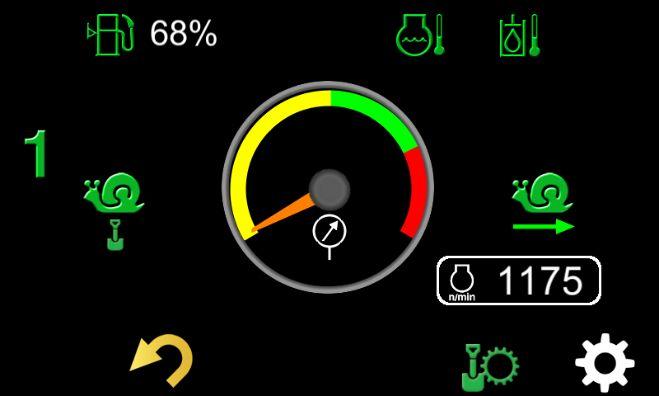

Smart Creep is a dynamic drive control system that works in conjunction with the initial creep speed setting. Smart Creep senses load on the attachment being operated, and can automatically adjusts drive command to keep the attachment running at the most productive speed.

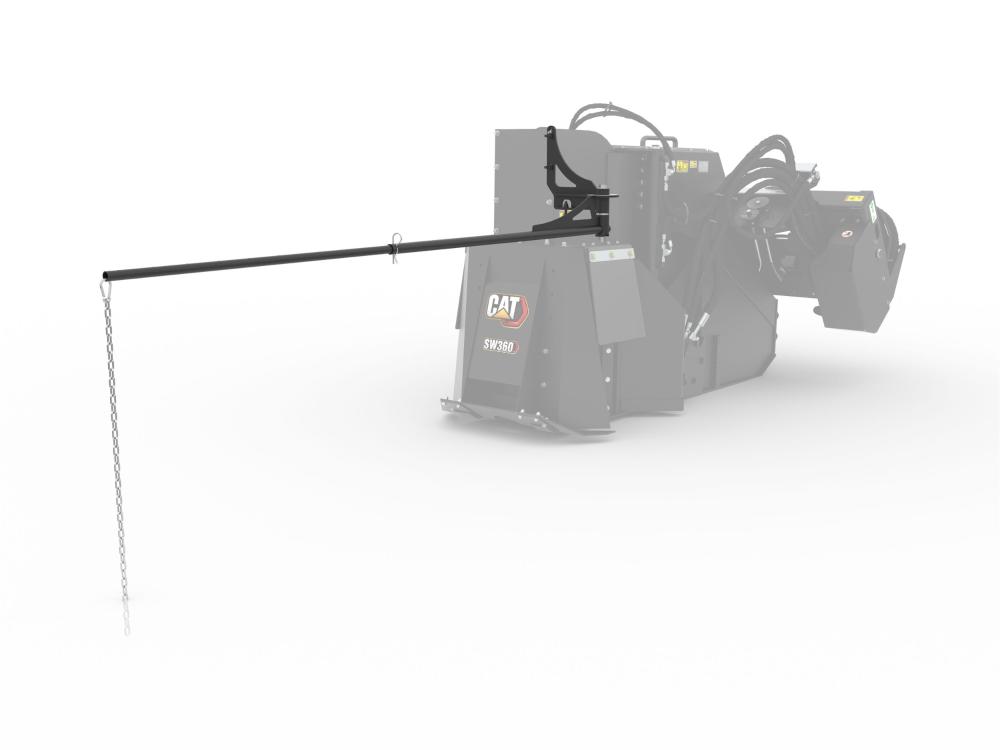

Optional guide bar allows operator to position wheel saw for better visibility of cut path, allowing for a straighter cut.

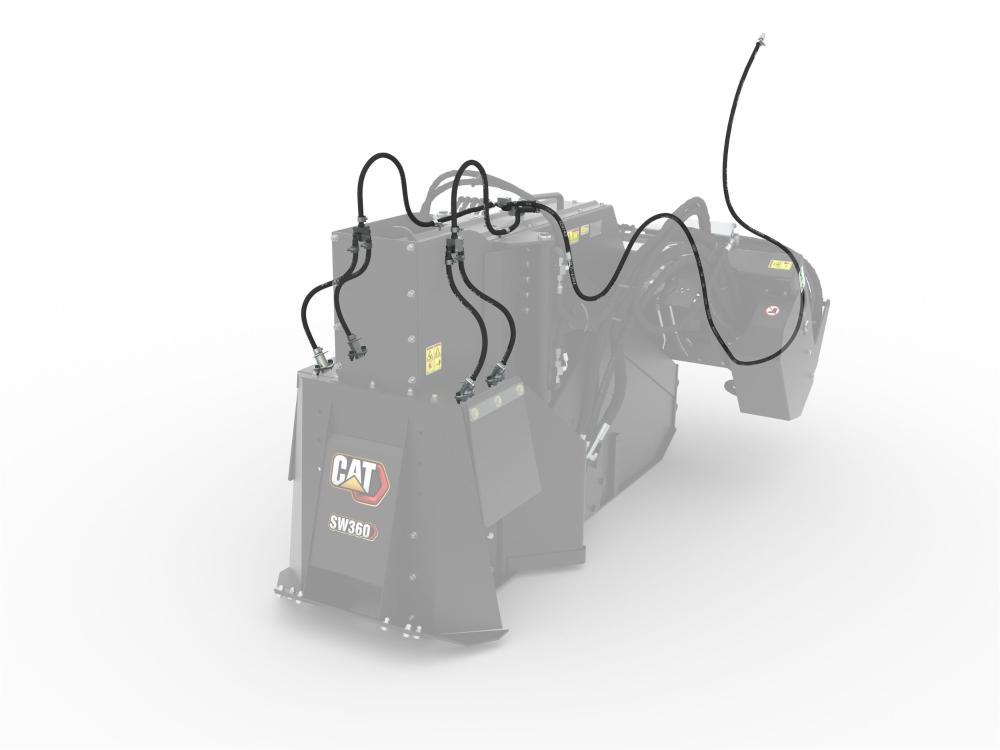

Ports are strategically located to equip the saw with a water sprinkler kit along hood, which allows for significant dust reduction.

Cat® Wheel Saw Brochure.pdf

Others

Maximum Cutting Depth	450 mm	17.7 in
Wheel Width	80 mm	3.1 in
Weight	1126 kg	2482.4 lb
Overall Width	1655 mm	65.2 in
Overall Height	1455 mm	57.3 in
Length	2165 mm	85.2 in
Required Hydraulics	High Flow XPS
Optimal Hydraulic Flow	98-125 L/min (26-33 gpm)
Optimal Hydraulic Pressure	230-280 bar (3300-4000 psi)
Motor Displacement	1404 cm³/rev	85.7 in³/rev
Wheel Torque at Maximum Pressure	6244 N·m	4605.3 lb/ft
Wheel Speed at Maximum Flow	89 RPM
Bit Speed at Maximum Flow	349 m/min	1145 ft/min
Conical Bits - Per Wheel	64
Standard Bit Type	Concrete
Optional Bit Type	All Purpose
Side Shift Travel	550 mm	21.7 in
Trench Cleaning Device	No
Drive Method	Direct Drive
Interface Type	Skid Steer Coupler

Compatible machines:

226D3

Gross Power - SAE J1995

50.1 kW

67.1 hp

Rated Operating Capacity

705 kg

1550 lb

Operating Weight

2653 kg

5849 lb

Caterpillar

15197332
232D3

Gross Power - SAE J1995

50.1 kW

67.1 hp

Rated Operating Capacity

865 kg

1900 lb

Operating Weight

2955 kg

6514 lb

Caterpillar

15197345
236D3

Gross Power - SAE J1995

55.4 kW

74.3 hp

Rated Operating Capacity

820 kg

1800 lb

Operating Weight

2979 kg

6567 lb

Caterpillar

15197358
239D3

Gross Power - SAE J1995

50.1 kW

67.1 hp

Rated Operating Capacities - 35% Tipping Load

695 kg

1530 lb

Operating Weight

3372 kg

7434 lb

Caterpillar

15197196
249D3

Gross Power - SAE J1995

50.1 kW

67.1 hp

Rated Operating Capacities - 35% Tipping Load

790 kg

1740 lb

Operating Weight

3552 kg

7831 lb

Caterpillar

15197211
262D3

Gross Power - SAE J1995

55.4 kW

74.3 hp

Rated Operating Capacity

1225 kg

2700 lb

Operating Weight

3763 kg

8296 lb

Caterpillar

16110610
265

Gross Power - SAE J1995

55.2 kW

74 hp

Rated Operating Capacities - 35% Tipping Load

1280 kg

2823 lb

Operating Weight

4759 kg

10492 lb

Caterpillar

15705020
272D3

Gross Power - SAE J1995

73 kW

98 hp

Rated Operating Capacity

1570 kg

3450 lb

Operating Weight

4143 kg

9133 lb

Caterpillar

15197430
272D3 XE

Gross Power - SAE J1995

82 kW

110 hp

Rated Operating Capacity

1680 kg

3700 lb

Operating Weight

4342 kg

9573 lb

Caterpillar

15705752
906

Maximum Gross Power

55.7 kW

74.7 hp

Operating Weight

5730 kg

12628 lb

Bucket Capacities

0.75-1.55 m³ (1.0-2.0 yd³)

Cat

15197667
908

Maximum Gross Power

55.7 kW

74.7 hp

Operating Weight

6632 kg

14617 lb

Bucket Capacities

0.75-1.55 m³ (1.0-2.0 yd³)

Cat

15197687
