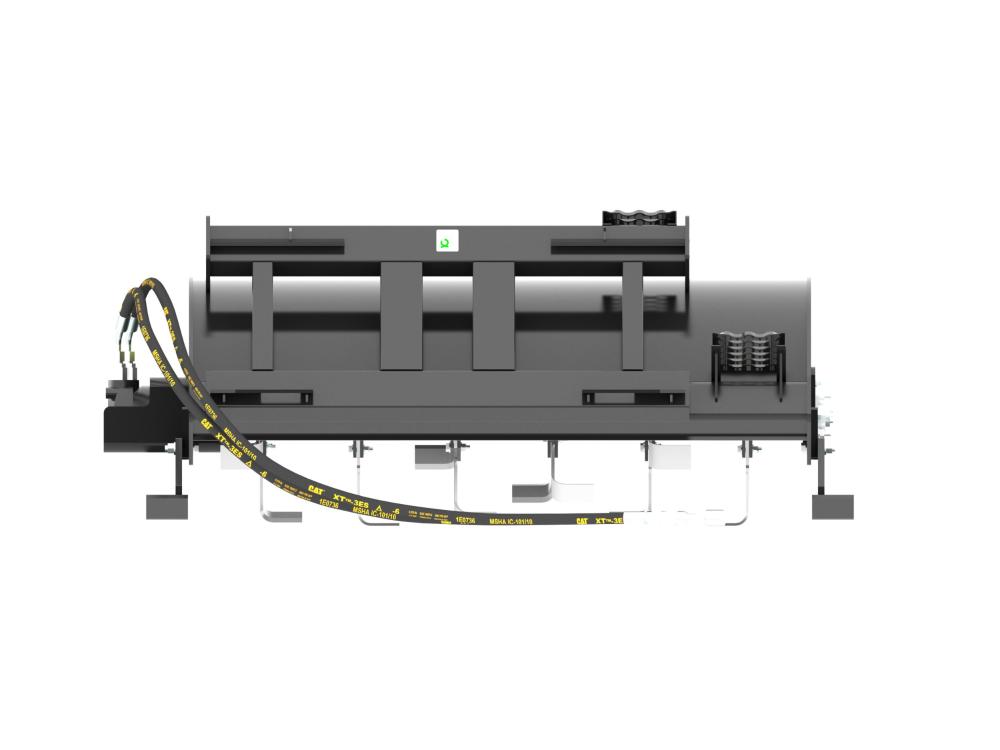

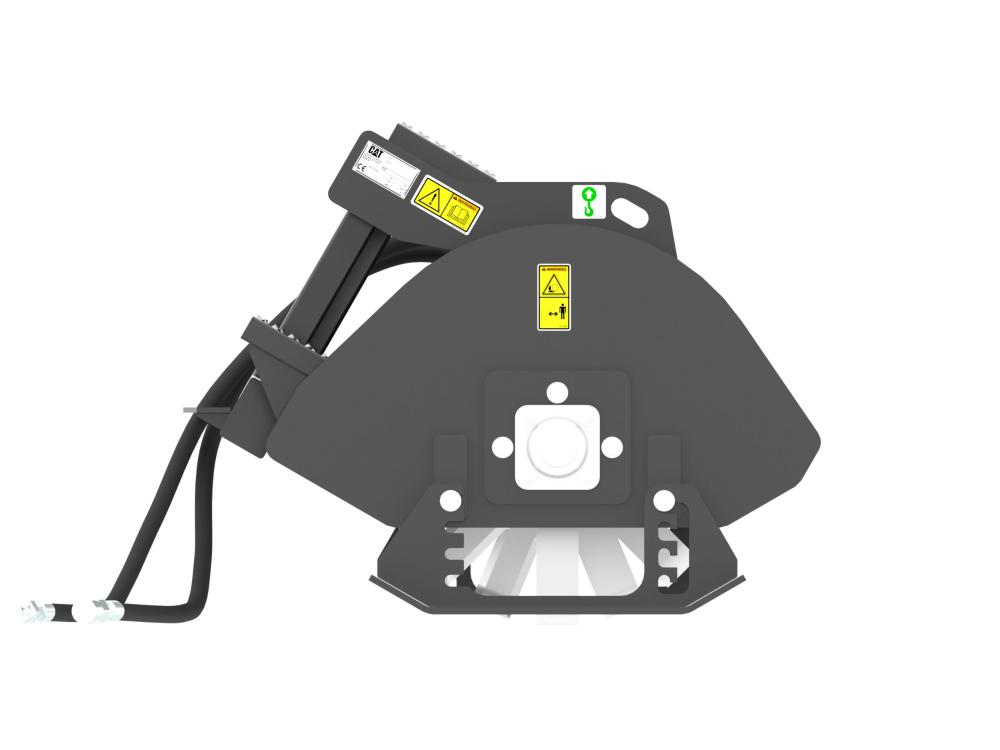

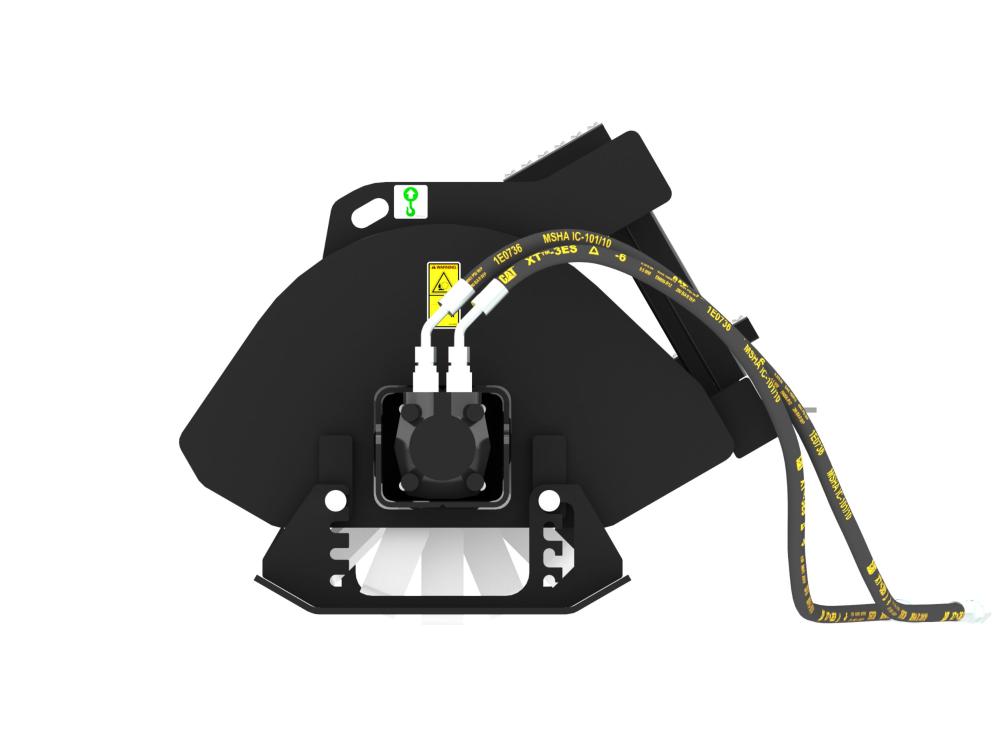

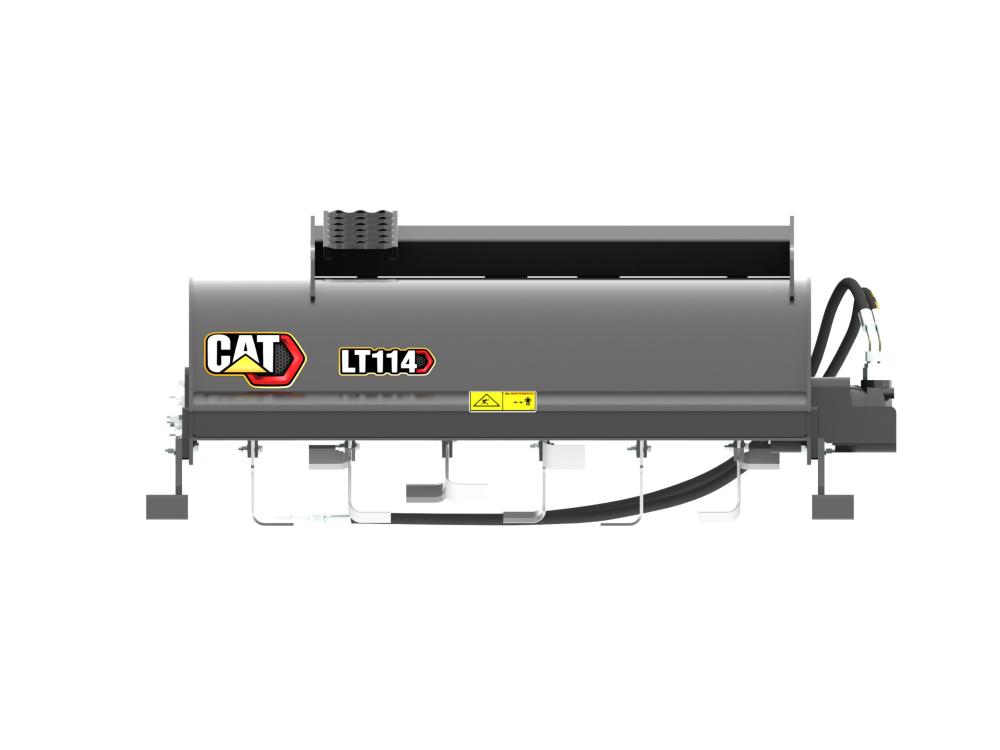

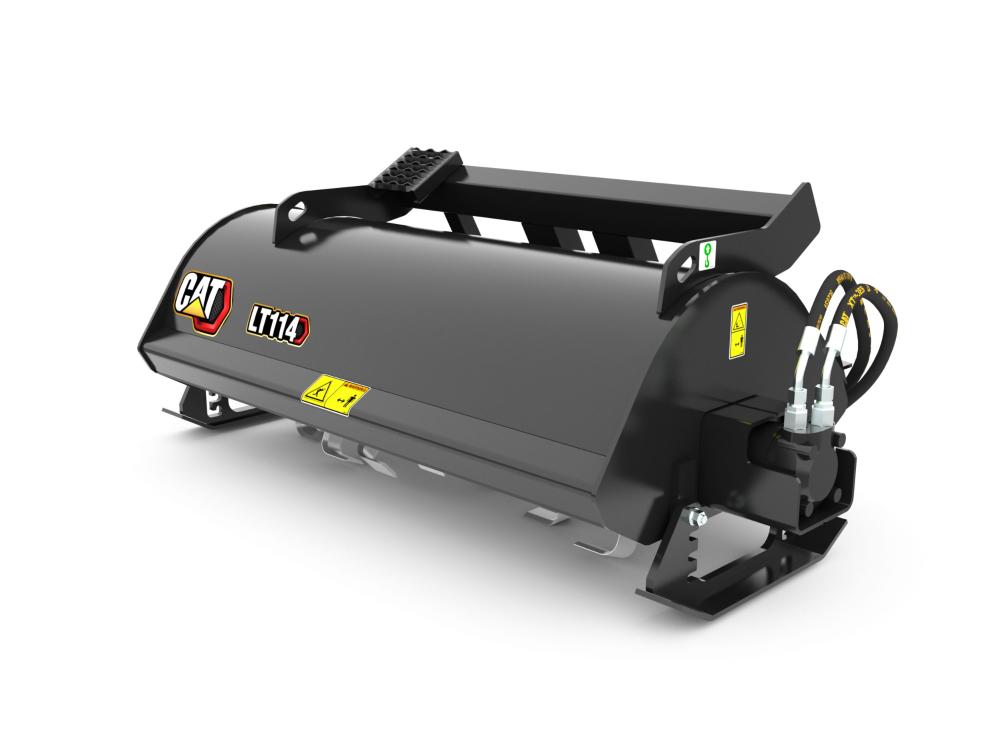

LT114 Landscape Tiller

Units of measurement :

Metric

Imperial

Working Width

1354 mm

Working Depth

25-152 mm (1-6 in)

Weight

420 kg

Availability

Purchase Rental Used

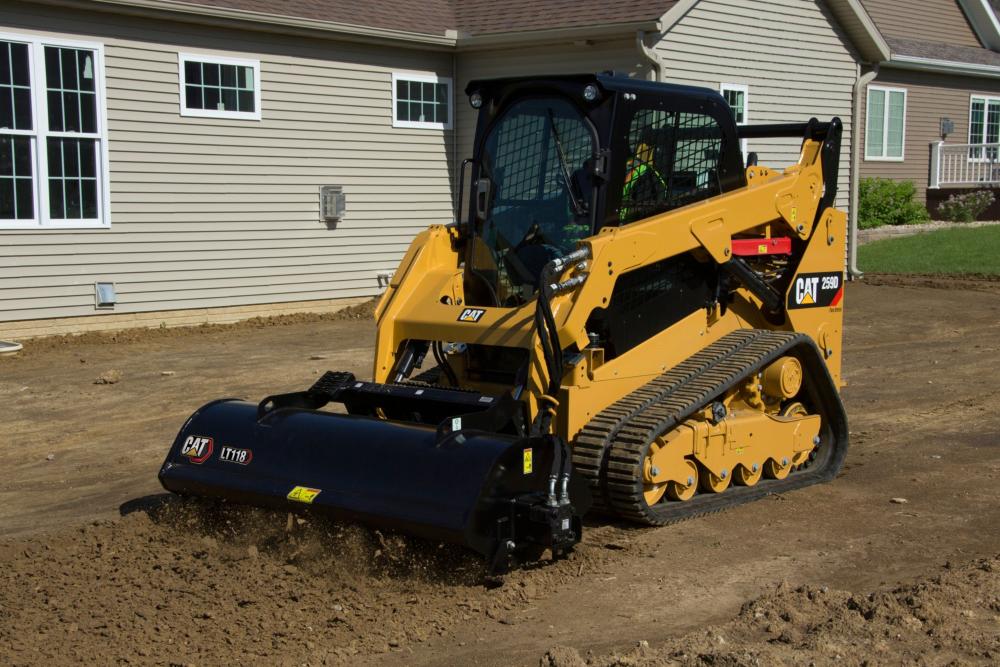

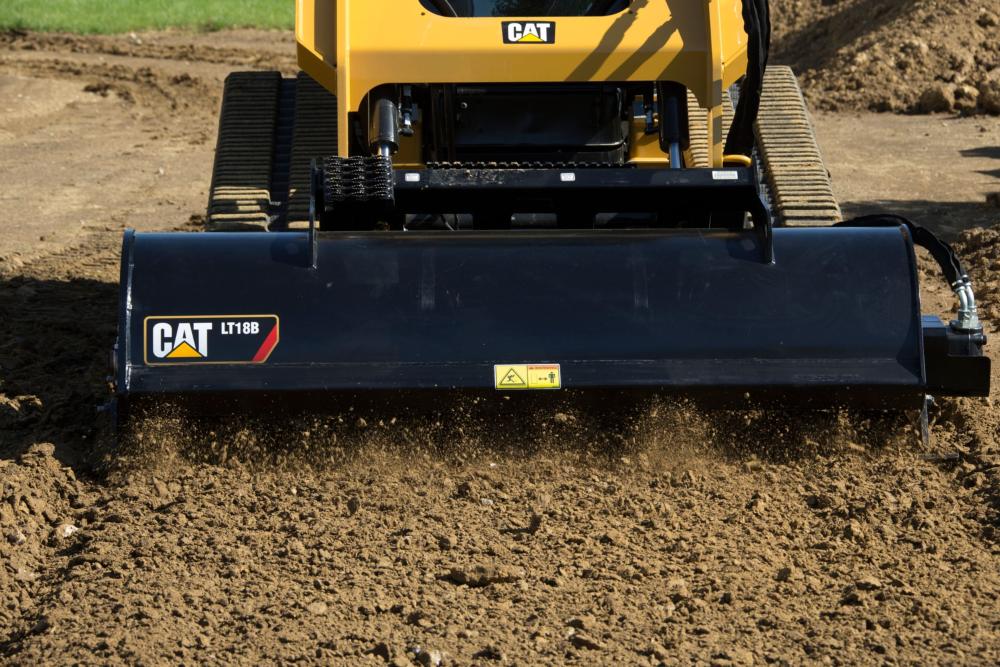

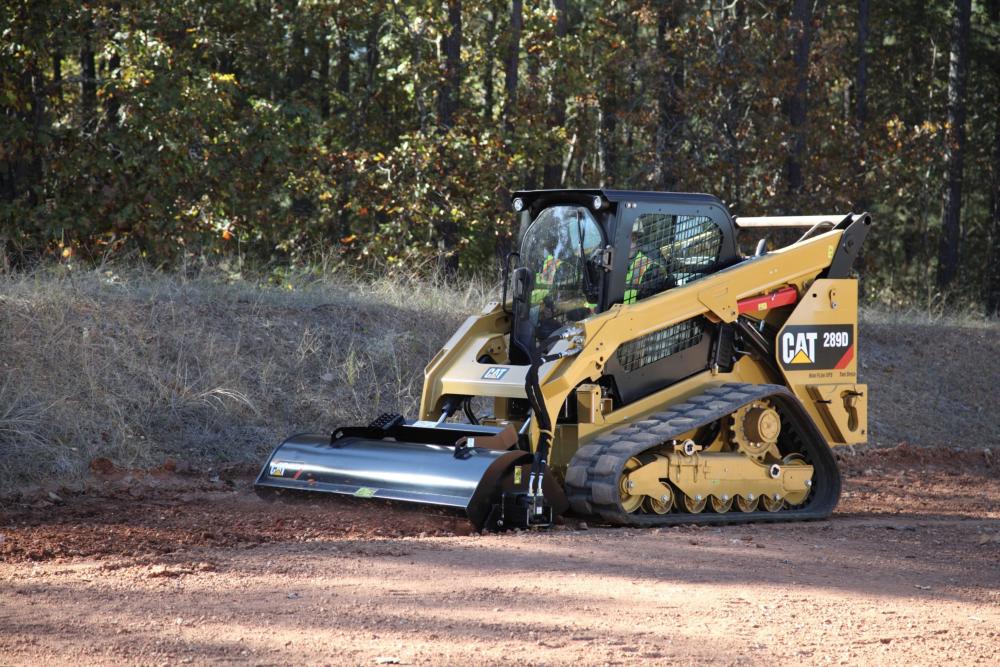

Cat® Landscape Tillers are designed for breaking up and pulverizing soil, mixing compost or other materials into existing soil, and stabilizing and leveling existing terrain in landscape finish applications. They are ideal for residential, commercial, agricultural, building construction, lawn care and golf course maintenance applications.

Application

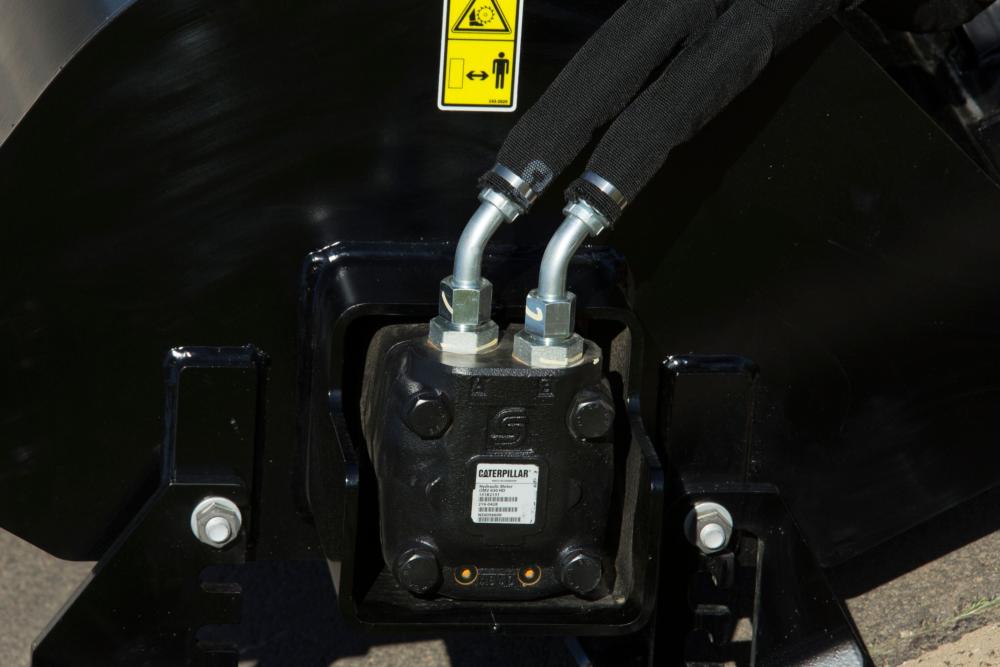

Direct Drive System

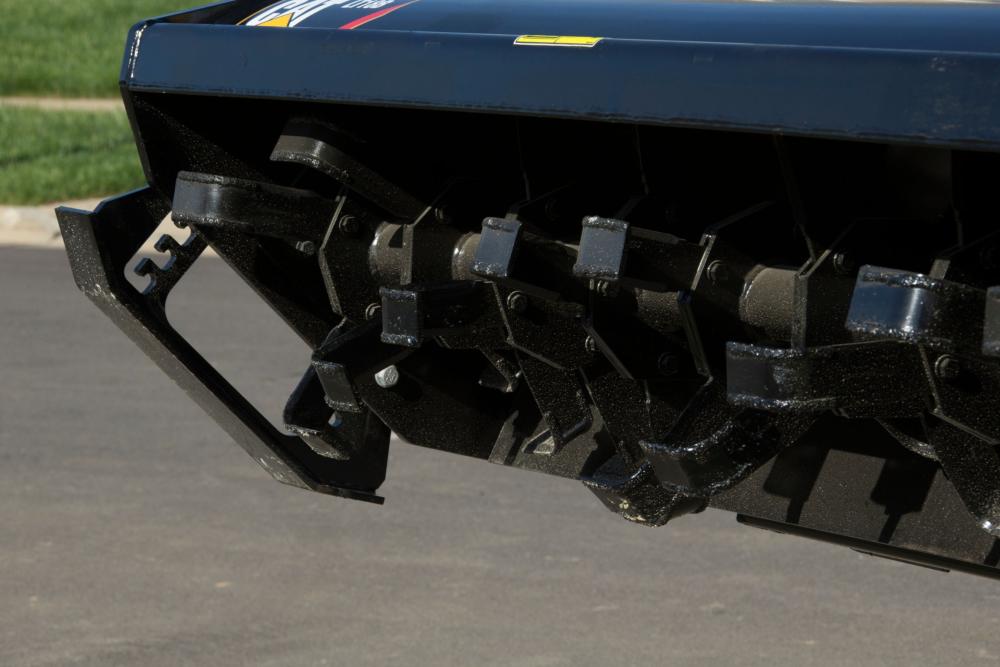

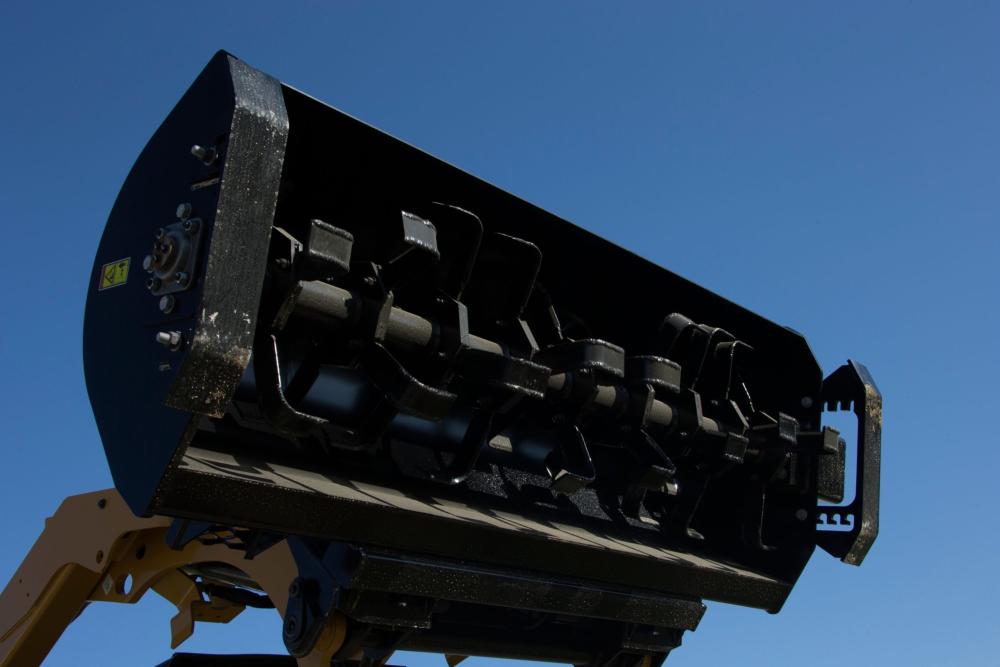

Unique Spiral Tine Arrangement

Tungsten Carbide Tines

Two Full-Width Torque Tubes

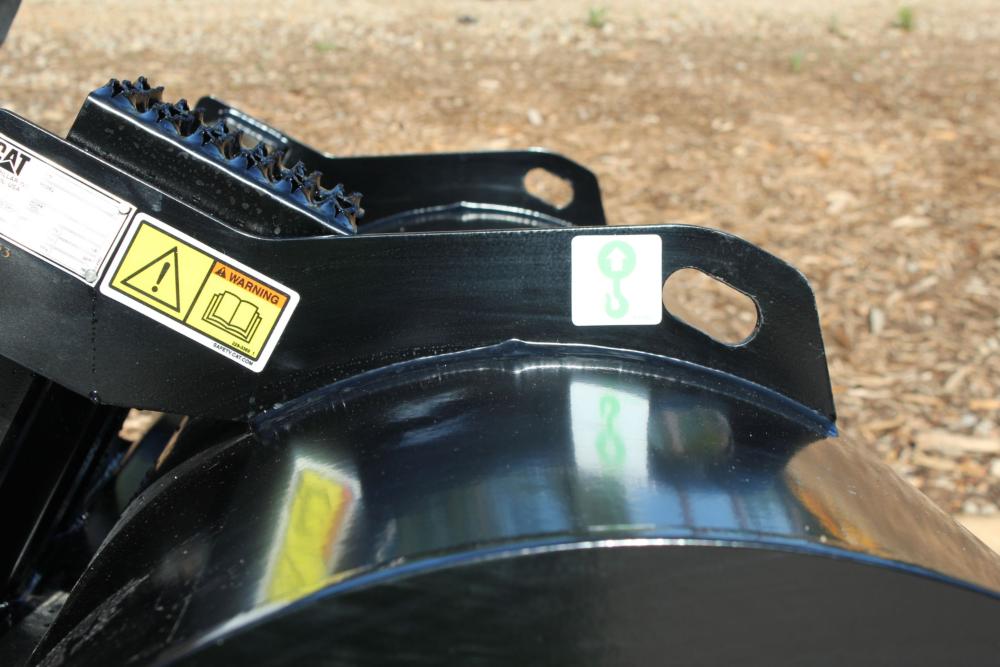

Arm Level Indicator

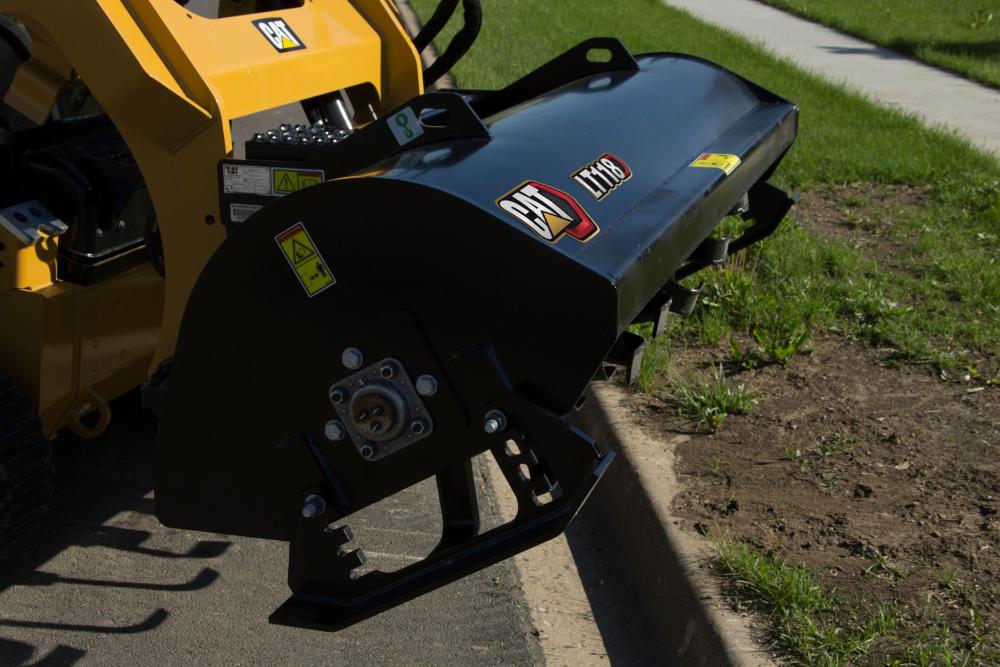

Adjustable Skid Shoes

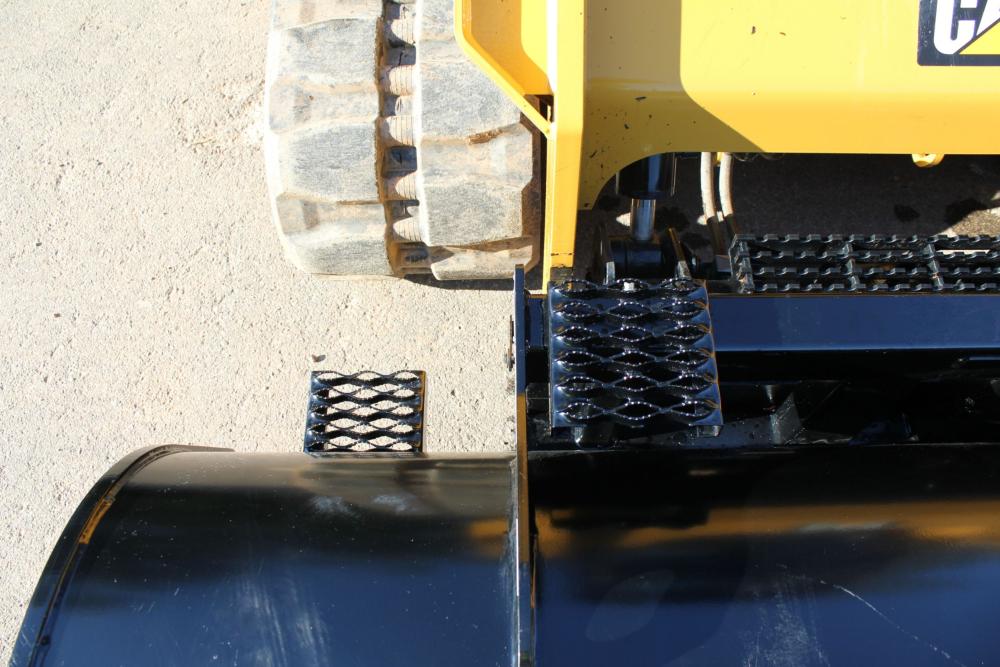

Serrated Steps

Designed for breaking up and pulverizing soil, mixing compost or other materials into existing soil, and stabilizing and leveling existing terrain in landscape finish applications.

Cat® Landscape Tiller Brochure.pdf

Others

Working Width	1354 mm	53.3 in
Working Depth	25-152 mm (1-6 in)
Weight	420 kg	925.9 lb
Overall Width	1789 mm	70.4 in
Height	755 mm	29.7 in
Length	956 mm	37.6 in
Optimal Hydraulic Flow	42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure	145-235 bar (2100-3400 psi)
Motor Displacement	629.09 cm³	38.4 in³
Drum Speed	127 rpm @ 80 L/min (21 gpm)
Number of Hard Face Tines	24
Required Hydraulics	Standard Flow
