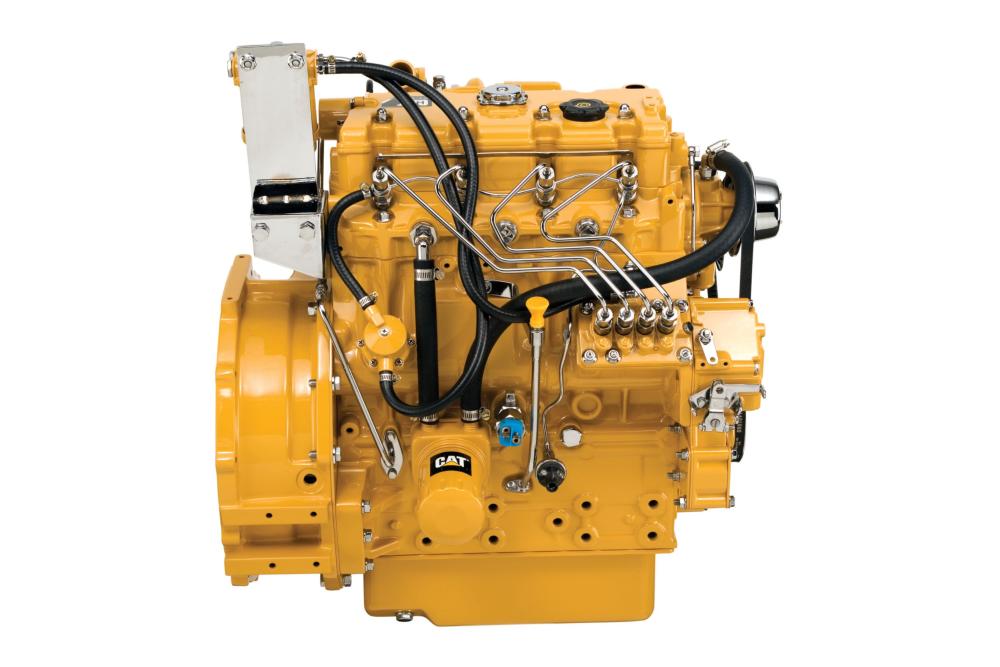

Cat C2.2 Diesel Engine

15174084

Cat C2.2 Diesel Engine

Caterpillar

https://www.finanzauto.es/productos/motores-industriales-y-para-ferrocarril-caterpillar-motor-diesel-catsupsup-c22-18391931

Units of measurement :

Metric

Imperial

Maximum Power

49.2 kW

66 hp

Maximum Torque

208 Nm @ 1800 rpm

153 lb-ft @ 1800 rpm

Emissions

U.S. EPA Tier 4 Interim Equivalent

Availability

Purchase Rental Used

The Cat C2.2 Industrial Diesel Engine is offered in ratings ranging from 31-49.3 bkW (41.6-66.1 bhp) @ 2200-3000 rpm. These ratings meet EU Stage IIIA (U.S. EPA Tier 4 Interim equivalent) emission standards. Industries and applications powered by C2.2 engines include

Features

Specifications

Reliable, Quiet and Durable Power

High Performance

Fuel Efficiency

Broad Application Range

Package Size

World-class Product Support Offered Through Global Cat Dealer Network

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

Substantial torque rise delivers impressive performance throughout a wide speed range while maintaining low operating costs.

Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.

Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.

Ultra-compact package size ensures ease of installation as well as exceptional power density.

Scheduled maintenance, including SOS^SM sample
Customer Support Agreements (CSA)
Caterpillar Extended Service Coverage (ESC)
Superior dealer service network
Extended dealer service network through the Cat Industrial Service Distributor (ISD) program

Power Rating

Maximum Power	49.2 kW	66 hp
Maximum Torque	208 Nm @ 1800 rpm	153 lb-ft @ 1800 rpm
Rated Speed	2200-3000 rpm
Minimum Power	31 kW	41.6 hp

Emission Standards

Emissions

U.S. EPA Tier 4 Interim Equivalent

Engine Dimensions - Approximate

Length	662 mm	26 in
Width	489 mm	19.3 in
Height	698 mm	27.5 in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments	194 kg	427.7 lb

General

Engine Configuration	Inline 4, 4-Stroke-Cycle Diesel
Bore	84 mm	3.3 in
Stroke	100 mm	3.9 in
Displacement	2.216 l	135 in³
Compression Ratio	23.3:1
Aspiration	Naturally Aspirated (NA), Turbocharged (T) or Turbocharged Aftercooled (TA)
Combustion System	Indirect Injection
Rotation from Flywheel End	Counterclockwise
Aftertreatment	-
