Cat C27 Diesel Engine

15174036

Cat C27 Diesel Engine

Caterpillar

Units of measurement :

Metric

Imperial

Maximum Power

783 kW

1050 hp

Maximum Torque

4674 Nm @ 1200 rpm

3448 lb-ft @ 1200 rpm

Emissions

U.S. EPA Tier 4 Final

Availability

Purchase Rental Used

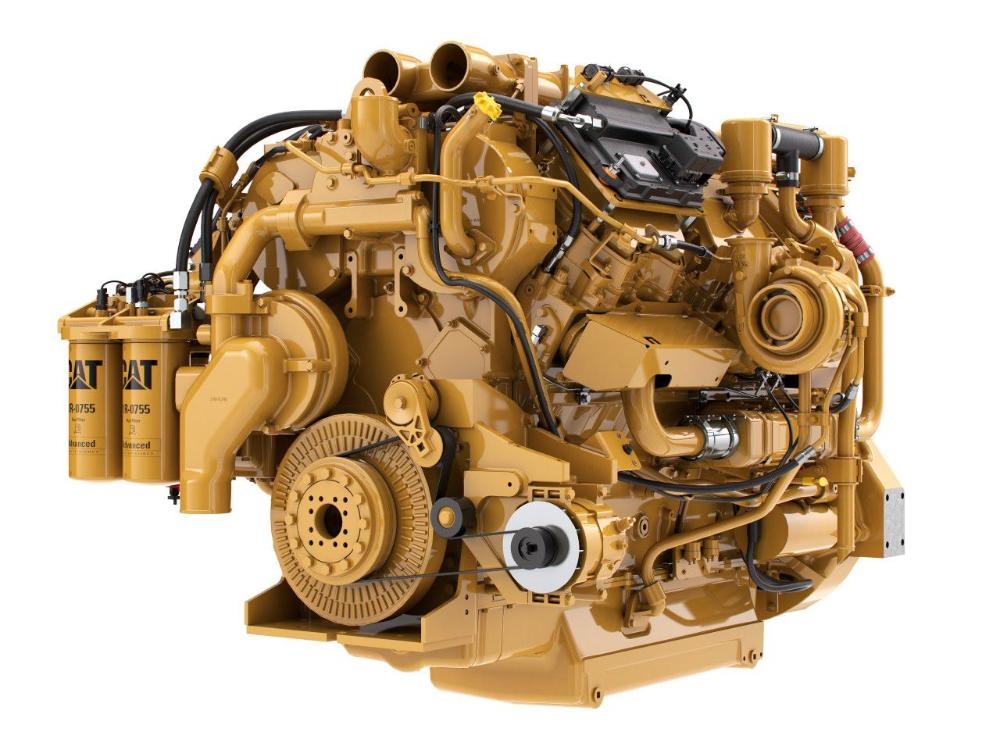

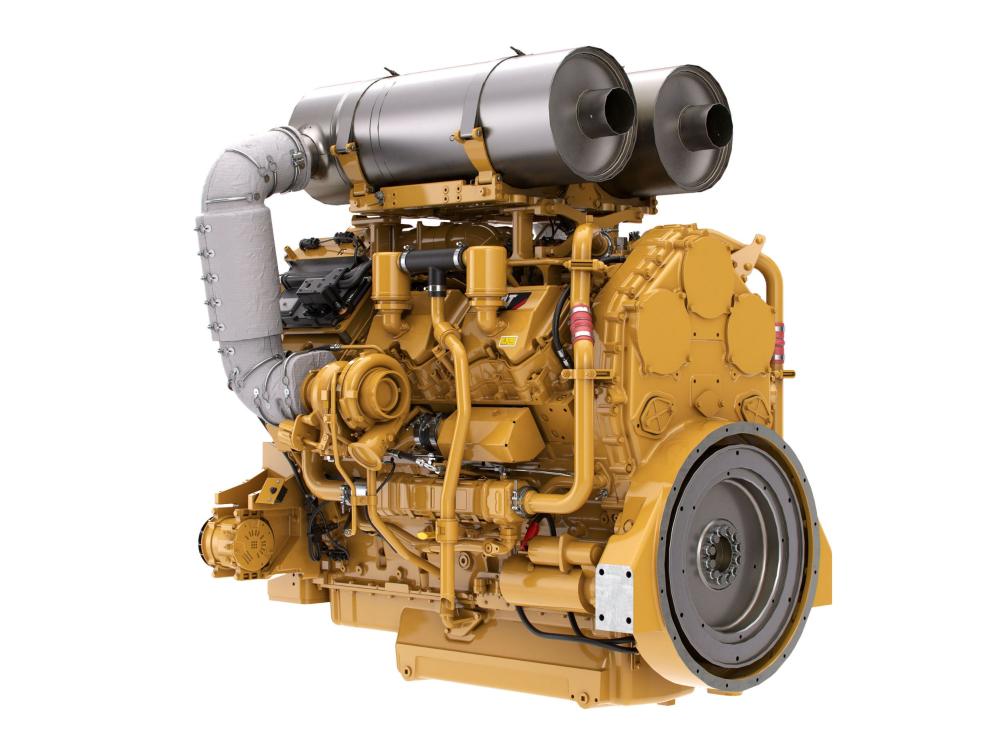

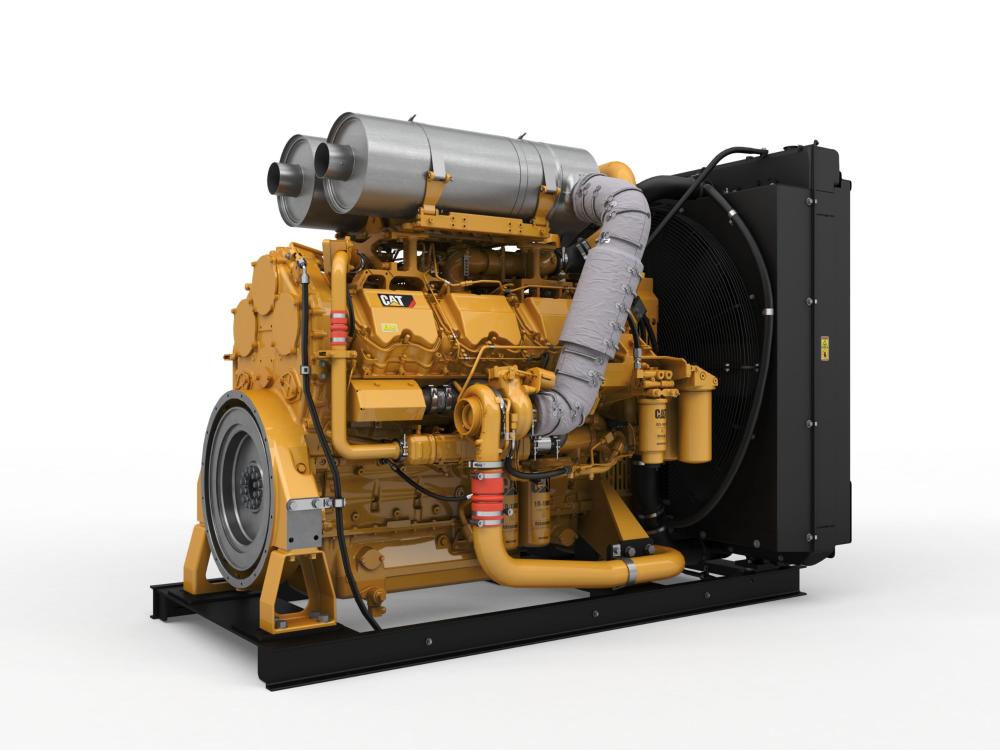

The Cat C27 Industrial Diesel Engine is offered in ratings ranging from 597-783 bkW (800-1050 bhp) @ 1800 rpm. These ratings meet U.S. EPA Tier 4 Final emission standards.

Features

Specifications

Installation

Advanced Features

Ideal Applications

Total Cost of Ownership

Cat Dealer Product Support

Safety

It may be big, but the power-dense Cat C27 is a fully-configurable common core engine that makes installation across a wide variety of applications simple. With options like rear-mounted turbos and engine-mounted aftertreatment, it's now easier than ever to install. And becuase the C27 is DEF-free, there's even more room to maneuver under the hood.

Say goodbye to DEF, thermal management and engine regeneration with the Cat C27. Thanks to advances in Caterpillar's technology, the larger-than-life engine is practically maintenance free.

Industrial and construction applications such as: Dredges • Chippers • Grinders • Emergency water pumps • Rock drills

Carefully crafted for efficiency, the Cat C27 fuel consumption is optimized to meet the demanding operating cycles of just about any machine. And with no DEF to worry about, owners can save on parts and maintence costs while also remaining maintenance-free for the life of the engine.

Reliable dealer service and support, scheduled maintenance and an included warranty: it’s what Cat C27 owners can expect with their new engine. See your Cat dealer for details.

Featuring a clean emissions module, the Cat C27 uses DOC, DPF and SCR technologies to keep the engine—and the air around it—cleaner, not only making for a more efficient machine, but also a safer job site.

Power Rating

Maximum Power	783 kW	1050 hp
Maximum Torque	4674 Nm @ 1200 rpm	3448 lb-ft @ 1200 rpm
Rated Speed	1800 rpm
Minimum Power	597 kW	800 hp

Emission Standards

Emissions

U.S. EPA Tier 4 Final

General

Engine Configuration	V-12
Bore	137.2 mm	5.4 in
Stroke	152.4 mm	6 in
Displacement	27 l	1649.5 in³
Compression Ratio	16.0:1
Aspiration	Twin Turbocharged-Aftercooled (TTA)
Combustion System	Direct Injection
Rotation from Flywheel End	Counterclockwise
Aftertreatment	DOC

Engine Dimensions - Approximate

Length	1874 mm	73.8 in
Width	1600 mm	63 in
Height	1370 mm	53.9 in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments	3004 kg	6625 lb
