Cat C32 Industrial Power Unit

15174244

Cat C32 Industrial Power Unit

Caterpillar

Units of measurement :

Metric

Imperial

Maximum Power

746 kW

1000 hp

Maximum Torque

5186 Nm @ 1200 rpm

3825 lb-ft @ 1200 rpm

Emissions

U.S. EPA Tier 4 Final and EU Stage V

Availability

Purchase Rental Used

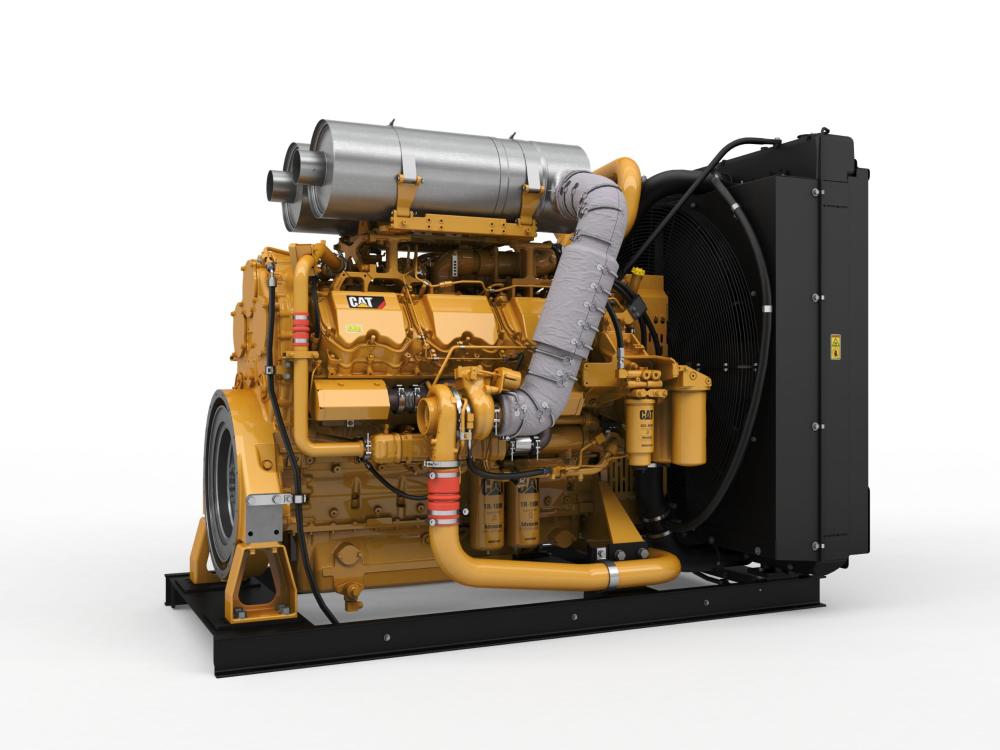

The Cat C32 Industrial Power Unit is offered with a ratings of 746 bkW (1000 bhp) @ 1800 rpm. This rating meets U.S. EPA Tier 4 Final emission standards. Applications powered by C32 engines include

Features

Specifications

Installation

Ideal Applications

Total Cost of Ownership

Cat Dealer Product Support

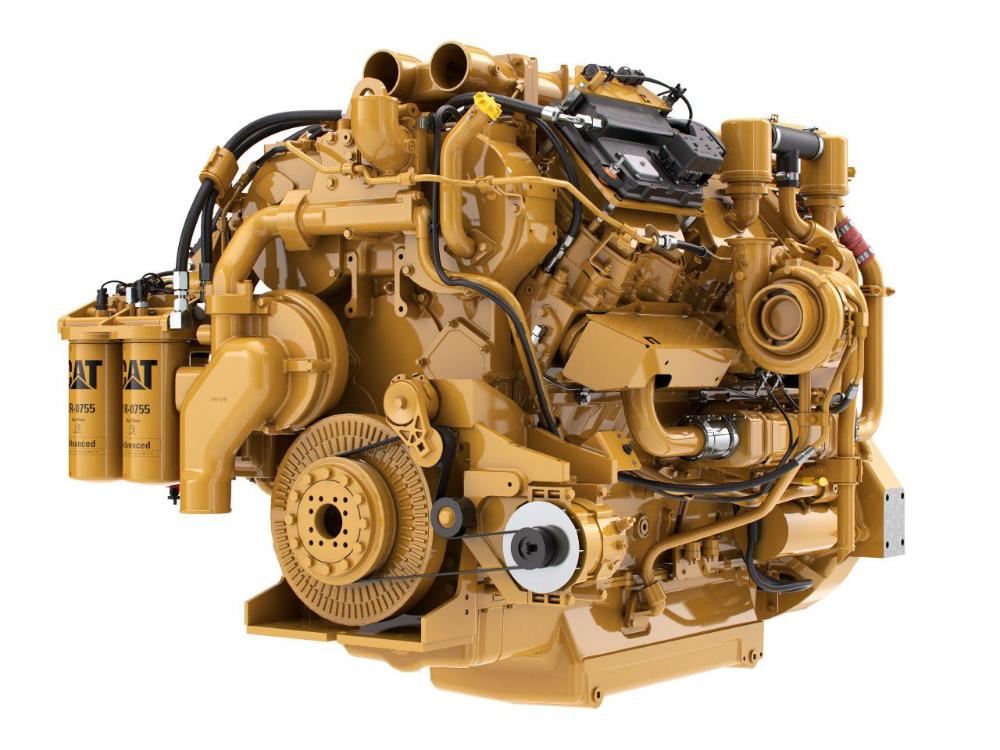

When it comes to making the engine installation process smoother, look to the Cat C32. Using innovative technology solutions, the C32 eliminates the need for diesel exhaust fluid (DEF) and reduces the size of the overall engine package. The DOC-only aftertreatment does not require regeneration and is maintenance free until a major engine overhaul.

Fully configurable engine with exceptional power density, a cooling package designed and backed by Caterpillar, plus a simplified engine mounted aftertreatment all help minimize total package size, simplify installation, and provide you with the quality deserve.

The C32 is ideal for any application that requires large amounts of dependable power and torque. Applications include:

Bore/drill rigs
Chippers/grinders
Cranes
Dredges
Forestry
General industrial
Hydraulic power units
Irrigation equipment
Material handling
Mobile earthmoving equipment
Paving equipment
Pumps
Rock crushers
Shovels/draglines
Shredders
Snow blowers
Surface hauling equipment
Trenchers

The maintenance-free DOC aftertreatment simplifies service and helps reduce cost. The DOC aftertreatment guarantees DEF-free operation. That's savings you can measure every day.

500 hour standard service intervals and the ability to extend them using the S•O•S program allows you to optimize oil change intervals and minimize operating expenses. See your Cat dealer for details.

World-classs product support offered through the Cat dealer network. Your Cat dealer can provide scheduled maintenance, including S•O•S sampling.

Customer support agreements (CSA) and extended service coverage (ESC) help reduce costs and ensure you machine is serviced on schedule. See your Cat dealer for details.

Power Rating

Maximum Power	746 kW	1000 hp
Maximum Torque	5186 Nm @ 1200 rpm	3825 lb-ft @ 1200 rpm
Rated Speed	1800 rpm
Minimum Power	746 kW	1000 hp

Emission Standards

Emissions

U.S. EPA Tier 4 Final and EU Stage V

General

Engine Configuration	V-12
Cycle	4
Bore	145 mm	5.7 in
Stroke	162 mm	6.4 in
Displacement	32.1 l	1958.9 in³
Compression Ratio	16.0:1
Aspiration	Twin Turbocharged Aftercooled (TTA)
Combustion System	Direct Injection
Cooling System	liquid
Rotation from Flywheel End	Counterclockwise
Aftertreatment	DOC

Power Unit Dimensions

Height	1970 mm	77.6 in
Length	2558 mm	100.7 in
Width	1637 mm	64.4 in
