Detalle Productos Cat

14568301

Industrial and railway engines

Energy and propulsion
Industrial and railway engines
Cat® C7.1 Industrial Power Unit

15174260

Cat® C7.1 Industrial Power Unit

Caterpillar

https://www.finanzauto.es/productos/motores-industriales-y-para-ferrocarril-caterpillar-unidad-de-potencia-industrial-cat-c71

Units of measurement :

Metric

Imperial

Maximum Power

205 kW

275 hp

Maximum Torque

1050 Nm @ 1400 rpm

774 lb-ft @ 1400 rpm

Emissions

China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA

Availability

Purchase Rental Used

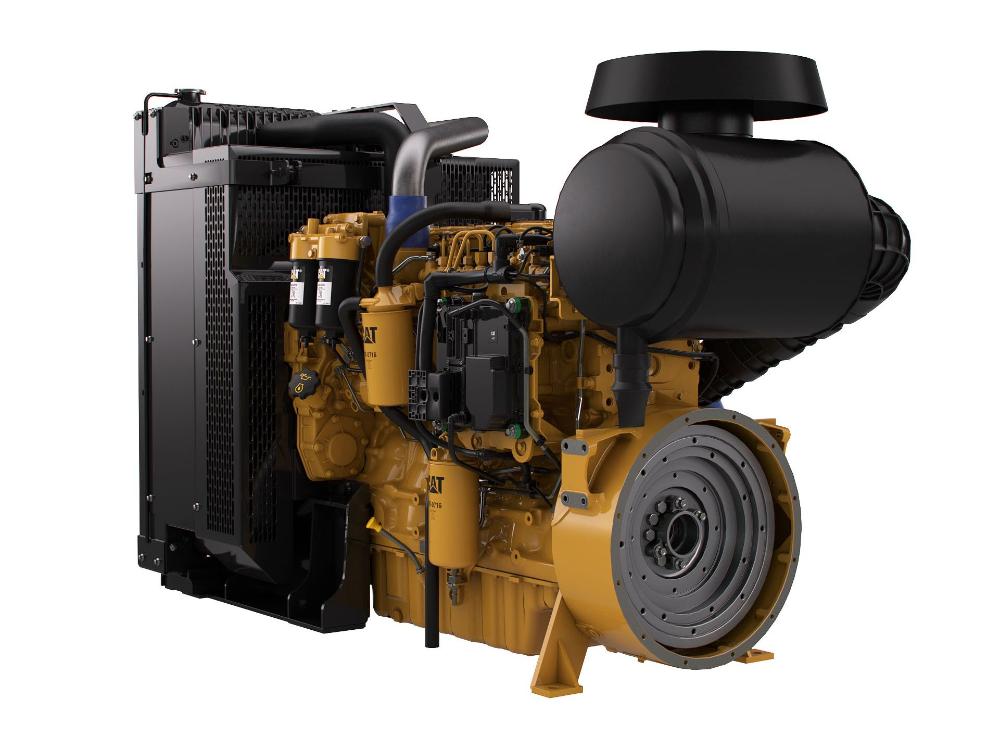

The C7.1 Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring, completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready-made for irrigation, industrial, mining and other pump applications.

Features

Specifications

Reliable, Quiet and Durable Power

Fuel Efficiency

Broad Application Range

Package Size

World-class Product Support Offered Through Global Cat Dealer Network

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.

Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.

Exceptional power density enables standardization across numerous applications. Multiple installation options minimize total package size. Ideal for equipment with narrow engine compartments.

Scheduled maintenance, including SOS℠ sample
Customer Support Agreements (CSA)
Caterpillar Extended Service Coverage (ESC)
Superior dealer service network
Extended dealer service network through the Cat Industrial Service Distributor (ISD) program

Power Rating

Maximum Power	205 kW	275 hp
Maximum Torque	1050 Nm @ 1400 rpm	774 lb-ft @ 1400 rpm
Rated Speed	116-205 bkW/156-275 bhp @ 2200 rpm, 129 bkW/173 bhp @ 2500 rpm
Minimum Power	116 kW	156 hp

Emission Standards

Emissions

China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA

General

Engine Configuration	Inline 6, 4-Stroke-Cycle Diesel
Bore	105 mm	4.1 in
Stroke	135 mm	5.3 in
Displacement	7.01 l	427.7 in³
Compression Ratio	16.8:1
Aspiration	Turbocharged Aftercooled (TA)
Rotation from Flywheel End	Counterclockwise
Aftertreatment	-

Power Unit Dimensions

Length	1728 mm	68 in
Width	788 mm	31 in
Height	1140 mm	44.8 in
Weight	788 kg	1737 lb
