Detalle Productos Cat

14568301

Energy and propulsion
Industrial and railway engines
Cat C9.3B Industrial Power Unit

15174264

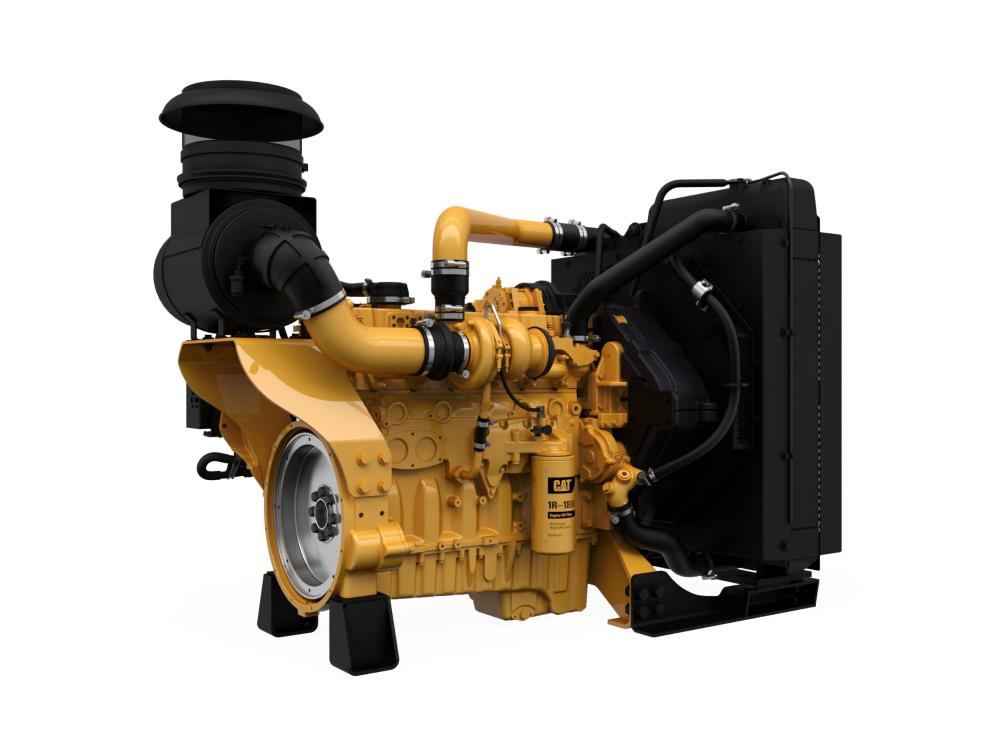

Cat C9.3B Industrial Power Unit

Caterpillar

Units of measurement :

Metric

Imperial

Maximum Power

310 kW

416 hp

Emissions

Brazil MAR-1, UN R96 Stage IIIA

Rated Speed

1800-2200 rpm

Availability

Purchase Rental Used

The Cat C9.3B IPU configuration not only provides the flexibility andoptions found on a standard industrial engine, but also comes fittedwith air filter and mounting, an integrated cooling system with airand coolant lines, and full wire harnessing with an engine-mountedECM

Features

Specifications

Documents

Reliable, Quiet and Durable Power

High Performance

Fuel Efficiency

Fuel & Oil

Broad Application Range

World-class Product Support Offered Through Global Cat Dealer Network

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

Simple and efficient turbocharger with balance valve provides optimal air management and improved fuel efficiency.

Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.

Tier 4 Interim or Tier 4 Final, Stage IIIB or Stage IV engines require Ultra Low Sulfur Diesel (ULSD) fuel containing a maximum of 15 ppm sulfur, and new oil formulations to support the new technology. Cat^® engines are designed to accommodate B20 biofuel. Your Cat dealer can provide more information regarding fuel and oil.

Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.

Scheduled maintenance, including SOS^SM sample
Customer Support Agreements (CSA)
Caterpillar Extended Service Coverage (ESC)
Superior dealer service network
Extended dealer service network through the Cat Industrial Service Distributor (ISD) program

C9.3B IPU LRC Spec Sheet.pdf C9.3B IPU Fuel Optimised Spec Sheet.pdf

Power Rating

Maximum Power	310 kW	416 hp
Rated Speed	1800-2200 rpm
Minimum Power	230 kW	308 hp

Emission Standards

Emissions

Brazil MAR-1, UN R96 Stage IIIA

General

Engine Configuration	Inline 6, 4-Stroke-Cycle-Diesel
Bore	115 mm	4.5 in
Stroke	149 mm	5.9 in
Displacement	9.3 l	567.5 in³
Compression Ratio	16.5:1
Aspiration	Turbocharged Aftercooled (TA)
Rotation from Flywheel End	Counterclockwise

Power Unit Dimensions

Length	2110 mm	83 in
Width	1100 mm	43 in
Height	1603 mm	63 in
Weight	1481 kg	3265 lb
