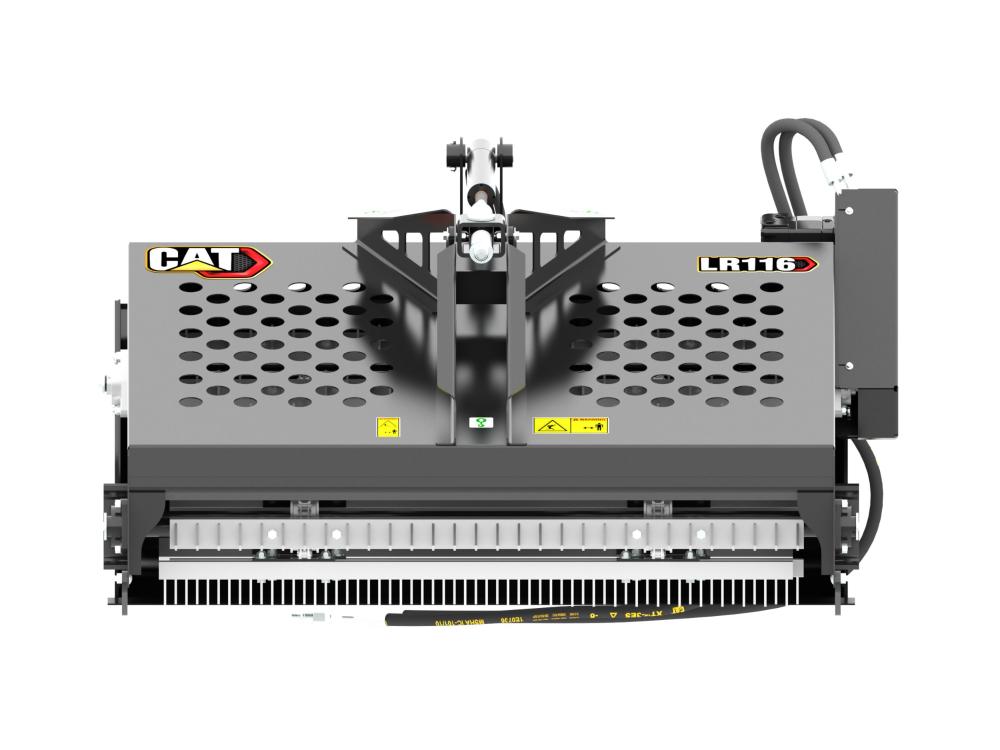

LR116 Landscape Rake

Units of measurement :

Metric

Imperial

Working Width

1576 mm

Bucket Capacity - Struck

0.31 m³

Weight

595 kg

Availability

Purchase Rental Used

Cat® Landscape Rakes are ideal for residential, commercial, agricultural, building construction, lawn care and golf course maintenance applications. They use the scarifying action of the hardened teeth to pulverize, aerate, level and condition the soil, while collecting and depositing rock and debris in the integrated hopper bucket for quick removal. Landscape rakes are designed to operate with the loader traveling in reverse, leaving the soil finely groomed with minimal tire compaction.

Application

Travel Direction

Robust Design

Quick Dumping

Conveyor Tubes

Uses the scarifying action of the hardened teeth to pulverize, aerate, level and condition the soil, while collecting and depositing rock and debris in the integrated hopper bucket for quick removal.

Cat® Landscape Rake Brochure.pdf

Others

Working Width	1576 mm	62 in
Bucket Capacity - Struck	0.31 m³	0.4 yd³
Weight	595 kg	1311.7 lb
Raking Width	1384 mm	54.5 in
Overall Width	1683 mm	66.3 in
Height	989 mm	38.9 in
Length	1620 mm	63.8 in
Optimal Hydraulic Flow	42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure	145-235 bar (2100-3400 psi)
Motor Displacement	315 cm³/rev	19.2 in³/rev
Driven Shaft Speed	165 rpm @ 80 L/min (21 gpm)
Number of Hard Face Tines	372
Rock Size Range	19-152 mm (0.75-6 in)
Drive Method	Chain Reduction
Drive Chain	#80H
Conveyor Chain	#2060H
Required Hydraulics	Standard Flow
