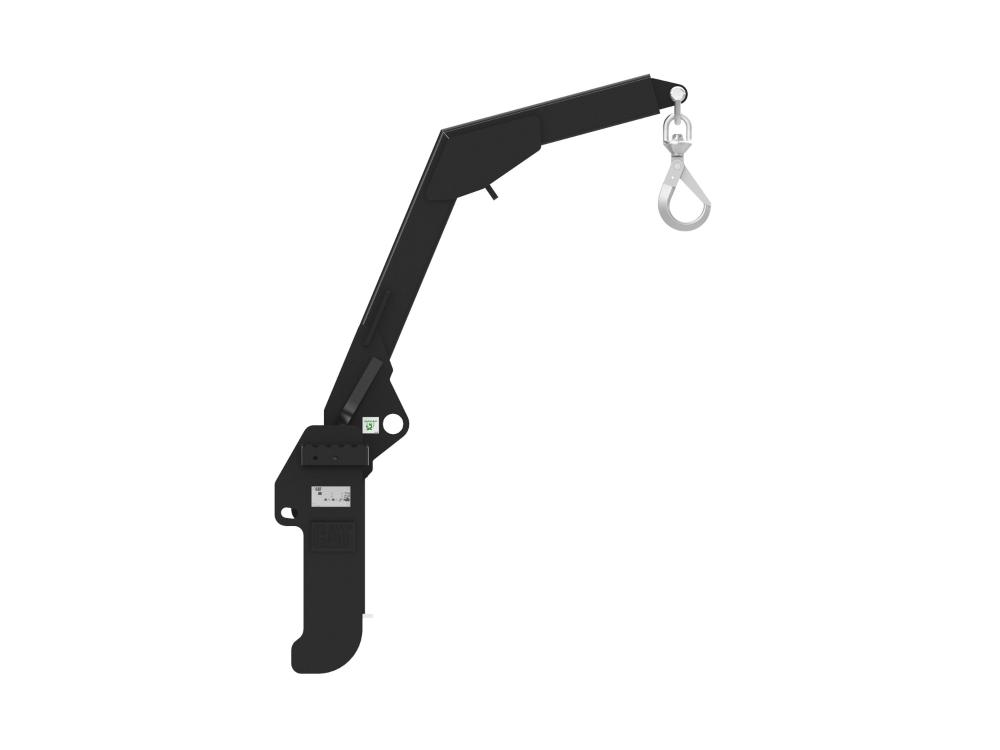

Skid Steer Coupler Material Handling Arm For Compact Products

Units of measurement :

Metric

Imperial

Overall Width

1316 mm

Maximum Load Rating

907 kg

Maximum Horizontal Reach

2134 mm

Availability

Purchase Rental Used

The Cat® Material Handling Arm for compact products is a useful tool for virtually all types of applications, including industrial, construction and agricultural, to pick, carry and load a variety of materials and equipment. The heavy duty design is also well suited for landscaping to load, carry and set trees and large shrubs.

Application

Multi-Angled Boom

Two Lift Points

Two Storage Compartments

Dual Tie-Down Holes

Heavy-Duty Locking Clasp

Serrated Step

Designed to pick up, carry and load a variety of materials and equipment. Also well suited for loading, carrying and setting trees and large shrubs in landscaping applications.

Cat® Material Handling Arm Brochure.pdf

Others

Overall Width	1316 mm	51.8 in
Maximum Load Rating	907 kg	1999.6 lb
Maximum Horizontal Reach	2134 mm	84 in
Weight	127 kg	280 lb
Overall Height	1473 mm	58 in
Retracted Length	1016 mm	40 in
Interface Type	Skid Steer Coupler
