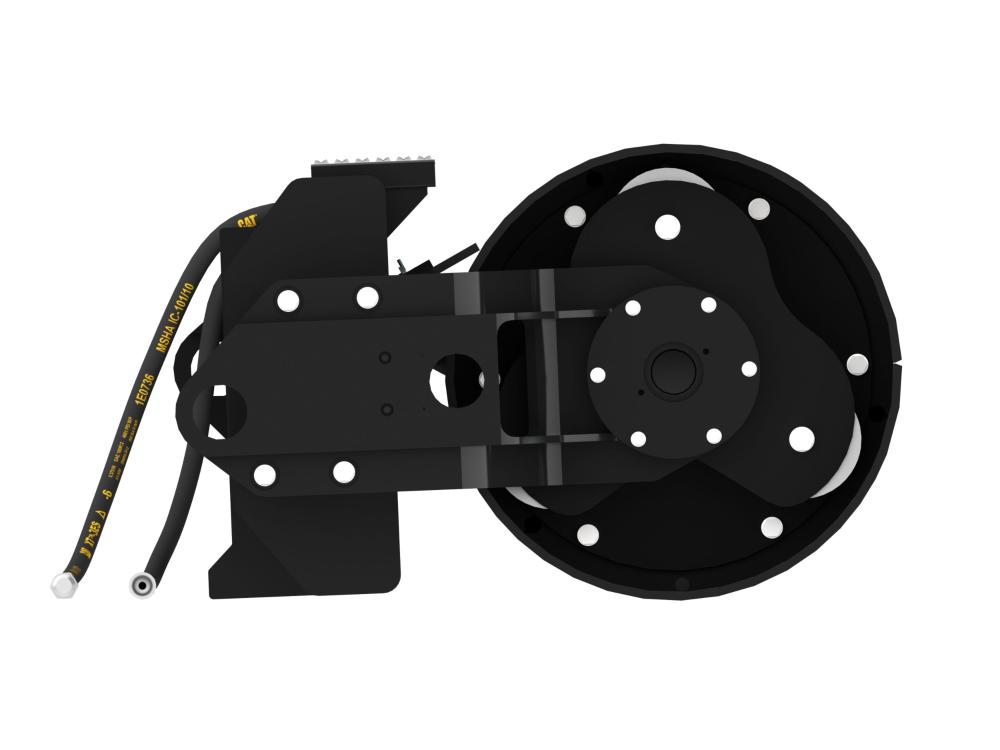

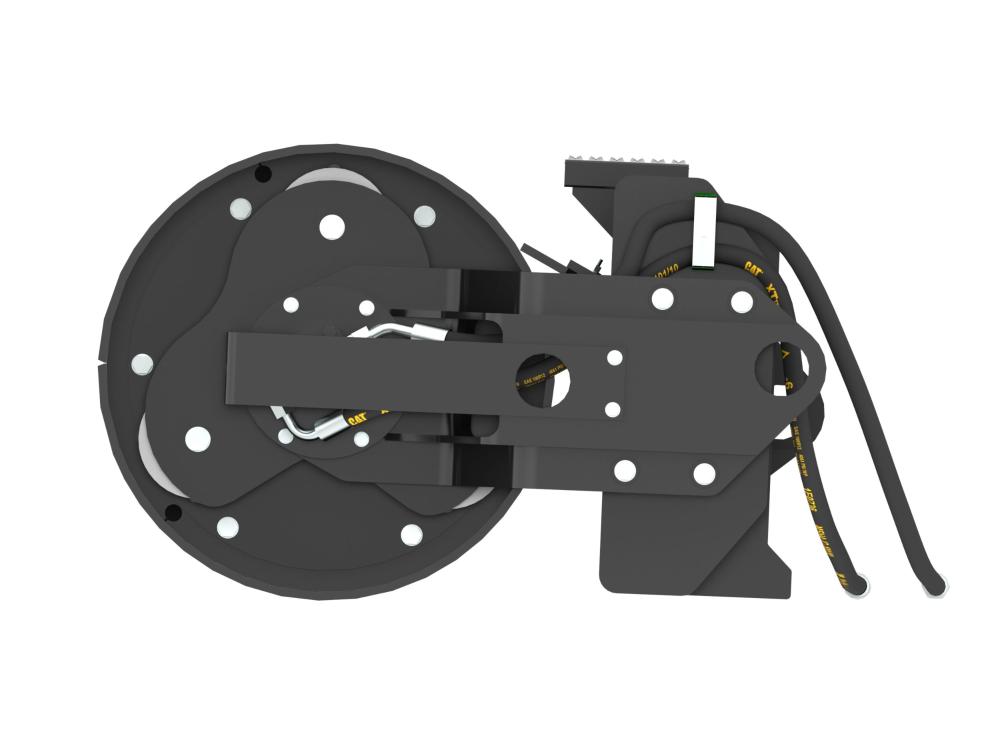

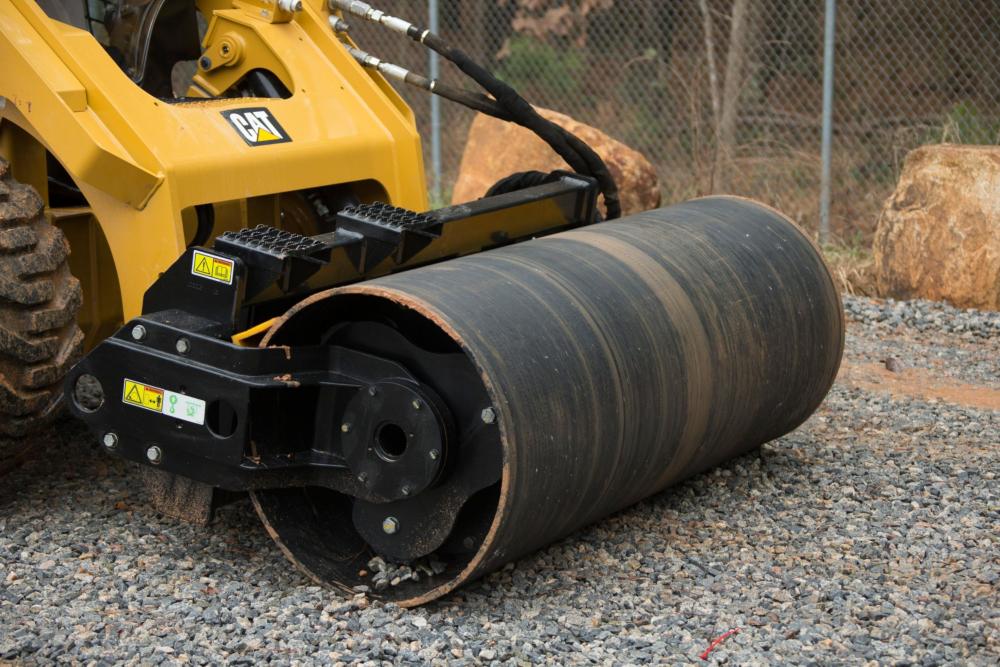

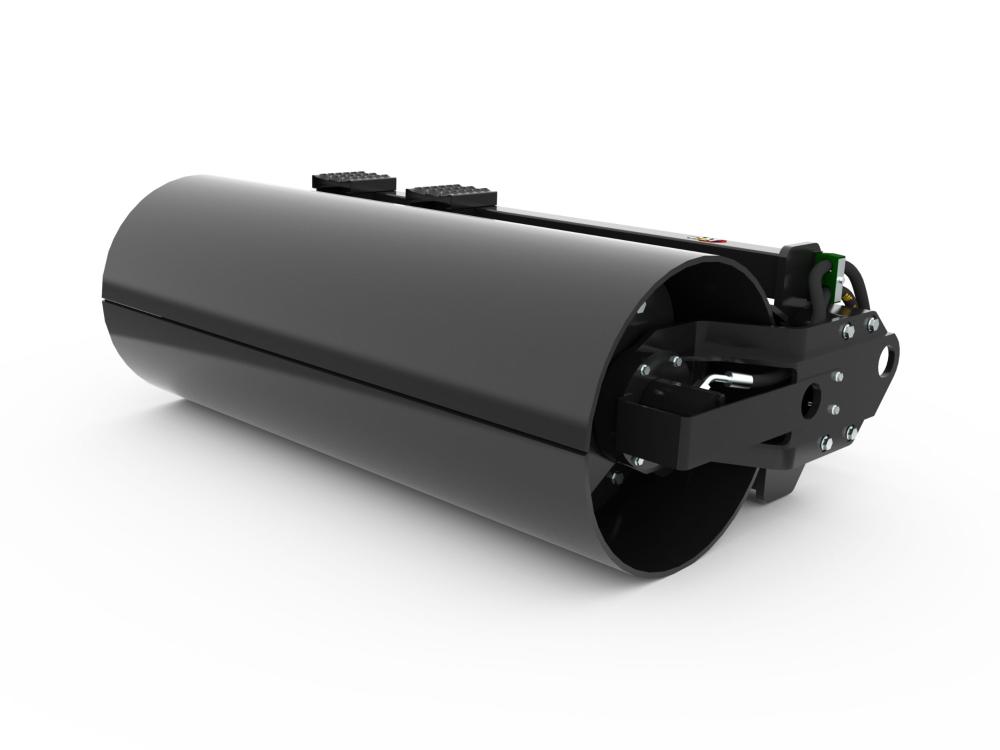

CV117 Vibratory Drum Compactor

Units of measurement :

Metric

Imperial

Drum Width

1676 mm

Weight

936 kg

Required Hydraulics

Standard Flow

Availability

Purchase Rental Used

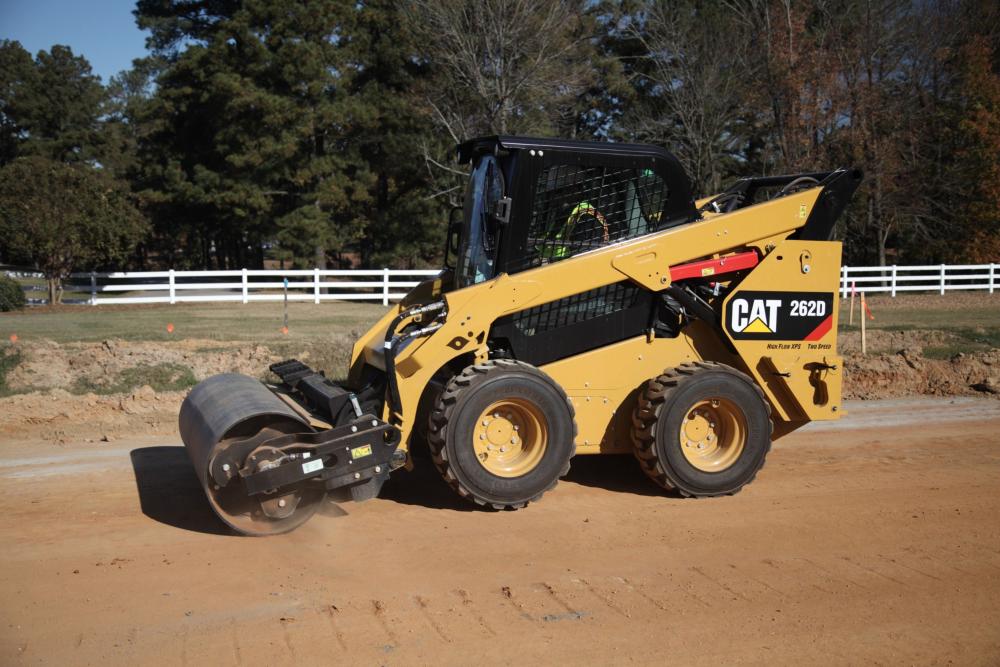

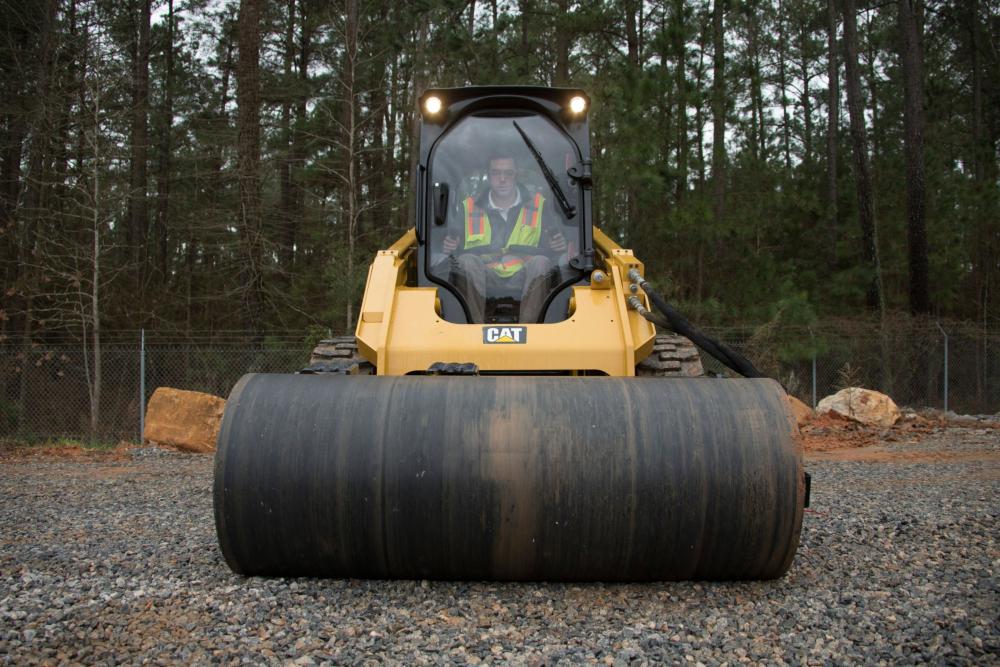

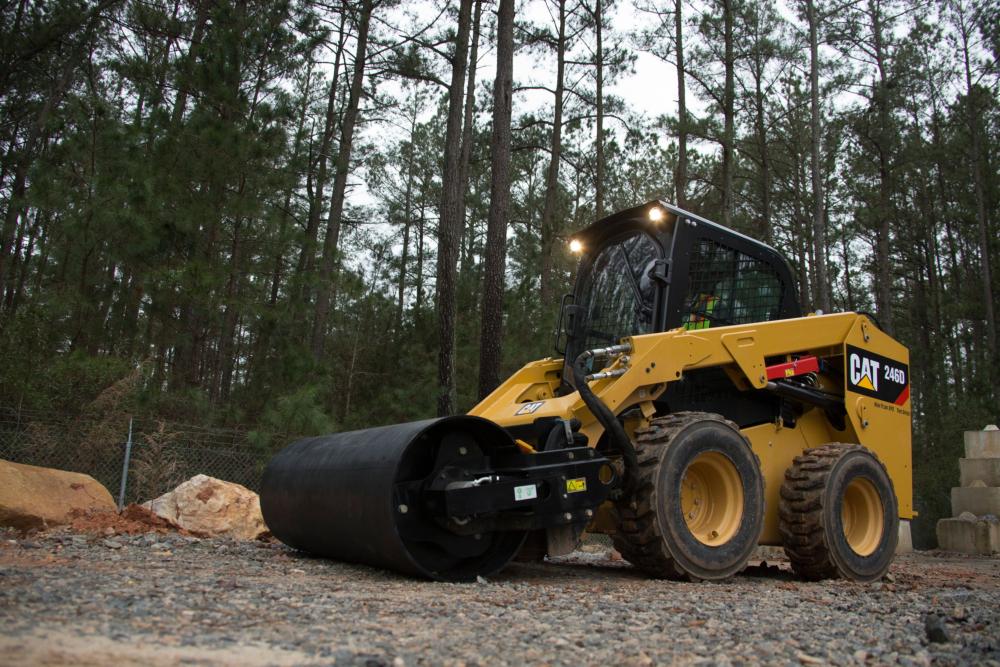

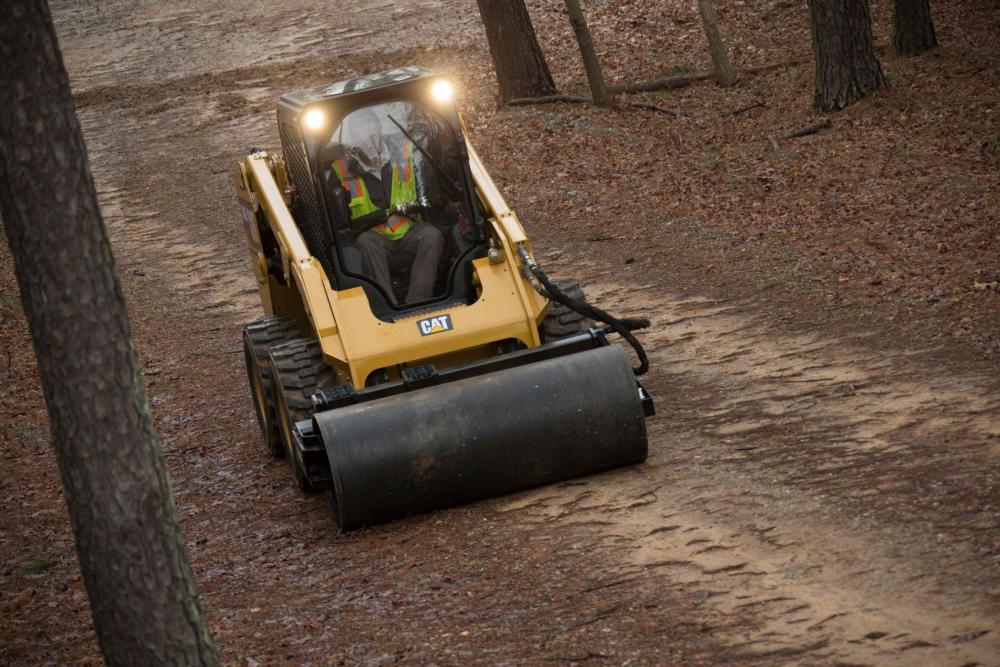

Cat® Vibratory Compactors are used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. They are also ideal for asphalt patch work. Their capabilities and lower investment and maintenance costs make them popular with pavers, general contractors and utility contractors in residential, commercial or industrial applications.

Application

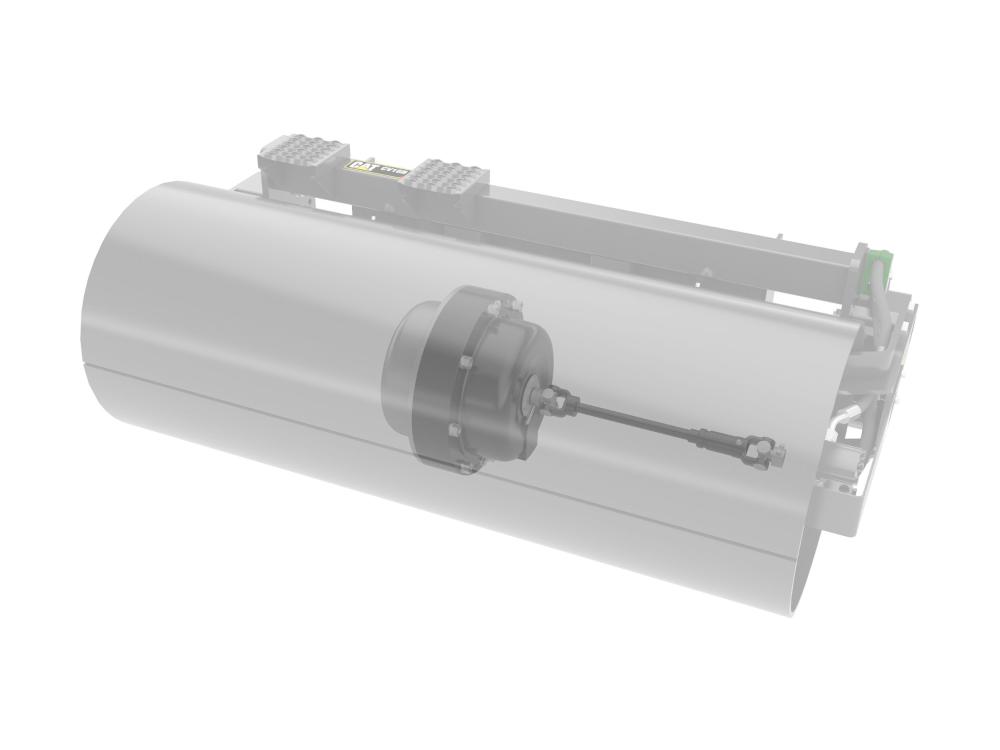

Vibratory Pod Design

Higher Compaction Forces

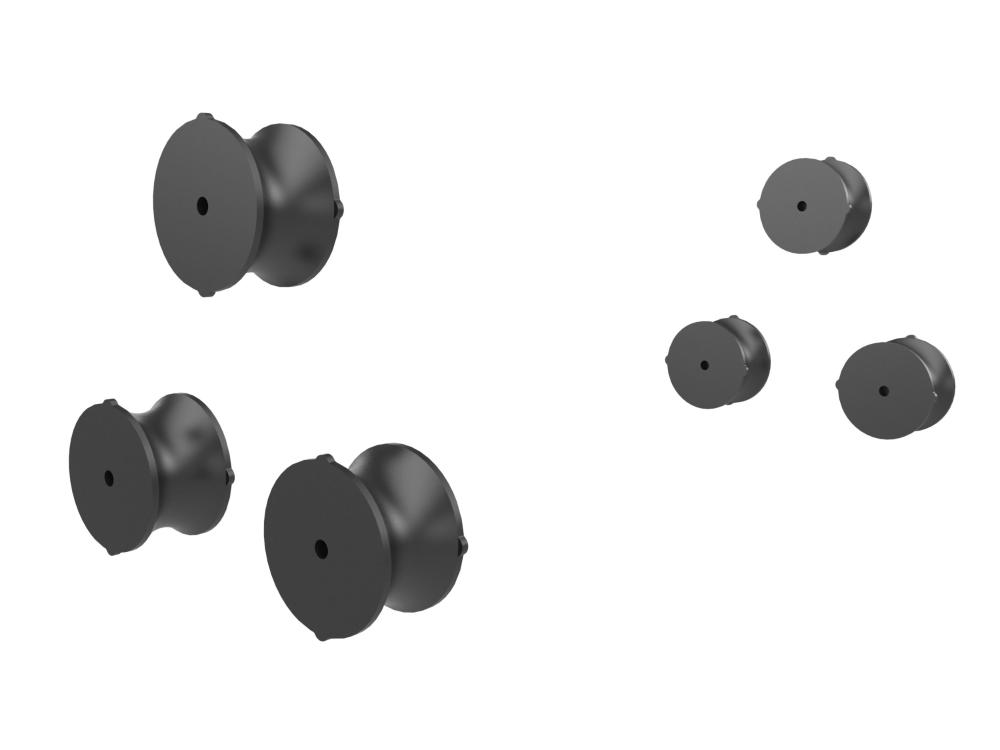

Replaceable Rubber Mounts

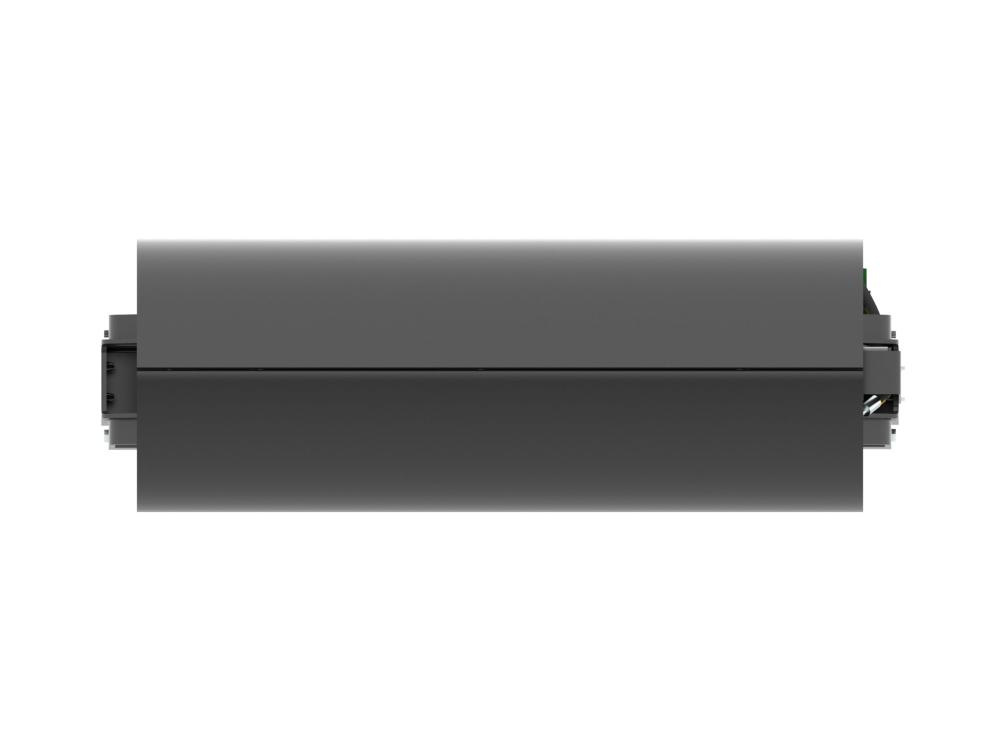

High Strength Steel Drums

Pivoting Interface

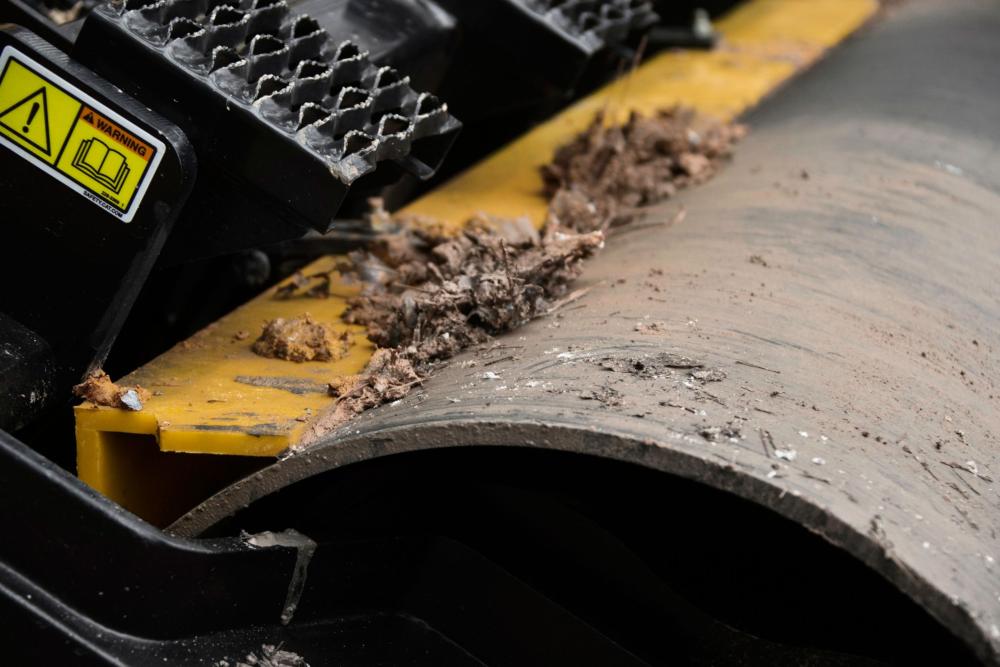

Spring-Loaded Scraper Bar

Used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. Also ideal for asphalt patch work.

Cat® Vibratory Drum Compactors Product Brochure.pdf

Others

Drum Width	1676 mm	66 in
Weight	936 kg	2063.5 lb
Required Hydraulics	Standard Flow
Overall Width	1854 mm	73 in
Height	634 mm	25 in
Length	1009 mm	39.7 in
Drum Diameter	634 mm	25 in
Optimal Hydraulic Flow	42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure	145-235 bar (2100-3400 psi)
Drum Frequency at Maximum Flow	2,946 vibrations/minute
Drum Oscillation Tilt Range	± 15 degrees
Dynamic Force	5399 kg	11902.7 lb
Amplitude	1.15 mm	0.046 in
Motor Size	28 cm³	1.7 in³
Drive Method	Gear Motor - Direct
