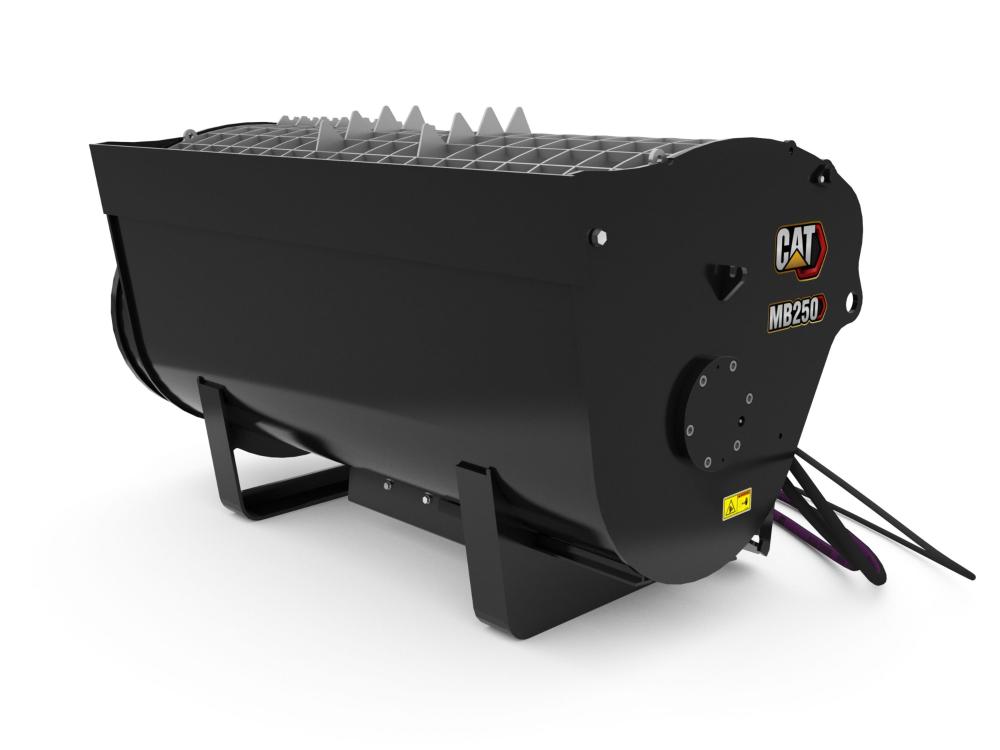

MB250 Mixing Bucket

Units of measurement :

Metric

Imperial

Capacity

0.25 m³

Width

1390 mm

Required Hydraulics

Standard Flow

Availability

Purchase Rental Used

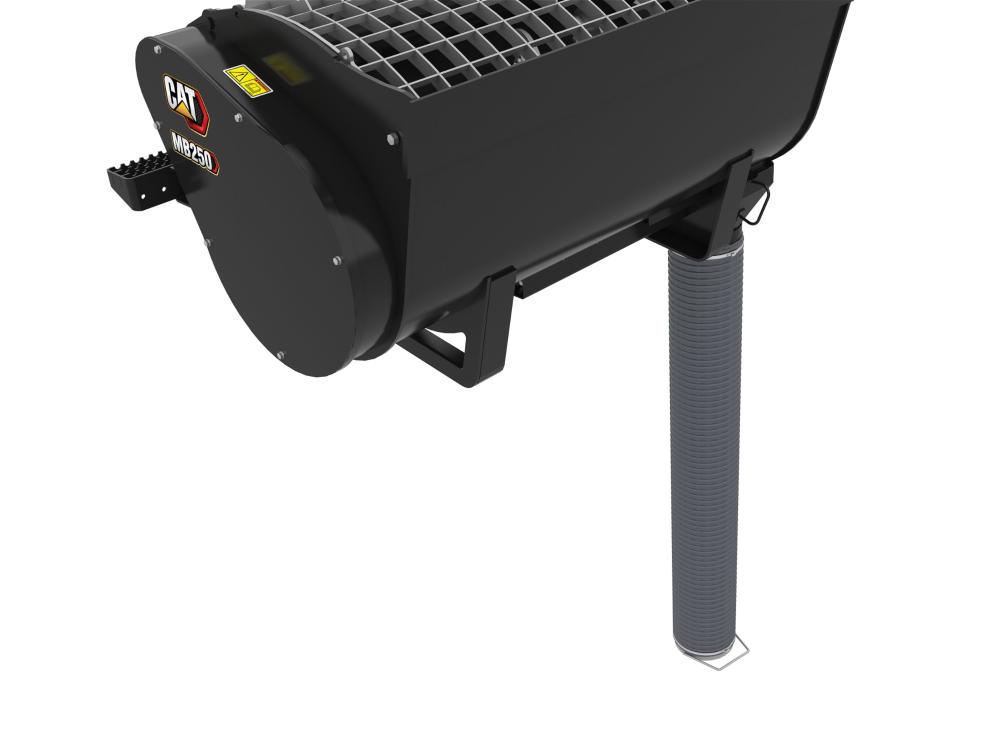

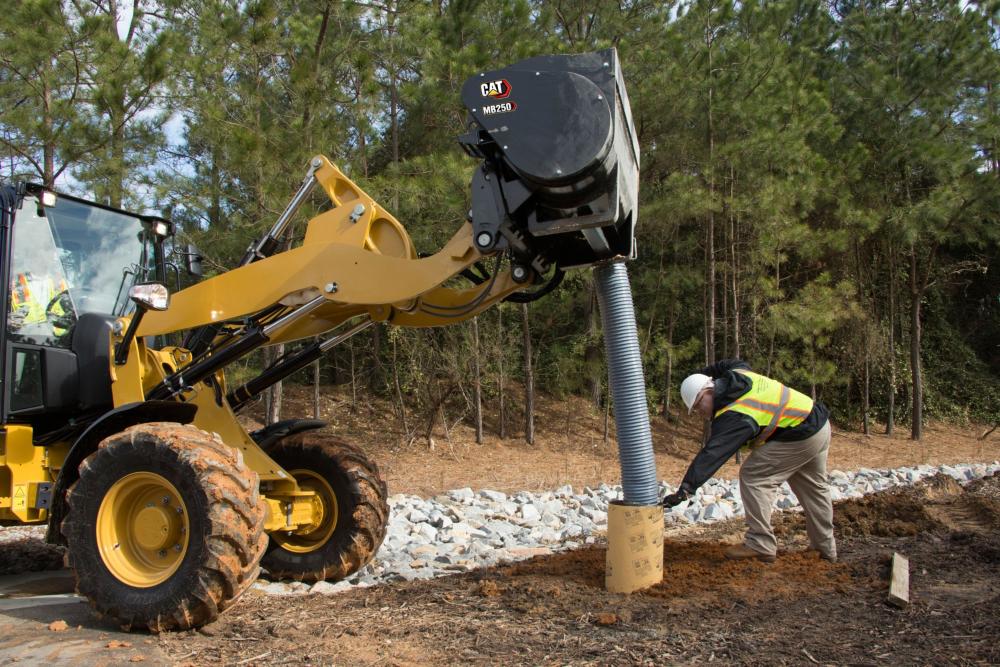

Cat® Mixing Buckets for Cat Skid Steer Loaders and Compact Track Loaders are designed for material mixing in a variety of applications. Utilizing a chain driven auger equipped with replaceable paddles the Cat Mixing Buckets ensure complete and repeatable mixing. Work can be completed in difficult to access areas, improving productivity and saving on transportation costs. Available with rigid and flexible chutes, the mixing buckets provide different methods to distribute material around job sites. The hydraulically controlled chute door opens a path for material to exit the bucket and is operated from the cab eliminating the need to exit the cab to open the bucket. The Cat Mixing Buckets are excellent for sidewalks, driveways, finish work, fence posts, footings and floors of small buildings.

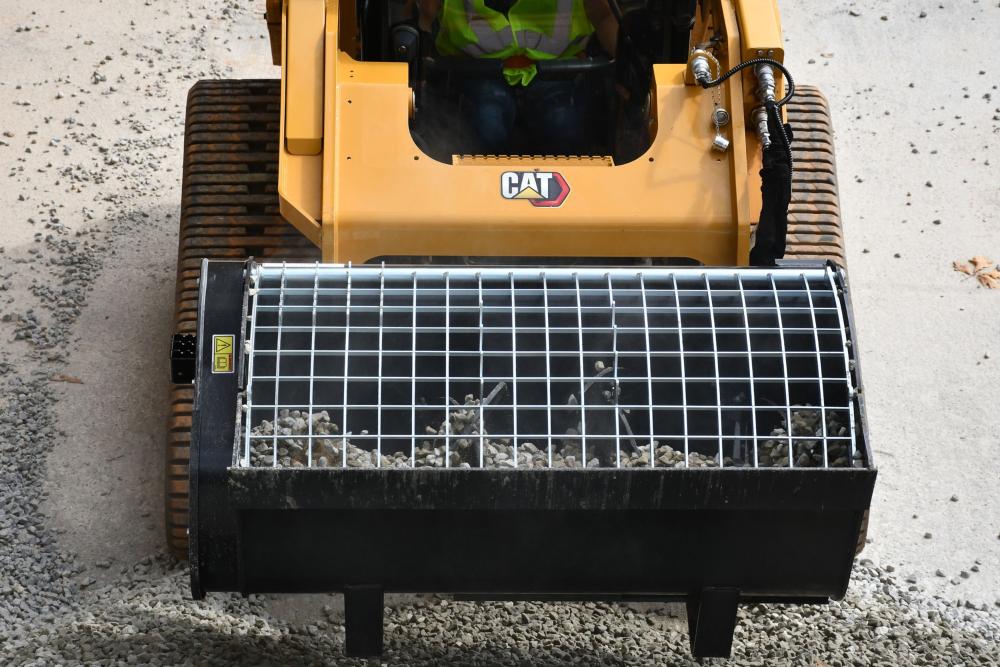

Easy Material Addition

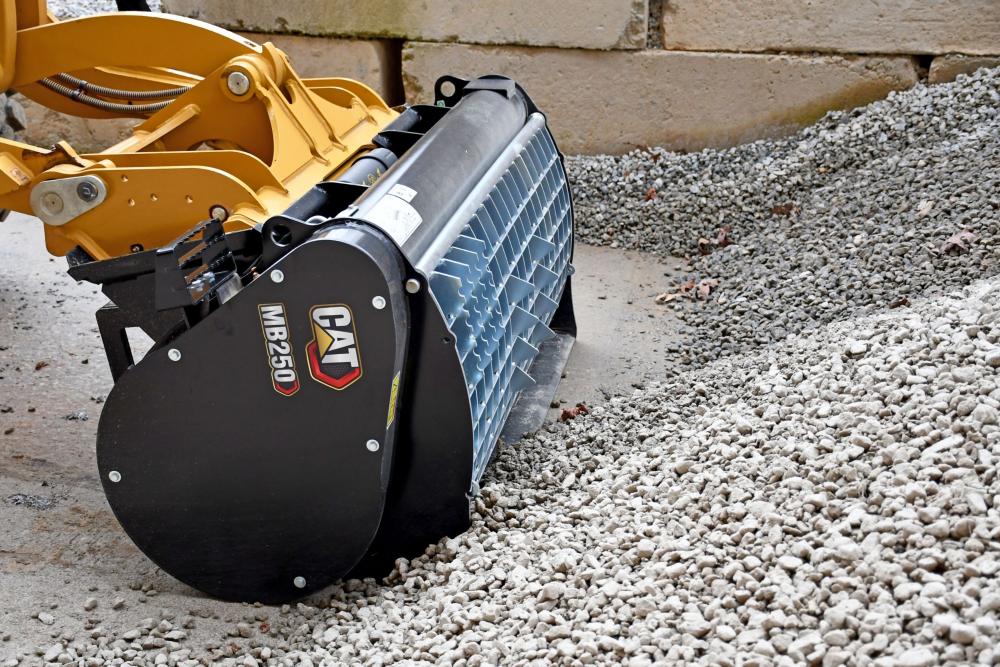

Bucket Cutting Edge

Reinforced Steel Bucket Cavity

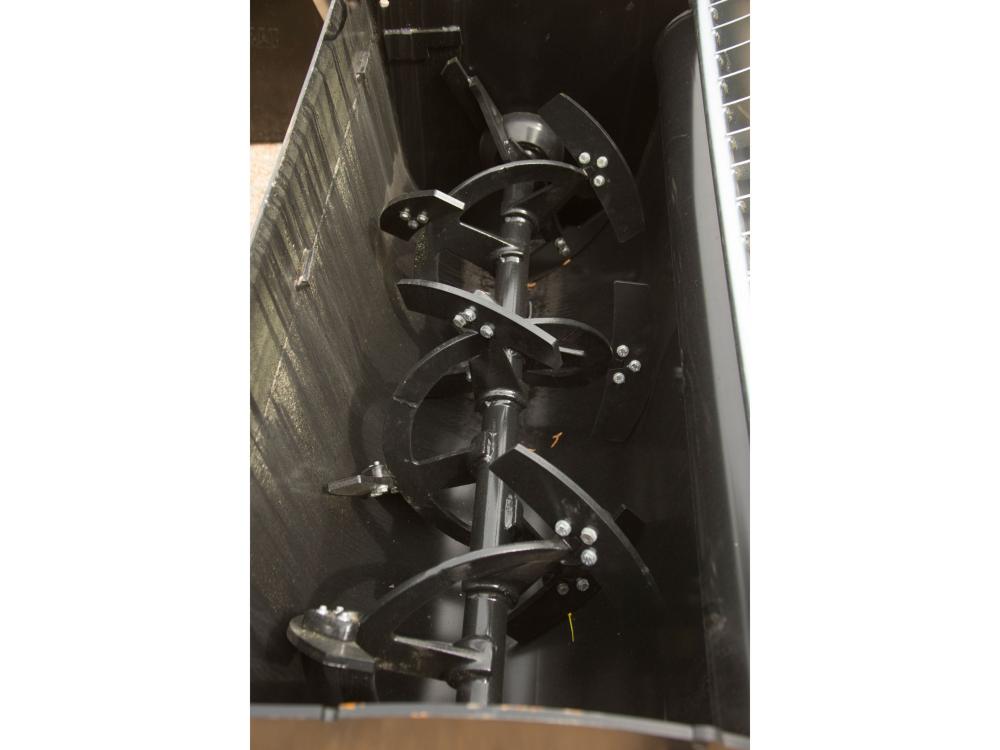

Bolt-On Replaceable Auger Paddles

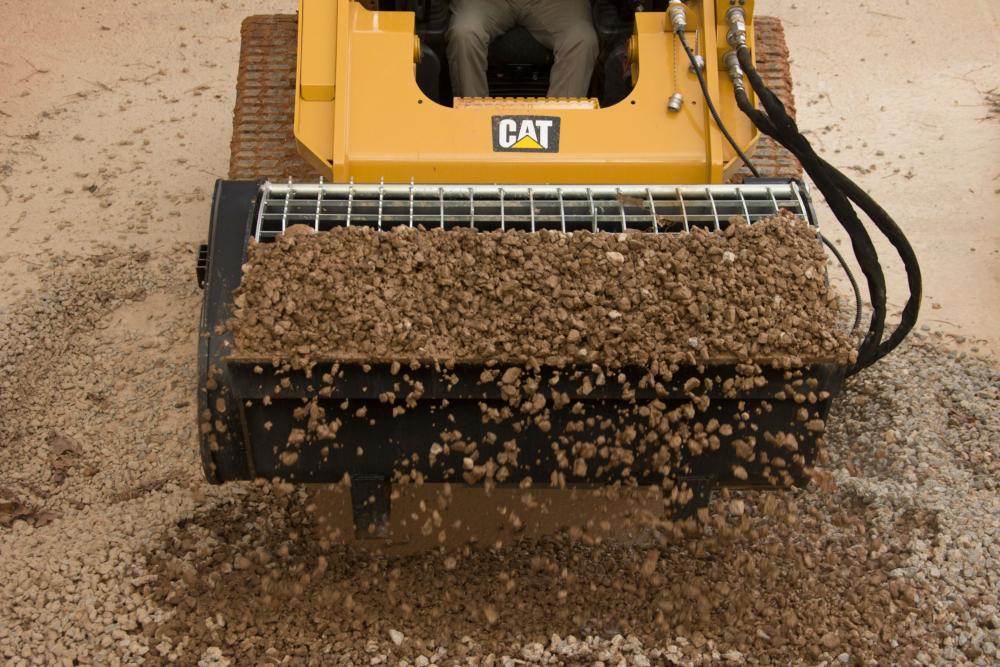

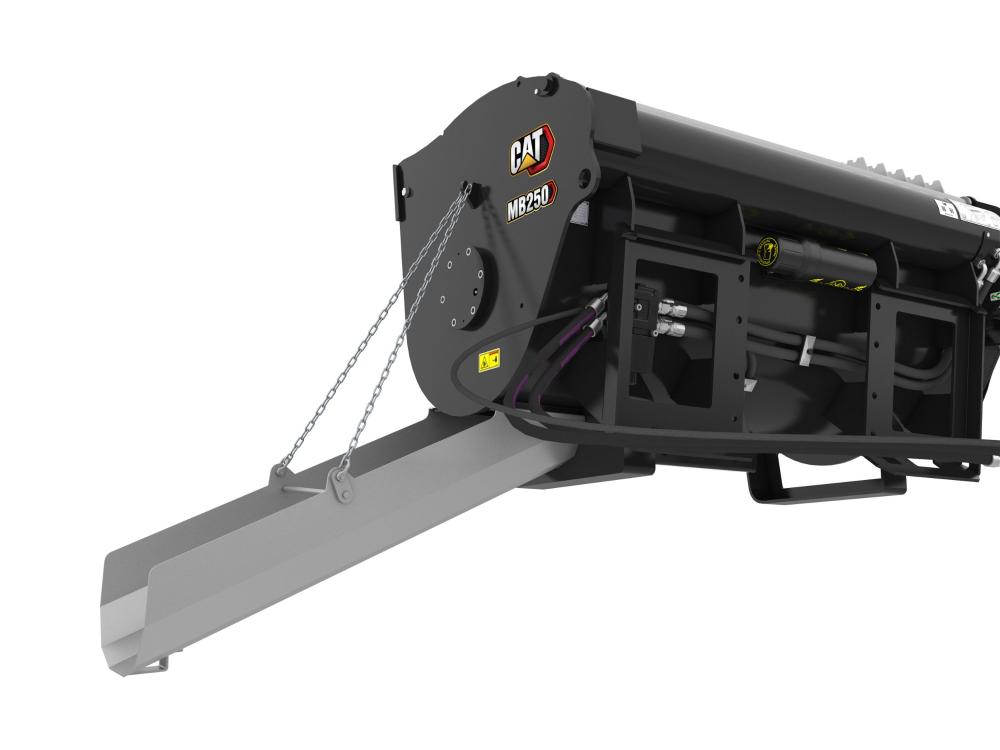

Remotely Operated Chute Door

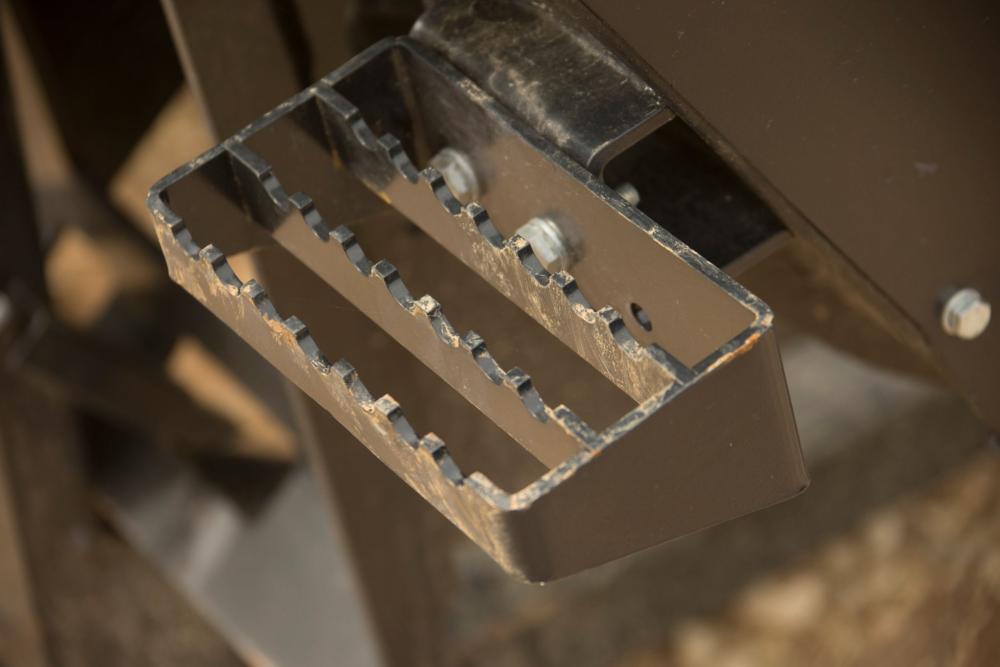

Bolt-On Serrated Step

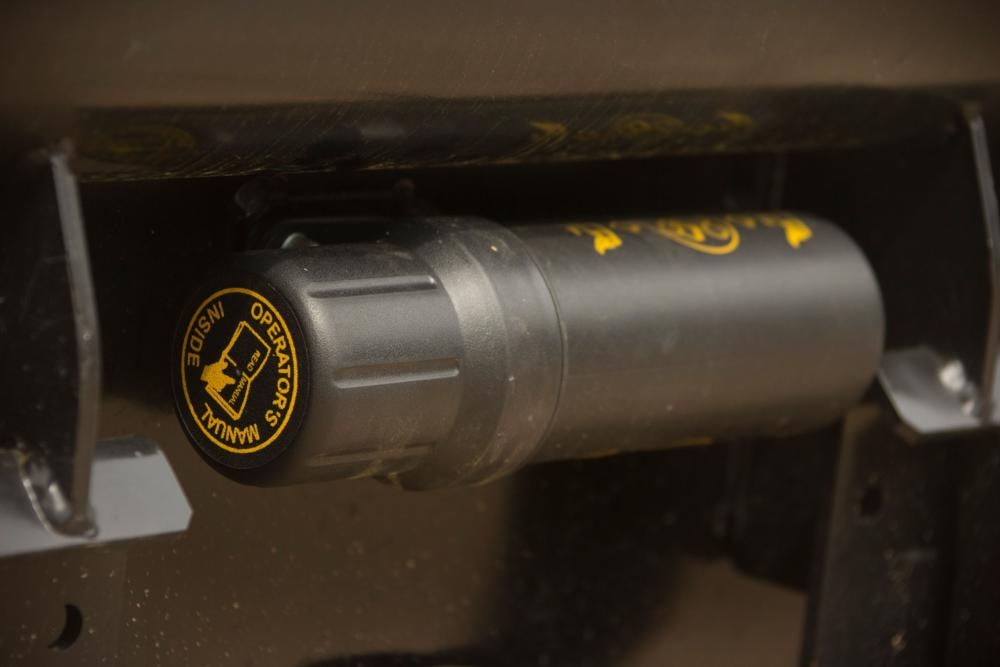

Tool Mounted Operation and Maintenance Manual Holder

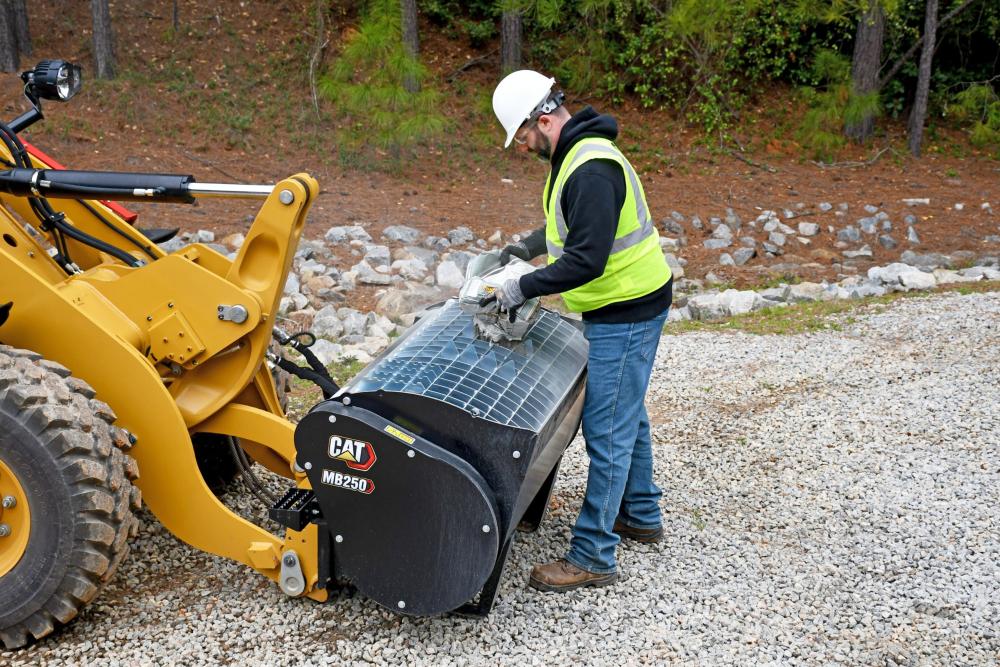

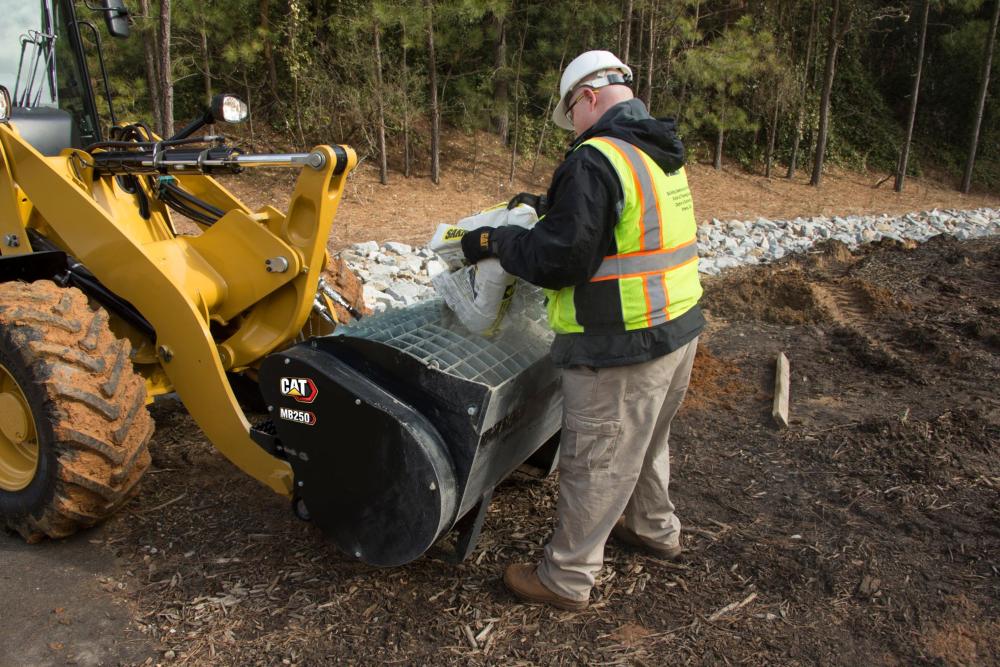

Cement bag breakers on top of mixing bucket grate allow for easy breaking and addition of bagged materials.

Cat® Mixing Bucket Product Brochure.pdf

Others

Capacity	0.25 m³	0.33 yd³
Width	1390 mm	54.7 in
Required Hydraulics	Standard Flow
Auger Speed Range	10-30 rpm
Drive Method	Chain
Height	877 mm	34.5 in
Length	814 mm	32 in
Optimal Hydraulic Flow	60-70 lpm (16-18 gpm)
Optimal Hydraulic Pressure	140-200 bar (2031-2901 psi)
Weight	430 kg	948 lb
Auger Diameter	508 mm	20 in
Number of Auger Paddles	11
Interface Type	Skid Steer Coupler
Overall Width	1605 mm	63.2 in
