PC104 Standard Flow Cold Planer

Cat

Units of measurement :

Metric

Imperial

Working Width

350 mm

13.8 in

Maximum Cutting Depth

150 mm

5.9 in

Required Hydraulics

Standard Flow

Availability

Purchase Rental Used

Cat® Cold Planers are designed for small paving jobs in residential and commercial applications and are primarily used to economically restore asphalt and concrete surfaces. They are ideal for milling imperfections prior to resurfacing, removing deteriorated pavement, removing traffic lane stripes and jobs where the use of dedicated planers is limited. The Cat Cold Planers are designed for use on Cat Skid Steer Loaders, Compact Track Loaders, Compact Wheel Loaders and Backhoe Loaders.

Features

Specifications

Documents

Application

Self-leveling Design

Two Wear-Resistant Skid Plates

Hydraulic Side shift

Independent Left/Right Depth Control

Max Pro Pressure Gauge

Direct Drive System

Float, Spring Tilt and Hydraulic Tilt

Bits Options

Cut Mark

Drum Center Indicator

Fast Cut Asphalt Drums Standard

Serrated Steps

OMM Container

Optional Integrated Water Tank

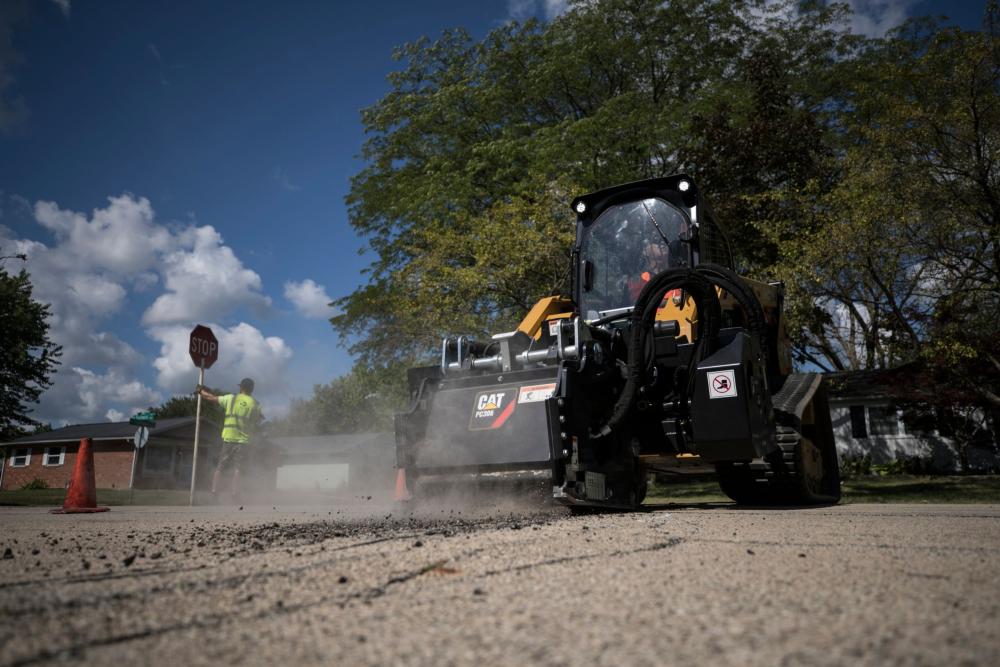

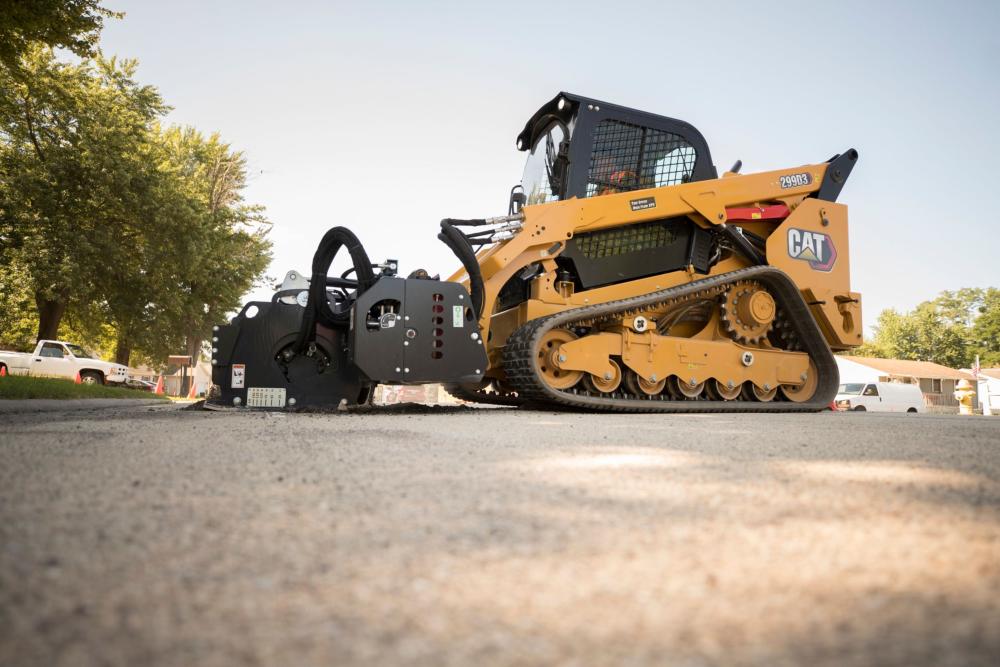

Designed for small paving jobs in residential and commercial applications, and are primarily used to economically restore asphalt and concrete surfaces. Ideal for milling imperfections prior to resurfacing, removing deteriorated pavement, removing traffic lane stripes and jobs where the use of dedicated planers is limited.

Self-leveling design automatically levels itself when placed on the ground for consistent depth control without operator adjustments and excellent spoil retention.

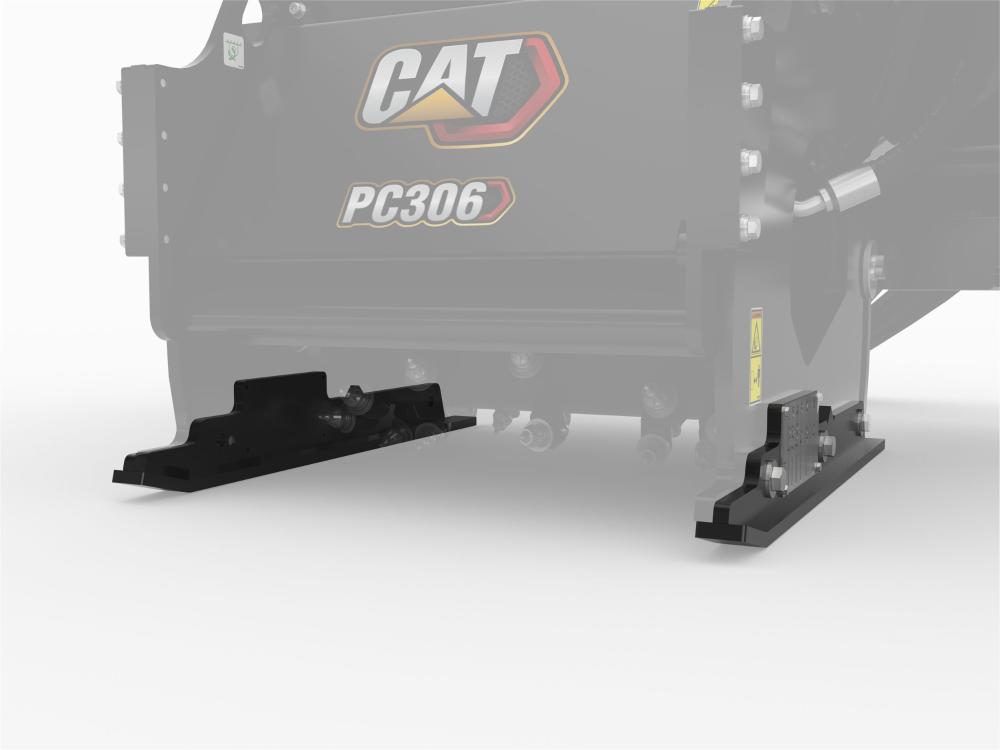

Two wear-resistant skid plates remain parallel to the ground for optimum stability.

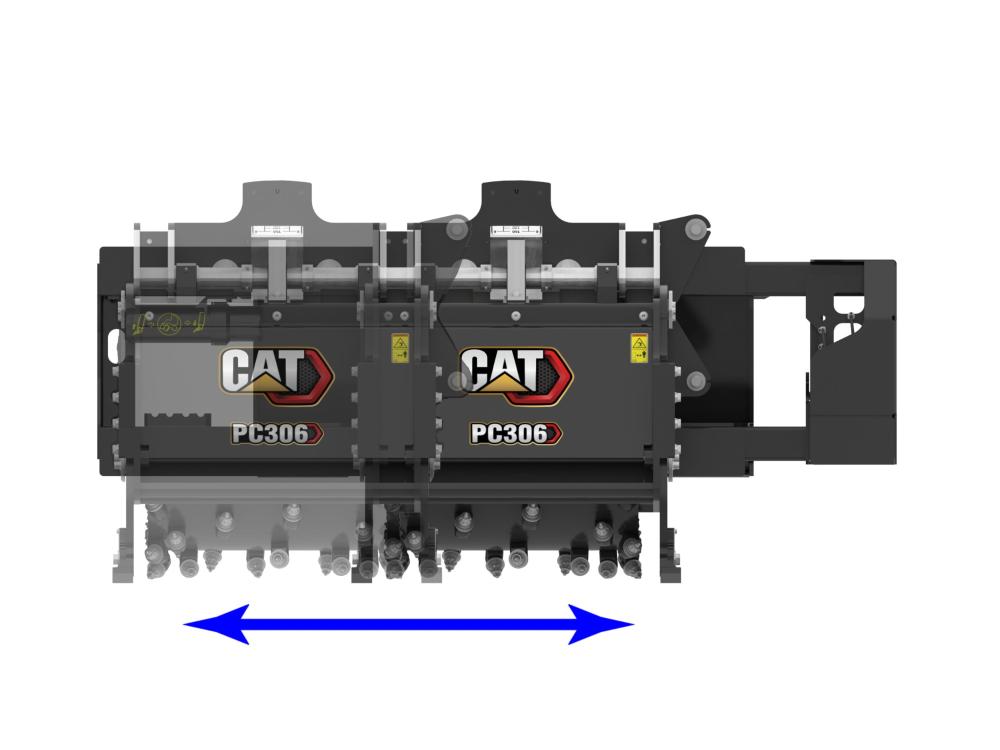

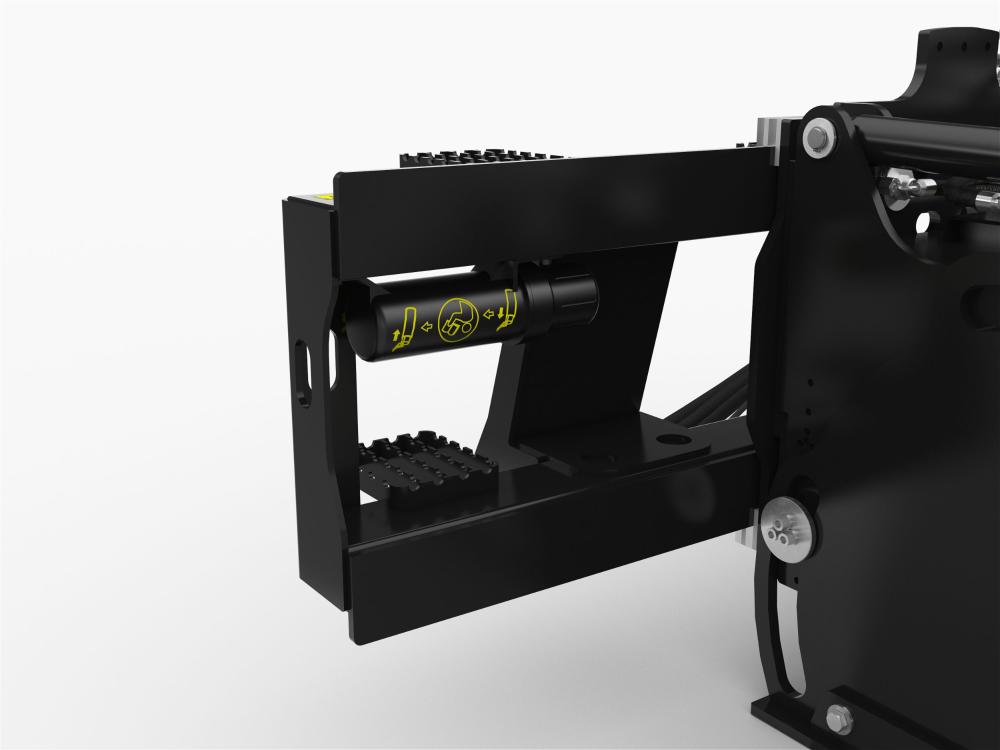

Hydraulic side shift permits close planing to curbs, walls and other obstructions.

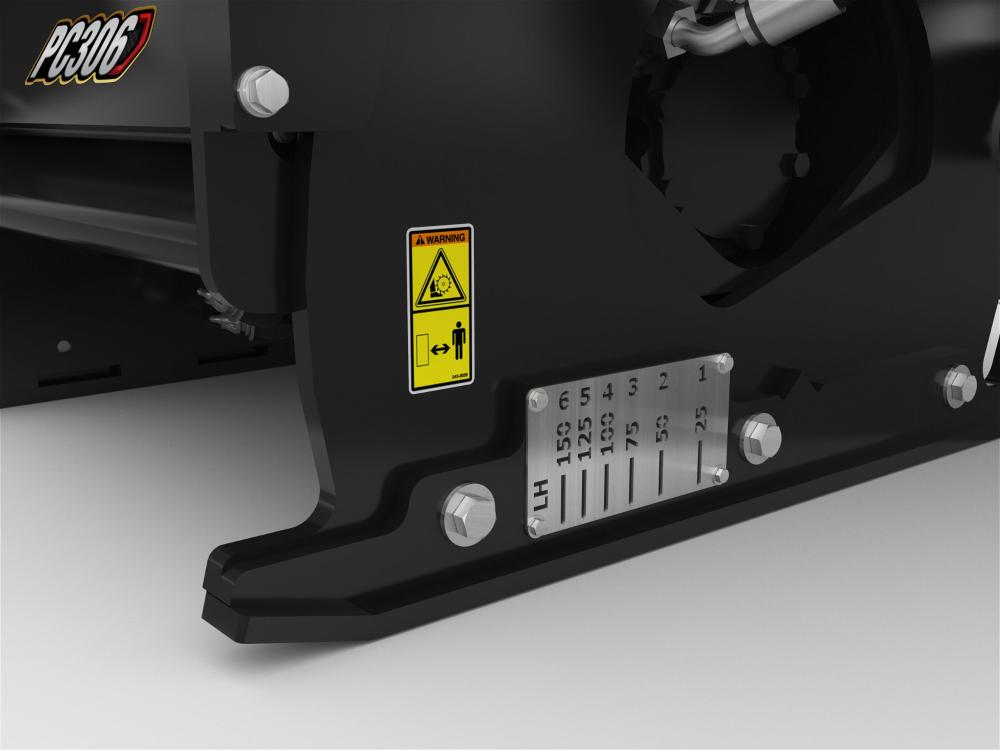

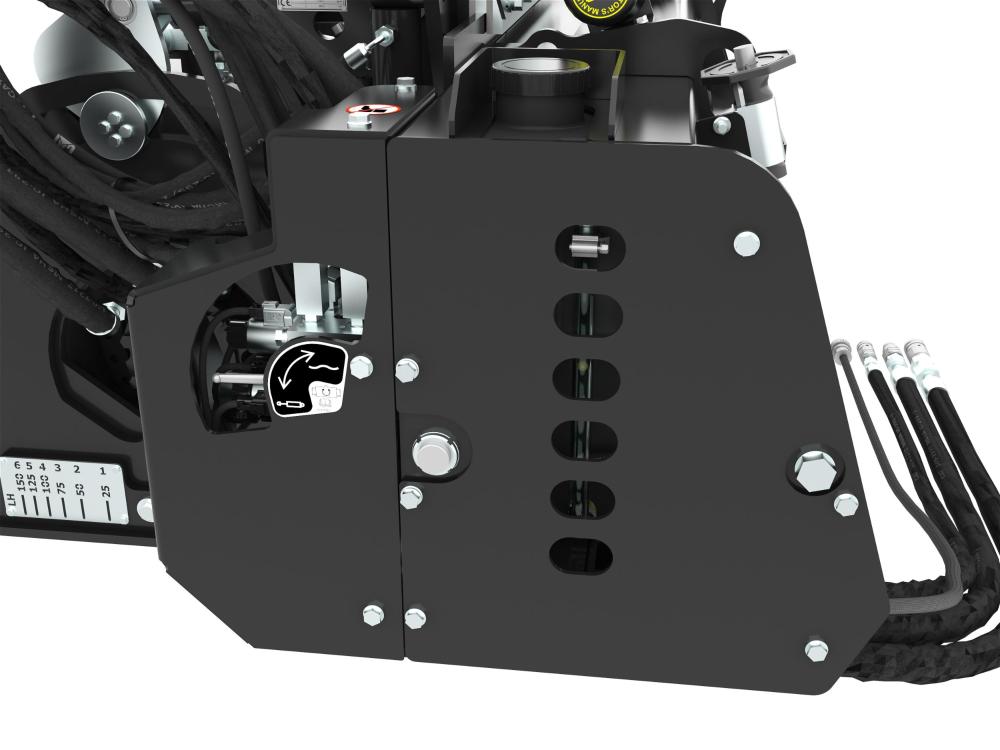

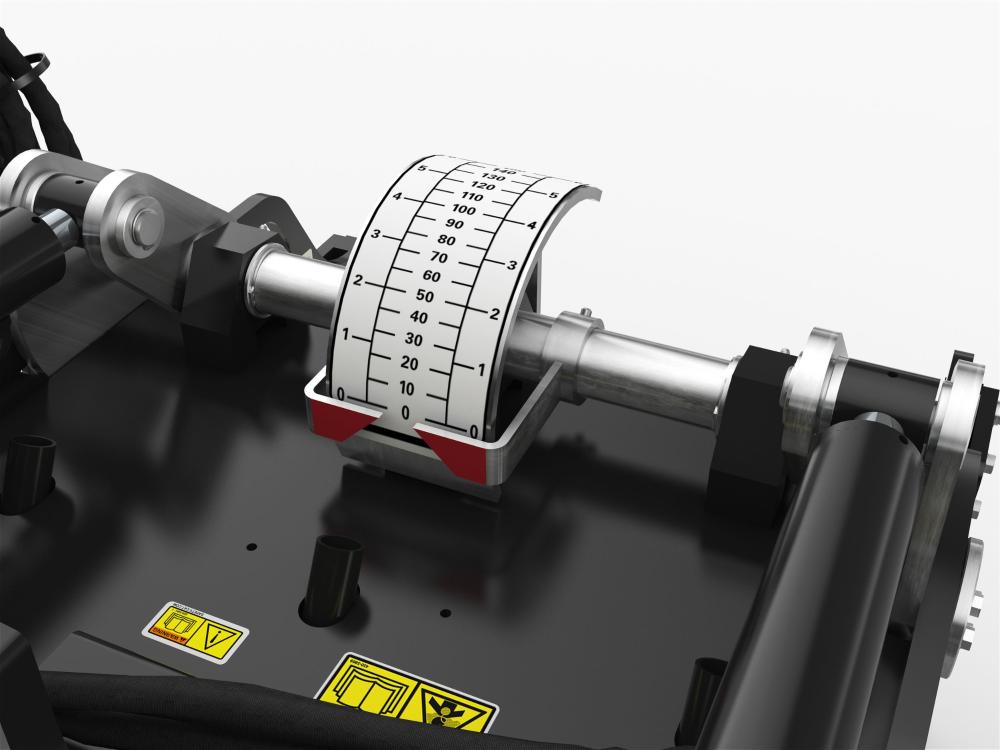

Independent left/right depth control allows maximum drum depths to be adjusted independently on each skid. Gauges are easily viewable from the cab. Independent depth control is mechanical on the PC104 and PC105 models; hydraulic independent depth control is standard on the PC305-PC412 models.

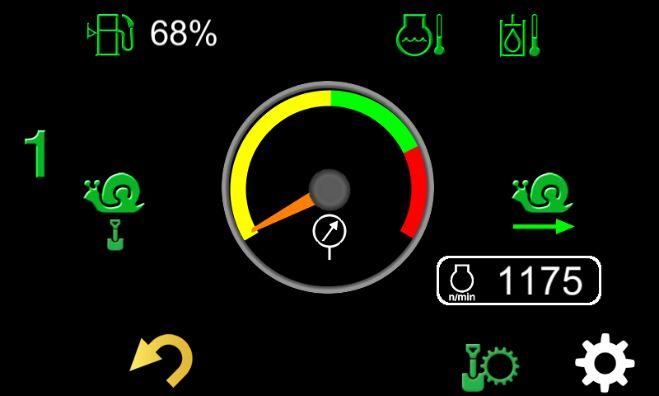

Max Pro Pressure Gauge provides operator feedback to adjust speed for maximum productivity in changing material loads. Gauge displays planer performance in real-time conditions and is visible from the cab. Standard on all models.

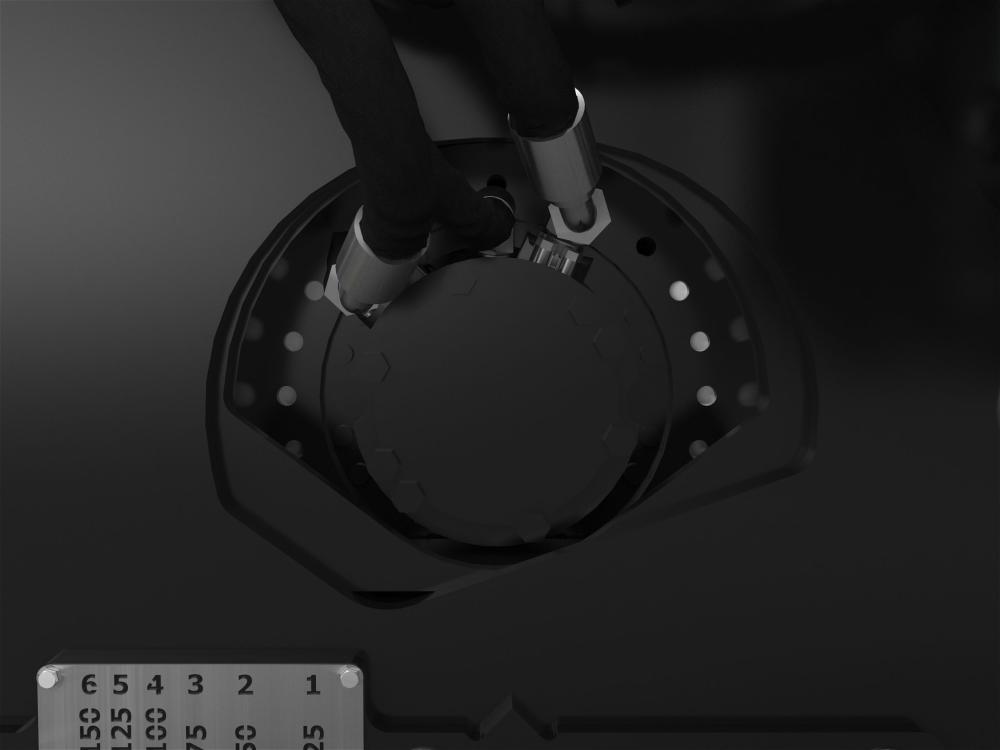

Direct drive system on the standard flow models features a variable speed, uni-directional, gerotor style hydraulic motor. Direct drive system on high flow and XHP models features a hydraulic radial piston motor to ensure maximum cutting rate and drum torque for optimal production performance and efficiency.

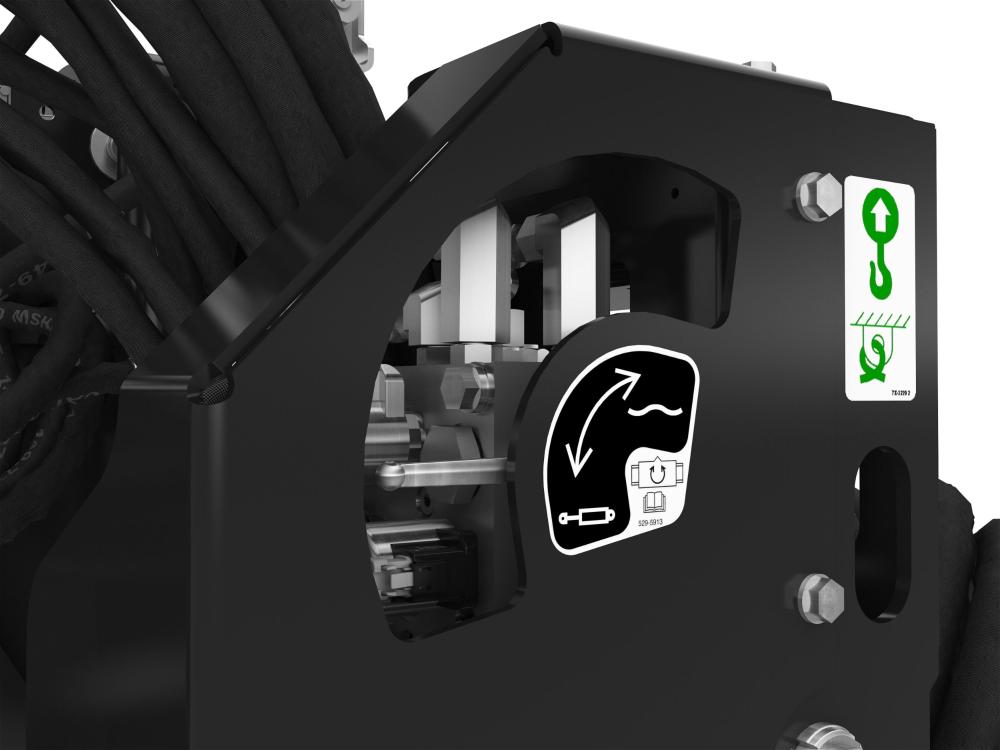

Float enables planers to follow the contour of the surface. Float is activated by a knob and is only available on high flow and XHP planers. Spring tilt and hydraulic tilt enable planers to oscillate for angled cuts. Tilt is hydraulically controlled on high flow models and spring controlled on standard flow planers.

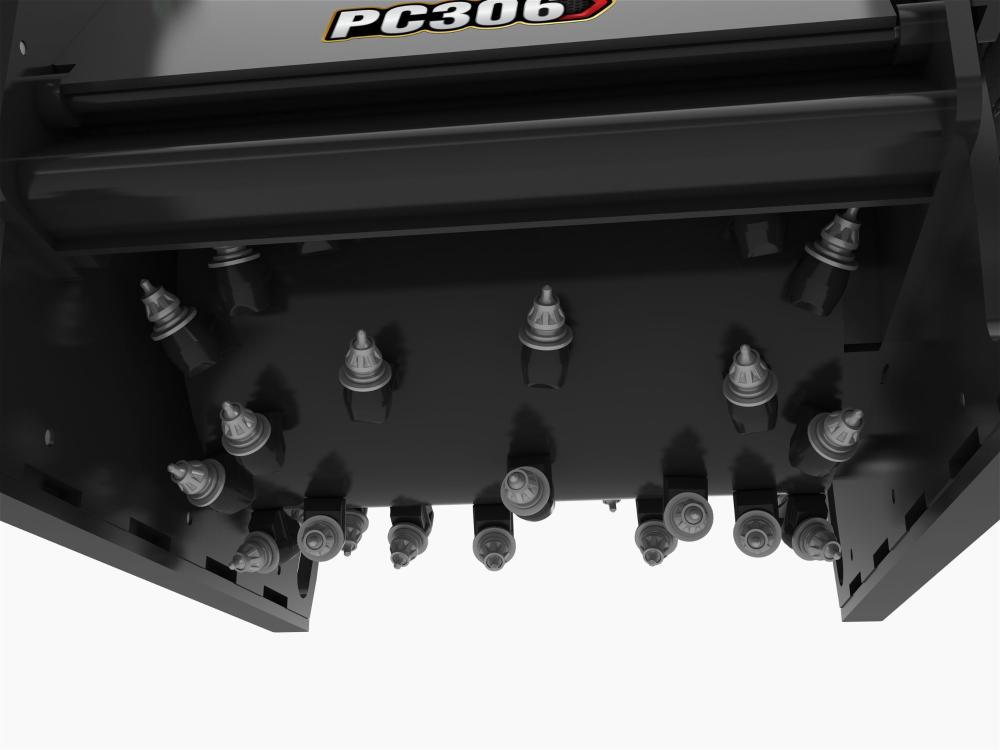

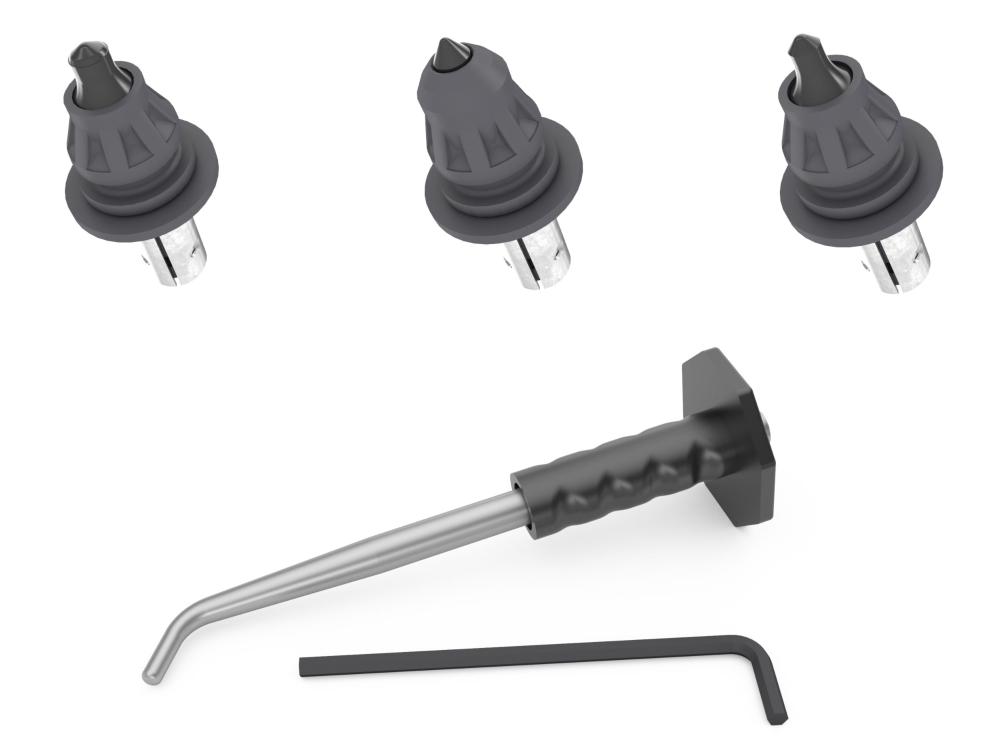

All purpose conical bits are standard. Optional concrete bits, heavy duty concrete bits, and heavy duty asphalt bits are also available. Tools to change out the bits are included.

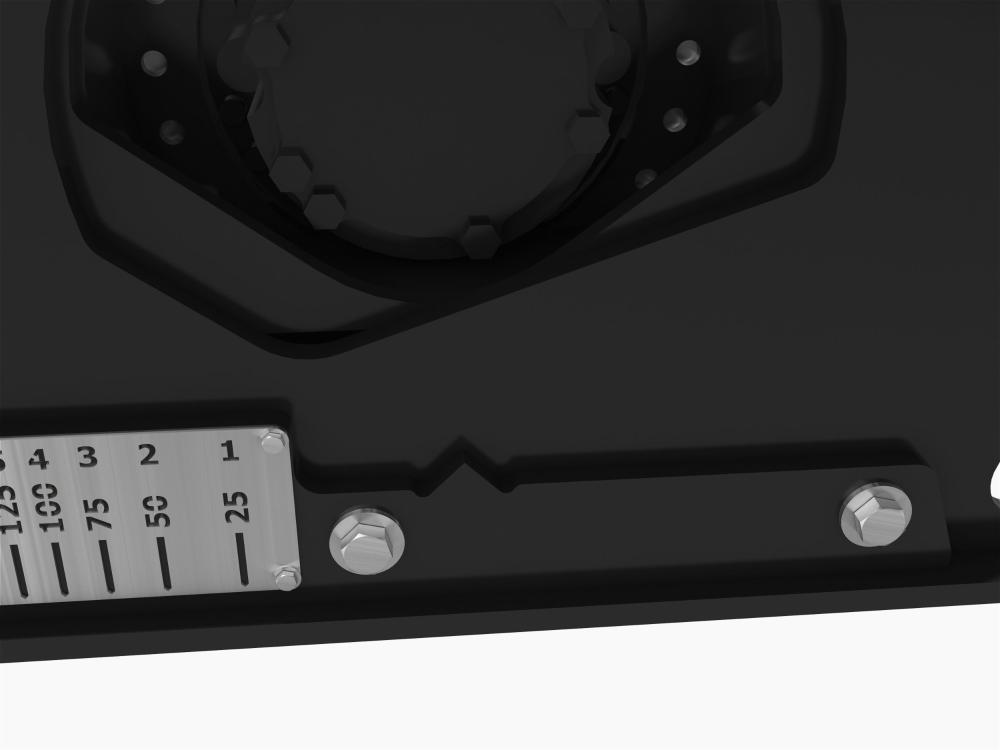

Indicates contact point of drum with surface based on depth of cut, so an assistant can communicate with the operator when to start and stop the cut.

Indicates center of the drum on the side of the planer.

Fast cut asphalt drums require less power for cutting due to increased spacing between cutting lines on the drum. These drums improve productivity in asphalt applications, and are now standard on all models. Multi-purpose and optional-width drums are also available.

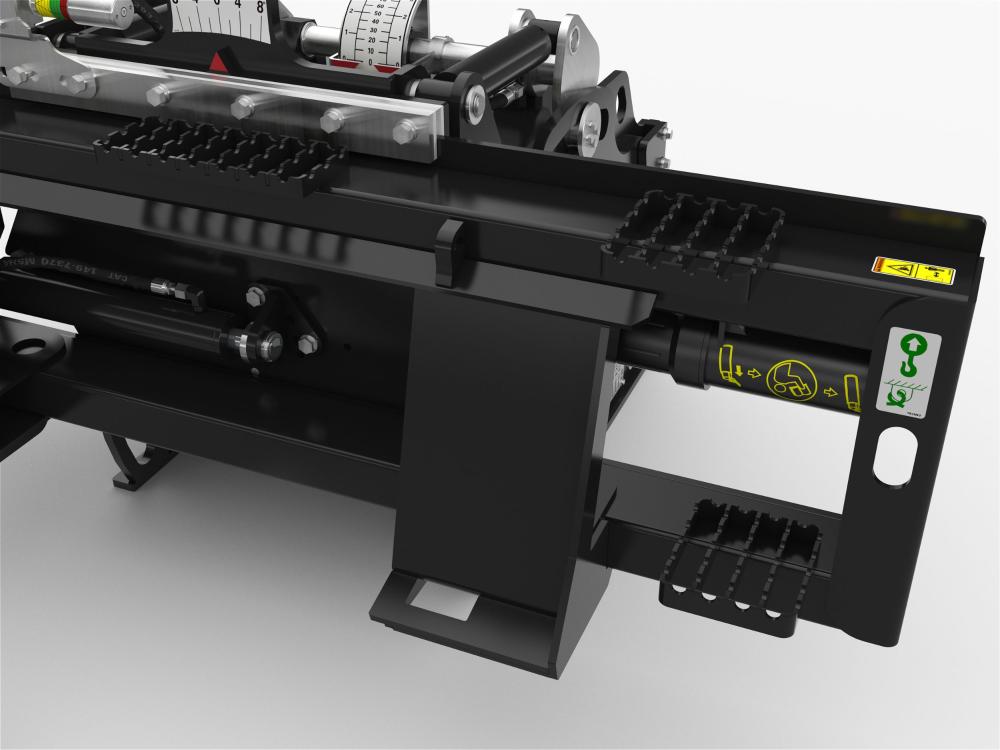

Serrated steps allow for safe and easy access in and out of the cab. A new center step enables even easier access and shorter step lengths by the operator.

Stores the OMM (Operation and Maintenance Manual) in a protective case on the attachment, where it can be conveniently accessed.

Coupler frame-mounted water tank provides 160 liters (42 gallons) capacity with a tank level sight gauge. Can be combined with cab-mounted water tank for additional capacity and run time. Sprinkler kit included if cold planer is ordered with a water tank installed. Water tank not available on XD models.

Cat® Cold Planers Brochure.pdf

Others

Working Width	350 mm	13.8 in
Maximum Cutting Depth	150 mm	5.9 in
Required Hydraulics	Standard Flow
Overall Width	1728 mm	68 in
Overall Length	1117 mm	44 in
Overall Height	941 mm	37 in
Weight	682 kg	1503.6 lb
Optimal Hydraulic Flow	60-80 L/min (16-22 gpm)
Optimal Hydraulic Pressure	210-230 bar (3050-3300 psi)
Drum Speed	181 rpm
Optional Drum Widths/Depths	400/150 mm (16/6 in)
Tilt Angle Range +/-	8.5 degrees
Side Shift Travel	650 mm	25.6 in
Conical Bits	36
Standard Bit Type	All Purpose

Compatible machines:

226D3

Gross Power - SAE J1995

50.1 kW

67.1 hp

Rated Operating Capacity

705 kg

1550 lb

Operating Weight

2653 kg

5849 lb

Caterpillar

15197332
232D3

Gross Power - SAE J1995

50.1 kW

67.1 hp

Rated Operating Capacity

865 kg

1900 lb

Operating Weight

2955 kg

6514 lb

Caterpillar

15197345
236D3

Gross Power - SAE J1995

55.4 kW

74.3 hp

Rated Operating Capacity

820 kg

1800 lb

Operating Weight

2979 kg

6567 lb

Caterpillar

15197358
239D3

Gross Power - SAE J1995

50.1 kW

67.1 hp

Rated Operating Capacities - 35% Tipping Load

695 kg

1530 lb

Operating Weight

3372 kg

7434 lb

Caterpillar

15197196
249D3

Gross Power - SAE J1995

50.1 kW

67.1 hp

Rated Operating Capacities - 35% Tipping Load

790 kg

1740 lb

Operating Weight

3552 kg

7831 lb

Caterpillar

15197211
255

Gross Power - SAE J1995

55.4 kW

74.3 hp

Rated Operating Capacities - 35% Tipping Load

1133 kg

2499 lb

Operating Weight

4345 kg

9578 lb

Caterpillar

15704733
262D3

Gross Power - SAE J1995

55.4 kW

74.3 hp

Rated Operating Capacity

1225 kg

2700 lb

Operating Weight

3763 kg

8296 lb

Caterpillar

16110610
265

Gross Power - SAE J1995

55.2 kW

74 hp

Rated Operating Capacities - 35% Tipping Load

1280 kg

2823 lb

Operating Weight

4759 kg

10492 lb

Caterpillar

15705020
272D3

Gross Power - SAE J1995

73 kW

98 hp

Rated Operating Capacity

1570 kg

3450 lb

Operating Weight

4143 kg

9133 lb

Caterpillar

15197430
272D3 XE

Gross Power - SAE J1995

82 kW

110 hp

Rated Operating Capacity

1680 kg

3700 lb

Operating Weight

4342 kg

9573 lb

Caterpillar

15705752
906

Maximum Gross Power

55.7 kW

74.7 hp

Operating Weight

5730 kg

12628 lb

Bucket Capacities

0.75-1.55 m³ (1.0-2.0 yd³)

Cat

15197667
908

Maximum Gross Power

55.7 kW

74.7 hp

Operating Weight

6632 kg

14617 lb

Bucket Capacities

0.75-1.55 m³ (1.0-2.0 yd³)

Cat

15197687
