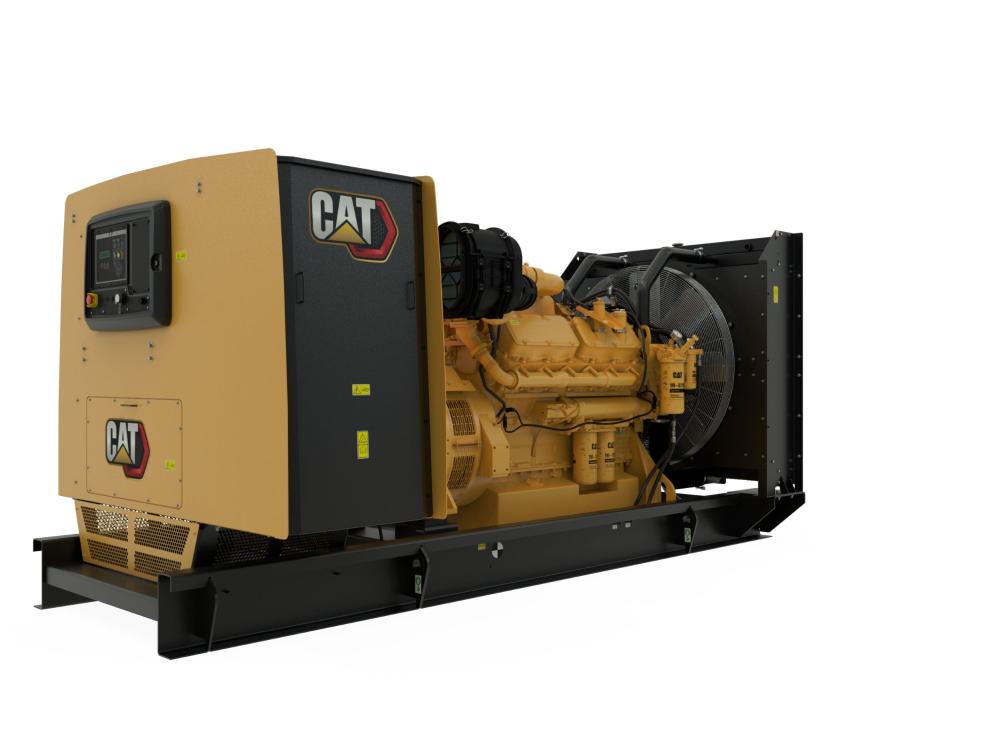

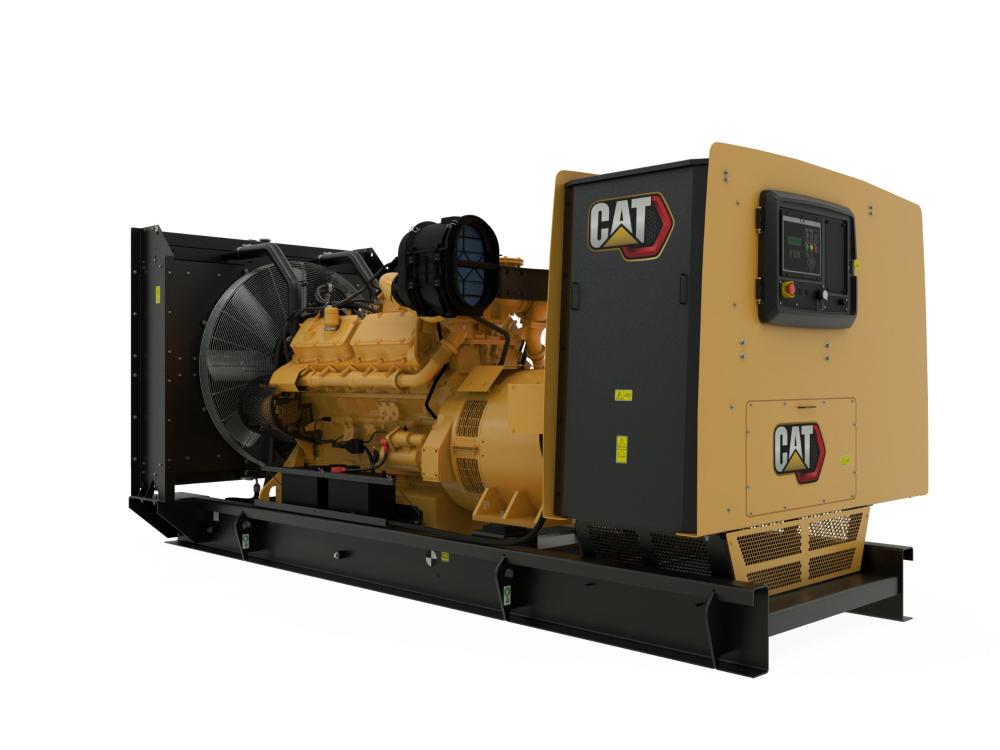

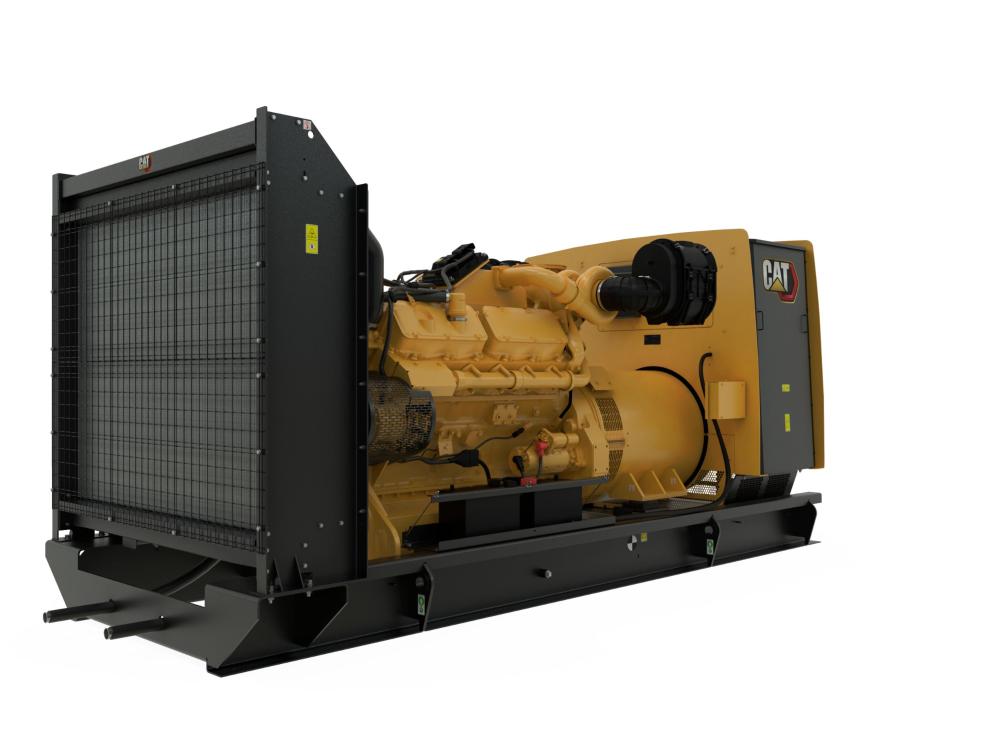

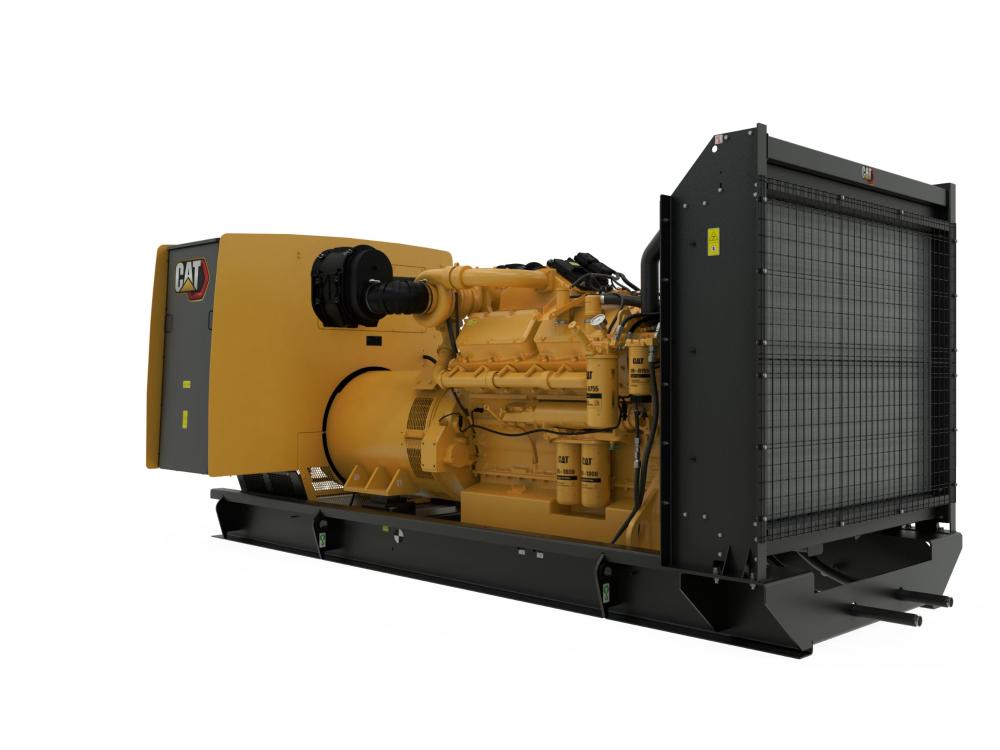

3412C Generator Set

Units of measurement :

Metric

Imperial

Maximum Rating

900 kVA

Minimum Rating

680 kVA

Emissions/Fuel Strategy

Low Fuel Consumption

Availability

Purchase Rental Used

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Accepts 100% block load in 1 step

Can handle large loads without affecting operations

Utilizes the latest ADEM 5 Controllers

Provides precise control over entire range of loads

Upgradeable controls. Allows for easy retrofit of EMCP 4.3/4.4 Controllers

Cat Generator Set Package

Cat Diesel Engine

SR500 Alternator

EMCP 4 Control Panel

Cooling System

Certifications

One Safe Source

Worldwide Product Support

Cat generator set packages have been fully prototype tested
Accepts 100% block load in one step and meets NFPA 110 loading requirements
Conform to ISO 8528-5 steady state and transient response requirements

Electric Power Ratings Guide.pdf 3412, 50 Hz, 680-900 kVA Low Fuel Consumption Spec Sheet.pdf

Generator Set Specifications

Maximum Rating	900 kVA
Minimum Rating	680 kVA
Emissions/Fuel Strategy	Low Fuel Consumption
Voltage	380 to 415 Volts
Frequency	50 Hz
Speed	1500 rpm
Duty Cycle	Standby, Prime

Engine Model	3412C TA, V-12, 4-Stroke Water-Cooled Diesel
Bore	137.2 mm	5.4 in
Stroke	152.4 mm	6 in
Displacement	27.02 l	1648.86 in³
Compression Ratio	13:01
Aspiration	TA
Fuel System	Pump and Lines
Governor Type	ADEM™ A5

Length - Maximum	4125 mm	162.4 in
Width - Minimum	1906 mm	75 in
Width - Maximum	1989 mm	78.3 in
Height - Maximum	1906 mm	75 in
Dry Weight - Genset (minimum)	5461 kg	12039 lb
Dry Weight - Genset (maximum)	5910 kg	13030 lb
