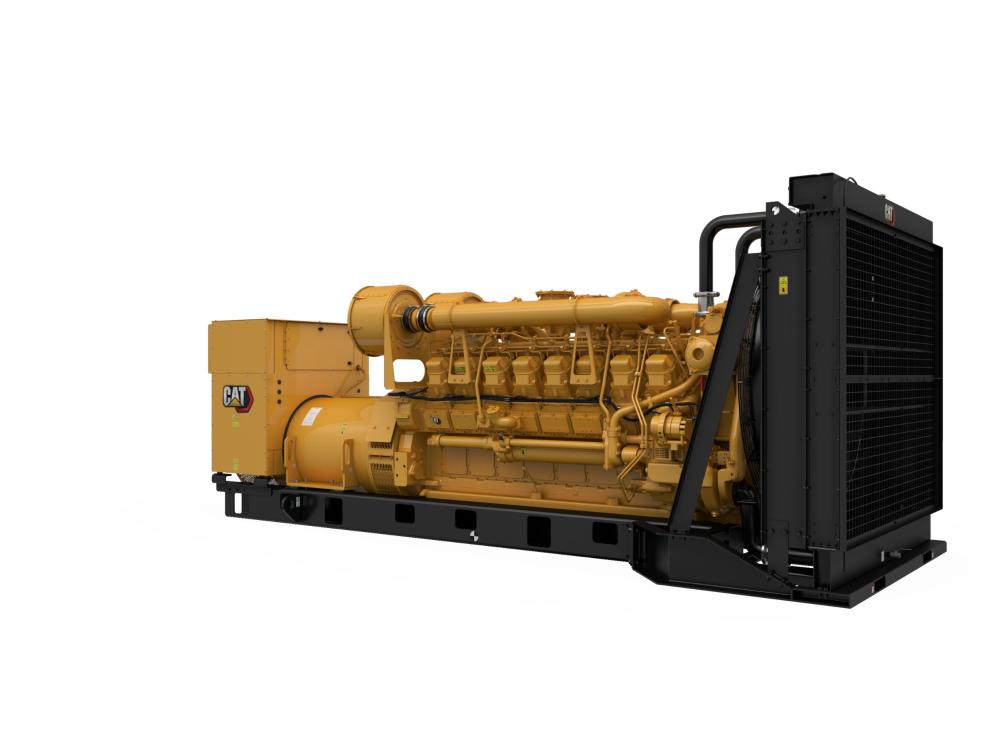

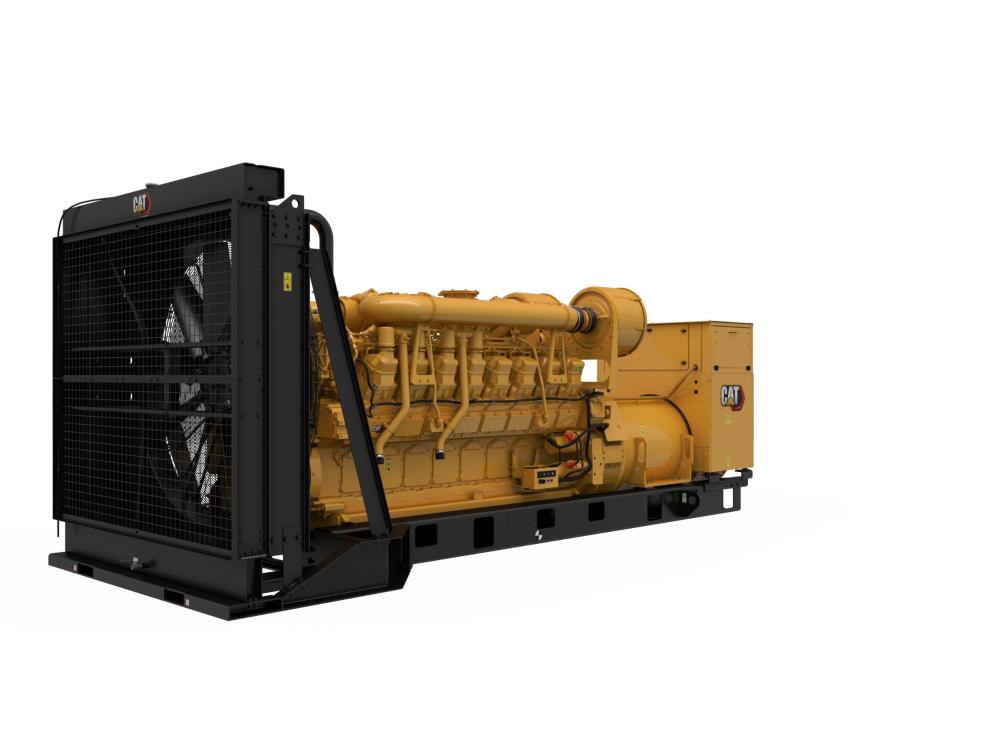

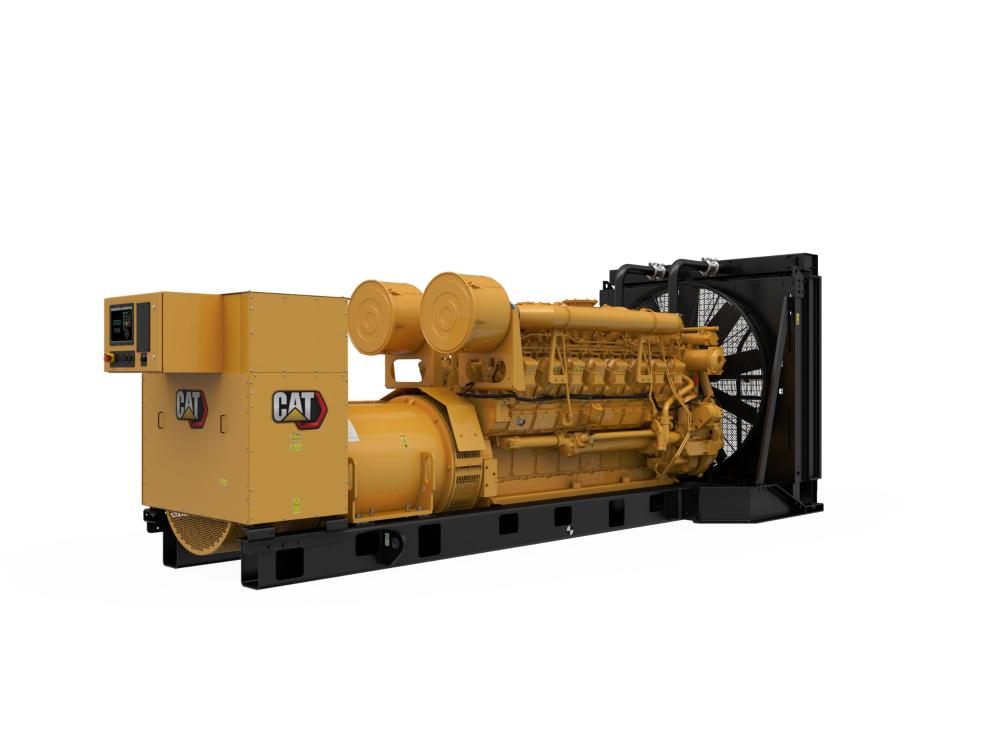

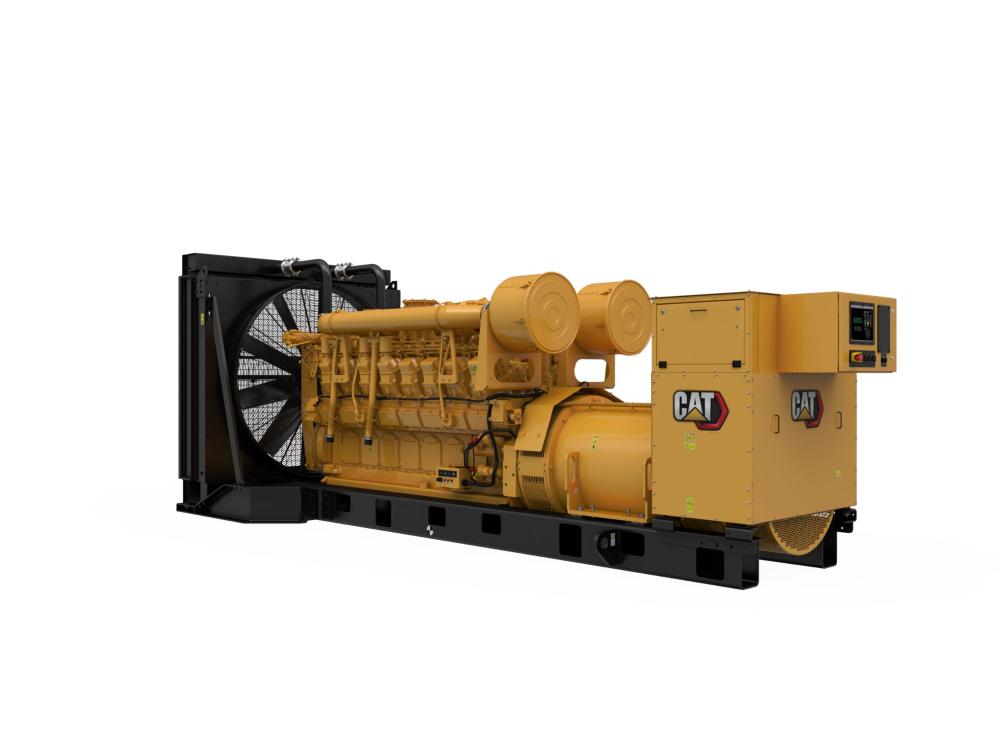

3516 Diesel Generator Set

Units of measurement :

Metric

Imperial

Standby Rating

2000 kVA

Prime Power Rating

1825 kVA

Emissions/Fuel Strategy

Low Fuel Consumption

Availability

Purchase Rental Used

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Over 4,000,000,000 Global Operating Hours

Proven performance in heavy-duty applications

Over 200,000 Shipped

Since 1981, leading the large engine market

Optimised for 6% Lower Fuel Consumption

Demonstrated savings in operating costs

Cat Generator Set Package

Cat Diesel Engine

SR5 Alternator

EMCP 4 Control Panel

Cooling System

Certifications

One Safe Source

Worldwide Product Support

Cat generator set packages have been fully prototype tested
Accepts 100% block load in one step and meets NFPA 110 loading requirements
Conform to ISO 8528-5 steady state and transient response requirements

Electric Power Ratings Guide.pdf 3516, 50 Hz, 2000 kVA Standby_MC, 1825 kVA Prime, 1600 kVA Cont., Low Fuel Consumption Spec Sheet.pdf 3516, 50 Hz, 1825 kVA, Prime-DCP, Low Fuel Consumption Spec Sheet.pdf

Generator Set Specifications

Standby Rating	2000 kVA
Prime Power Rating	1825 kVA
Emissions/Fuel Strategy	Low Fuel Consumption
Voltage	380 to 11000 Volts
Frequency	50 Hz
Speed	1500 rpm
Duty Cycle	Standby, Mission Critical, Prime, Continuous
Maximum Rating	2000 kVA
Minimum Rating	1600 kVA

Engine Model	3516 TA, V-16, 4-Stroke Water-Cooled Diesel
Bore	170 mm	6.69 in
Stroke	190 mm	7.48 in
Displacement	69 l	4210.64 in³
Compression Ratio	13.0:1
Aspiration	TA
Fuel System	Mechanical unit injection
Governor Type	Woodward

Length - Maximum	5919 mm	232.9 in
Width - Maximum	2286 mm	90 in
Height - Maximum	2367 mm	93.2 in
Dry Weight - Genset (maximum)	16375 kg	33900 lb
