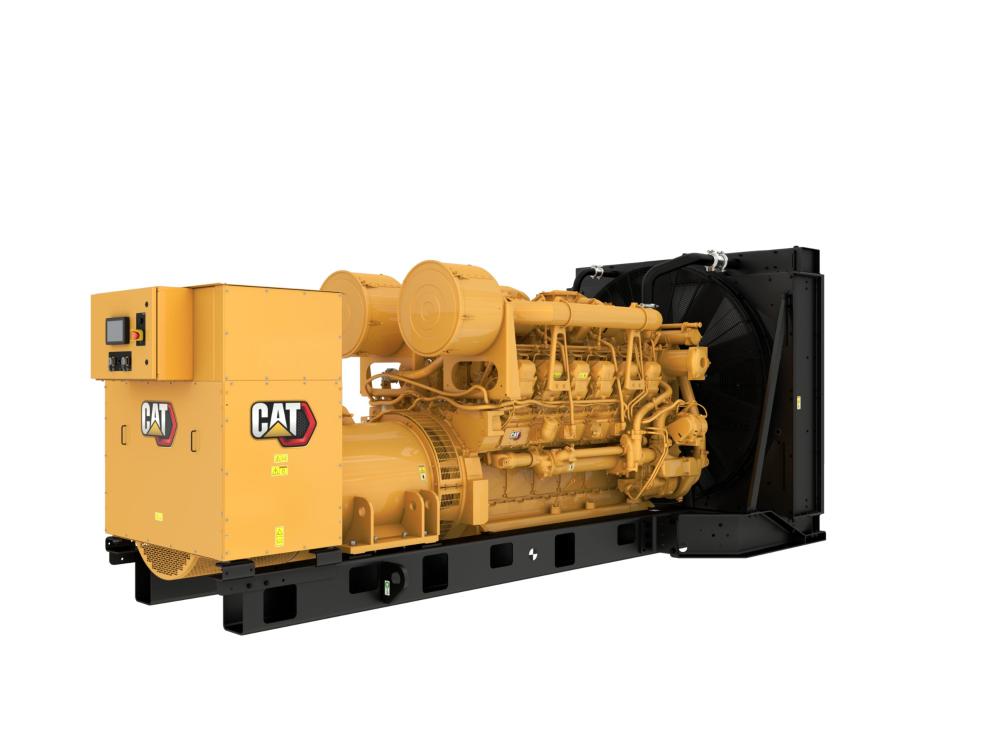

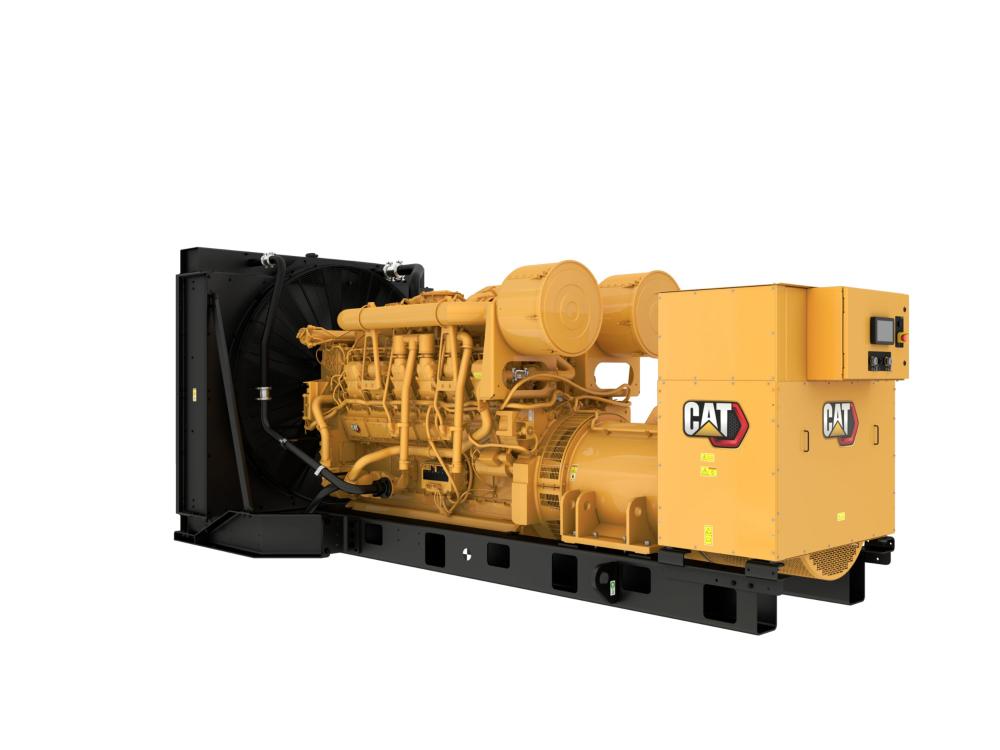

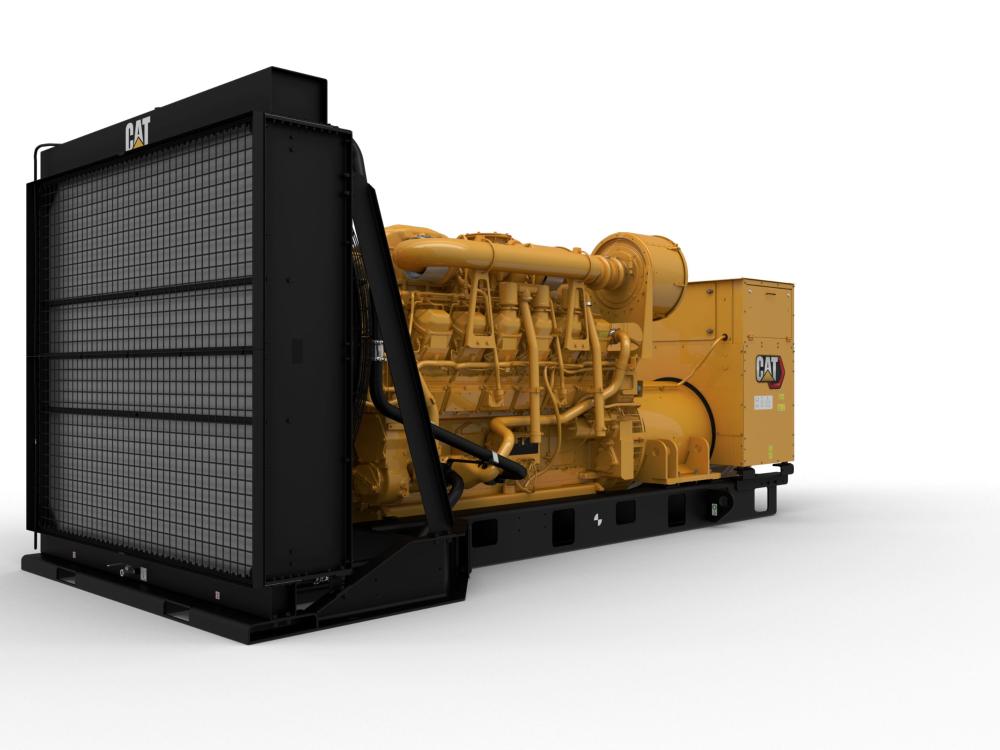

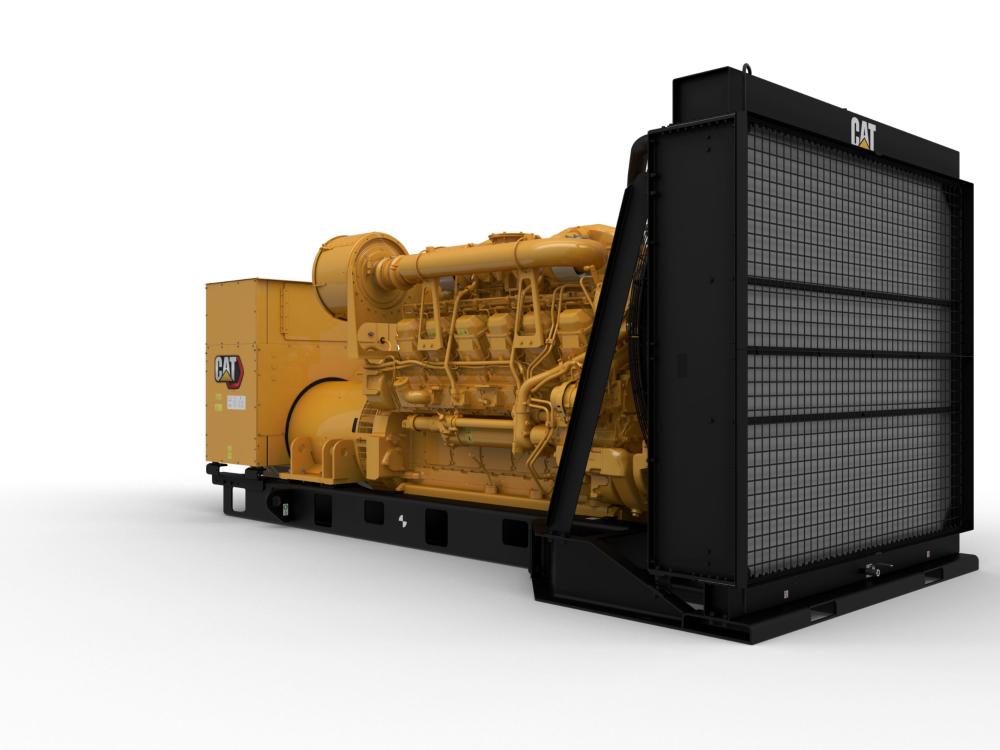

3512B (50 Hz) Generator Set

Units of measurement :

Metric

Imperial

Standby Rating

1625/1600/1500 kVA

Prime Power Rating

1500/1360 kVA

Emissions/Fuel Strategy

Low Fuel, Low Emissions

Availability

Purchase Rental Used

Caterpillar is leading the power generation market with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Over 4,000,000,000 global operating hours

Proven performance in heavy-duty applications

Over 200,000 Shipped

Since 1981, leading the large engine market

Optimised for 11% Lower Fuel Consumption

Demonstrated savings in operating costs

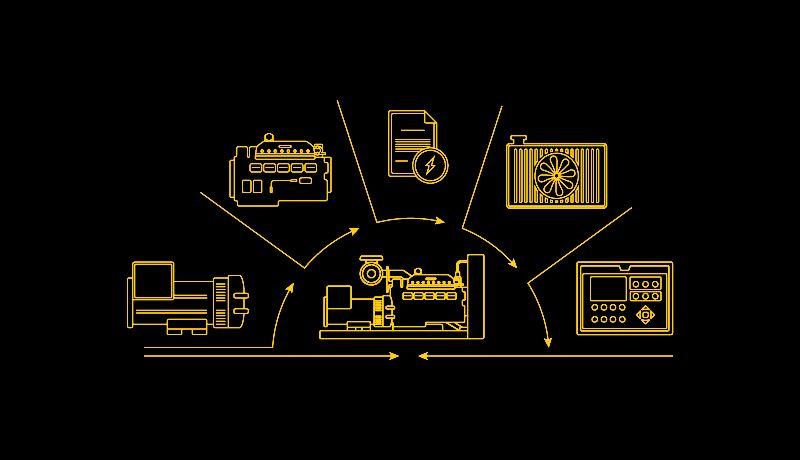

Cat Generator Set Package

Cat Diesel Engine

SR5 Alternator

Cat ECS Control Panel

Cooling System

Certifications

One Safe Source

Worldwide Product Support

Cat generator set packages have been fully prototype tested
Accepts 100% block load in one step and meets NFPA 110 loading requirements
Conform to ISO 8528-5 steady state and transient response requirements

Electric Power Ratings Guide.pdf 3512B, 50 Hz, 1500 kVA Standby_MC, 1360 kVA Prime, Low Fuel Consumption or Low Emissions Spec Sheet.pdf 3512B, 50 Hz, 1600 kVA Standby_MC, 1500 kVA Prime, 1320 kVA Cont., Low Fuel Consumption or Low Emissions Spec Sheet.pdf 3512B 1500 kVA Prime-DCP, Low Fuel Consumption or Low Emissions Spec Sheet.pdf 3512B 50 Hz 1360 kVA, Prime-DCP, Low Fuel Consumption or Low Emissions Spec Sheet.pdf

Generator Set Specifications

Standby Rating	1625/1600/1500 kVA
Prime Power Rating	1500/1360 kVA
Emissions/Fuel Strategy	Low Fuel, Low Emissions
Voltage	380 to 415 Volts
Frequency	50 Hz
Speed	1500 rpm
Duty Cycle	Standby, Mission Critical, Prime
Maximum Rating	1625 kVA
Minimum Rating	1320 kVA

Engine Model	3512B TA, V-12, 4-Stroke Water-Cooled Diesel
Bore	170 mm	6.69 in
Stroke	190 mm	7.48 in
Displacement	51.8 l	3161.03 in³
Compression Ratio	14.0:1
Aspiration	TA
Fuel System	Electronic Unit Injection
Governor Type	ADEM™ A3

Length - Minimum	5249 mm	206.6 in
Length - Maximum	5469 mm	215.3 in
Width - Minimum	1975 mm	77.8 in
Width - Maximum	2286 mm	90 in
Height - Maximum	2367 mm	93.2 in
Dry Weight - Genset (minimum)	11350 kg	25010 lb
Dry Weight - Genset (maximum)	12180 kg	26840 lb
