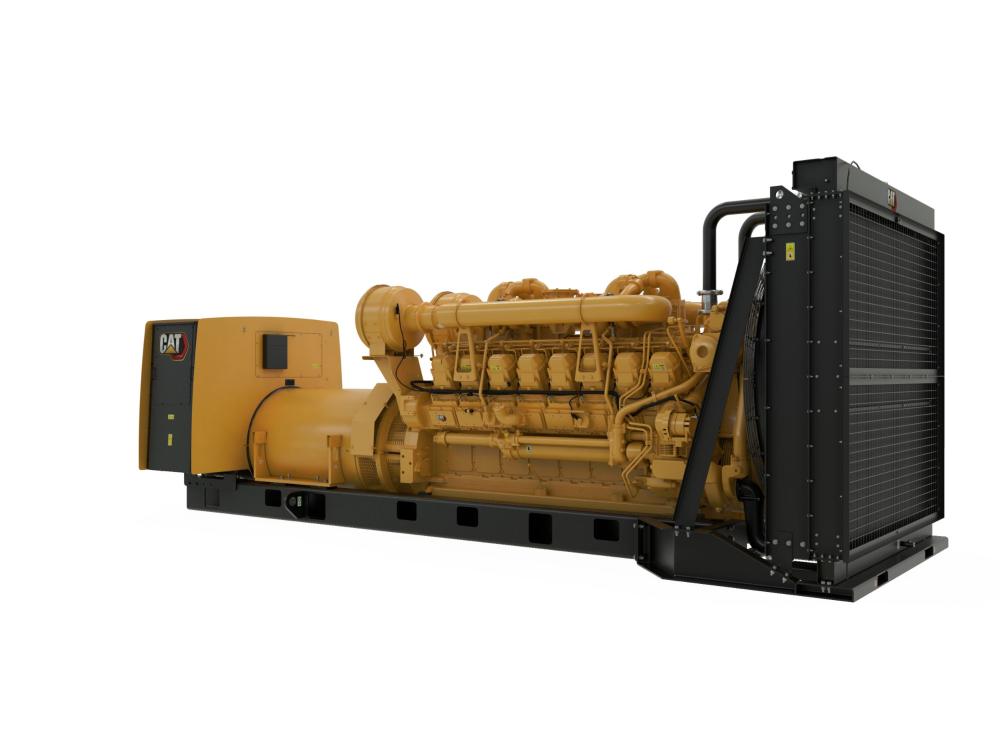

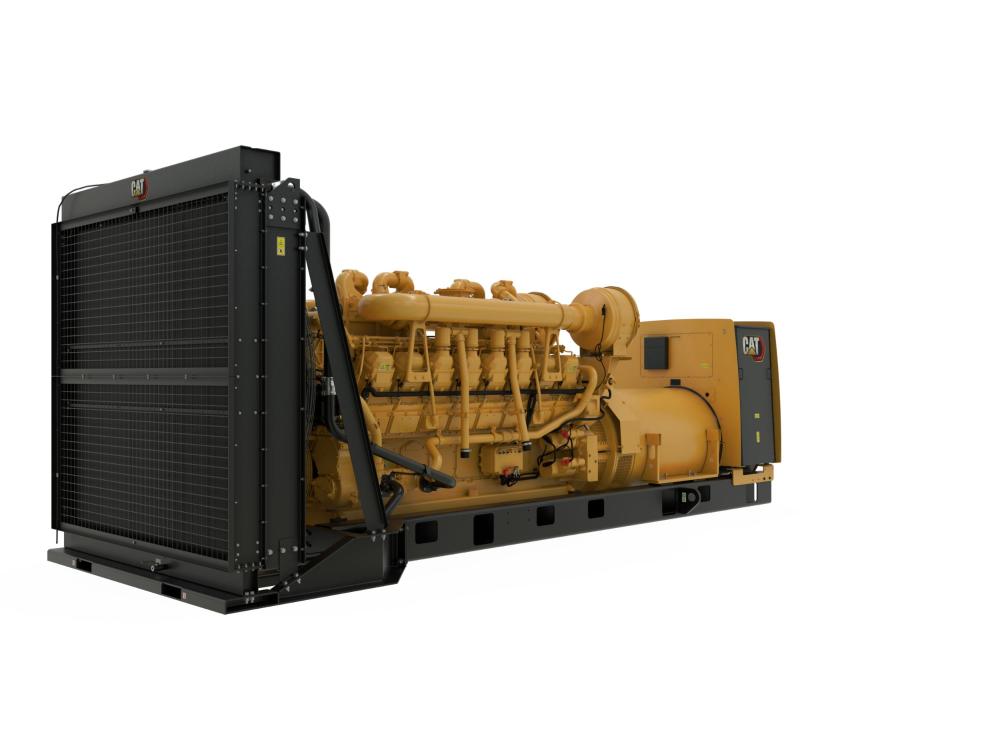

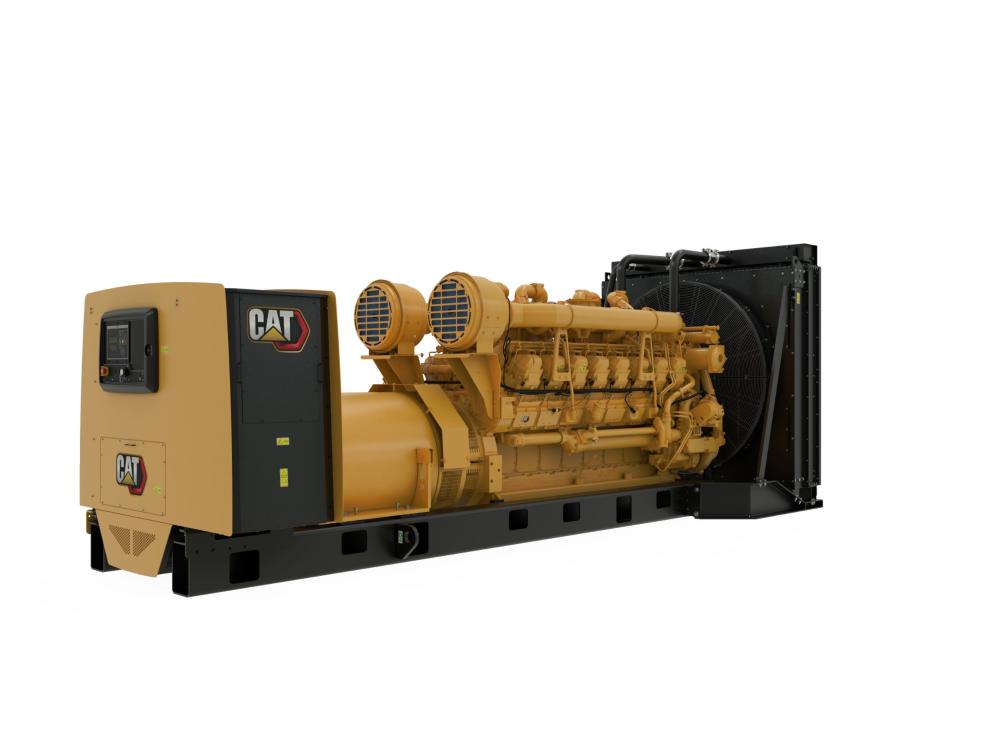

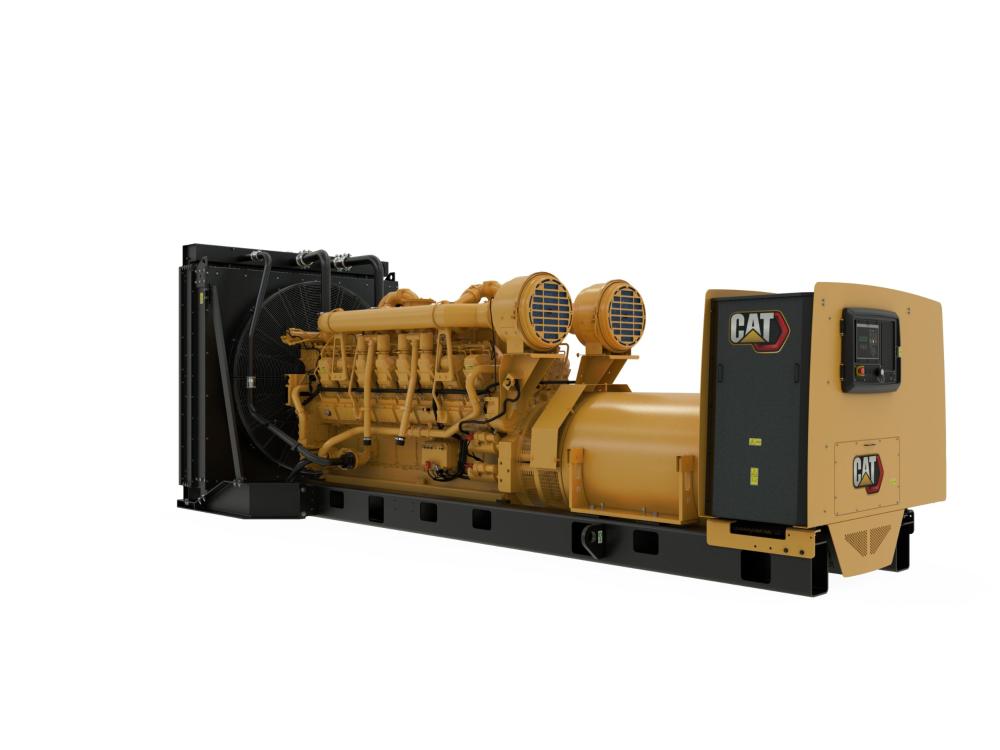

3516B Generator Set

Units of measurement :

Metric

Imperial

Standby Rating

2500 kVA

Prime Power Rating

2275 kVA

Emissions/Fuel Strategy

Low Fuel, Low Emissions

Availability

Purchase Rental Used

2000 - 2500 kVA at 50 Hz Diesel GensetThe 3516B generator set has been developed for a wide range of applications, from emergency standby installations such as healthcare and datacenters to continuously powering remote installations. The packages can be optimized for performance that matters to you with either low emissions or low fuel consumption versions available. Backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty, Cat generator sets will provide the reliability and durability you expect.Q. Does this generator comply with ISO 8528 guidelines?A. Yes, the 3516B, like all of our generators, is tested in accordnace the load steps outlined in with ISO 8528, Part 5.

- Over 200,000 shipped since 1981, leading the large engine market

- Optimised for 8% Lower Fuel Consumption. Demonstrated savings in operating costs

- Over 4,000,000,000 global operating hours.Proven performance in heavy-duty applications

- Worldwide support with 1,800 dealer branch stores operating in 200 countries. Get extensive post-sale support, including maintenance and repair agreements

Cat Generator Set Package

Cat Diesel Engine

SR5 Alternator

EMCP 4 Control Panel

Cooling System

Certifications

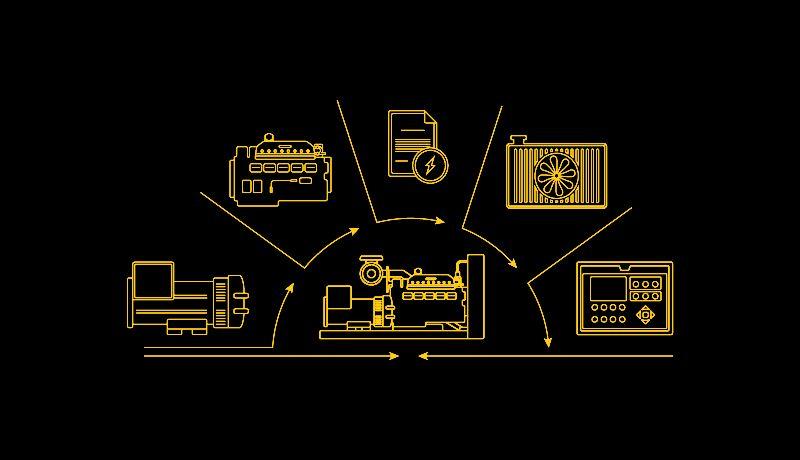

One Safe Source

Worldwide Product Support

Cat generator set packages have been fully prototype tested
Accepts 100% block load in one step and meets NFPA 110 loading requirements
Conform to ISO 8528-5 steady state and transient response requirements

Electric Power Ratings Guide.pdf 3516B, 50 Hz, 2500 kVA Standby_MC, 2275 kVA Prime, 2000 kVA Cont., Low Fuel Consumption and Low Emissions Spec Sheet.pdf 3516B, 50 Hz, 2275 kVA, Prime-DCP, Low Fuel Consumption or Low Emissions Spec Sheet.pdf

Generator Set Specifications

Standby Rating	2500 kVA
Prime Power Rating	2275 kVA
Emissions/Fuel Strategy	Low Fuel, Low Emissions
Voltage	380 to 415 Volts
Frequency	50 Hz
Speed	1500 rpm
Duty Cycle	Standby, Mission Critical, Prime, Continuous
Maximum Rating	2500 kVA
Minimum Rating	2000 kVA

Engine Model	3516B TA, V-16, 4-Stroke Water-Cooled Diesel
Bore	170 mm	6.69 in
Stroke	215 mm	8.46 in
Displacement	78 l	4764.73 in
Compression Ratio	15.5:1
Aspiration	TA
Fuel System	Electronic unit injection
Governor Type	Adem™3

Length - Maximum	6282 mm	247.3 in
Width - Maximum	2286 mm	90 in
Height - Maximum	2494 mm	98.2 in
Dry Weight - Genset (maximum)	15535 kg	34250 lb
