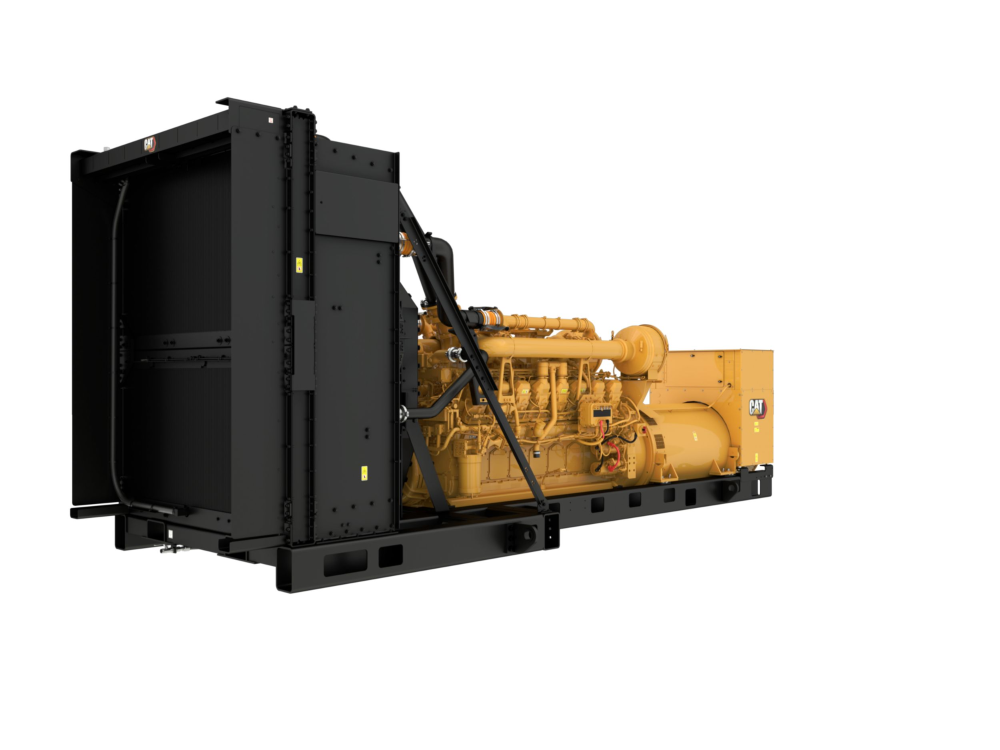

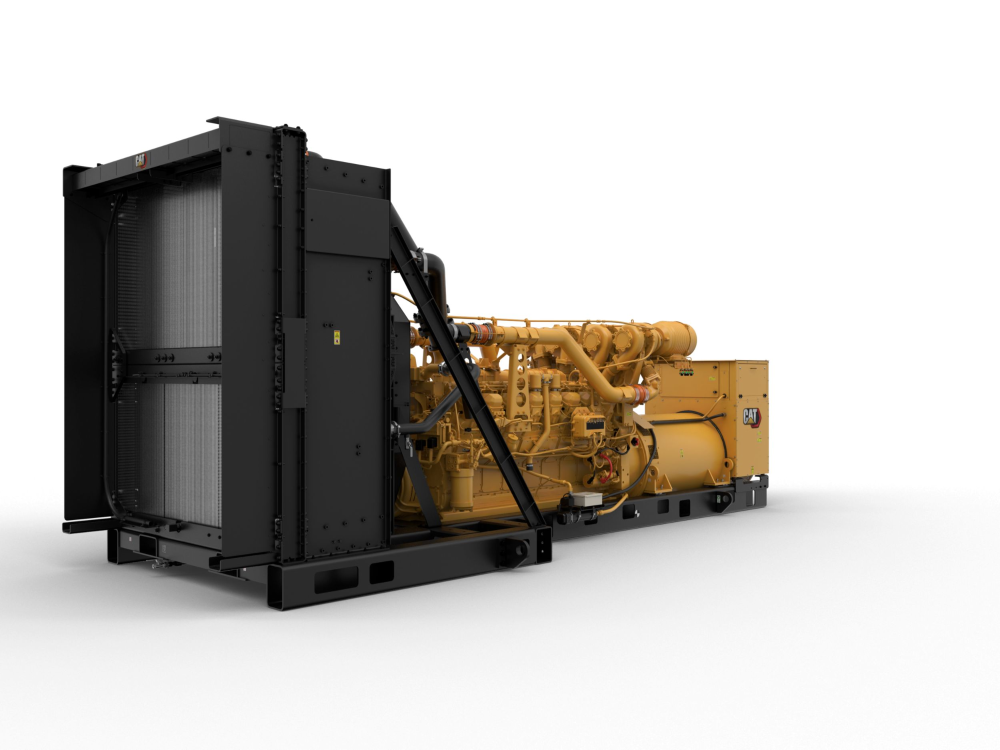

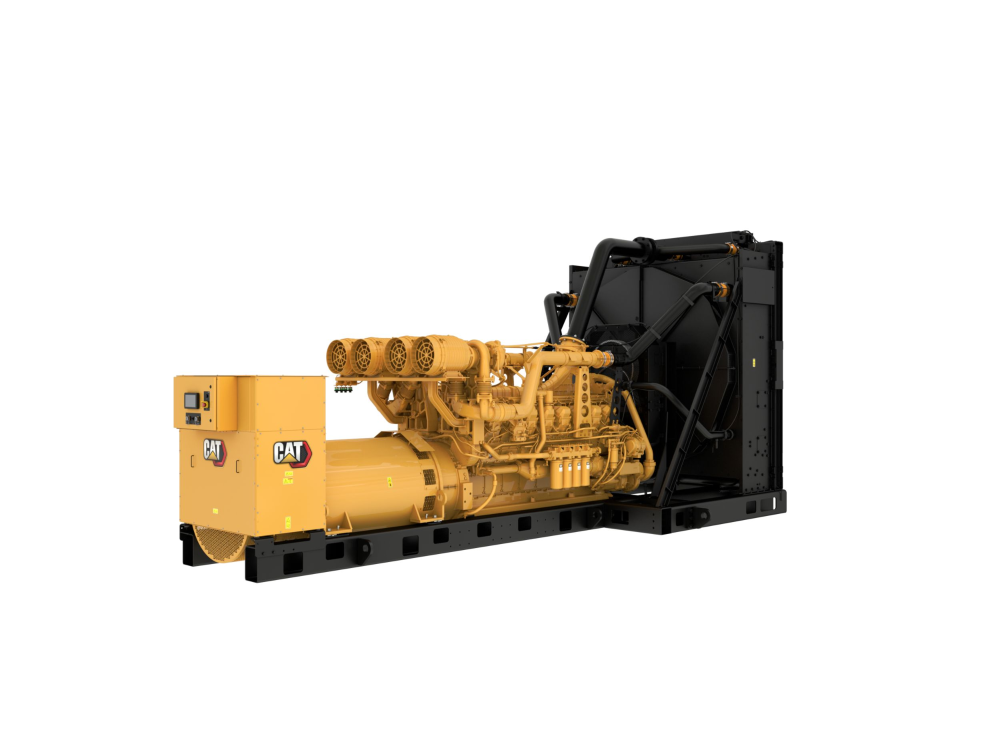

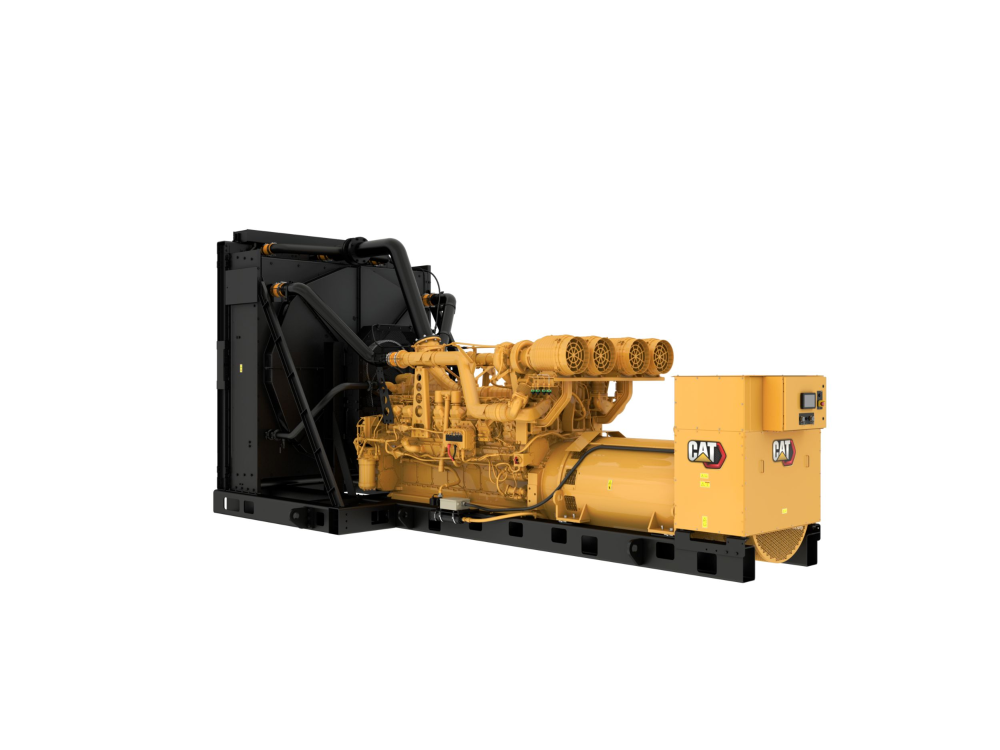

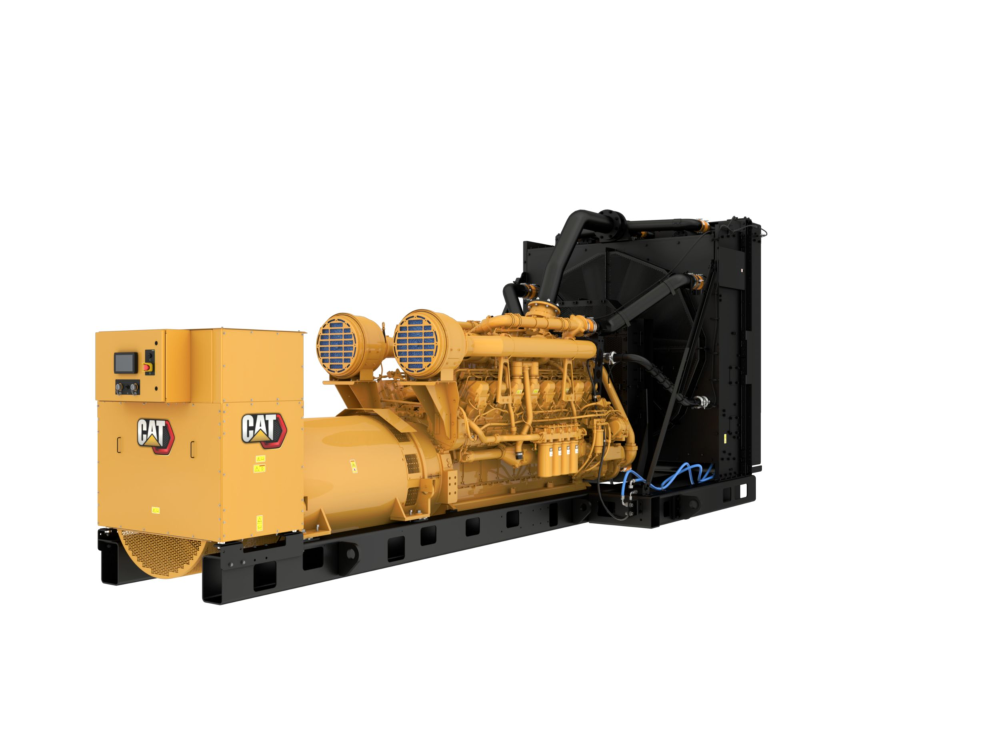

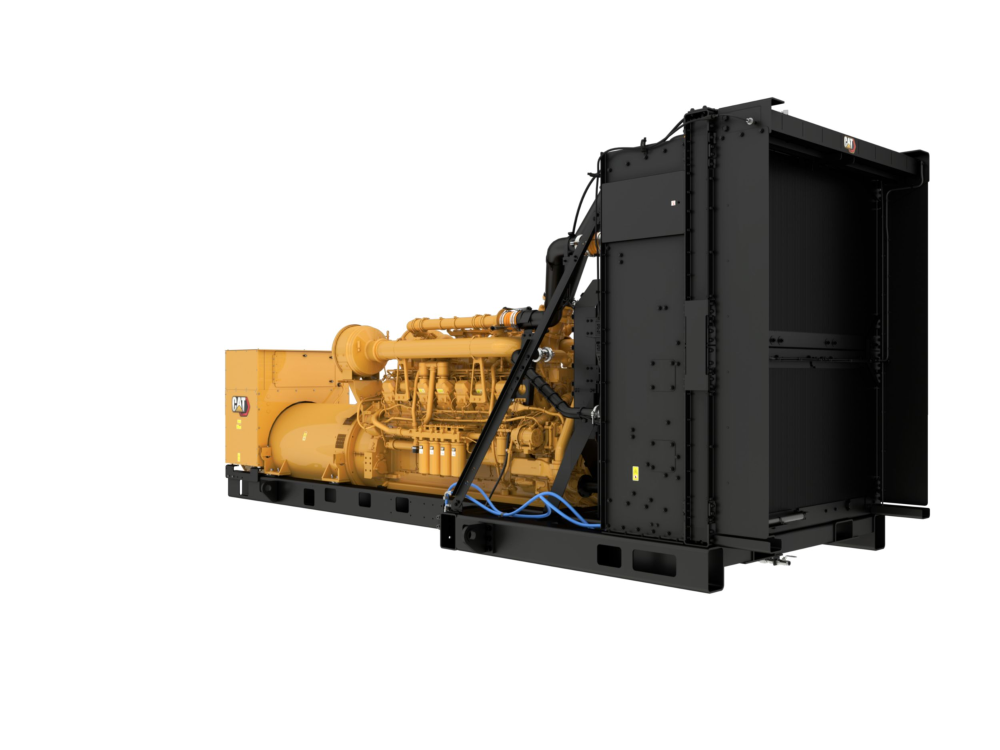

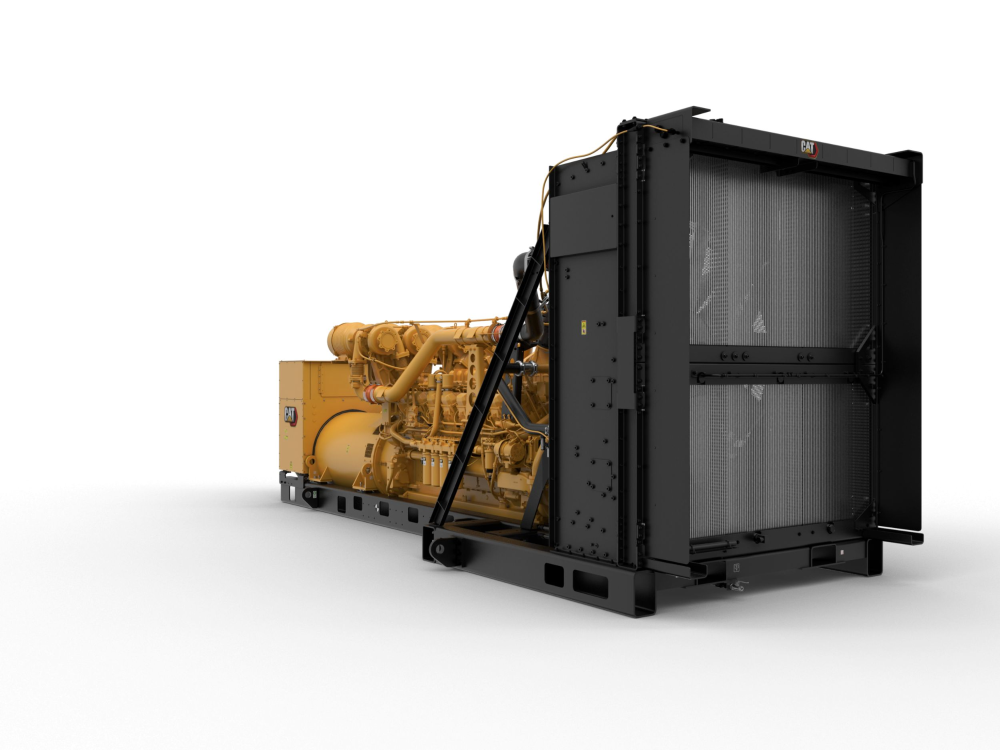

3516E Generator Set

Units of measurement :

Metric

Imperial

Standby Rating

3500/3250/3000 kVA

Prime Power Rating

3175/2950/2725 kVA

Emissions/Fuel Strategy

U.S. EPA Cert. Tier 2 / Low NOx

Availability

Purchase Rental Used

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

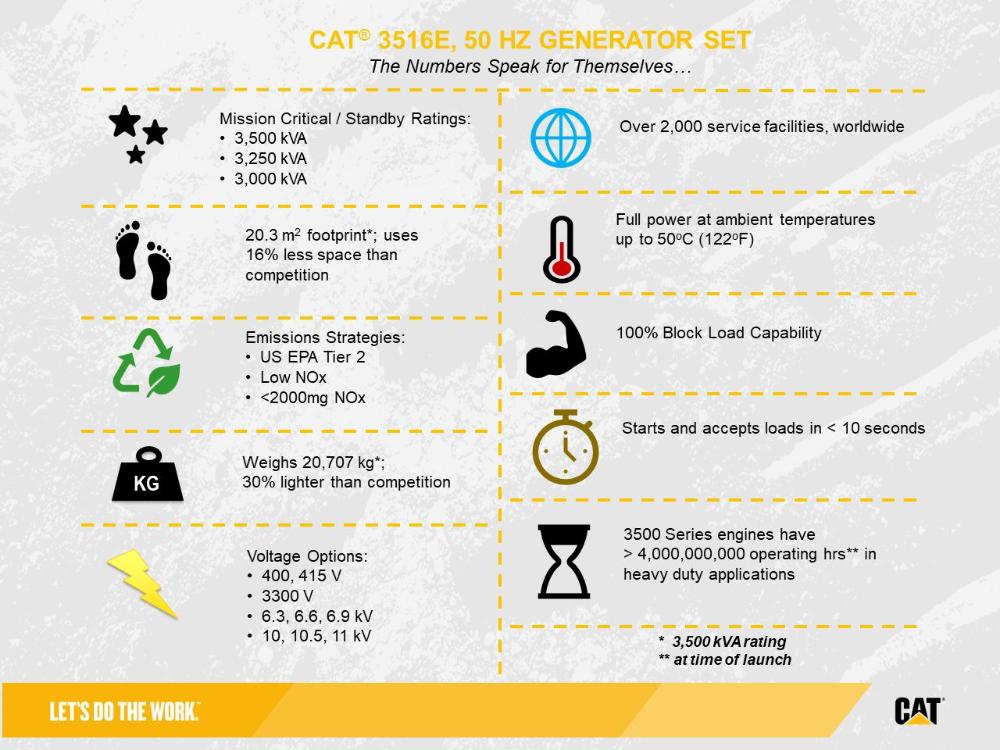

Saves up to 16% installed space

Requires less space for installation

Weighs up to 30% less

Reduced amount of structural support required

Full Power up to 50°C Ambient

Provides full power even on hottest days of the year

Cat Generator Set Package

Cat Diesel Engine

SR5 Alternator

Cat ECS Control Panel

Cooling System

Certifications

One Safe Source

Worldwide Product Support

Cat generator set packages have been fully prototype tested
Accepts 100% block load in one step and meets NFPA 110 loading requirements
Conform to ISO 8528-5 steady state and transient response requirements

Electric Power Ratings Guide.pdf 3516E, 50 Hz, 2950 - 3500 kVA, Tier 2 Spec Sheet.pdf 3516E, 50Hz 2950 - 3500 kVA Low NOx Spec Sheet.pdf 3516E, 50Hz 2725 - 3000 kVA, Tier 2 (EPA ESE) with Low NOx Spec Sheet.pdf 3516E, 50 Hz, 2950_3175 kVA, Prime-DCP, Tier 2 Equivalent US. EPA Stationary Emergency Spec Sheet.pdf 3516E, 50 Hz, 2950_3175 kVA, Prime-DCP, Low NOx Spec Sheet.pdf 3516E, 50 Hz, 2725 kVA, Prime-DCP, Tier 2 (EPA ESE) with Low NOx Spec Sheet.pdf

Generator Set Specifications

Standby Rating	3500/3250/3000 kVA
Prime Power Rating	3175/2950/2725 kVA
Emissions/Fuel Strategy	U.S. EPA Cert. Tier 2 / Low NOx
Voltage	380 to 11000 volts
Frequency	50 Hz
Speed	1500 rpm
Duty Cycle	Standby, Mission Critical, Prime
Maximum Rating	3500 kVA
Minimum Rating	2725 kVA

Engine Model	3516E, V-16, 4-Stroke Water-Cooled Diesel
Bore	170 mm	6.69 in
Stroke	215 mm	8.46 in
Displacement	78.1 l	4765 in³
Compression Ratio	14.0:1
Aspiration	ATAAC
Fuel System	Electronic Unit Injection
Governor Type	Adem™ A5

Length - Minimum	7954 mm	313.4 in
Length - Maximum	8088 mm	318.4 in
Width - Minimum	2640 mm	104 in
Width - Maximum	2640 mm	104 in
Height - Minimum	3342 mm	131.6 in
Height - Maximum	3342 mm	131.6 in
Dry Weight - Genset (minimum)	20380 kg	44930 lb
Dry Weight - Genset (maximum)	20707 kg	45651 lb
