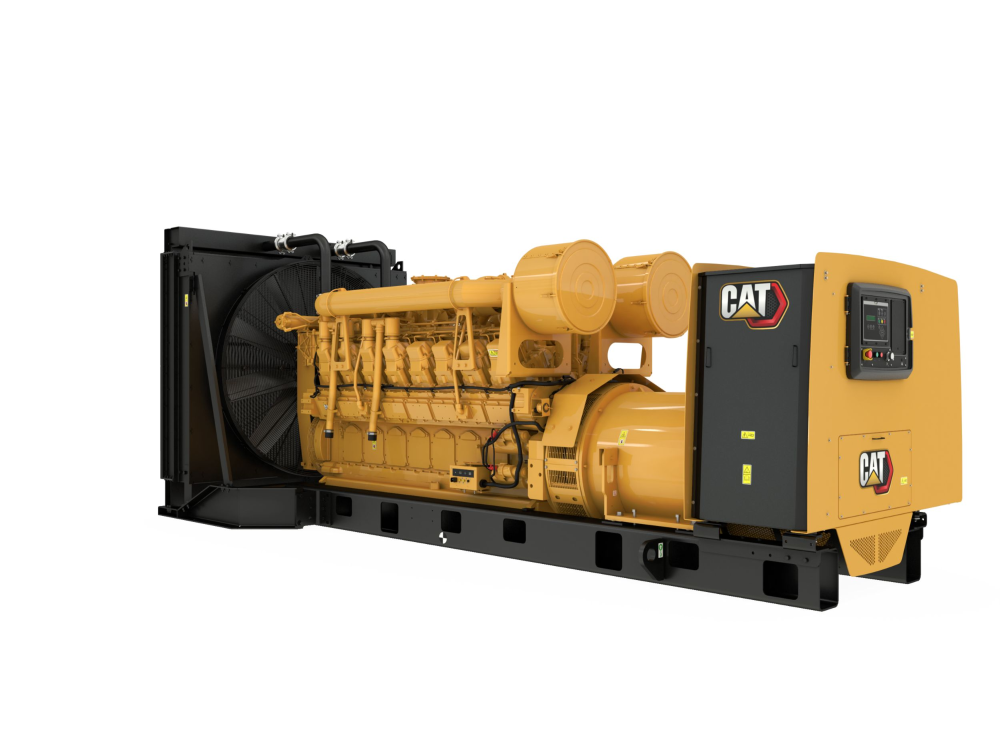

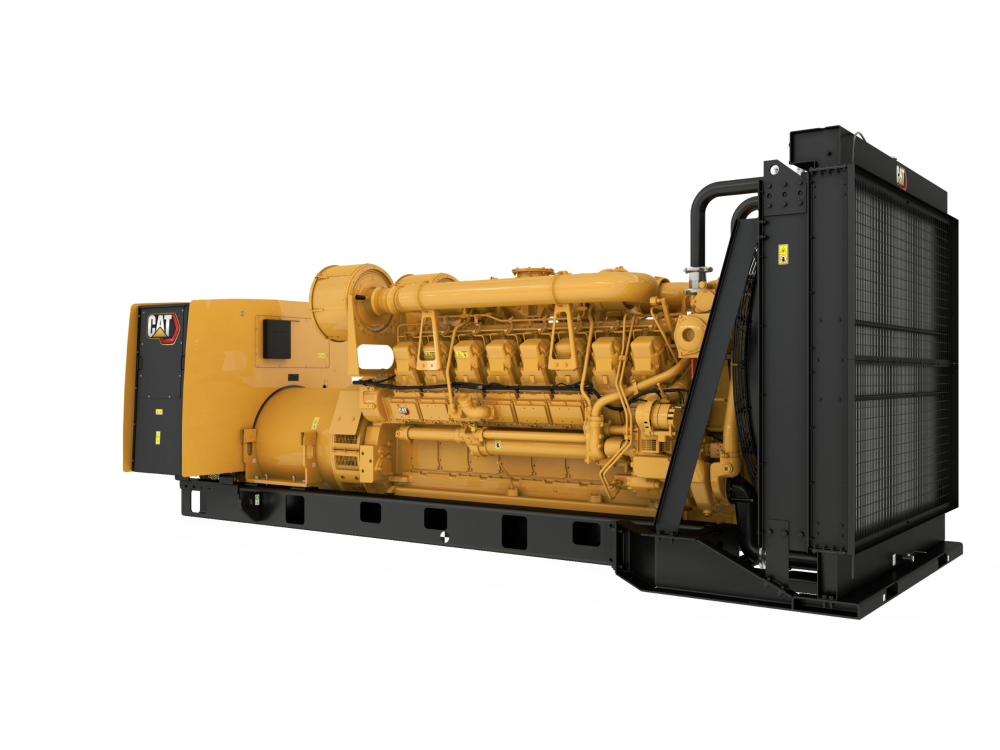

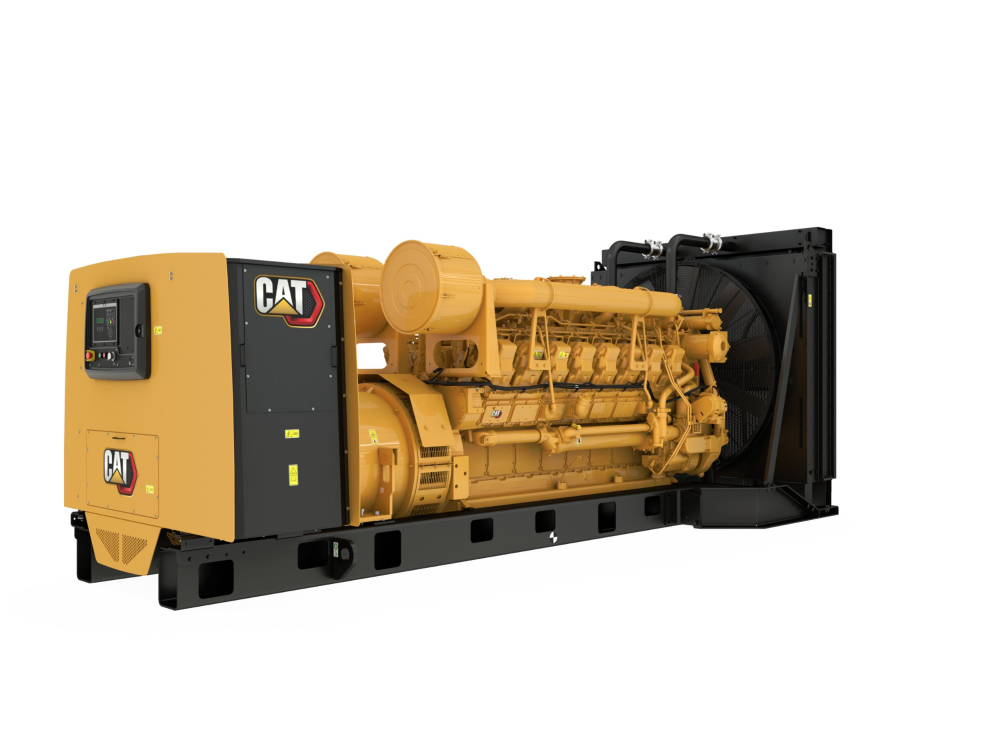

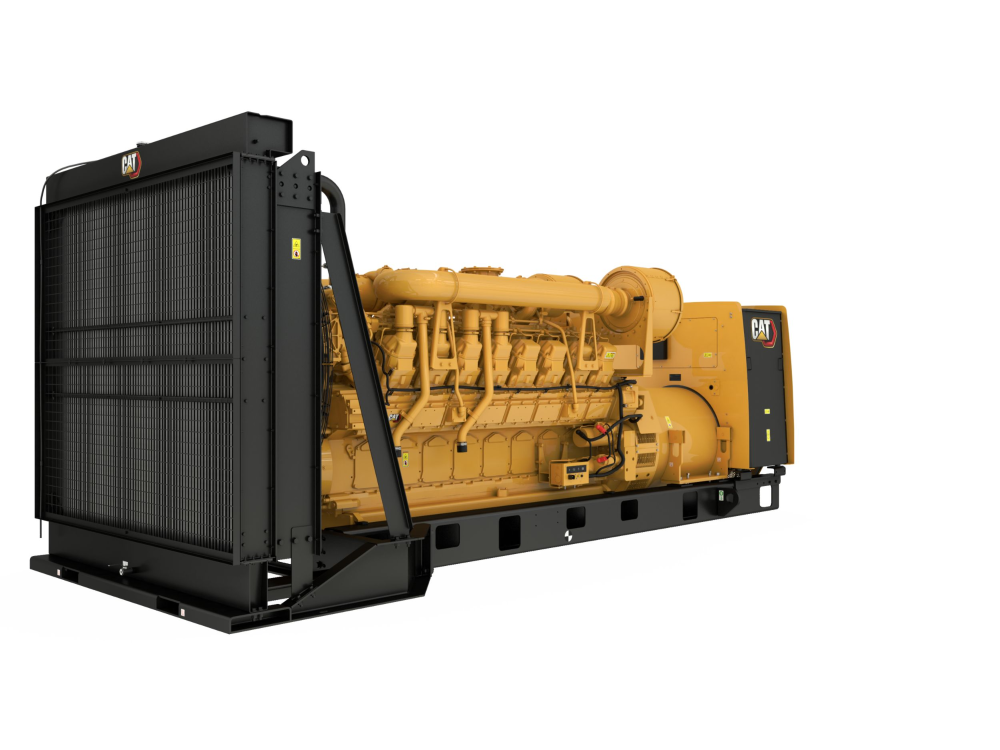

3516 Diesel Generator Set

Units of measurement :

Metric

Imperial

Standby Rating

2000 kVA

Prime Power Rating

1825 kVA

Emissions/Fuel Strategy

Low Fuel Consumption

Availability

Purchase Rental Used

The 3516 generator set has been developed for a wide range of applications, from emergency standby installations such as healthcare and datacenters to continuously powering remote installations. The packages can be optimized for performance that matters to you with either low emissions or low fuel consumption versions available. Backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty, Cat generator sets will provide the reliability and durability you expect.

Over 4,000,000,000 Global Operating Hours

Proven performance in heavy-duty applications

Over 200,000 Shipped

Since 1981, leading the large engine market

Optimised for 6% Lower Fuel Consumption

Demonstrated savings in operating costs

Cat Generator Set Package

Cat Diesel Engine

SR5 Alternator

EMCP 4 Control Panel

Cooling System

Certifications

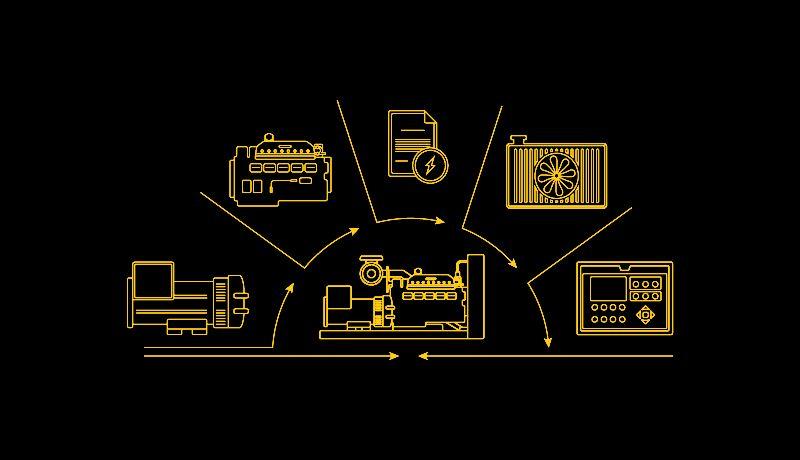

One Safe Source

World Wide Product Support

Cat generator set packages have been fully prototype tested
Accepts 100% block load in one step and meets NFPA 110 loading requirements
Conform to ISO 8528-5 steady state and transient response requirements

Electric Power Ratings Guide.pdf 3516, 50 Hz, 2000 kVA Standby_MC, 1825 kVA Prime, 1600 kVA Cont., Low Fuel Consumption Spec Sheet.pdf 3516, 50 Hz, 1825 kVA, Prime-DCP, Low Fuel Consumption Spec Sheet.pdf

Generator Set Specifications

Standby Rating	2000 kVA
Prime Power Rating	1825 kVA
Emissions/Fuel Strategy	Low Fuel Consumption
Voltage	380 to 415 Volts
Frequency	50 Hz
Speed	1500 rpm
Duty Cycle	Standby, Mission Critical, Prime, Continuous
Maximum Rating	2000 kVA
Minimum Rating	1600 kVA

Engine Model	3516 TA, V-16, 4-Stroke Water-Cooled Diesel
Bore	170 mm	6.69 in
Stroke	190 mm	7.48 in
Displacement	69 l	4210.64 in³
Compression Ratio	13.0:1
Aspiration	TA
Fuel System	Mechanical unit injection
Governor Type	Woodward

Length - Maximum	5953 mm	234.4 in
Width - Maximum	2286 mm	90 in
Height - Maximum	2410 mm	94.9 in
Dry Weight - Genset (maximum)	15350 kg	33840 lb
