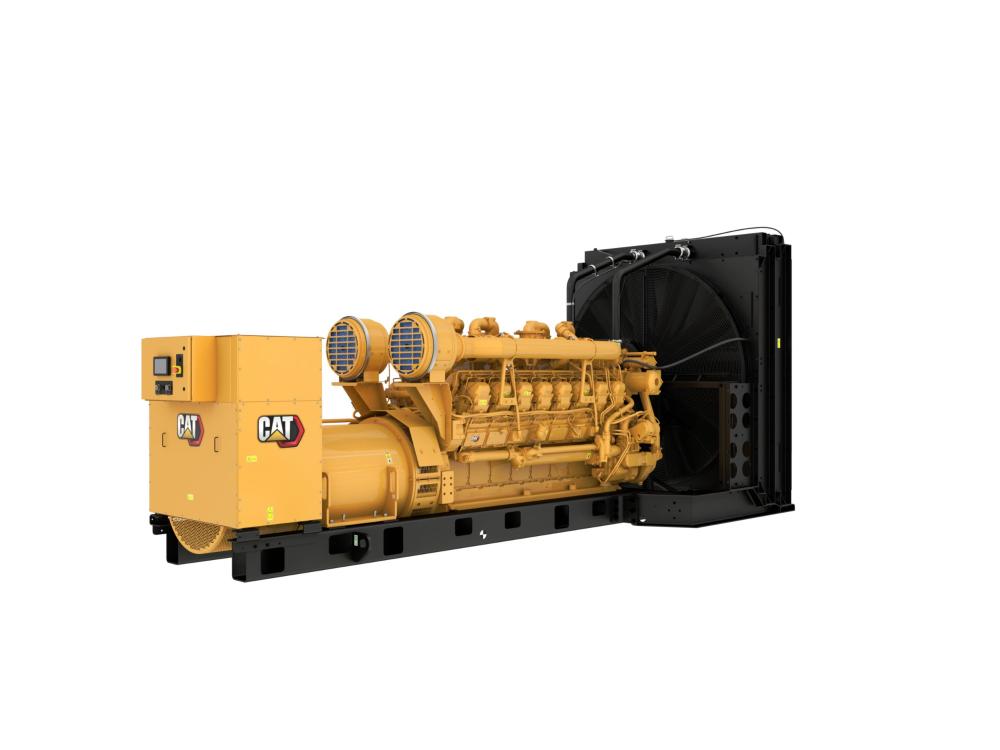

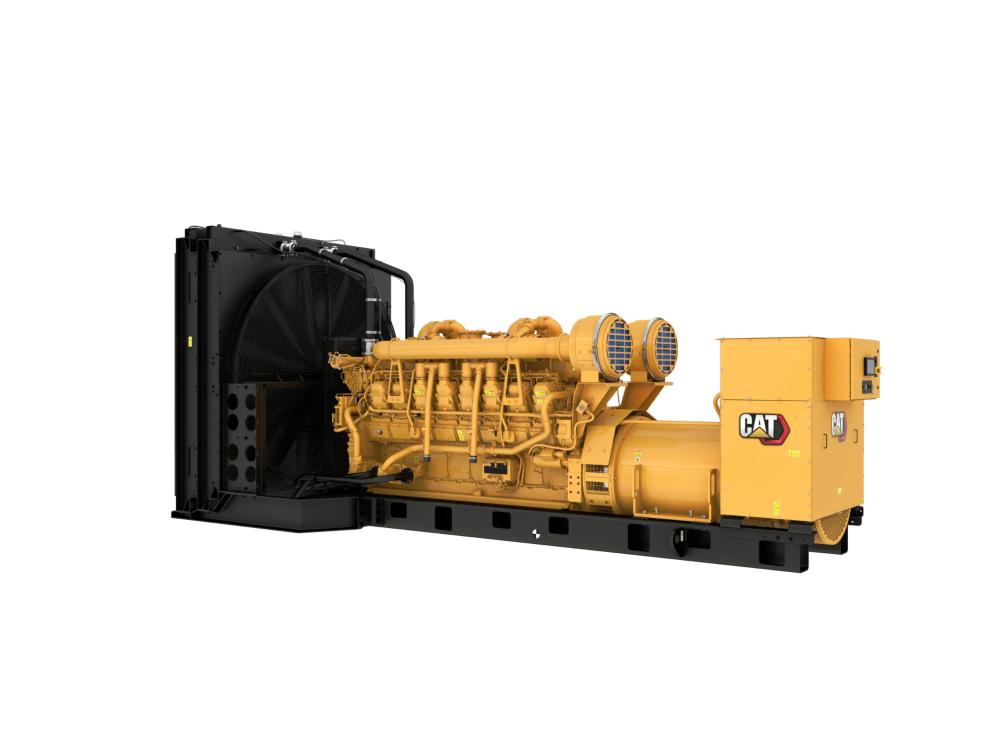

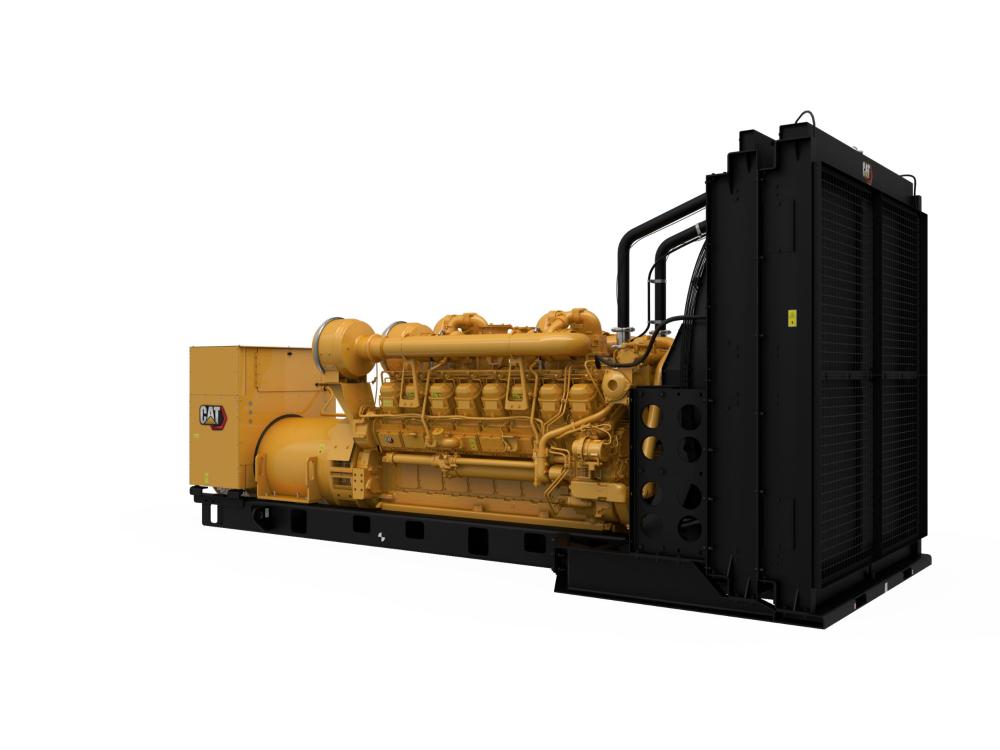

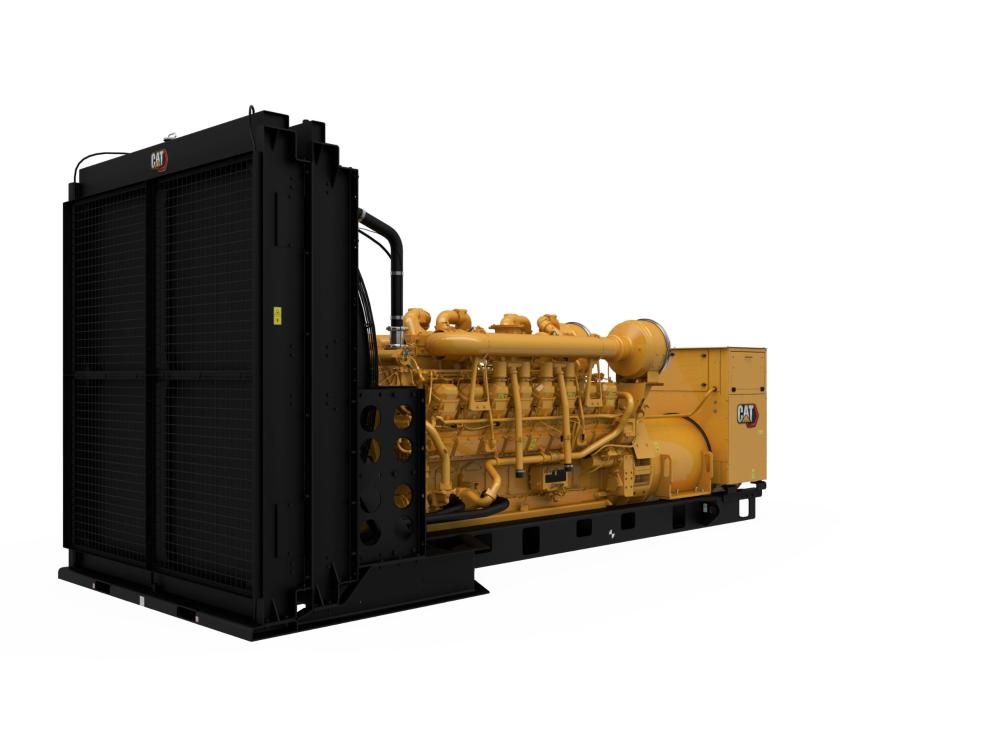

3516B (50 Hz) Generator Set

Units of measurement :

Metric

Imperial

Standby Rating

2500 kVA

Prime Power Rating

2275 kVA

Emissions/Fuel Strategy

Low Fuel, Low Emissions

Availability

Purchase Rental Used

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Optimised for 8% Lower Fuel Consumption

Demonstrated savings in operating costs

Over 4,000,000,000 Global Operating Hours

Proven performance in heavy-duty applications

Over 200,000 Shipped

Since 1981, leading the large engine market

Cat Generator Set Package

Cat Diesel Engine

SR5 Alternator

Cat ECS Control Panel

Cooling System

Certifications

Single-Source Supplier

Worldwide Product Support

Cat generator set packages have been fully prototype tested
Accepts 100% block load in one step and meets NFPA 110 loading requirements
Conform to ISO 8528-5 steady state and transient response requirements

Electric Power Ratings Guide.pdf 3516B, 50 Hz, 2500 kVA Standby_MC, 2275 kVA Prime, 2000 kVA Cont., Low Fuel Consumption and Low Emissions Spec Sheet.pdf 3516B, 50 Hz, 2275 kVA, Prime-DCP, Low Fuel or Low Emissions Spec Sheet.pdf

Generator Set Specifications

Standby Rating	2500 kVA
Prime Power Rating	2275 kVA
Emissions/Fuel Strategy	Low Fuel, Low Emissions
Voltage	380 to 11000 Volts
Frequency	50 Hz
Speed	1500 rpm
Duty Cycle	Standby, Mission Critical, Prime, Continuous
Maximum Rating	2500 kVA
Minimum Rating	2000 kVA

Engine Model	3516B TA, V-16, 4-Stroke Water-Cooled Diesel
Bore	170 mm	6.69 in
Stroke	215 mm	8.46 in
Displacement	78.08 l	4764.73 in
Compression Ratio	15.5:1
Aspiration	TA
Fuel System	Electronic unit injection
Governor Type	Adem™3

Length - Minimum	5928 mm	233.4 in
Length - Maximum	6377 mm	251.7 in
Width - Maximum	2286 mm	90 in
Height - Maximum	2367 mm	93.2 in
Dry Weight - Genset (minimum)	14470 kg	31900 lb
Dry Weight - Genset (maximum)	18290 kg	40320 lb
