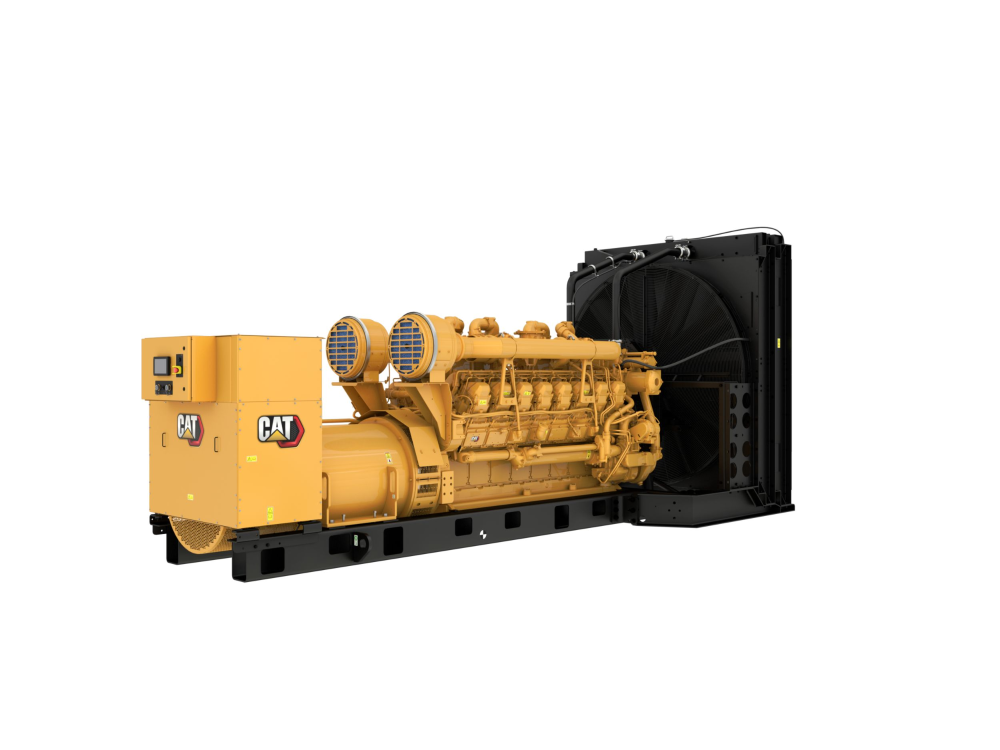

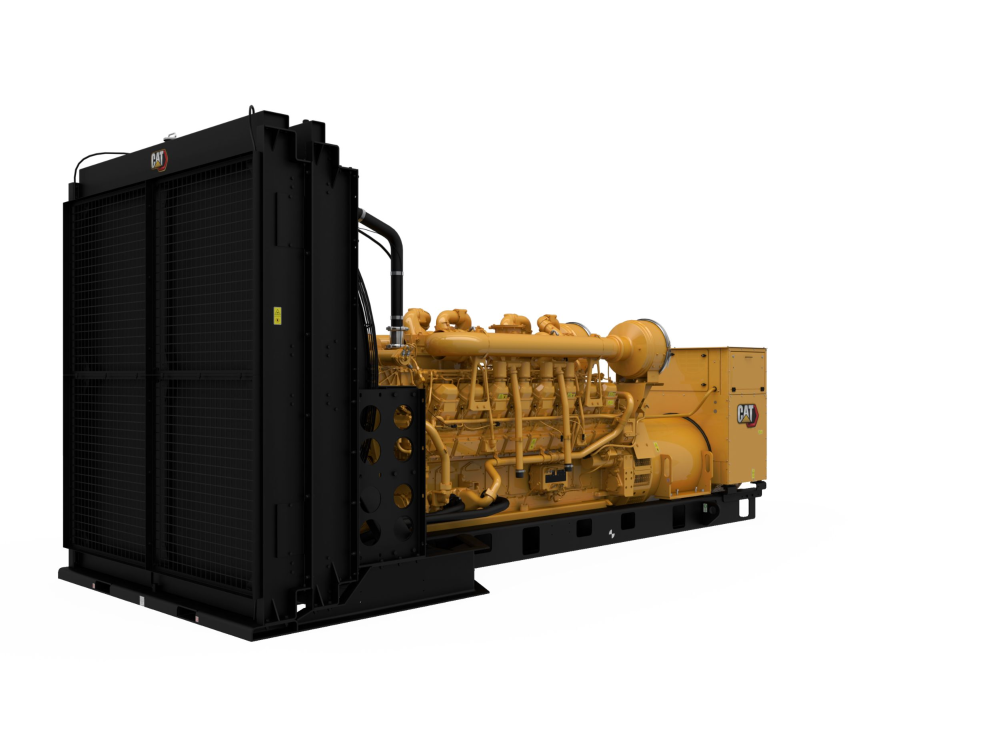

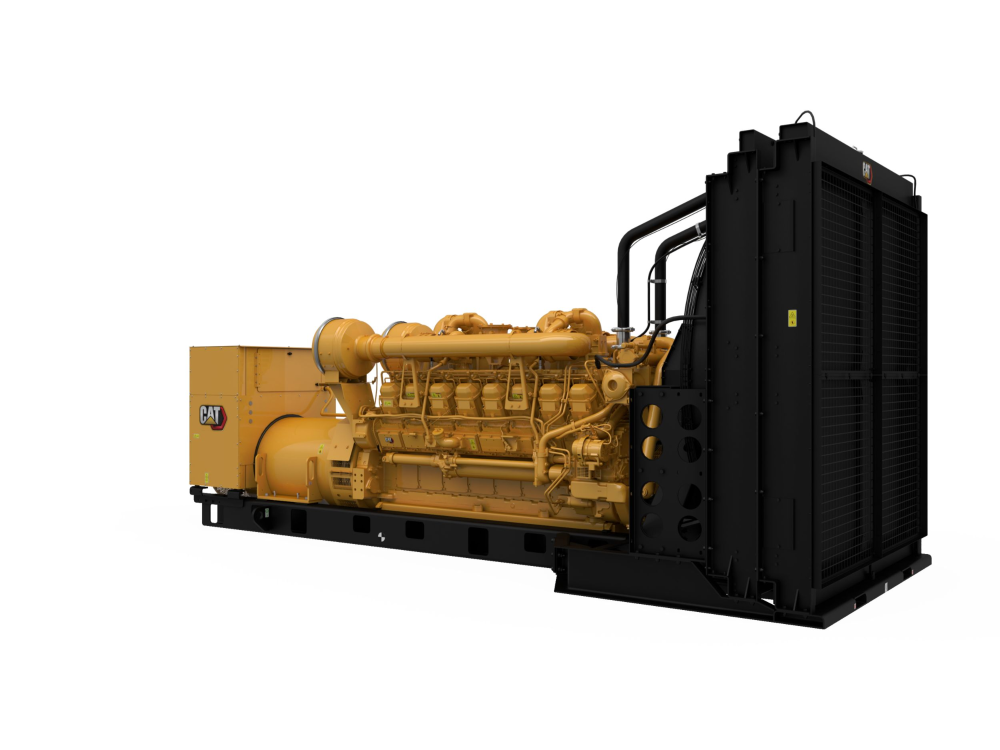

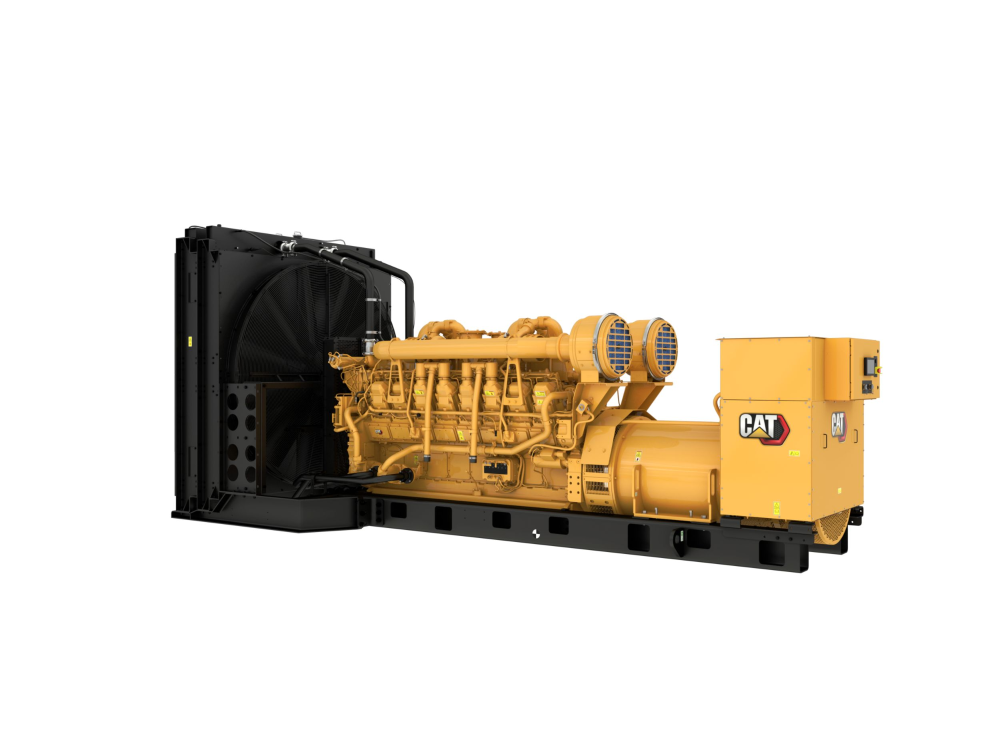

3516B Generator Set

Units of measurement :

Metric

Imperial

Standby Rating

2250 kVA

Prime Power Rating

2000 kVA

Emissions/Fuel Strategy

Low Fuel, Low Emissions

Availability

Purchase Rental Used

The 3516B diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. Producing reliable power from 1750 to 2500 kVA at 50 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and to accept 100 % rated load in one step. Our integrated control system keeps you connected through on-site and remote monitoring options. We offer easy-to-use EMCP control panel options, combining your management and diagnostic tools in one. The EMCP 4.4 controller provides multi-generator set paralleling capability, giving you the ability to add generator sets to match your growing power requirements. It's not just quality that matters but customization, choose from a broad range of accessories and bolt-on system expansion attachments. Find flexible packaging to fit unique spatial requirements and environmental conditions. Our 3516B generator sets are developed for such prerequisites, so that you can meet your specific power needs.

Over 200,000 Shipped

Since 1981, leading the large engine market

Over 4,000,000,000 Global Operating Hours

Proven performance in heavy-duty applications

Optimised for 8% Lower Fuel Consumption

Demonstrated savings in operating costs

Cat Generator Set Package

Cat Diesel Engine

SR5 Alternator

Cat ECS Control Panel

Cooling System

Certifications

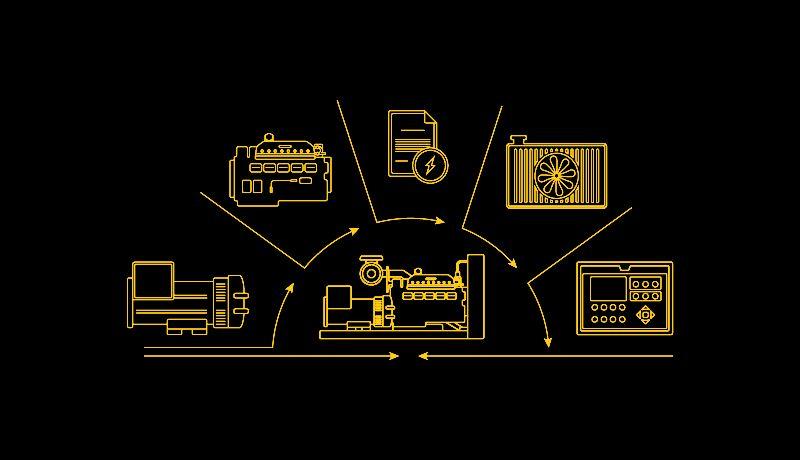

One Safe Source

Worldwide Product Support

Cat generator set packages have been fully prototype tested
Accepts 100% block load in one step and meets NFPA 110 loading requirements
Conform to ISO 8528-5 steady state and transient response requirements

Electric Power Ratings Guide.pdf 3516B, 50 Hz, 2250 kVA Standby_MC, 2000 kVA Prime, 1750 kVA Cont., Low Fuel Consumption or Low Emissions Spec Sheet.pdf 3516B, 50 hz, 2000 kVA, Prime-DCP, Low Fuel Consumption or Low Emissions Spec Sheet.pdf

Generator Set Specifications

Standby Rating	2250 kVA
Prime Power Rating	2000 kVA
Emissions/Fuel Strategy	Low Fuel, Low Emissions
Voltage	380 to 11000 Volts
Frequency	50 Hz
Speed	1500 rpm
Duty Cycle	Standby, Mission Critical, Prime, Continuous
Maximum Rating	2250 kVA
Minimum Rating	1750 kVA

Engine Model	3516B TA, V-16, 4-Stroke Water-Cooled Diesel
Bore	170 mm	6.69 in
Stroke	190 mm	7.48 in
Displacement	4210.64 l	69 in
Compression Ratio	14.0:1
Aspiration	TA
Fuel System	Electronic unit injection
Governor Type	Adem™3

Length - Minimum	5928 mm	233.4 in
Length - Maximum	251.7 mm	6377 in
Width - Maximum	2286 mm	90 in
Height - Maximum	2367 mm	93.2 in
Dry Weight - Genset (minimum)	14470 kg	31900 lb
Dry Weight - Genset (maximum)	18290 kg	40320 lb
