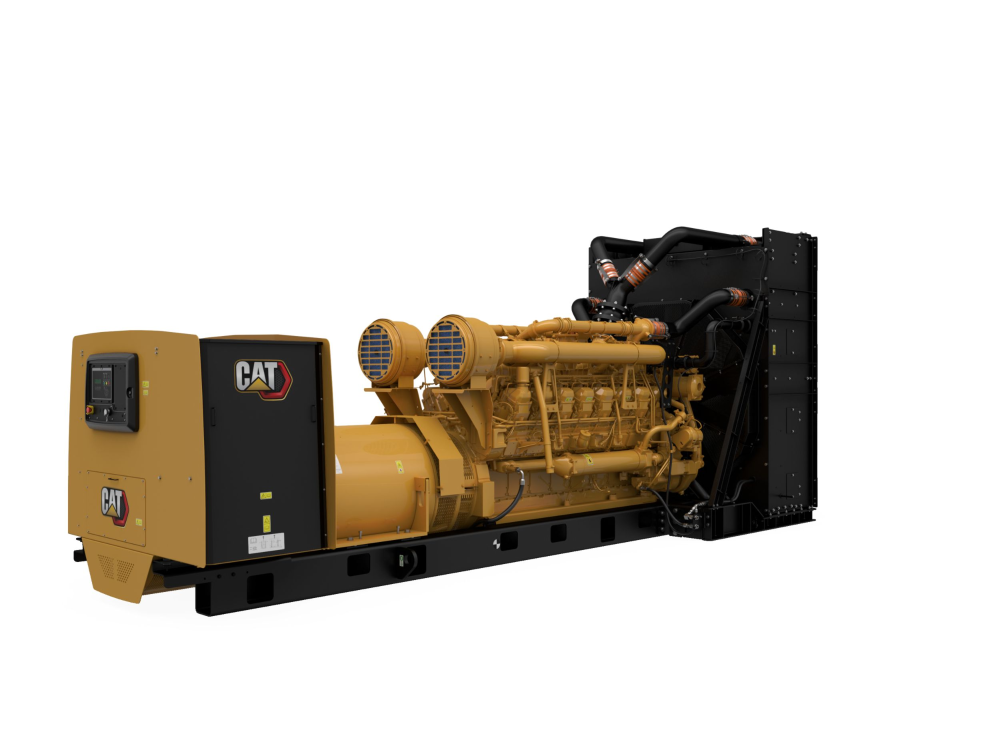

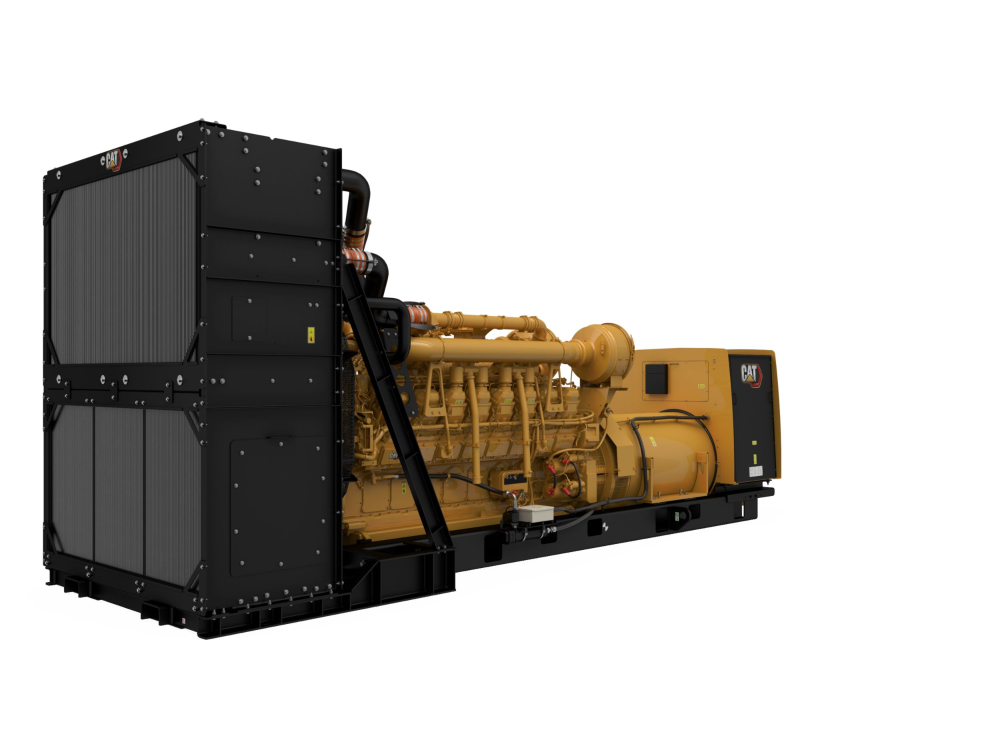

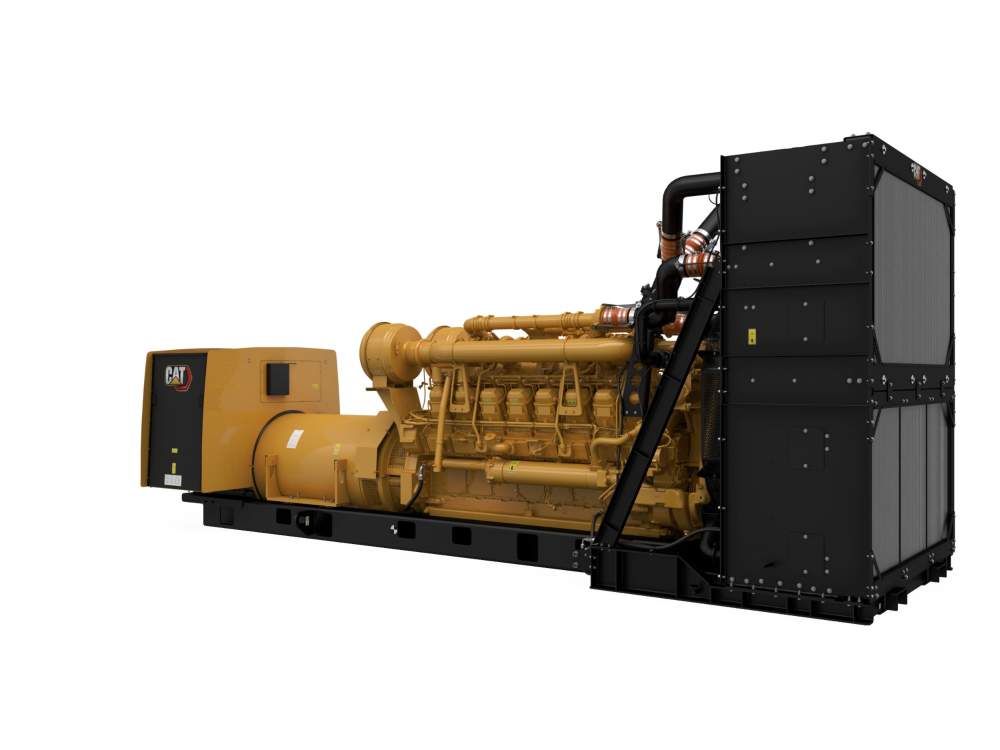

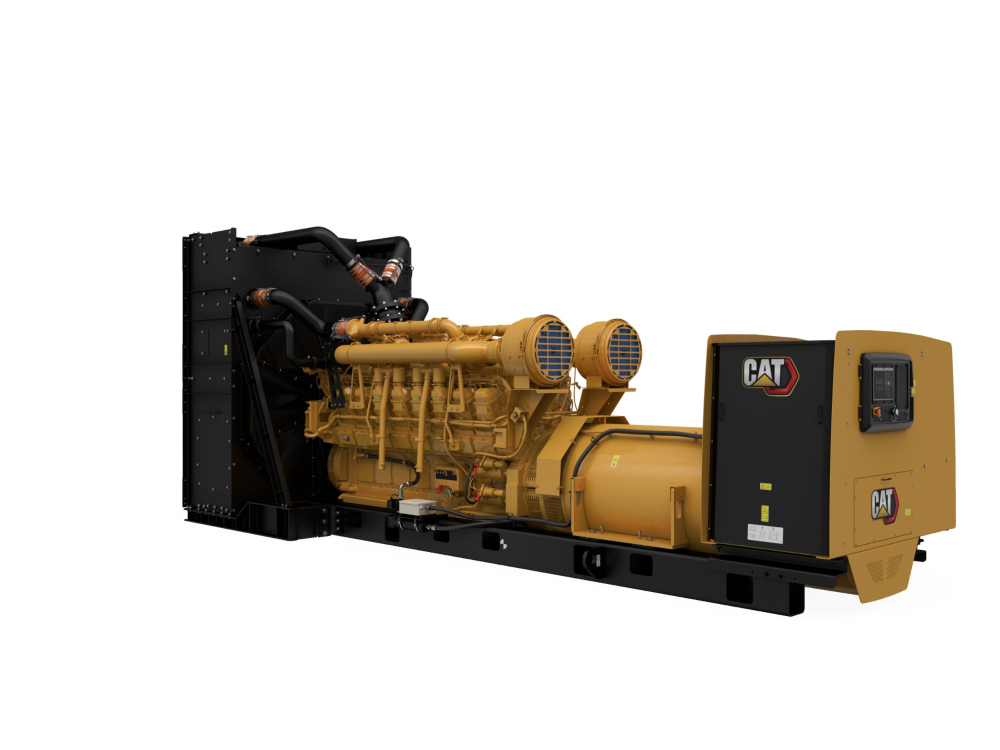

3516C (50 Hz) with Upgradeable Package

Units of measurement :

Metric

Imperial

Standby Rating

2750 kVA

Prime Power Rating

2500 kVA

Emissions/Fuel Strategy

Low Fuel Consumption

Availability

Purchase Rental Used

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Optimised for 9% Lower Fuel Consumption

Demonstrated savings in operating costs

Over 200,000 Shipped

Since 1981, leading the large engine market

Over 4,000,000,000 Global Operating Hours

Proven performance in heavy-duty applications

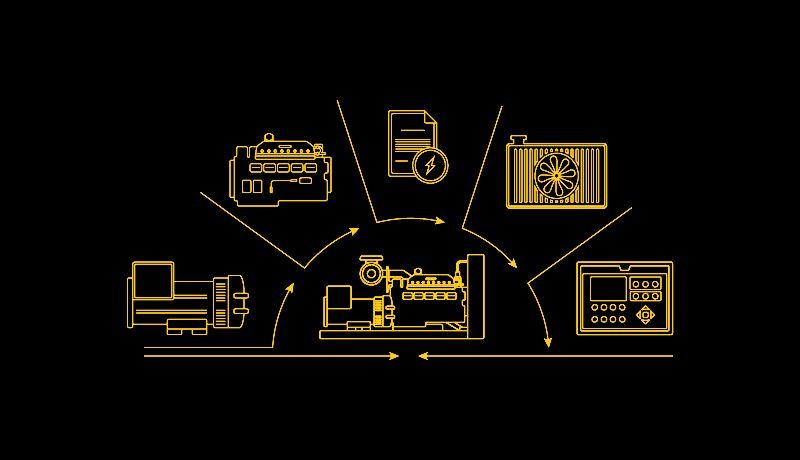

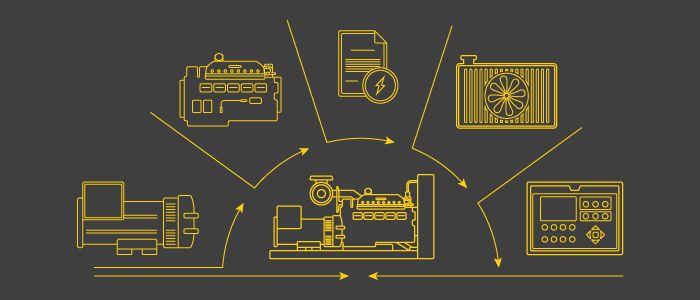

Cat Generator Set Package

Cat Diesel Engine

SR5 Alternator

EMCP 4 Control Panel

Cooling System

Certifications

One Safe Source

Worldwide Product Support

Cat generator set packages have been fully prototype tested
Accepts 100% block load in one step and meets NFPA 110 loading requirements
Conform to ISO 8528-5 steady state and transient response requirements

Electric Power Ratings Guide.pdf 3516C, 50 Hz, 2500 - 2750 kVA, Low Fuel Consumption Spec Sheet.pdf 3516C, 50 Hz, 2500 - 2750 kVA, Low Emissions Spec Sheet.pdf 3516C, 50 Hz, 2500 kVA, Prime-DCP, Low Fuel Consumption Spec Sheet.pdf 3516C, 50 Hz, 2500 kVA, Prime-DCP, Low Emissions Spec Sheet.pdf

Generator Set Specifications

Standby Rating	2750 kVA
Prime Power Rating	2500 kVA
Emissions/Fuel Strategy	Low Fuel Consumption
Voltage	380 to 11000 volts
Frequency	50 Hz
Speed	1500 rpm
Duty Cycle	Standby, Mission Critical, Prime
Maximum Rating	2750 kVA
Minimum Rating	2500 kVA

Engine Model	3516C, ATAAC, V-16,4-Stroke Water-Cooled Diesel
Bore	170 mm	6.69 in
Stroke	215 mm	8.46 in
Displacement	78 l	4765 in
Compression Ratio	14:01
Aspiration	TA
Fuel System	Electronic unit injection
Governor Type	Adem™3

Length - Maximum	5800 mm	228.3 in
Width - Maximum	1929 mm	75.9 in
Height - Maximum	2050 mm	80.7 in
Dry Weight - Genset (maximum)	14698 kg	32404 lb
