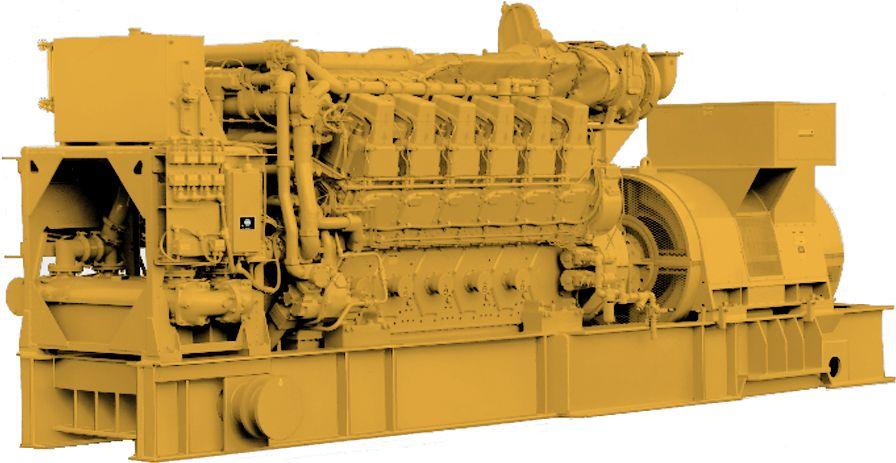

3612 Generator Set (Medium Speed)

Units of measurement :

Metric

Imperial

Maximum Rating

4850 kVA

Minimum Rating

4400 kVA

Emissions/Fuel Strategy

Low Fuel Consumption

Availability

Purchase Rental Used

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Over 200,000,000 Operating hours

at Global locations

Up to 10% Better Fuel Economy

Demonstrated savings

Over 20% Reduction in Service Time

Two inspection ports per cylinder, segmented camshafts and individual heads ease service

Cat Diesel Engine

Generator

Worldwide Product Support

Full Range of Attachments

Reliable, rugged, durable design
Field-proven in thousands of applications worldwide
Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight

Electric Power Ratings Guide.pdf 3612, 50 Hz, 4300 ekW Standby, 3880 ekW Prime, 3520 ekW Cont., Low Fuel Consumption Spec Sheet.pdf

Generator Set Specifications

Maximum Rating	4850 kVA
Minimum Rating	4400 kVA
Emissions/Fuel Strategy	Low Fuel Consumption
Frequency	50 Hz
Speed	750 & 1000 rpm
Duty Cycle	Prime, Continuous

Engine Specifications

Generator Set Dimensions

You might also be interested in:

3612 Generator Set (Medium Speed)

Engine Model	3612 V-12,4-Stroke Water-Cooled Diesel
Bore	280 mm	11 in
Stroke	300 mm	11.8 in
Displacement	222 l	13524 in³
Compression Ratio	13:01
Aspiration	TA
Fuel System	Direct unit injection
Governor Type	Generator Set Monitoring System (GMS)

Length - Maximum	10261.7 mm	404 in
Width - Maximum	2530.3 mm	99.62 in
Height - Maximum	3977.7 mm	156.6 in
Dry Weight - Genset (maximum)	51230 kg	112690 lb
