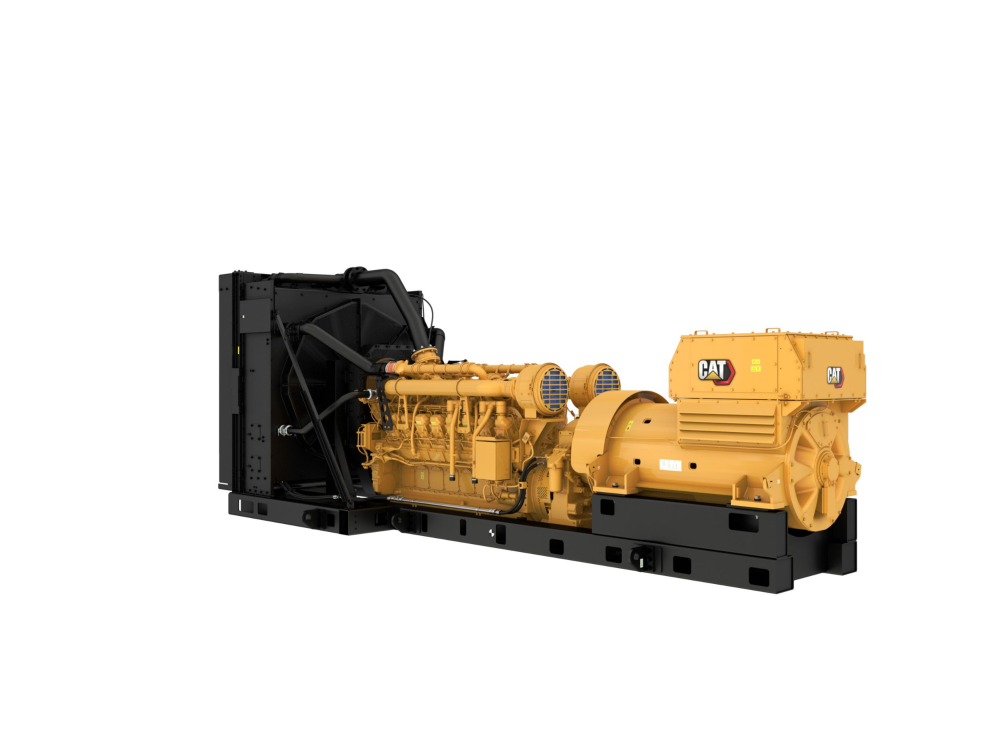

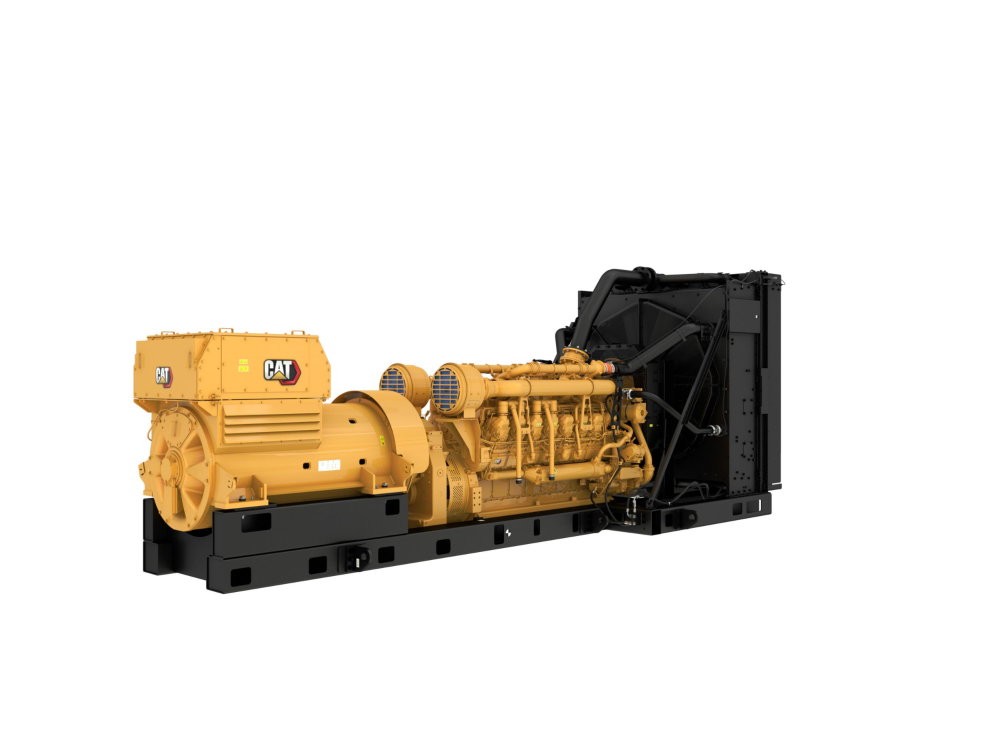

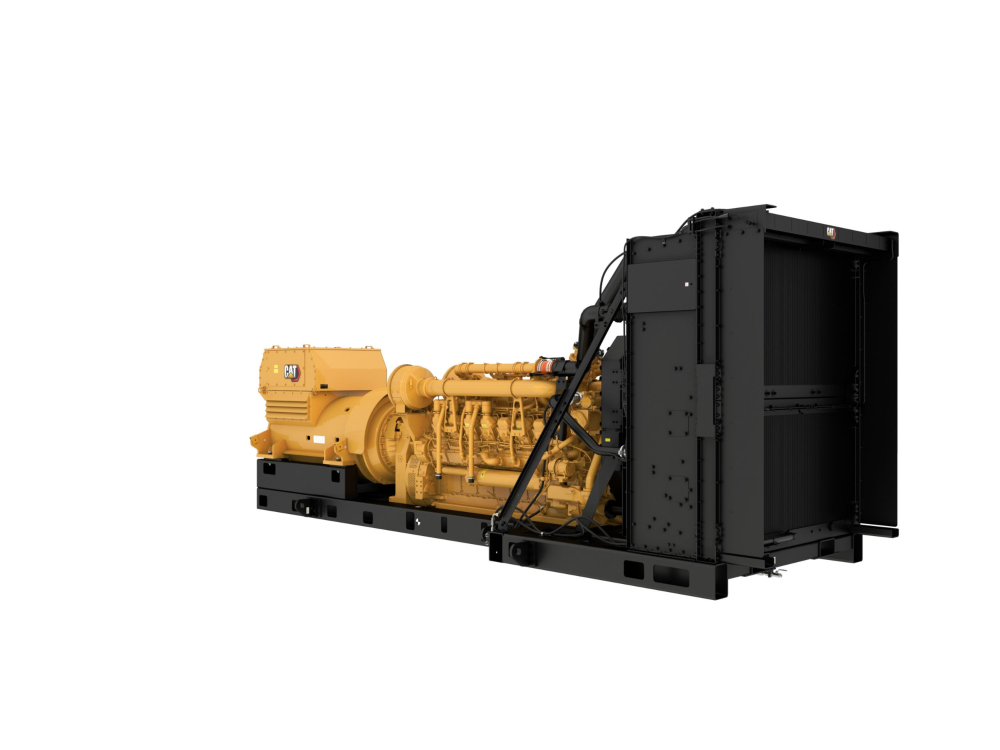

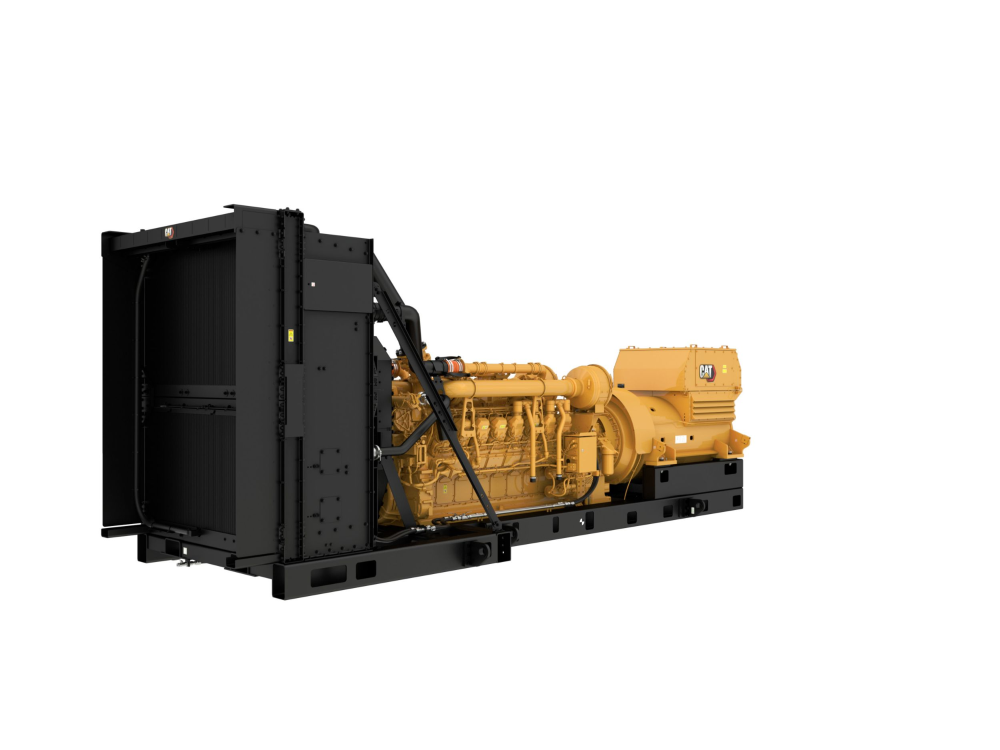

3516E Generator Set

Units of measurement :

Metric

Imperial

Maximum Rating

3500 kVA

Minimum Rating

3000 kVA

Emissions/Fuel Strategy

Tier 2 Equivalent - 1800 rpm

Availability

Purchase Rental Used

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Over 4,000,000,000 Accumulated Operating Hours

Proven performance in heavy-duty applications

Weighs up to 19% less

Reduced amount of structural support required

Full Power up to 50°C Ambient

Provides full power even on hottest days of the year

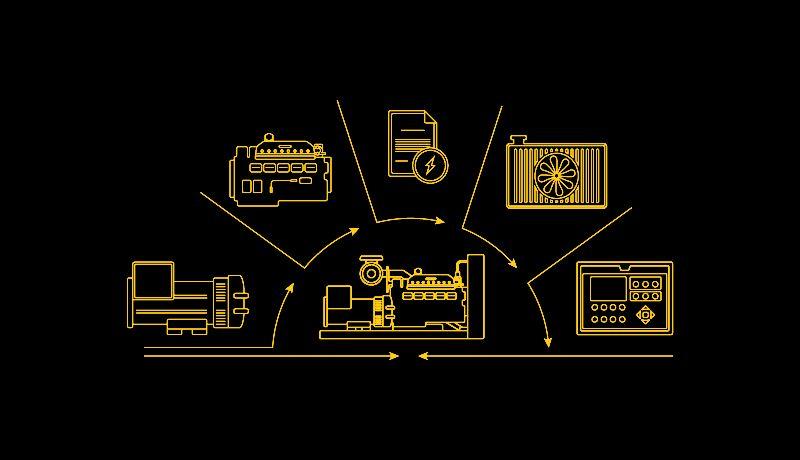

Cat Generator Set Package

Cat Diesel Engine

SR5 Alternator

Cat Control Panel

Cooling System

Certifications

One Safe Source

Worldwide Product Support

Cat generator set packages have been fully prototype tested
Accepts 100% block load in one step and meets NFPA 110 loading requirements
Conform to ISO 8528-5 steady state and transient response requirements

Electric Power Ratings Guide.pdf 3516E, 50 Hz, 3500 kVA, Tier 2 Spec Sheet.pdf

Generator Set Specifications

Maximum Rating	3500 kVA
Minimum Rating	3000 kVA
Emissions/Fuel Strategy	Tier 2 Equivalent - 1800 rpm
Voltage	380 to 11000 volts
Frequency	50 Hz
Speed	1800 rpm
Duty Cycle	Standby, Mission Critical

Engine Model	3516E, V-16, 4-Stroke Water-Cooled Diesel
Bore	170 mm	6.69 in
Stroke	215 mm	8.46 in
Displacement	78.1 l	4765 in³
Compression Ratio	14.7:1
Aspiration	ATAAC
Fuel System	Electronic Unit Injection
Governor Type	Adem™5

Length - Minimum	8513 mm	335.1 in
Length - Maximum	8513 mm	335.1 in
Width - Minimum	2640 mm	104 in
Width - Maximum	2460 mm	104 in
Height - Minimum	3342 mm	132.6 in
Height - Maximum	3342 mm	131.6 in
Dry Weight - Genset (minimum)	21600 kg	47620 lb
Dry Weight - Genset (maximum)	23000 kg	50706 lb
