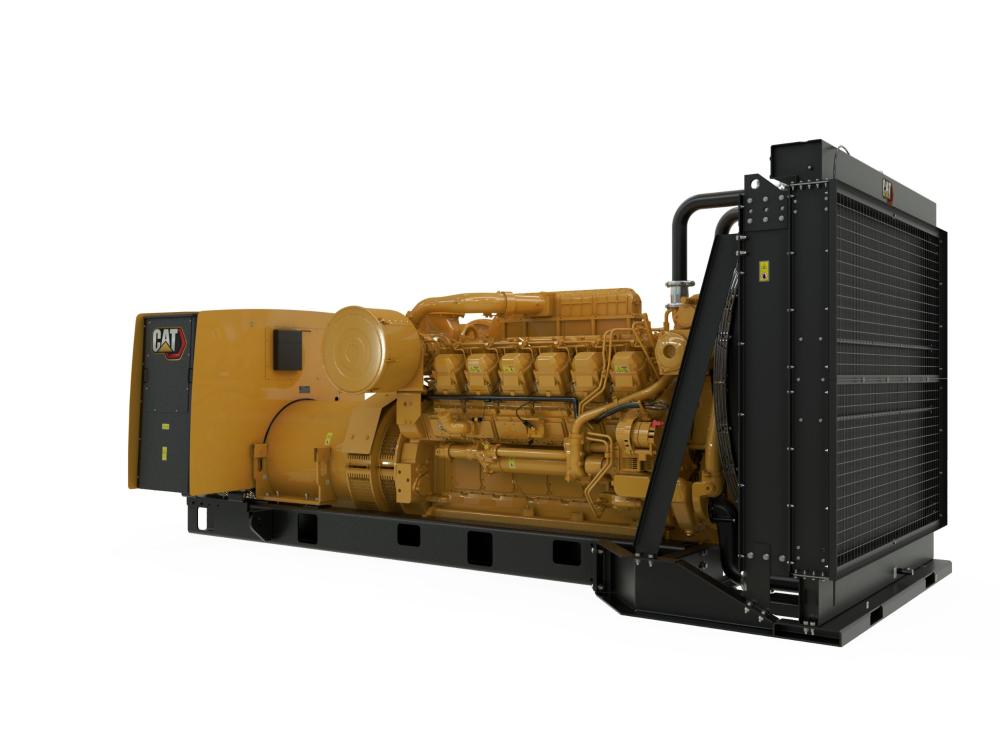

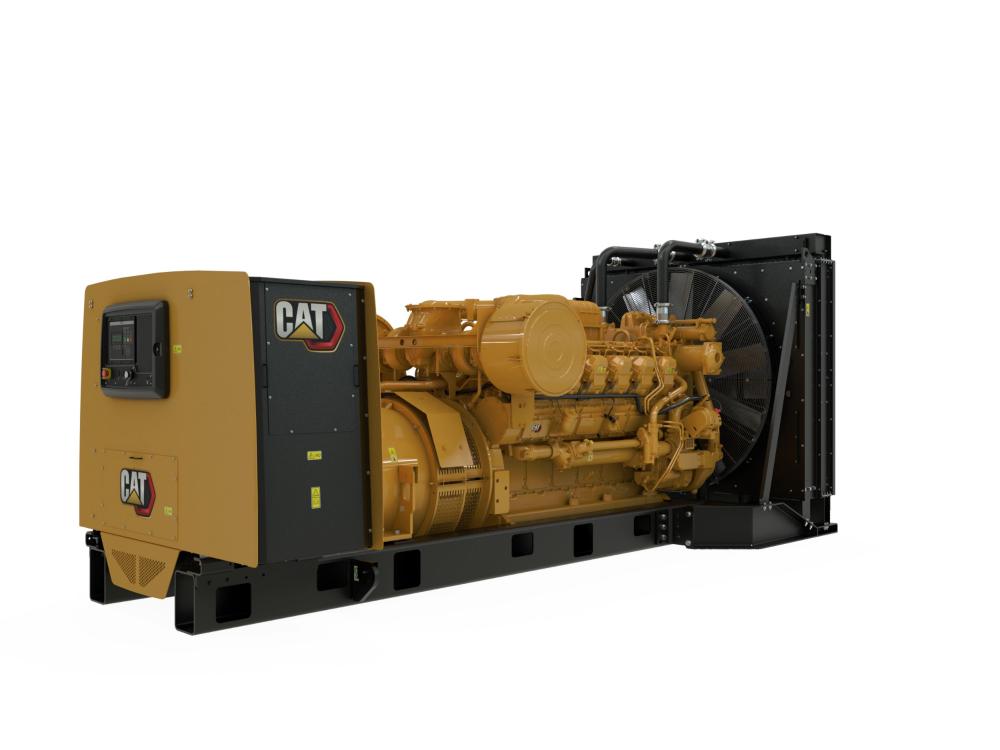

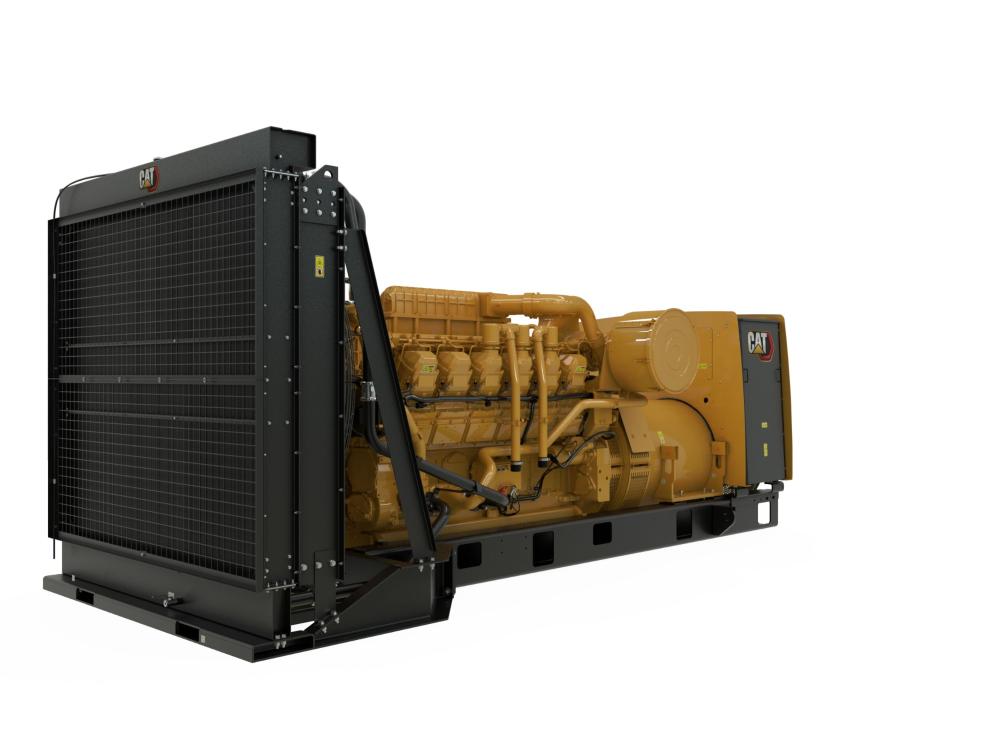

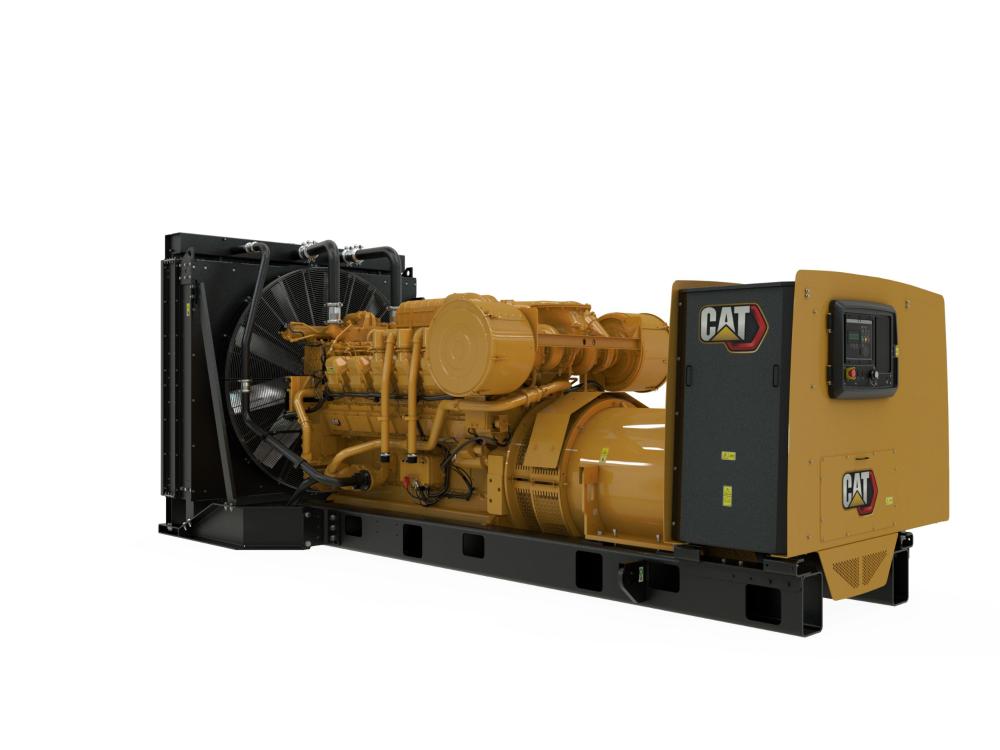

3512B Diesel Generator Set

Units of measurement :

Metric

Imperial

Standby Rating

1625/1600/1500 kVA

Prime Power Rating

1500/1360 kVA

Emissions/Fuel Strategy

Low Fuel , Low Emissions

Availability

Purchase Rental Used

The 3512B generator set has been developed for a wide range of applications, from emergency standby installations such as healthcare and datacenters to continuously powering remote installations. The packages can be optimized for performance that matters to you with either low emissions or low fuel consumption versions available. Backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty, Cat generator sets will provide the reliability and durability you expect.

Over 4,000,000,000 Global Operating hours

Proven performance in heavy-duty applications

Over 200,000 Shipped

Since 1981, leading the large engine market

Optimised for 11% Lower Fuel Consumption

Demonstrated savings in operating costs

Cat Generator Set Package

Cat Diesel Engine

SR5 Alternator

EMCP 4 Control Panel

Cooling System

Certifications

One Safe Source

World Wide Product Support

Cat generator set packages have been fully prototype tested
Accepts 100% block load in one step and meets NFPA 110 loading requirements
Conform to ISO 8528-5 steady state and transient response requirements

Electric Power Ratings Guide.pdf 3512B, 50 Hz, 1625 kVA Standby_MC, 1500 kVA Prime, 1320 kVA Cont., Low Fuel Consumption or Low Emissions Spec Sheet.pdf 3512B Upgradeable, 50 Hz, 1500 kVA Low Fuel Consumption or Low Emissions Spec Sheet.pdf 3512B Upgradeable, 50 Hz, 1600 kVA Low Fuel Consumption or Low Emissions Spec Sheet.pdf 3512B, 50 Hz, 1500 kVA, Prime-DCP, Low Fuel Consumption or Low Emissions Spec Sheet.pdf 3512B, 50 Hz, 1360 kVA, Prime-DCP, Low Fuel Consumption or Low Emissions Spec Sheet.pdf

Generator Set Specifications

Standby Rating	1625/1600/1500 kVA
Prime Power Rating	1500/1360 kVA
Emissions/Fuel Strategy	Low Fuel , Low Emissions
Voltage	400 to 415 Volts
Frequency	50 Hz
Speed	1500 rpm
Duty Cycle	Standby, Mission Critical, Prime, Continuous
Minimum Rating	1360 kVA
Maximum Rating	1625 kVA

Engine Model	3512B TA, V-12, 4-Stroke Water-Cooled Diesel
Bore	170 mm	6.69 in
Stroke	190 mm	7.48 in
Displacement	51.8 l	3161.03 in³
Compression Ratio	14.0:1
Aspiration	TA
Fuel System	Electronic Unit Injection
Governor Type	ADEM™ A3

Length - Minimum	5404 mm	212.8 in
Length - Maximum	5515 mm	217.1 in
Width - Minimum	2286 mm	90 in
Width - Maximum	2286 mm	90 in
Height - Minimum	2411 mm	94.9 in
Height - Maximum	2411 mm	94.9 in
Dry Weight - Genset (minimum)	11621 kg	25620 lb
Dry Weight - Genset (maximum)	12034 kg	26530 lb
