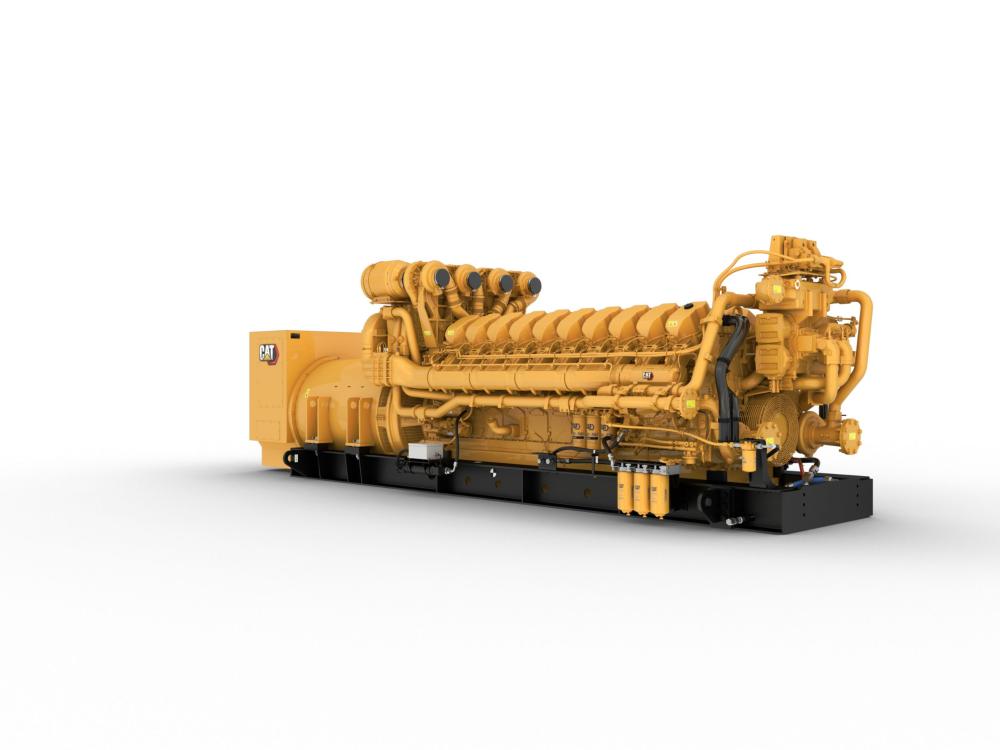

C175-20

Units of measurement :

Metric

Imperial

Standby Rating

4000(no fan)/3900 kVA

Prime Power Rating

3600(no fan)/3500 kVA

Emissions/Fuel Strategy

Low Fuel, Low Emissions

Availability

Purchase Rental Used

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Over 20,000,000 Operating hours

at Global locations

Over 3000 units

In the field

Highest Rated Tier 4 Product

Available on the market

Cat Generator Set Package

Cat Diesel Engine

SR5 Alternator

Cat ECS Control Panel

Cooling System

Certifications

One Safe Source

Cat generator set packages have been fully prototype tested
Accepts 100% block load in one step and meets NFPA 110 loading requirements
Conform to ISO 8528-5 steady state and transient response requirements

Electric Power Rating Guide.pdf C175 Generator Sets Product Brochure.pdf C175-20, 50 Hz, 3900 kVA Standby_MC, 3500 kVA Prime, 3150 kVA Cont., Low Fuel Consumption _ Low Emissions (with fan) Spec Sheet.pdf C175-20, 50 Hz, 4000 kVA Standby_MC, 3600 kVA Prime, 3250 kVA Cont., Low Fuel Consumption _ Low Emissions (without fan) Spec Sheet.pdf C175-20, 50 Hz, 3500 kVA, Prime-DCP, Low Fuel Consumption (with fan) Spec Sheet.pdf C175-20, 50 Hz, 3600 kVA, Prime-DCP, Low Fuel Consumption (without fan) Spec Sheet.pdf

Generator Set Specifications

Standby Rating	4000(no fan)/3900 kVA
Prime Power Rating	3600(no fan)/3500 kVA
Emissions/Fuel Strategy	Low Fuel, Low Emissions
Voltage	3300 to 11000 Volts
Frequency	50 Hz
Speed	1500 RPM
Duty Cycle	Standby, Mission Critical, Prime, Continuous
Maximum Rating	4000 kVA
Minimum Rating	3150 kVA

Engine Model	C175-20 SCAC, V-20, 4-Stroke Water-Cooled Diesel
Bore	175 mm	6.89 in
Stroke	220 mm	8.66 in
Displacement	105.8 l	6456.31 in³
Compression Ratio	15.3:1
Aspiration	Turbo Aftercooled
Fuel System	Common Rail
Governor Type	ADEM� A4

Length - Minimum	6642.8 mm	261.5 in
Length - Maximum	8397 mm	330.6 in
Width - Minimum	2170.2 mm	85.4 in
Width - Maximum	8397 mm	330.6 in
Height - Minimum	2224.3 mm	87.6 in
Height - Maximum	3827 mm	150.7 in
Dry Weight - Genset (minimum)	25000 kg	55100 lb
Dry Weight - Genset (maximum)	30000 kg	66200 lb
