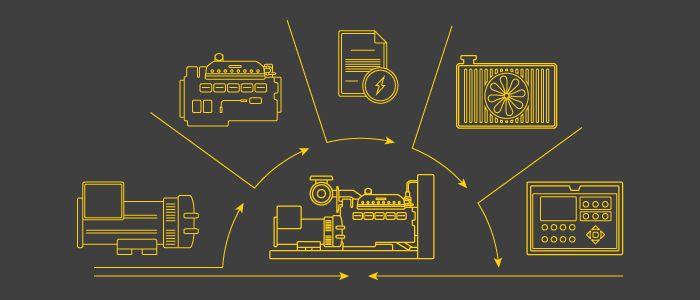

Cat Generator Set Package
Cat Generator Set Package
Cat Diesel Engine
M-Frame Alternator
GCCP Control Panel
Cooling System
Certifications
One Safe Source
World Wide Product Support
World Wide Product Support
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Fully prototype tested with certified torsional vibration analysis available
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Generator Set Specifications
| Minimum Rating |
50.0 kVA |
| Maximum Rating |
50.0 kVA |
| Emissions/Fuel Strategy |
Non Regulated |
| Voltage |
220 to 415 Volts |
| Frequency |
50 Hz |
| Speed |
1500 rpm |
| Duty Cycle |
Standby |
Engine Specifications
| Engine Model |
Cat® C3.3 |
| Bore |
105 mm |
4.1 in |
| Stroke |
127 mm |
5 in |
| Displacement |
3.3 l |
201.4 in³ |
| Compression Ratio |
17.25:1 |
| Aspiration |
Turbocharged |
| Fuel System |
Inline |
| Governor Type |
Mechanical |
Generator Set Dimensions
| Length - Maximum |
1925 mm |
75.8 in |
| Width - Maximum |
1120 mm |
44.1 in |
| Height - Maximum |
1361 mm |
53.6 in |
| Dry Weight - Genset (maximum) |
858 kg |
1891 lb |
